Makita UM401D
Makita UM401D: exploded parts diagram, 2 sheets, 116 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UM401D: 116 positions on 2 sheets

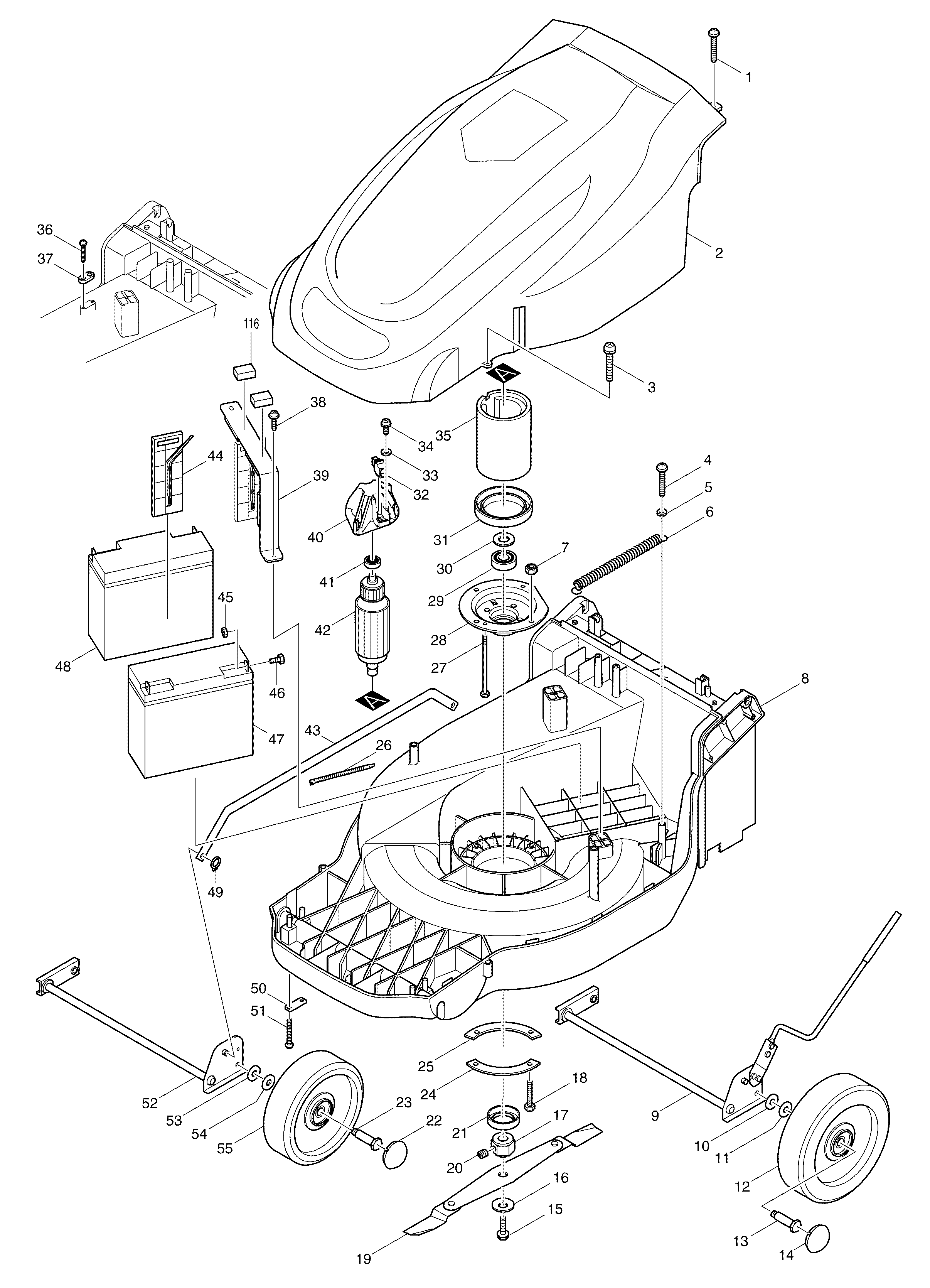

Sheet 1: Makita UM401D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 150725-7 | Makita 150725-7 COWLING COMPLETE |
| 3 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 4 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 5 | 267071-2 | Makita 267071-2 FLAT WASHER 4, MUB062 |
| 6 | 231811-4 | Makita 231811-4 TENSION SPRING 12 |
| 7 | 252014-7 | Makita 252014-7 HEX LOCK NUT M6*10, N5900B |
| 8 | 416208-0 | Makita 416208-0 DECK |
| 9 | 163384-8 | Makita 163384-8 REAR SHAFT |
| 10 | 267052-6 | Makita 267052-6 FLAT WASHER 10 |
| 11 | 267052-6 | Makita 267052-6 FLAT WASHER 10 |
| 12 | 162192-4 | Makita 162192-4 8" WHEEL |
| 13 | 265450-8 | Makita 265450-8 BOLT 3/8-16UNC |
| 14 | 416258-5 | Makita 416258-5 WHEEL CAP |
| 15 | 251690-4 | Makita 251690-4 HEX. FLANGE HEAD BOLT M8X |
| 16 | 232176-7 | Makita 232176-7 CONED DISC SPRING 14 |
| 17 | 331517-5 | Makita 331517-5 BLADE HOLDER |
| 18 | 921362-2 | Makita 921362-2 HEX. BOLT M6X40 |
| 19 | 729015-5 | |
| 20 | 266162-6 | Makita 266162-6 HEX. SOCKET HEAD SCREW M8 X8 |
| 21 | 344550-8 | Makita 344550-8 DUST COVER |
| 22 | 416258-5 | Makita 416258-5 WHEEL CAP |
| 23 | 265450-8 | Makita 265450-8 BOLT 3/8-16UNC |
| 24 | 344561-3 | Makita 344561-3 FIX PLATE |
| 25 | 344561-3 | Makita 344561-3 FIX PLATE |
| 26 | 687092-2 | Makita 687092-2 BAND |
| 27 | 265448-5 | Makita 265448-5 HEX. BOLT M5X115 |
| 28 | 344460-9 | Makita 344460-9 BEARING BOX |
| 29 | 211256-2 | Makita 211256-2 BALL BEARING 6203LLB, LS1040 |
| 30 | 267038-0 | Makita 267038-0 FLAT WASHER 17 |
| 31 | 416259-3 | Makita 416259-3 PLATE |
| 32 | 191965-8 | Makita 191965-8 CB-423 Carbon Brushes for UM401D |
| 33 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 34 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 35 | 632781-4 | Makita 632781-4 YOKE PCE |
| 36 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 37 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 38 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 39 | 150680-3 | Makita 150680-3 BATTERY HOLDER COMPLETE |
| 40 | 416202-2 | Makita 416202-2 END BELL |
| 41 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 42 | 125069-4 | |
| 43 | 344462-5 | Makita 344462-5 CONNECTING ROD |
| 44 | 632784-8 | Makita 632784-8 THERMAL CUT OFF COMPLETE |
| 45 | 652111-3 | Makita 652111-3 HEX. NUT M5 |
| 46 | 652035-3 | Makita 652035-3 + HEX. BOLT M5X12 |
| 47 | 678118-1 | |
| 48 | 678118-1 | |
| 49 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 50 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 51 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 52 | 163385-6 | Makita 163385-6 FRONT SHAFT |
| 53 | 267052-6 | Makita 267052-6 FLAT WASHER 10 |
| 54 | 267052-6 | Makita 267052-6 FLAT WASHER 10 |
| 55 | 162191-6 | Makita 162191-6 7" WHEEL |
| 116 | 421585-7 | Makita 421585-7 SPONGE SHEET B |

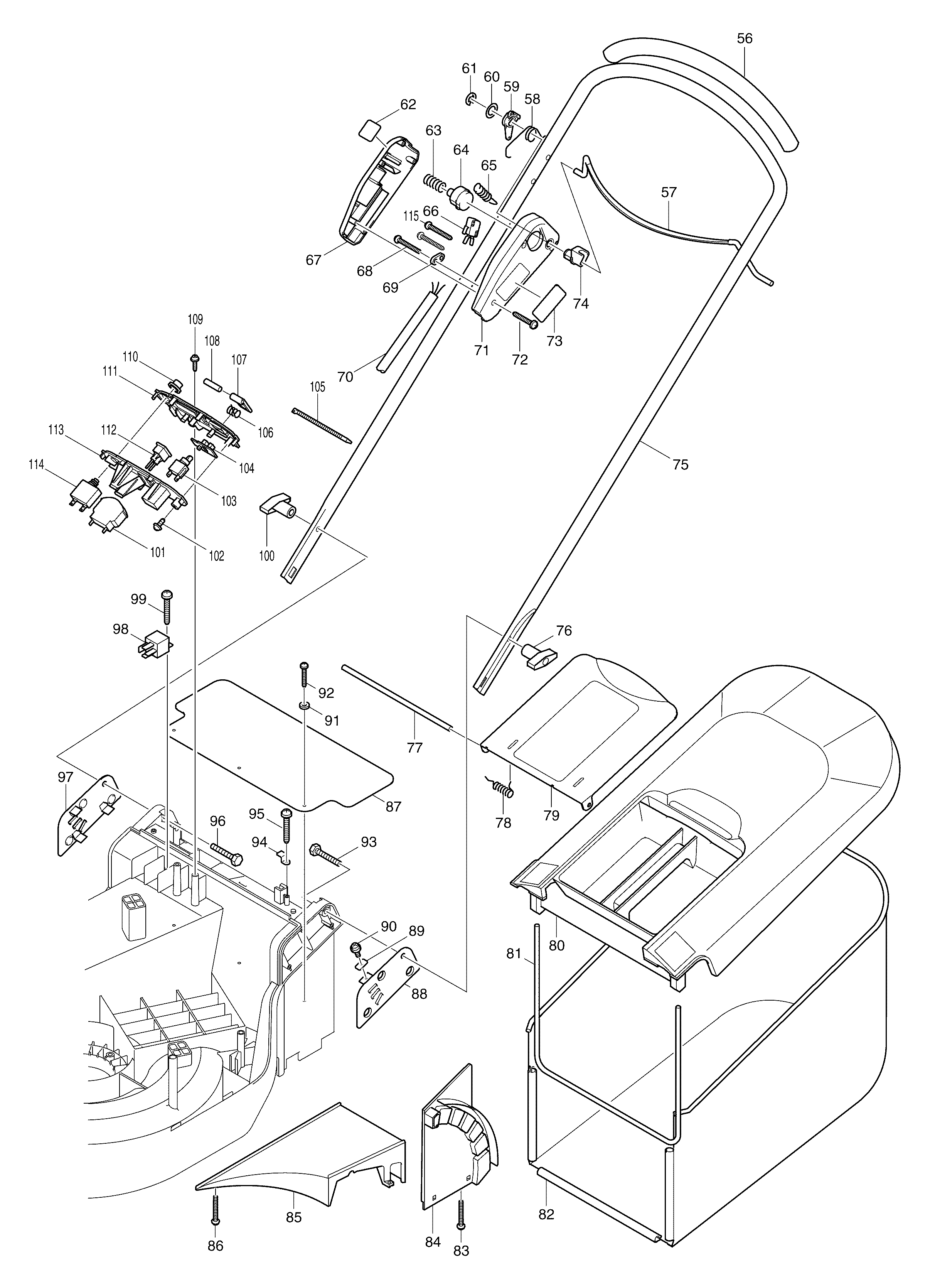

Sheet 2: Makita UM401D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 56 | 421580-7 | Makita 421580-7 HANDLE CUSHION |
| 57 | 331499-1 | Makita 331499-1 SWITCH LEVER |
| 58 | 231628-5 | Makita 231628-5 TORSION SPRING 20 |
| 59 | 416198-7 | Makita 416198-7 LEVER |
| 60 | 253315-6 | Makita 253315-6 THIN WASHER 15 |
| 61 | 961062-2 | Makita 961062-2 STOP RING E-12, 439 |
| 62 | 816768-6 | Makita 816768-6 INDICATION LABEL |
| 63 | 233182-5 | Makita 233182-5 COMPRESSION SPRING 16 |
| 64 | 416216-1 | Makita 416216-1 SWITCH BUTTON |
| 65 | 231812-2 | Makita 231812-2 TENSION SPRING 5 |
| 66 | 651948-5 | Makita 651948-5 SWITCH |
| 67 | 416201-4 | Makita 416201-4 SWITCH BOX COVER |
| 68 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 69 | 687053-2 | Makita 687053-2 CORD CLAMP, 9523NB |
| 70 | 664440-2 | Makita 664440-2 CORD PCE |
| 71 | 416200-6 | Makita 416200-6 SWITCH BOX |
| 72 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 73 | 858717-7 | Makita 858717-7 NAME PLATE UM401DW |
| 74 | 416199-5 | Makita 416199-5 SWITCH LEVER ARM |
| 75 | 165210-7 | |
| 76 | 252641-0 | Makita 252641-0 NUT M8, LF1000 |
| 77 | 322925-1 | Makita 322925-1 REAR GUARD SHAFT |
| 78 | 231627-7 | Makita 231627-7 TORSION SPRING 8 |
| 79 | 150724-9 | Makita 150724-9 REAR GUARD COMPLETE |
| 80 | 150723-1 | Makita 150723-1 REAR BAG COVER COMPLETE |
| 81 | 322926-9 | Makita 322926-9 REAR BAG ROD |
| 82 | 166045-9 | Makita 166045-9 REAR BAG |
| 83 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 84 | 150696-8 | Makita 150696-8 HEIGHT ADJUSTER COMPLETE |
| 85 | 416205-6 | Makita 416205-6 UNDER COVER |
| 86 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 87 | 423299-4 | Makita 423299-4 UNDER GUARD |
| 88 | 165209-2 | Makita 165209-2 HANDLE HOLDER L |
| 89 | 344557-4 | Makita 344557-4 HOLDER PLATE |
| 90 | 911116-5 | Makita 911116-5 PAN HEAD SCREW M4*12, 9035 |
| 91 | 267071-2 | Makita 267071-2 FLAT WASHER 4, MUB062 |
| 92 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 93 | 921472-5 | Makita 921472-5 HEX BOLT M8*50, LS0713 |
| 94 | 344454-4 | Makita 344454-4 SHAFT HOLDER |
| 95 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 96 | 921472-5 | Makita 921472-5 HEX BOLT M8*50, LS0713 |
| 97 | 165208-4 | Makita 165208-4 HANDLE HOLDER R |
| 98 | 652731-3 | |
| 99 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 100 | 252641-0 | Makita 252641-0 NUT M8, LF1000 |
| 101 | 679503-1 | Makita 679503-1 INDICATOR |
| 102 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 103 | 651420-7 | Makita 651420-7 SWITCH |
| 104 | 416196-1 | Makita 416196-1 SWITCH PLATE |
| 105 | 687092-2 | Makita 687092-2 BAND |
| 106 | 231602-3 | Makita 231602-3 TORSION SPRING 4, 408 |
| 107 | 416217-9 | Makita 416217-9 INLET COVER |
| 108 | 951075-1 | Makita 951075-1 SPRING PIN 3-28 |
| 109 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 110 | 416279-7 | Makita 416279-7 CAP |
| 111 | 182905-7 | Makita 182905-7 CONTROL PANEL SET |
| 112 | 655412-8 | Makita 655412-8 INLET |
| 113 | 182905-7 | Makita 182905-7 CONTROL PANEL SET |
| 114 | 652730-5 | Makita 652730-5 CURRENT RELAY |
| 115 | 266172-3 | Makita 266172-3 TAPPING SCREW 6X30 |
