All parts of Makita UM140D: 37 positions on 1 sheet

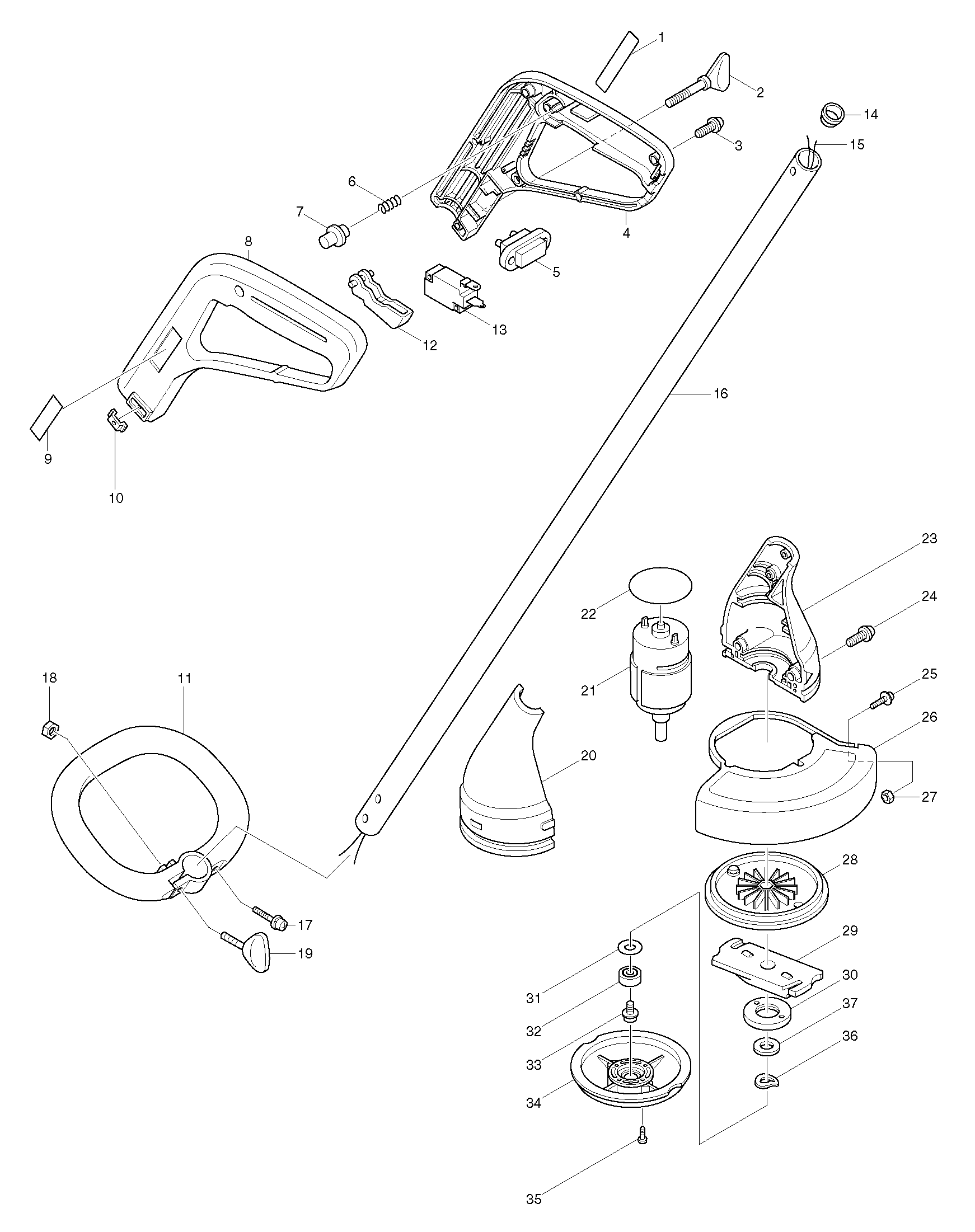

Sheet 1: Makita UM140D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 857618-6 | Makita 857618-6 NAME PLATE UM140D |
| 2 | 251880-9 | Makita 251880-9 SCREW M5X33 |
| 3 | 265871-4 | Makita 265871-4 TAPPING SCREW BT M4X16 |
| 4 | 182684-7 | Makita 182684-7 HANDLE SET |
| 5 | 655409-7 | Makita 655409-7 INLET |
| 6 | 231457-6 | Makita 231457-6 COMPRESSION SPRING 3, LS1040 |
| 7 | 415674-8 | Makita 415674-8 LOCK OFF BUTTON |
| 8 | 182684-7 | Makita 182684-7 HANDLE SET |
| 9 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 10 | 252042-2 | |
| 11 | 415358-8 | Makita 415358-8 SIDE HANDLE |
| 12 | 415580-7 | Makita 415580-7 SWITCH LEVER |
| 13 | 651866-7 | Makita 651866-7 SWITCH V-5130E-092 |
| 14 | 262058-9 | Makita 262058-9 P.P RING 17 |
| 15 | 667972-8 | Makita 667972-8 POWER SUPPLY CORD 18-2-1 |
| 16 | 154414-6 | Makita 154414-6 PIPE COMPLETE |
| 17 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 18 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 19 | 251878-6 | Makita 251878-6 SCREW M5X20 |
| 20 | 182685-5 | Makita 182685-5 MOTOR HOUSING SET |
| 21 | 629673-6 | Makita 629673-6 DC MOTOR 12V |
| 22 | 213556-6 | Makita 213556-6 O RING 42 |
| 23 | 182685-5 | Makita 182685-5 MOTOR HOUSING SET |
| 24 | 265871-4 | Makita 265871-4 TAPPING SCREW BT M4X16 |
| 25 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 26 | 150518-2 | Makita 150518-2 SAFETY COVER |
| 27 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 28 | 154415-4 | Makita 154415-4 BLADE HOLDER COMPLETE |
| 29 | 415542-5 | Makita 415542-5 RETAINER |
| 30 | 415545-9 | Makita 415545-9 BEARING BOX |
| 31 | 253865-1 | Makita 253865-1 FLAT WASHER 8 |
| 32 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 33 | 251459-6 | Makita 251459-6 FLAT HEAD SCREW M5 |
| 34 | 415544-1 | Makita 415544-1 CAP |
| 35 | 265966-3 | Makita 265966-3 TAPPING SCREW BT 3X10 |
| 36 | 253948-7 | Makita 253948-7 WAVE WASHER, LS0813 |
| 37 | 267135-2 | Makita 267135-2 FLAT WASHER 8 |
