Makita UM103D
Makita UM103D: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UM103D: 16 positions on 1 sheet

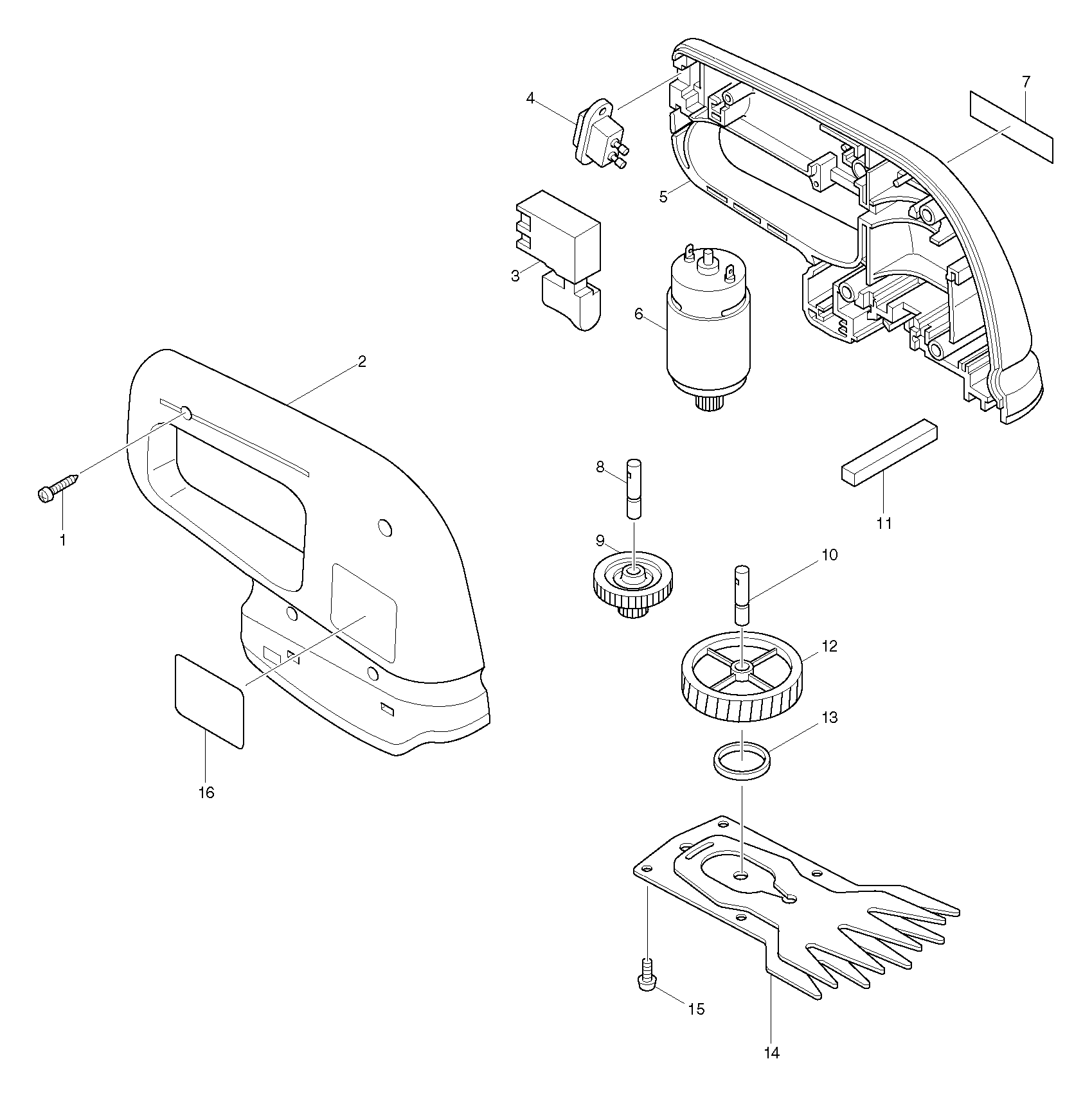

Sheet 1: Makita UM103D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265874-8 | |
| 2 | 182682-1 | Makita 182682-1 HOUSING SET |
| 3 | 651276-8 | Makita 651276-8 SWITCH SGES120C |
| 4 | 655409-7 | Makita 655409-7 INLET |
| 5 | 182682-1 | Makita 182682-1 HOUSING SET |
| 6 | 629679-4 | Makita 629679-4 DC MOTOR 12V |
| 7 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 8 | 321835-9 | Makita 321835-9 SHAFT |
| 9 | 226804-4 | Makita 226804-4 GEAR 14-34 |
| 10 | 321835-9 | Makita 321835-9 SHAFT |
| 11 | 423121-5 | Makita 423121-5 SPONGE SEAL |
| 12 | 221742-5 | Makita 221742-5 Helical Gear 52 |
| 13 | 257116-4 | |
| 14 | 125030-1 | Makita 125030-1 SHEAR BLADE ASS'Y |
| 15 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 16 | 857619-4 | Makita 857619-4 NAME PLATE UM103D |
