Makita UH6300: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UH6300: 32 positions on 1 sheet

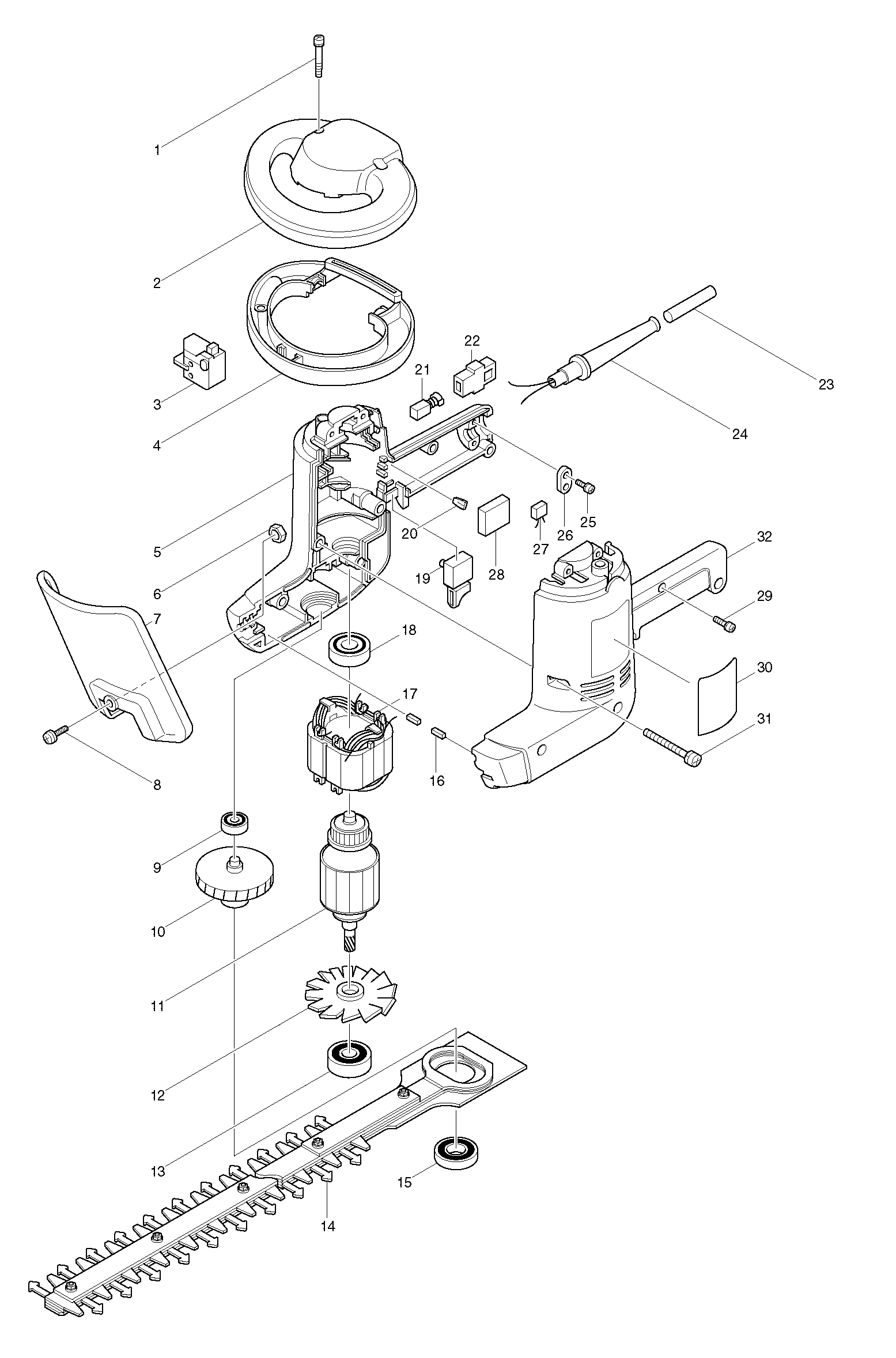

Sheet 1: Makita UH6300 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911248-8 | Makita 911248-8 PAN HEAD SCREW M5X28 |
| 2 | 410146-8 | Makita 410146-8 HANDLE |
| 3 | 651834-0 | Makita 651834-0 SWITCH SP115C |
| 4 | 410538-1 | Makita 410538-1 SWITCH LEVER |
| 5 | 182179-0 | |
| 6 | 931202-6 | Makita 931202-6 HEX.NUT M5, 3612BR |
| 7 | 410147-6 | Makita 410147-6 PROTECTOR |
| 8 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 9 | 211034-0 | Makita 211034-0 BALL BEARING 608 |
| 10 | 153187-8 | |
| 11 | 512993-4 | |
| 12 | 241517-6 | Makita 241517-6 FAN 70 FOR GA5000 |
| 13 | 211053-6 | Makita 211053-6 BALL BEARING 609LB |
| 14 | 122262-1 | |
| 15 | 211203-3 | |
| 16 | 423093-4 | Makita 423093-4 SEAL |
| 17 | 594053-4 | Makita 594053-4 FIELD ASS Y 220V |
| 18 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 19 | 651236-0 | OTHR Makita 651236-0 SWITCH C2M-M1T |
| 20 | 423096-8 | Makita 423096-8 SPONGE SEAL |
| 21 | 181026-2 | Makita 181026-2 Carbon Brushes CB-55 for 6701B JR300VT JR3000V |
| 22 | 643551-6 | Makita 643551-6 BRUSH HOLDER 5-8 *, JR300VT |
| 23 | 665500-3 | Makita 665500-3 POWER SUPPLY CORD 1.00-2- |
| 24 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 25 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 26 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 27 | 645208-5 | |
| 28 | 685700-9 | |
| 29 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 30 | 854852-9 | Makita 854852-9 NAME PLATE UH6300 |
| 31 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 32 | 182179-0 |
