Makita UH5540
Makita UH5540: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UH5540: 65 positions on 1 sheet

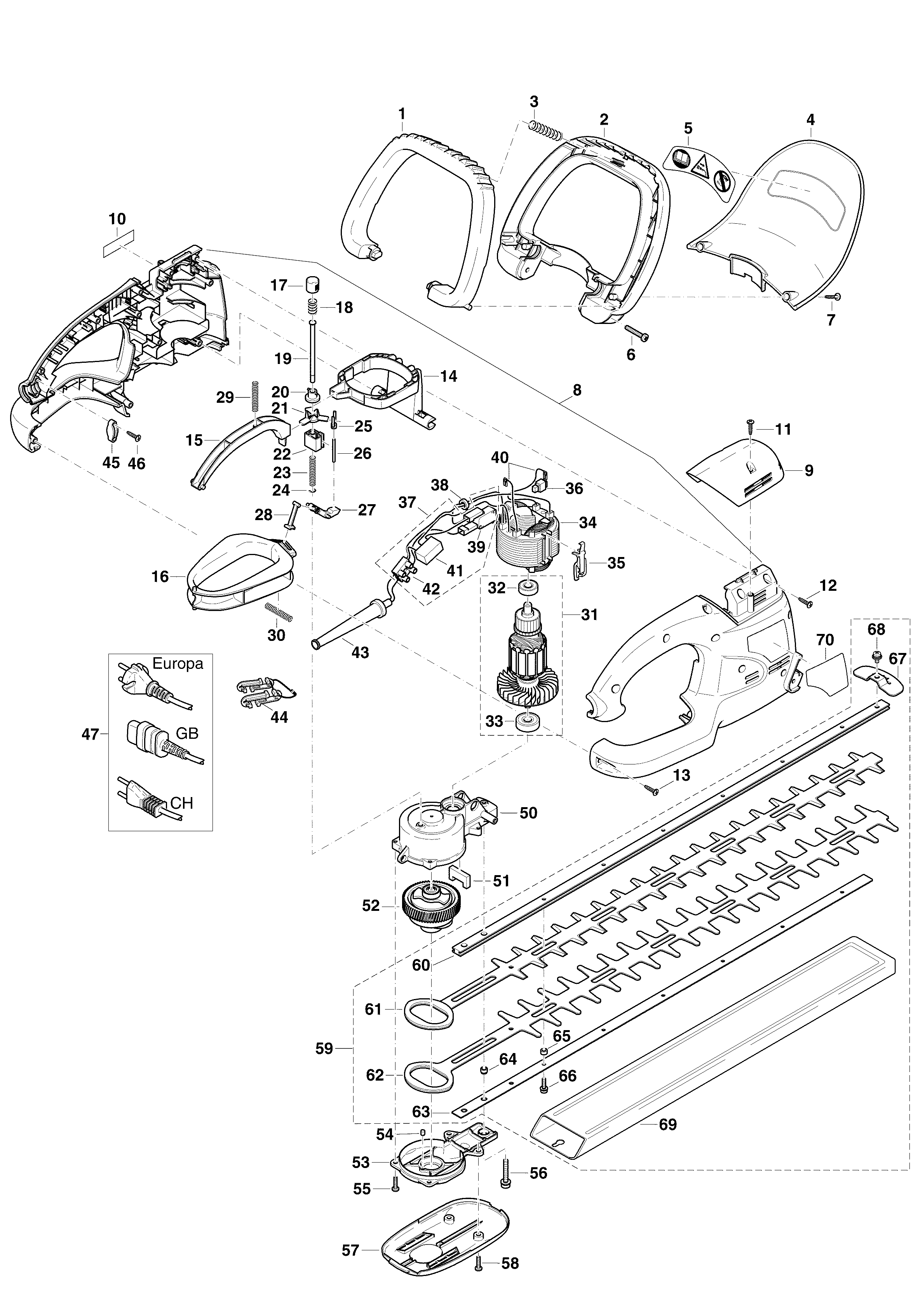

Sheet 1: Makita UH5540 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 223144110 | Makita 223144110 KYTKIN VIPU B |
| 2 | 223310110 | Makita 223310110 ETUKAHVA |
| 3 | 221145110 | Makita 221145110 PAINEJOUSI UH4830/6330 |
| 4 | 223213150 | Makita 223213150 KÄSI SUOJA |
| 5 | 980114292 | Makita 980114292 TYYPPIKILPI 4830/6330 |
| 6 | 913250304 | Makita 913250304 RUUVI |
| 7 | 913540185 | Makita 913540185 RUUVI |
| 8 | 223110610 | Makita 223110610 KOTELO TÄYD SININ. |
| 9 | 223111050 | Makita 223111050 KOTELO TOP KANSI GREY |
| 10 | 980114832 | Makita 980114832 KILPI |
| 11 | 913540185 | Makita 913540185 RUUVI |
| 12 | 913540185 | Makita 913540185 RUUVI |
| 13 | 913540185 | Makita 913540185 RUUVI |
| 14 | 223144130 | Makita 223144130 KYTKIN FORK |
| 15 | 223144120 | Makita 223144120 KYTKIN VIPU A |
| 16 | 223144140 | Makita 223144140 KYTKIN VIPU C |
| 17 | 223144030 | Makita 223144030 KORKKI |
| 18 | 223145010 | Makita 223145010 PAINE JOUSI |
| 19 | 223144010 | Makita 223144010 KYTKIN KANKI |
| 20 | 223144040 | Makita 223144040 KORKKI PIDIN |
| 21 | 223144150 | Makita 223144150 LIFTER |
| 22 | 223144050 | Makita 223144050 TAPPIPIDIN |
| 23 | 221145120 | Makita 221145120 PAINE JOUSI UH4830/6330 |
| 24 | 927304000 | Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540 |
| 25 | 223144170 | Makita 223144170 PUSHER KORKKI |
| 26 | 223229090 | Makita 223229090 TAPPI 3 |
| 27 | 223144180 | Makita 223144180 KAMPI |
| 28 | 223144160 | Makita 223144160 KANKI |
| 29 | 221145120 | Makita 221145120 PAINE JOUSI UH4830/6330 |
| 30 | 221145120 | Makita 221145120 PAINE JOUSI UH4830/6330 |
| 32 | 960101084 | Makita 960101084 KUULA LAAKERI NTN 8/2/X7 |
| 33 | 960101104 | Makita 960101104 KUULALAAKERI UH4800/6330 |
| 34 | 970804230 | Makita 970804230 KÄÄMI TÄYD |
| 35 | 970804010 | Makita 970804010 KIINNITIN |
| 36 | 223804410 | Makita 223804410 CARBON BRUSH CPL. (2PCS.) |
| 38 | 970804610 | Makita 970804610 LETKUSUODIN |
| 39 | 970001230 | Makita 970001230 KYTKIN |
| 40 | 970311670 | |
| 41 | 970109830 | Makita 970109830 KONDENSAATTORI |
| 42 | 970201220 | Makita 970201220 LIITIN UH4830/6330 |
| 43 | 223152010 | Makita 223152010 JARRU SUOJA |
| 44 | 970102050 | Makita 970102050 TRACTION RELIEF |
| 45 | 225152050 | Makita 225152050 KITKAN POISTAJA UC3500A |
| 46 | 913540185 | Makita 913540185 RUUVI |
| 47 | 970102200 | Makita 970102200 SÄHKÖJOHTO UH4830/6330 |
| 50 | 223211150 | Makita 223211150 VAIHTEISTO KOTELO |
| 51 | 223211040 | Makita 223211040 PÖLY SUOJA |
| 52 | 223220100 | Makita 223220100 VAIHTEISTO TÄYD |
| 53 | 223211160 | Makita 223211160 VAIHTEISTO KOTELO KA |
| 54 | 223111080 | Makita 223111080 KUMI TAPPI |
| 55 | 904904164 | Makita 904904164 RUUVI |
| 56 | 917105250 | Makita 917105250 RUUVI |
| 57 | 223111040 | Makita 223111040 ALEMPI KANSI |
| 58 | 904904164 | Makita 904904164 RUUVI |
| 60 | 223233120 | Makita 223233120 KIINNITYSRAUTA |
| 61 | 223233220 | Makita 223233220 PENSASLEIK LEVY A |
| 62 | 223233320 | Makita 223233320 TERÄ UH5540 |
| 63 | 223233420 | Makita 223233420 PAINE LEVY |
| 64 | 223233030 | Makita 223233030 MUHVI 5 |
| 65 | 223233020 | Makita 223233020 MUHVI 4 |
| 66 | 223233160 | Makita 223233160 PANNU PÄÄ RUUVI |
| 67 | 223233170 | Makita 223233170 SUOJA |
| 68 | 223233090 | Makita 223233090 PANNU PÄÄ RUUVI |
| 69 | 220233620 | Makita 220233620 SHEATH |
| 70 | 980114858 | Makita 980114858 KILPI LOPETETTU TUOTE |
