Makita UH5520: exploded parts diagram, 2 sheets, 59 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UH5520: 59 positions on 2 sheets

Sheet 1: Makita UH5520 parts diagram

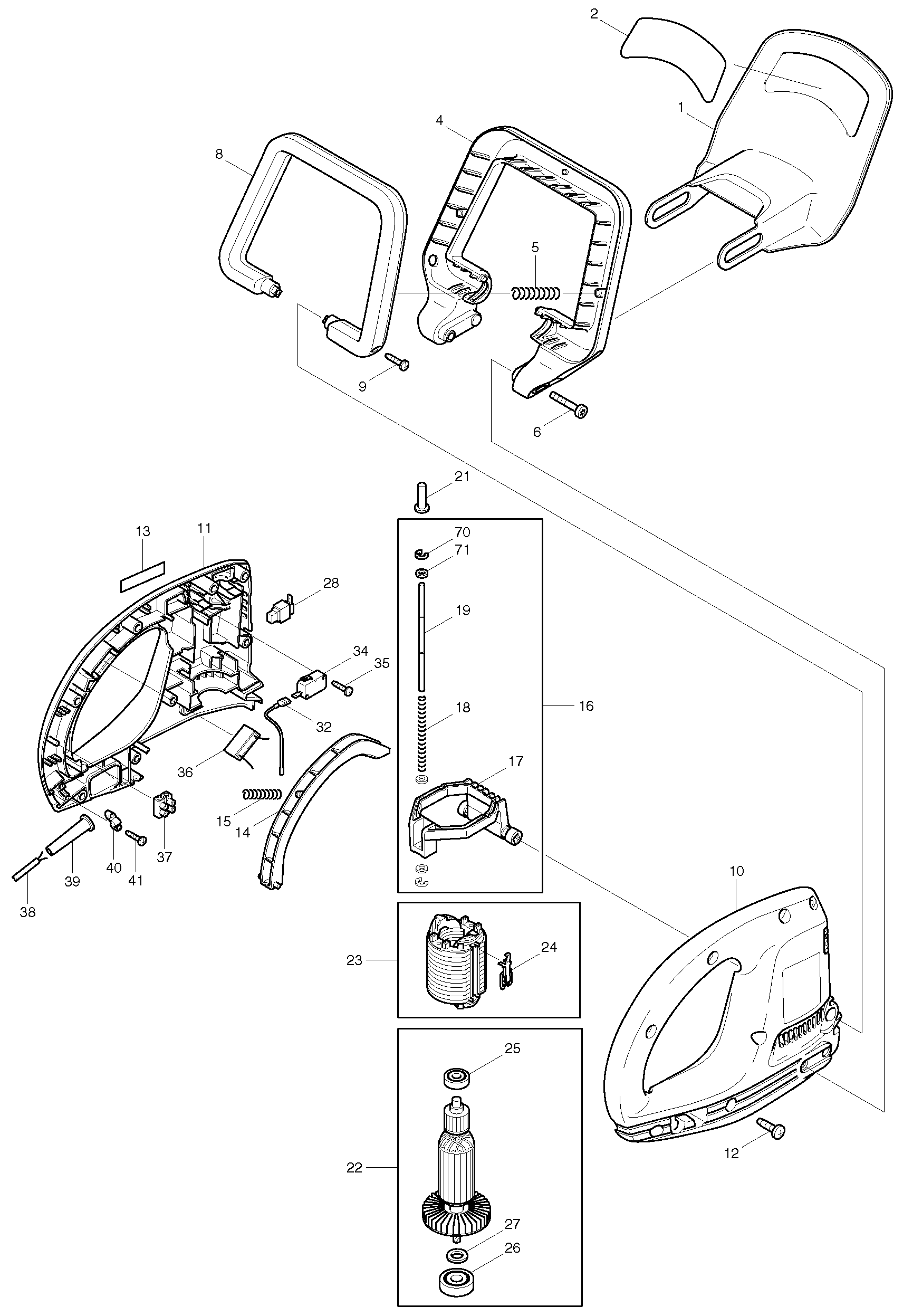

Makita UH5520 parts diagram, sheet 1
No.Part numberPart name
1220213110Makita 220213110 KÄSI SUOJA
2980114292Makita 980114292 TYYPPIKILPI 4830/6330
4220310110Makita 220310110 ETUKAHVA
5220145110Makita 220145110 PAINE JOUSI
6908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
8220144110Makita 220144110 ETU KAHVA KYTKIN
9915635164Makita 915635164 RUUVI UH4830
10220110611Makita 220110611 KOTELO TÄYDSININ. SA
11220110611Makita 220110611 KOTELO TÄYDSININ. SA
12913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
13980114296Makita 980114296 TYYPPIKILPI UH 4830/6330
14220144120Makita 220144120 TAKA KAHVA KYTKIN
15220145120Makita 220145120 PAINE JOUSI
17220144130Makita 220144130 KYTKIN FORK
18220145130Makita 220145130 PAINE JOUSI
19220144140Makita 220144140 KYTKIN KANKI
21220144150Makita 220144150 CUP
24970800610Makita 970800610 KIINNITIN
25960101074Makita 960101074 KUULALAAKERI UH 4800/6330
26960102104Makita 960102104 KUULA LAAKERI KOYO 1/30X9
27220229320
28957800410Makita 957800410 HIILET (PAR) UH4800/6330
32
34970001190Makita 970001190 KYTKIN
35914529194Makita 914529194 RUUVI
36970109890Makita 970109890 KONDENSAATTORI
37970201220Makita 970201220 LIITIN UH4830/6330
38970102110Makita 970102110 VERKKOKAAPELI
39204152010Makita 204152010 SUOJA
40203152050Makita 203152050 KEVENNIN
41915635164Makita 915635164 RUUVI UH4830
70927303200Makita 927303200 WASHER 3,2DOLMAR
71900006054

Sheet 2: Makita UH5520 parts diagram

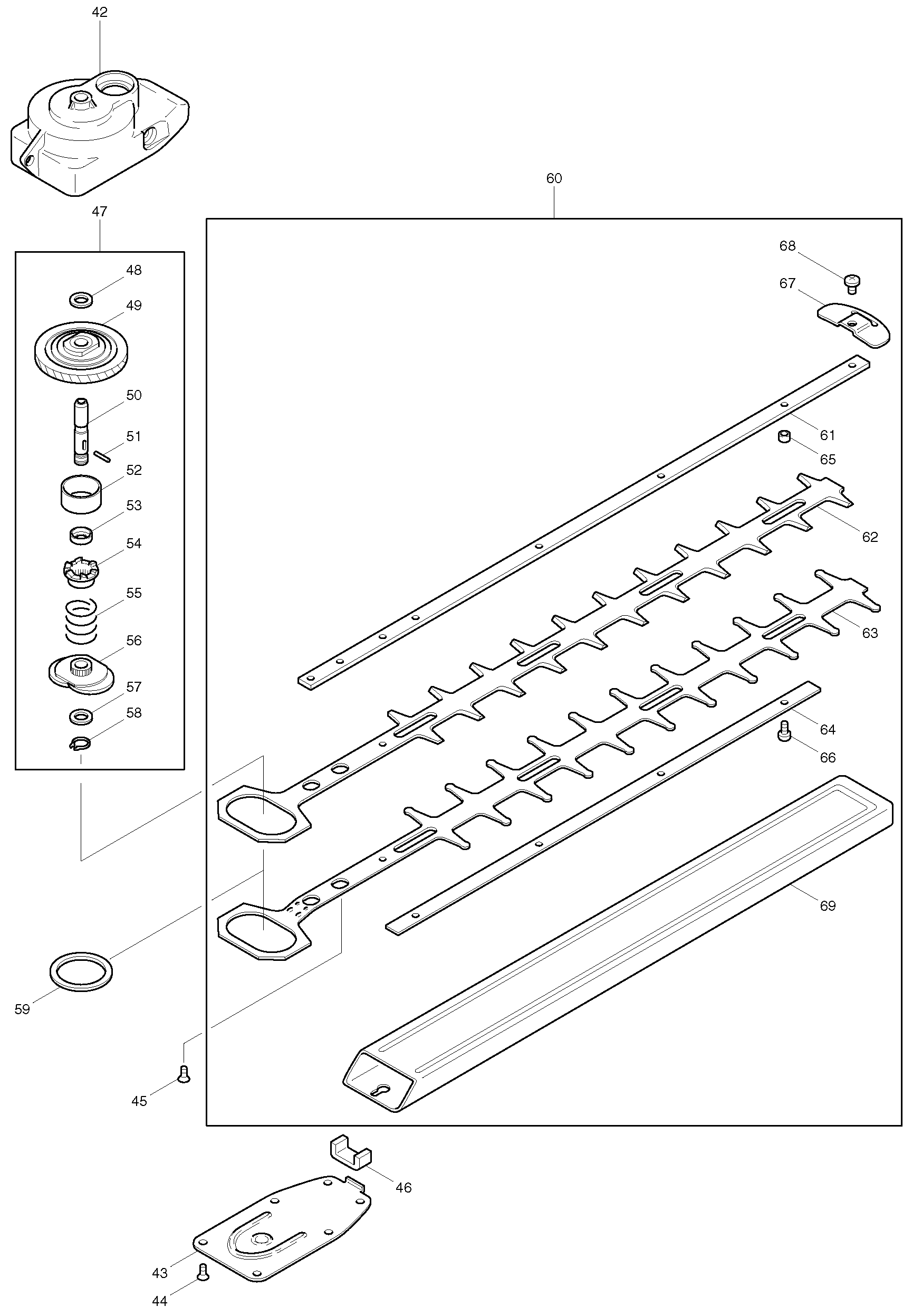

Makita UH5520 parts diagram, sheet 2
No.Part numberPart name
42220211011Makita 220211011 VAIHTEISTO KOTELO
43220212110Makita 220212110 VAIHTEISTO KANSI
44908105126Makita 908105126 KUPUKANTA PÄÄ RUUVI
45908105126Makita 908105126 KUPUKANTA PÄÄ RUUVI
46965404860Makita 965404860 TIIVISTE
48220229220Makita 220229220 LEVY
49220229011Makita 220229011 SLIP KYTKINTÄYD
50220229211Makita 220229211 PUSSLA
51220229230Makita 220229230 ACTIVATION TAPPI
52220229240Makita 220229240 VÄLI PALA
53220229250Makita 220229250 JOUSI GUIDING PÄÄ
54220229121
55220229150Makita 220229150 PAINE JOUSI
56220229021Makita 220229021 EPÄKESKO TÄYD
57220229220Makita 220229220 LEVY
58929110100Makita 929110100 RENGAS 10X1
59220229200
61220233121Makita 220233121 KIINNITYSRAUTA 550MM
62220233220Makita 220233220 PENSASLEIK LEVY A 55
63220233320Makita 220233320 PENSASLEIK LEVY B 55
64220233420
65220233150Makita 220233150 VÄLI PALA
66220233160Makita 220233160 RUUVI
67220233170Makita 220233170 SUOJA
68220233090Makita 220233090 RUUVI
69220233620Makita 220233620 SHEATH
