Makita UH4830
Makita UH4830: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UH4830: 40 positions on 1 sheet

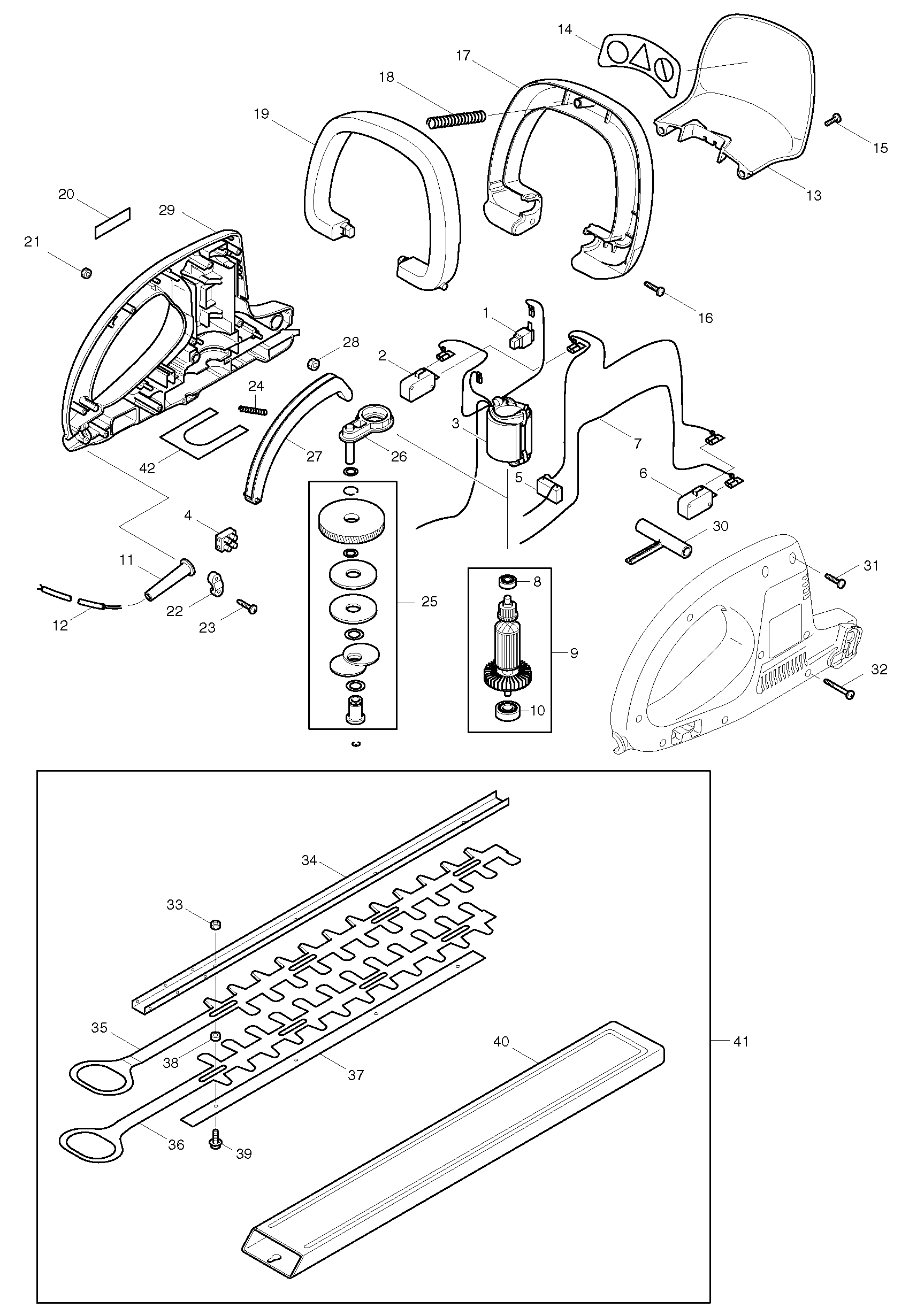

Sheet 1: Makita UH4830 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 957800410 | Makita 957800410 HIILET (PAR) UH4800/6330 |
| 2 | 970001220 | Makita 970001220 KYTKIN |
| 3 | 970801230 | Makita 970801230 FIELD ASSY UH4830/6330 |
| 4 | 970201220 | Makita 970201220 LIITIN UH4830/6330 |
| 5 | 970311300 | Makita 970311300 KONDENSAATTORI |
| 6 | 970001210 | Makita 970001210 KATKAISIN UH4830 |
| 7 | 970311250 | Makita 970311250 YHDISTYS KAAPELI UH4830/6330 |
| 8 | 960101074 | Makita 960101074 KUULALAAKERI UH 4800/6330 |
| 10 | 960101104 | Makita 960101104 KUULALAAKERI UH4800/6330 |
| 11 | 204152010 | Makita 204152010 SUOJA |
| 12 | 970102200 | Makita 970102200 SÄHKÖJOHTO UH4830/6330 |
| 13 | 221213111 | |
| 14 | 980114292 | Makita 980114292 TYYPPIKILPI 4830/6330 |
| 15 | 913540205 | Makita 913540205 RUUVI 4X20 UH 4830 |
| 16 | 917005250 | Makita 917005250 RUUVIM5X25 |
| 17 | 221310110 | Makita 221310110 KAHVA UH4830/6330 |
| 18 | 221145110 | Makita 221145110 PAINEJOUSI UH4830/6330 |
| 19 | 221144110 | Makita 221144110 TURVAKYTKIN UH4830/6330 |
| 20 | 980114296 | Makita 980114296 TYYPPIKILPI UH 4830/6330 |
| 21 | 920204000 | Makita 920204000 KUUSIOKULMA MUTTERIUH4830 |
| 22 | 203152050 | Makita 203152050 KEVENNIN |
| 23 | 915635164 | Makita 915635164 RUUVI UH4830 |
| 24 | 221145120 | Makita 221145120 PAINE JOUSI UH4830/6330 |
| 25 | 221220011 | Makita 221220011 HAMMASPYÖRÄ TÄYD UH4830/6330 |
| 26 | 221211010 | Makita 221211010 HAMMASP.LEVYAKSELI UH4830/6330 |
| 27 | 221144120 | Makita 221144120 KYTKIN UH4830/6330 |
| 28 | 920205000 | Makita 920205000 MUTTERI M5 110I.115115I. |
| 29 | 221110611 | Makita 221110611 KOTELO TÄYD |
| 30 | 221144130 | Makita 221144130 KYTKIN HAARUKKA UH4830/6330 |
| 31 | 913540205 | Makita 913540205 RUUVI 4X20 UH 4830 |
| 32 | 001230010 | Makita 001230010 RUUVI |
| 33 | 221233170 | Makita 221233170 TURVA MUTTERI UH4830/6330 |
| 34 | 221233121 | Makita 221233121 KIINNITYSRAUTAUH4830 |
| 35 | 221233220 | Makita 221233220 TERÄLEVY A UH4830 |
| 36 | 221233320 | Makita 221233320 TERÄLEVY B UH4830 |
| 37 | 221233420 | Makita 221233420 VARSI UH4830 |
| 38 | 221233150 | Makita 221233150 PIDENNYS OSA UH4830/6330 |
| 39 | 221233160 | Makita 221233160 RUUVI M5X14 UH4830/6330 |
| 40 | 220233610 | |
| 42 | 221229240 |
