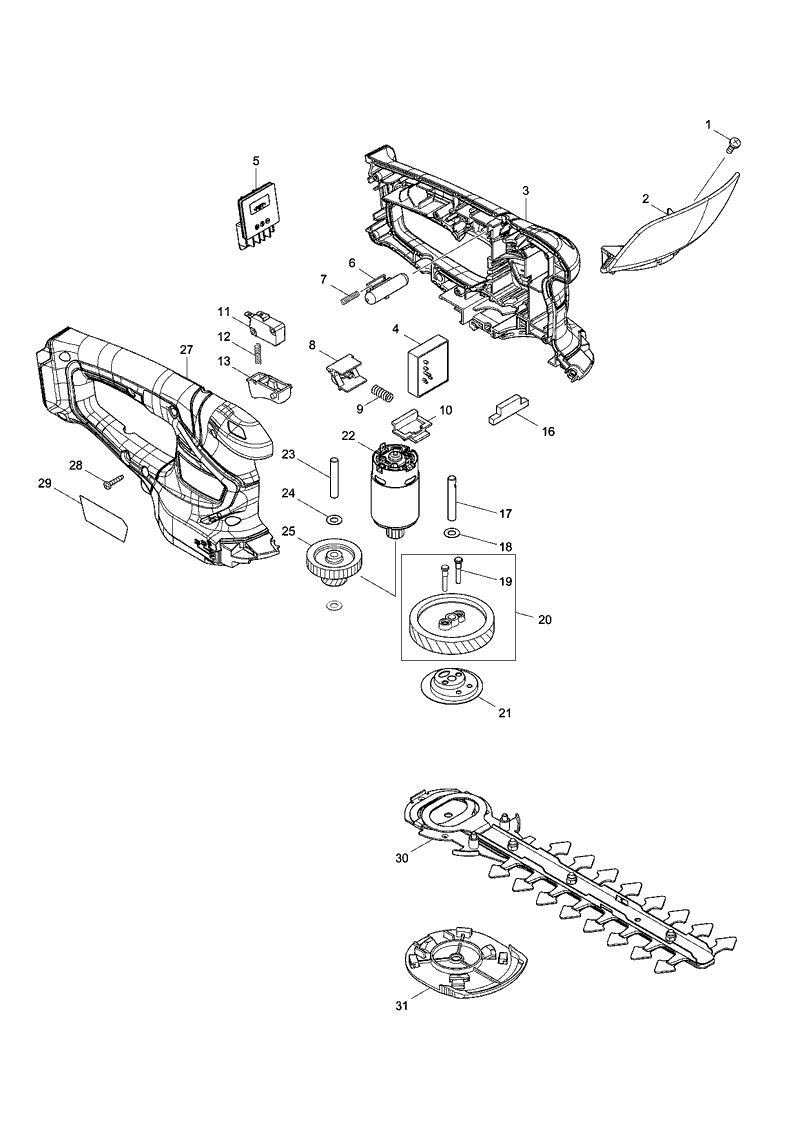

Sheet 1: Makita UH201D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 915116-7 | Makita 915116-7 BINDING HEAD SCREW M4*12, MUM164D |
| 2 | 144342-3 | Makita 144342-3 PROTECTOR COMPLETE |
| 3 | 183G04-0 | Makita 183G04-0 HOUSING SET COMPLETE |
| 4 | 632K11-9 | Makita 632K11-9 CONTROLLER UNIT |
| 5 | 644813-5 | Makita 644813-5 Terminal |
| 6 | 452438-9 | Makita 452438-9 LOCK OFF BUTTON |
| 7 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 8 | 457534-8 | Makita 457534-8 SLIDE PLATE |
| 9 | 234339-1 | Makita 234339-1 COMPRESSION SPRING 6 |
| 10 | 454879-5 | Makita 454879-5 LOCK LEVER |
| 11 | 650744-8 | Makita 650744-8 SWITCH |
| 12 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 13 | 417564-1 | Makita 417564-1 SWITCH LEVER, MUM110 |
| 16 | 451814-4 | Makita 451814-4 DUST GUARD, MUM164D |
| 17 | 268254-7 | Makita 268254-7 PIN 6, MUM164D |
| 18 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 19 | ||
| 21 | 161598-3 | Makita 161598-3 CRANK COMPLETE |
| 22 | 629258-8 | Makita 629258-8 DC MOTOR |
| 23 | 268076-5 | Makita 268076-5 PIN 6, LF1000 |
| 24 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 25 | 226831-1 | Makita 226831-1 Gear 12-31 MUM164D BUM166 BUM168 DUM604 DUM166 |
| 27 | 183G04-0 | Makita 183G04-0 HOUSING SET COMPLETE |
| 28 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 29 | 853F87-5 | |
| 30 | 198408-1 | Makita 198408-1 SHEAR BLADE ASSEMBLY 200 S SET |
| 31 | 140451-6 | Makita 140451-6 UNDER COVER COMPLETE, MUM164D |
