Makita UH200D
Makita UH200D: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UH200D: 29 positions on 1 sheet

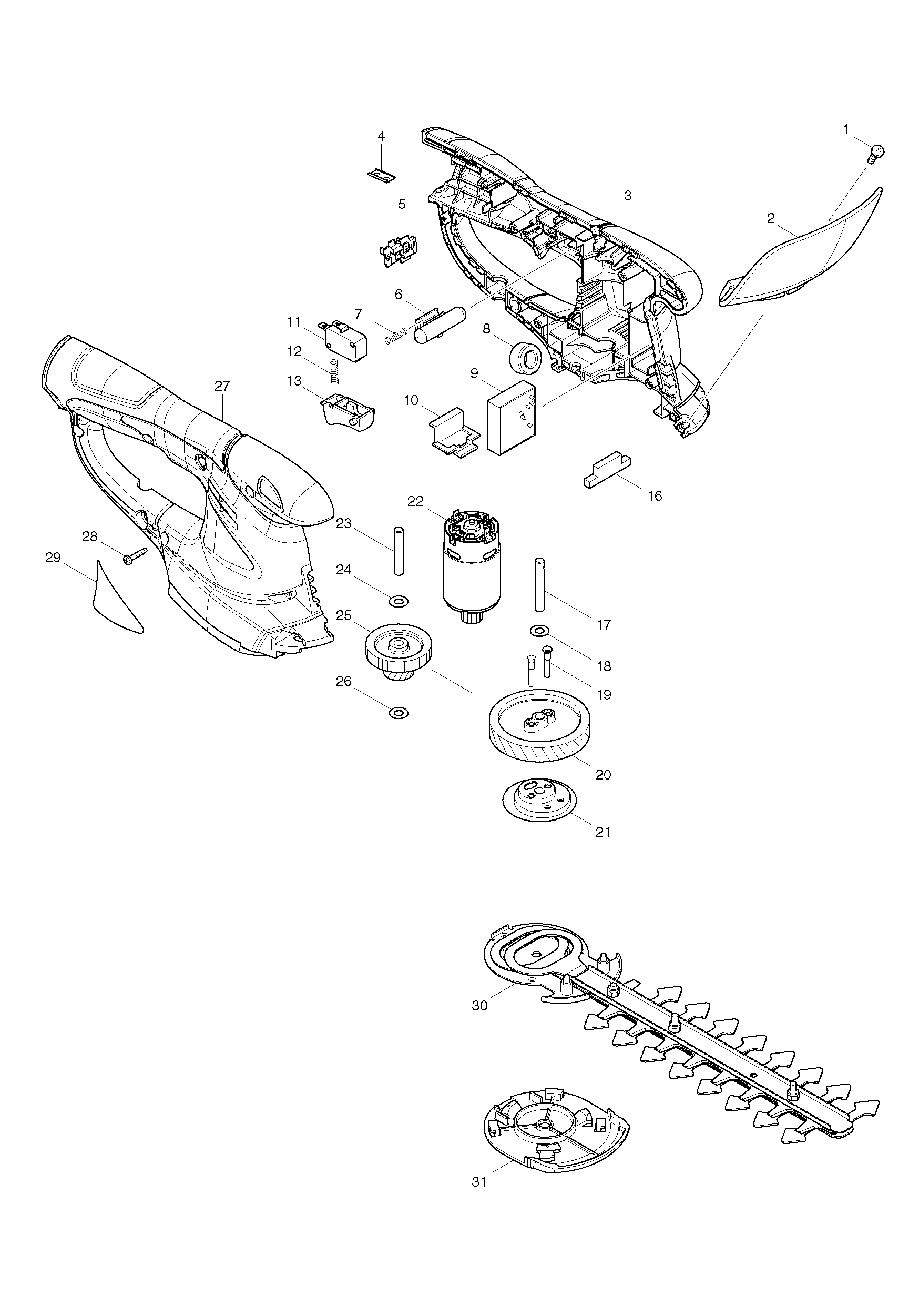

Sheet 1: Makita UH200D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 915116-7 | Makita 915116-7 BINDING HEAD SCREW M4*12, MUM164D |
| 2 | 140599-4 | Makita 140599-4 PROTECTOR COMPLETE, UM164D |
| 3 | 188830-0 | Makita 188830-0 HOUSING SET, UM164D |
| 4 | 345998-7 | Makita 345998-7 SET PLATE, DF030D |
| 5 | 643817-4 | Makita 643817-4 TERMINAL, DF010D |
| 6 | 452438-9 | Makita 452438-9 LOCK OFF BUTTON |
| 7 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 8 | 688131-1 | Makita 688131-1 Line Filter for HR2432 |
| 9 | 135383-0 | Makita 135383-0 CONTROLLER ASSY |
| 10 | 451812-8 | Makita 451812-8 LOCK LEVER, MUM164D |
| 11 | 651944-3 | Makita 651944-3 SWITCH DMC-1115-13 |
| 12 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 13 | 417564-1 | Makita 417564-1 SWITCH LEVER, MUM110 |
| 16 | 451814-4 | Makita 451814-4 DUST GUARD, MUM164D |
| 17 | 268254-7 | Makita 268254-7 PIN 6, MUM164D |
| 18 | 261122-3 | Makita 261122-3 WASHER 6, MUH320 |
| 19 | 268256-3 | Makita 268256-3 PIN 4, MUM164D |
| 20 | 227728-7 | Makita 227728-7 HELICAL GEAR 47, MUM164D |
| 21 | 165609-6 | Makita 165609-6 CRANK COMPLETE, MUM164D |
| 22 | 629877-0 | Makita 629877-0 Motor 10,8V for MUM164D UM164DW UM164D UH200D |
| 23 | 268076-5 | Makita 268076-5 PIN 6, LF1000 |
| 24 | 261122-3 | Makita 261122-3 WASHER 6, MUH320 |
| 25 | 226831-1 | Makita 226831-1 Gear 12-31 MUM164D BUM166 BUM168 DUM604 DUM166 |
| 26 | 261122-3 | Makita 261122-3 WASHER 6, MUH320 |
| 27 | 188830-0 | Makita 188830-0 HOUSING SET, UM164D |
| 28 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 29 | 867914-4 | |
| 30 | 195272-1 | Makita 195272-1 Shear Blade Assembly Set 20 cm UH200D DUM166 DUM168 |
| 31 | 140451-6 | Makita 140451-6 UNDER COVER COMPLETE, MUM164D |
