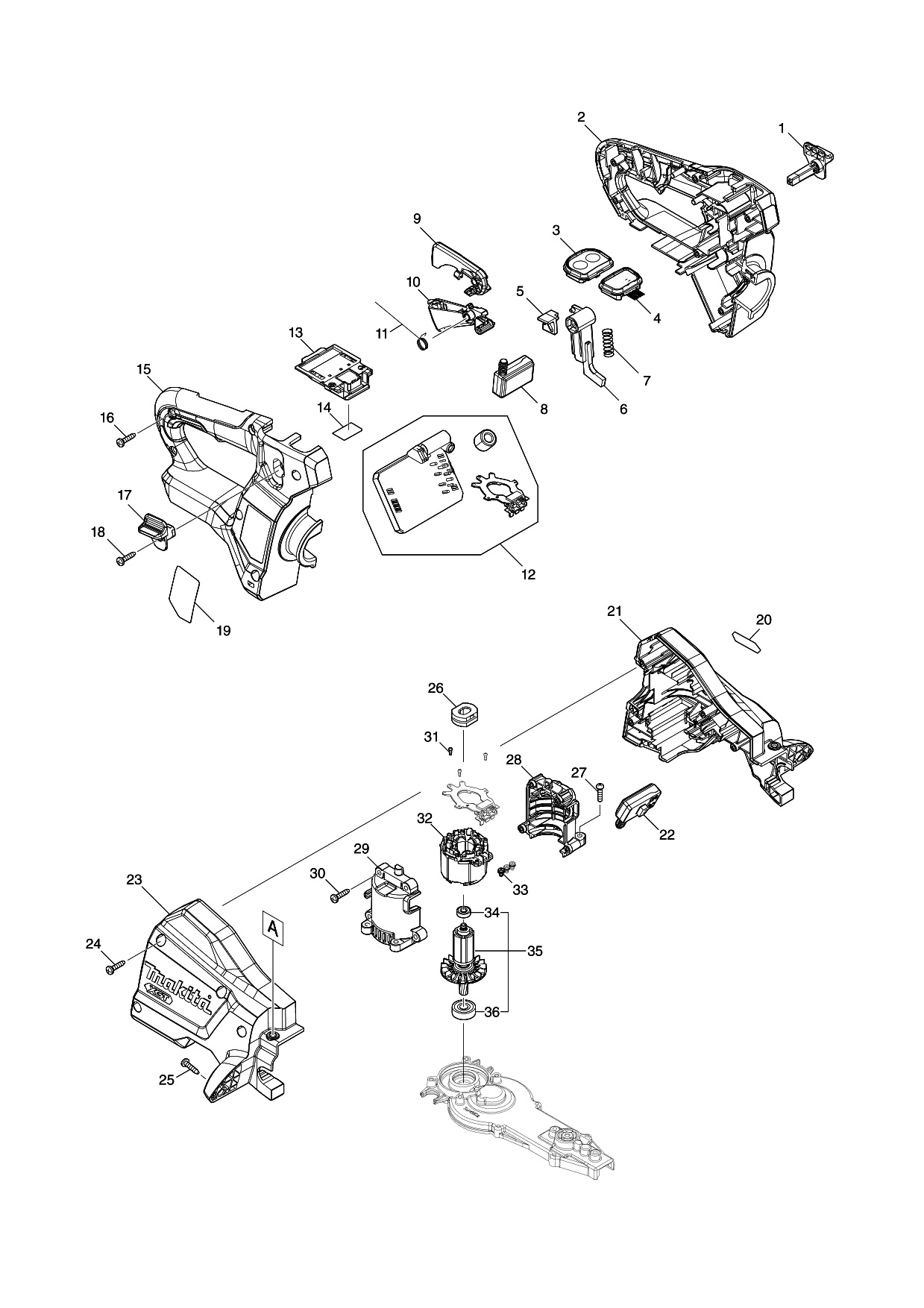

Sheet 1: Makita UH005G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 458406-0 | Makita 458406-0 LOCK LEVER R |
| 2 | 183T66-6 | |
| 3 | 141D66-6 | |
| 4 | 140W63-3 | |
| 5 | 458570-7 | Makita 458570-7 SLIDER, DUH501 |
| 6 | 458405-2 | Makita 458405-2 LOCK ARM |
| 7 | 234204-4 | Makita 234204-4 COMPRESSION SPRING 8 |
| 8 | 651083-9 | Makita 651083-9 SWITCH |
| 9 | 458403-6 | Makita 458403-6 LOCK OFF LEVER |
| 10 | 413792-6 | |
| 11 | 232454-5 | Makita 232454-5 TORSION SPRING 10, DUH501 |
| 12 | 620E54-7 | |
| 13 | 632P64-8 | |
| 14 | 811J09-5 | |
| 15 | 183T66-6 | |
| 16 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 17 | 458407-8 | Makita 458407-8 LOCK LEVER L |
| 18 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 19 | 811J07-9 | |
| 20 | 8025F3-0 | |
| 21 | 183S95-3 | |
| 22 | 651083-9 | Makita 651083-9 SWITCH |
| 23 | 183S95-3 | |
| 24 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 25 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 26 | 422261-6 | Makita 422261-6 RUBBER SLEEVE, DUH501 |
| 27 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 28 | 183S94-5 | |
| 29 | 183S94-5 | |
| 30 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 31 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 32 | 629A75-2 | |
| 33 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 34 | 211157-4 | Makita 211157-4 BALL BEARING 695ZZ, DUR187_8 |
| 35 | 519694-5 | |
| 36 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |

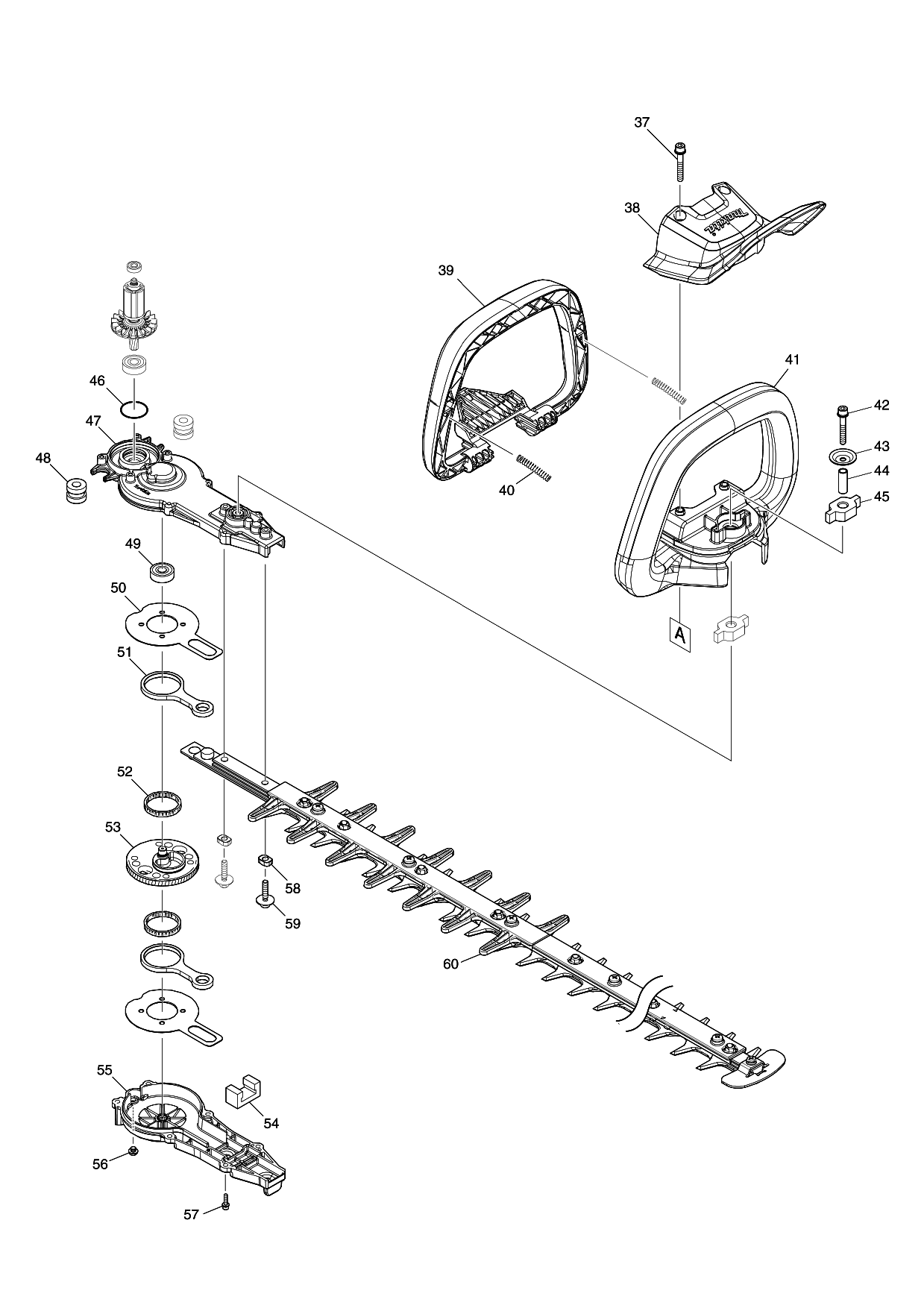

Sheet 2: Makita UH005G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 37 | 265182-7 | Makita 265182-7 PAN HEAD SCREW M5*25, UH5580 |
| 38 | 458399-1 | Makita 458399-1 PROTECTOR |
| 39 | 458402-8 | Makita 458402-8 SWITCH LEVER F |
| 40 | 233222-9 | Makita 233222-9 COMPRESSION SPRING 5, DUH501 |
| 41 | 413791-8 | |
| 42 | 251476-6 | Makita 251476-6 H.S.H.BOLT M5X35 WITH WR |
| 43 | 253416-0 | Makita 253416-0 DISH WASHER 5, DUH501 |
| 44 | 257678-2 | Makita 257678-2 SLEEVE 6, DUH501 |
| 45 | 422260-8 | Makita 422260-8 RUBBER SLEEVE 8, DUH501 |
| 46 | 213961-7 | Makita 213961-7 O RING 22, MT813 |
| 47 | 141C41-6 | |
| 48 | 422725-0 | |
| 49 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 50 | 347361-0 | Makita 347361-0 FRICTION PLATE |
| 51 | 347662-6 | |
| 52 | 212229-8 | |
| 53 | 141C40-8 | |
| 54 | 443159-4 | Makita 443159-4 SEAL |
| 55 | 141C46-6 | |
| 56 | 266559-9 | |
| 57 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
| 58 | 257439-0 | |
| 59 | 265A89-3 | |
| 60 | 191R54-7 |
