Makita UD2500

Makita UD2500: exploded parts diagram, 4 sheets, 74 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UD2500: 74 positions on 4 sheets

Sheet 1: Makita UD2500 parts diagram

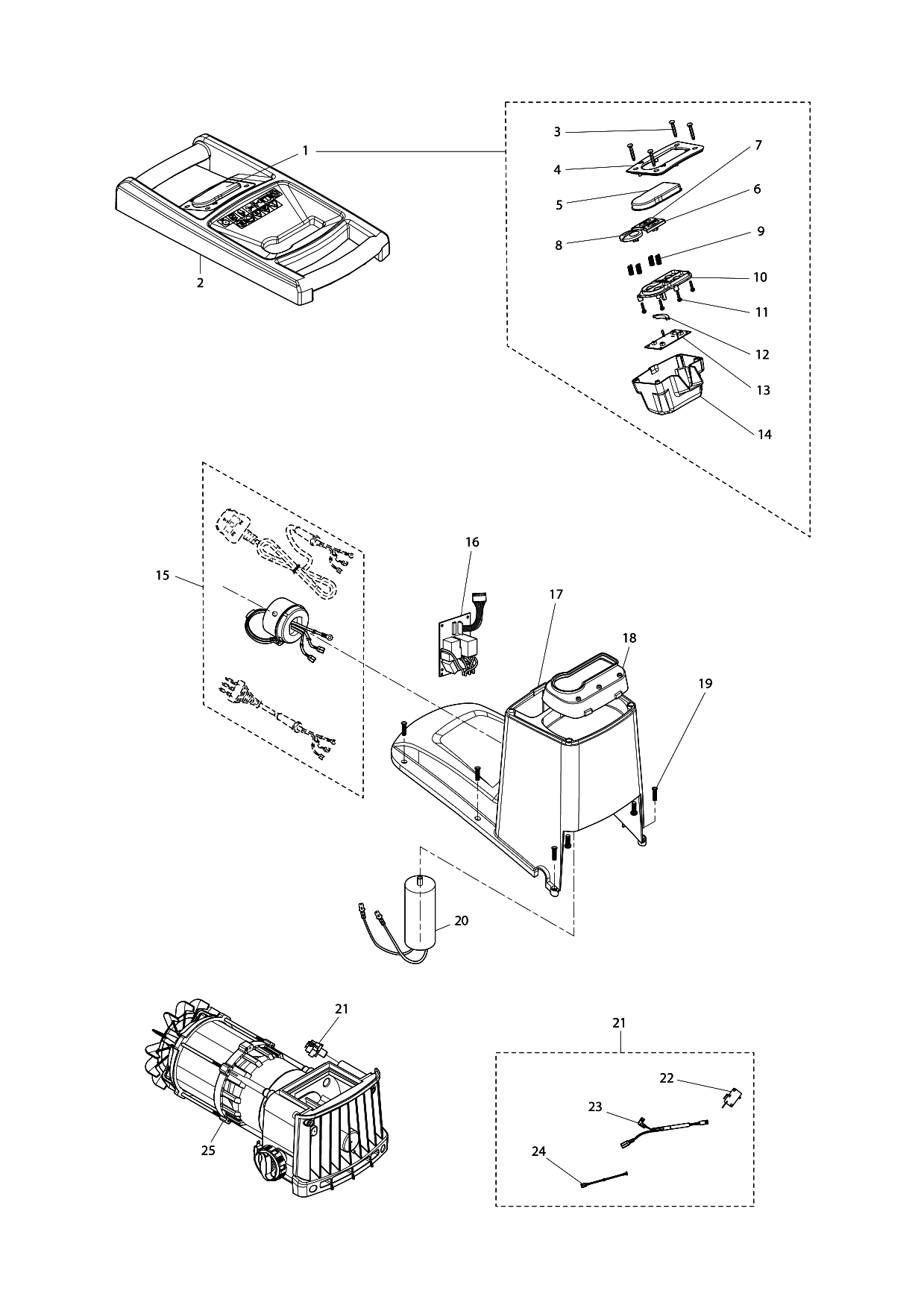

Makita UD2500 parts diagram, sheet 1
No.Part numberPart name
1652023652Makita 652023652 SWITCH BOX ASS'Y
3652023653Makita 652023653 SELF-TAPPING SCREW
4652023654Makita 652023654 SWITCH BOX UPPER COVER
5652023655Makita 652023655 WATER PROOF COVER
6652023656Makita 652023656 SWITCH ON BUTTON
7652023657Makita 652023657 STOP BUTTON
8652023658Makita 652023658 PRESS BUTTON
9652023659Makita 652023659 SPRING
10652023660Makita 652023660 PRESSBOARD
11652023661Makita 652023661 SELF-TAPPING SCREW
12652023662Makita 652023662 LIGHT GUIDE COVER
13652023663Makita 652023663 OPERATION PCB
14652023664Makita 652023664 SWITCH BOX LOWER COVER
15652023666Makita 652023666 PLUG COVER ASS'Y
16652023676Makita 652023676 Control PCB UD2500
17652025247Makita 652025247 UPPER HOUSING
18652023679Makita 652023679 HOPPER
19652023680Makita 652023680 SELF-TAPPING SCREW
20652024821Makita 652024821 CAPACITOR
21652024824Makita 652024824 MECHANICAL SWITCH ASS'Y
22652024825Makita 652024825 MICRO SWITCH
23652024826Makita 652024826 2 CORE CONNECTION CABLE
24652024827Makita 652024827 CONNECTION CABLE
25652023682Makita 652023682 MOTOR ASS'Y

Sheet 2: Makita UD2500 parts diagram

Makita UD2500 parts diagram, sheet 2
No.Part numberPart name
27YA00000696Makita YA00000696 WHEEL FAN, UD2500
28YA00000699Makita YA00000699 Armature Assembly for UD2500
29YA00000700Makita YA00000700 INTERNAL GEAR ASSY, UD2500
30YA00000702Makita YA00000702 GEAR COMPLETE, UD2500
31YA00000701Makita YA00000701 CONDARY GEAR, UD2500
32YA00000698Makita YA00000698 SPINDLE ASSY, UD2500
33652023702Makita 652023702 ADJUSTING KNOP
34652023700Makita 652023700 LOCK KNOB
35652023699Makita 652023699 SELF-LOCKING NUT
36652023704Makita 652023704 PRESSBOARD
37652023697Makita 652023697 FEATHER KEY
38652023709Makita 652023709 Feeding BafflePlate UD2500
39652023710Makita 652023710 Knife Cylinder for UD2500
40652024822Makita 652024822 FRONT COVER ASSY.
41652024823Makita 652024823 SOCKET HEAD SCREW

Sheet 3: Makita UD2500 parts diagram

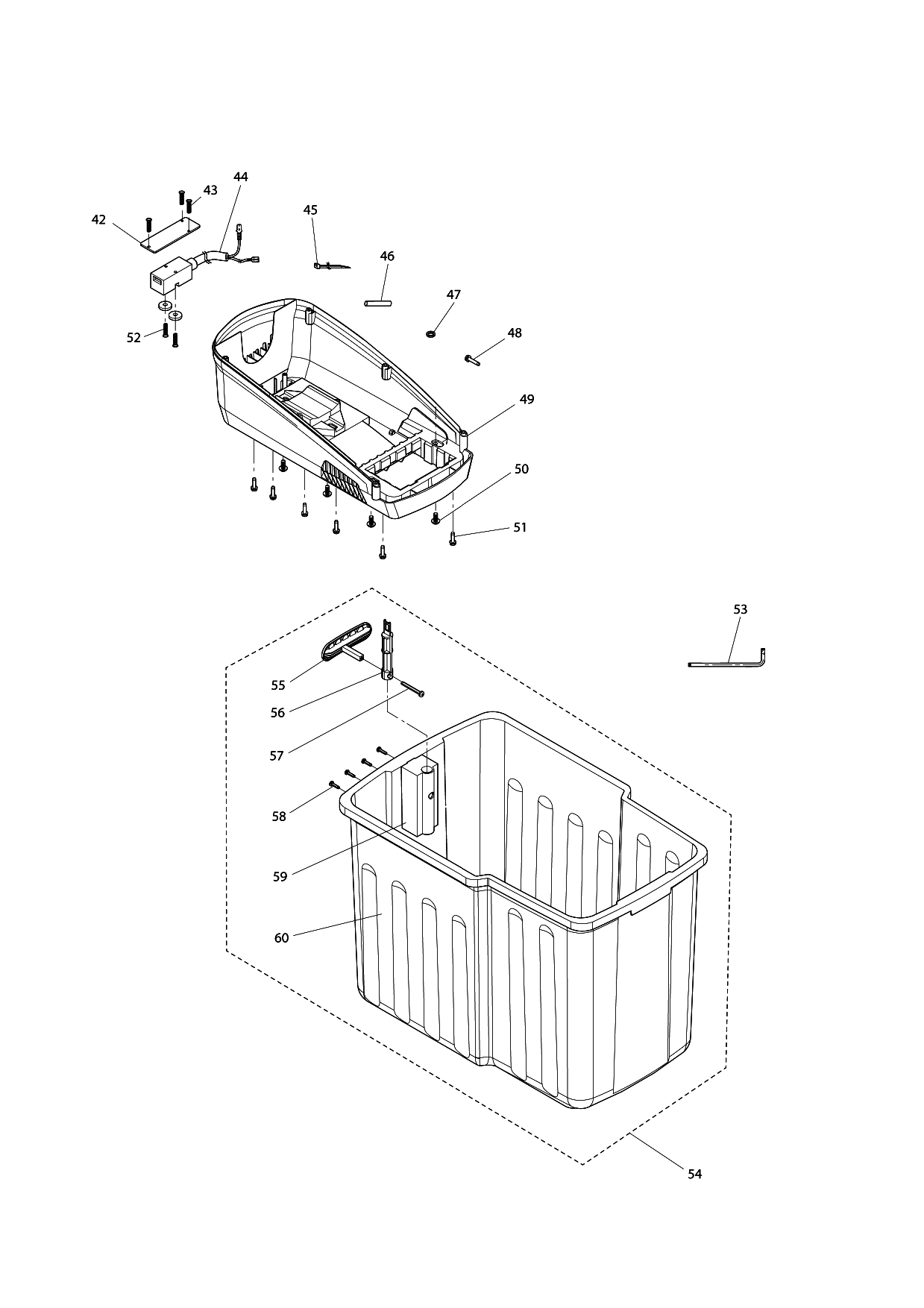

Makita UD2500 parts diagram, sheet 3
No.Part numberPart name
42652023717Makita 652023717 Switch Pressboard for UD2500
43652024828Makita 652024828 SCREW
44652023719Makita 652023719 MECHANICAL SWITCH ASS'Y
45652023726Makita 652023726 NYLON BAND
46652024829Makita 652024829 HEAT SHRINKABLE TUBE
47652023728Makita 652023728 LOCK WASHER
48652023729Makita 652023729 SCREW
49652023730Makita 652023730 LOWER HOUSING
50652023731Makita 652023731 SCREW
51652023747Makita 652023747 SELF-TAPPING SCREW
52652023680Makita 652023680 SELF-TAPPING SCREW
53652024836Makita 652024836 SPANNER
55652025249Makita 652025249 PUSHBUTTON
56652023759Makita 652023759 MECHANICAL SWITCH PUSH ROD
57652024835Makita 652024835 SELF-TAPPING SCREW
58652024828Makita 652024828 SCREW
59652023757Makita 652023757 PUSH BUTTON BASE

Sheet 4: Makita UD2500 parts diagram

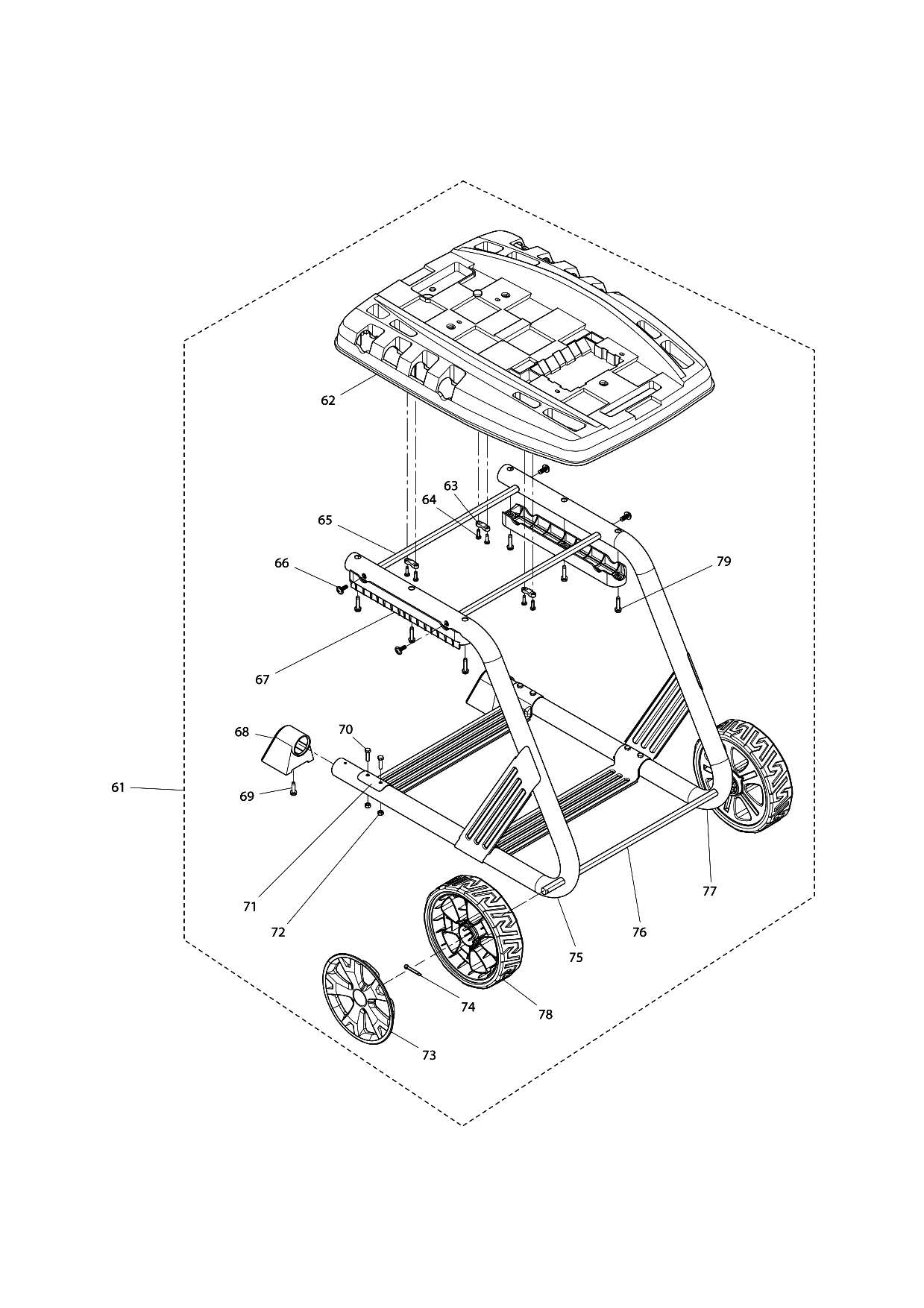

Makita UD2500 parts diagram, sheet 4
No.Part numberPart name
62652023753Makita 652023753 BOX COVER
63652023752Makita 652023752 CABLE PRESSBOARD
64652024828Makita 652024828 SCREW
65652023751Makita 652023751 SUPPORTING AXLE
66652024833Makita 652024833 BOLT
67652023749Makita 652023749 FRAME FIX PLATE
68652023748Makita 652023748 SUPPORTING FOOT
69652024832Makita 652024832 3 IN 1 SELF-TAPPING SCREW
70652024831Makita 652024831 BOLT
71652023745Makita 652023745 BASE PLATE
72652023744Makita 652023744 SELF-LOCKING NUT
73652023905Makita 652023905 FRONT WHEEL COVER
74652023742Makita 652023742 COTTER PIN
75652023741Makita 652023741 RIGHT FRAME TUBE
76652023740Makita 652023740 WHEEL AXLE
77652023739Makita 652023739 LEFT FRAME TUBE
78652023737Makita 652023737 WHEEL
79652023747Makita 652023747 SELF-TAPPING SCREW
