Makita UC3551A
Makita UC3551A: exploded parts diagram, 2 sheets, 75 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UC3551A: 75 positions on 2 sheets
Sheet 1: Makita UC3551A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 931403-6 | Makita 931403-6 HEX NUT, 2012NB |
| 2 | 227626-5 | Makita 227626-5 SPIRAL BEVEL GEAR 12 |
| 3 | 211111-8 | Makita 211111-8 BALL BEARING 6301LLB |
| 5 | 517904-4 | Makita 517904-4 ARMATURE ASSY 240V |
| 6 | 681666-1 | Makita 681666-1 DUSTPROOF WASHER, MT360 |
| 7 | 210084-2 | Makita 210084-2 BALL BEARING 629ZZ |
| 8 | 266095-5 | Makita 266095-5 TAPPING SCREW FLANGE PT 5 X55 |
| 9 | 419410-4 | Makita 419410-4 BAFFLE PLATE, UC3030A |
| 10 | 636394-3 | Makita 636394-3 Field 240V UC3551A UC3051A UC4051A |
| 11 | 650577-1 | Makita 650577-1 Switch for UC3020A UC3030A UC3520A UC3530A UC4020A UC4030A |
| 12 | 142348-5 | Makita 142348-5 MOTOR HOUSING COMPLETE |
| 13 | 815F99-6 | |
| 14 | 233173-6 | Makita 233173-6 COMPRESSION SPRING 4, UC3020A |
| 15 | 416178-3 | Makita 416178-3 LOCK OFF BUTTON, UC3020A |
| 16 | 650717-1 | Makita 650717-1 SWITCH TGC30B |
| 17 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 18 | 187901-0 | Makita 187901-0 HANDLE SET |
| 19 | 665894-6 | Makita 665894-6 POWER S.CORD, LS1016 |
| 20 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 21 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 22 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 23 | 645105-5 | Makita 645105-5 CAPACITOR PAB104, LS1040 |
| 24 | 631719-6 | Makita 631719-6 Controller 240V for UC3030A UC3530A UC4030A |
| 25 | 419411-2 | Makita 419411-2 SWITCH LEVER, UC3030A |
| 26 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 27 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 28 | 187901-0 | Makita 187901-0 HANDLE SET |
| 29 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |

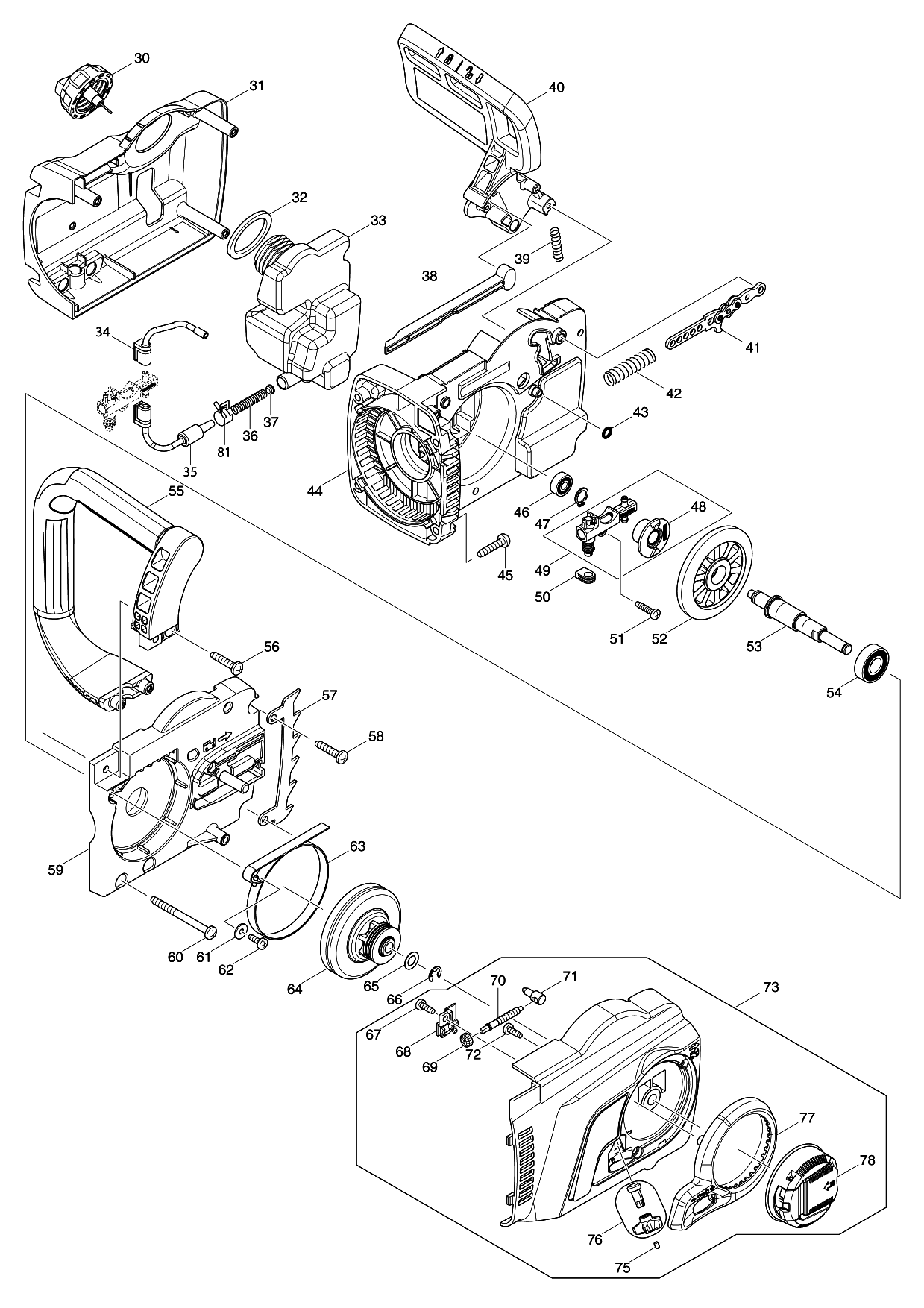

Sheet 2: Makita UC3551A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 30 | 142282-9 | Makita 142282-9 Tank Cap Complete Es-174TLC for UC3551A UC4051A |
| 31 | 454822-4 | Makita 454822-4 GEAR HOUSING COVER |
| 32 | 421959-2 | Makita 421959-2 SPONGE SEAL, UC3030A |
| 33 | 454826-6 | Makita 454826-6 OIL TANK |
| 34 | 424611-1 | Makita 424611-1 CONNECTOR B |
| 35 | 424610-3 | Makita 424610-3 CONNECTOR A |
| 36 | 231975-4 | Makita 231975-4 SPRING, DCS230T |
| 37 | 416274-7 | Makita 416274-7 CAP, UC3020A |
| 38 | 454825-8 | Makita 454825-8 ROD |
| 39 | 233174-4 | Makita 233174-4 COMPRESSION SPRING 6, PS-220TH |
| 40 | 142341-9 | Makita 142341-9 FRONT HAND GUARD COMPLETE |
| 41 | 158044-5 | Makita 158044-5 LINK PLATE COMPLETE, UC3030A |
| 42 | 234005-0 | Makita 234005-0 COMPRESSION SPRING 9, UC3030A |
| 43 | 213017-6 | Makita 213017-6 O RING 6, 5277NB |
| 44 | 454821-6 | Makita 454821-6 GEAR HOUSING |
| 45 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 46 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 47 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 48 | 221427-3 | Makita 221427-3 WORM GEAR |
| 50 | 424612-9 | Makita 424612-9 GROMMET |
| 51 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 52 | 227627-3 | Makita 227627-3 SPIRAL BEVEL GEAR 37 |
| 53 | 326373-6 | Makita 326373-6 SPINDLE |
| 54 | 210107-6 | Makita 210107-6 BALL BEARING 6001ZZ, MT910 |
| 55 | 454823-2 | Makita 454823-2 FRONT HAND |
| 56 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 57 | 345651-5 | Makita 345651-5 SPIKE BUMPER, UC3020A |
| 58 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 59 | 319091-3 | Makita 319091-3 BEARING HOUSING |
| 60 | 266044-2 | Makita 266044-2 TAPPING SCREW PT 5X60, 5806B |
| 61 | 267195-4 | Makita 267195-4 FLAT WASHER 4, UC3020A |
| 62 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 63 | 168426-3 | Makita 168426-3 BRAKE BAND, UC3030A |
| 64 | 125331-7 | Makita 125331-7 UC4030A UC3530A UC3030A UC4530A UC4051A UC3051A |
| 65 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
| 66 | 259033-4 | Makita 259033-4 Retaining Ring E Type 6, UC3030A |
| 67 | 266427-6 | Makita 266427-6 TAPPING SCREW 4X12 |
| 68 | 454818-5 | Makita 454818-5 COVER |
| 69 | 227496-2 | Makita 227496-2 Straight Bevel Gear 14 for UC3520A UC3020A |
| 70 | 326372-8 | Makita 326372-8 ADJUST SCREW |
| 71 | 326310-0 | Makita 326310-0 ADJUST PIN |
| 72 | 266427-6 | Makita 266427-6 TAPPING SCREW 4X12 |
| 75 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 76 | 142665-3 | Makita 142665-3 DRIVE GEAR COMPLETE |
| 77 | 454819-3 | Makita 454819-3 NUT COVER |
| 78 | 142235-8 | Makita 142235-8 NUT COMPLETE |
| 81 | 324685-1 | Makita 324685-1 HOSE CLAMP MUC351 |
