Makita UC3520A
Makita UC3520A: exploded parts diagram, 2 sheets, 86 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UC3520A: 86 positions on 2 sheets

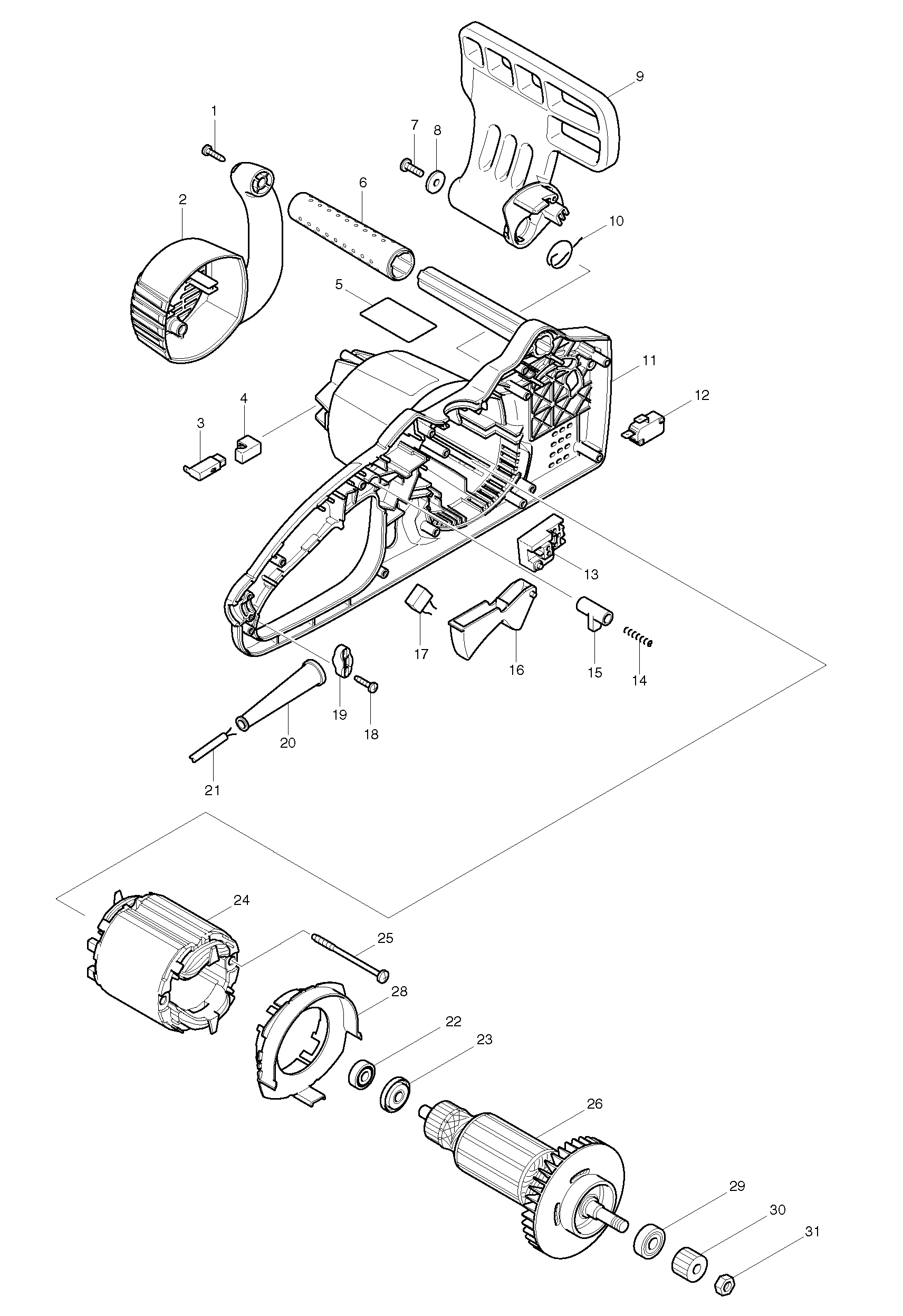

Sheet 1: Makita UC3520A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 2 | 419234-8 | Makita 419234-8 REAR COVER, UC3020A |
| 3 | 191972-1 | Makita 191972-1 Carbon Brush CB-132 for 1923 1923H UC3010A UC3520A UC4020A |
| 4 | 682211-5 | Makita 682211-5 RUBBER SLEEVE, UC3020A |
| 5 | 861992-6 | |
| 6 | 421938-0 | Makita 421938-0 FRONT GRIP, UC3020A |
| 7 | 266388-0 | Makita 266388-0 TAPPING SCREW 5*70, UC3020A |
| 8 | 267189-9 | Makita 267189-9 FLAT WASHER 5, UC3020A |
| 9 | 419235-6 | Makita 419235-6 FRONT HAND GUARD, UC3020A |
| 10 | 231640-5 | Makita 231640-5 TORSION SPRING 20, UC3020A |
| 11 | 188089-9 | Makita 188089-9 Housing Set for UC3520A, UC4020A Electric Chainsaws |
| 12 | 650577-1 | Makita 650577-1 Switch for UC3020A UC3030A UC3520A UC3530A UC4020A UC4030A |
| 13 | 651922-3 | Makita 651922-3 Switch TG71B for 2414B PC5001C HR4000C GA7011C |
| 14 | 233173-6 | Makita 233173-6 COMPRESSION SPRING 4, UC3020A |
| 15 | 416178-3 | Makita 416178-3 LOCK OFF BUTTON, UC3020A |
| 16 | 416708-0 | Makita 416708-0 SWITCH LEVER, UC3020A |
| 17 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 18 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 19 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 20 | 682540-6 | Makita 682540-6 CORD GUARD 9.3-90, LS1040 |
| 21 | 665876-8 | Makita 665876-8 POWER S.CORD, UC3020A |
| 22 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 23 | 681644-1 | Makita 681644-1 RESIN WASHER, MT110 |
| 24 | 594538-0 | Makita 594538-0 FIELD ASSY 220-240V, UC3020A |
| 25 | 266389-8 | Makita 266389-8 TAPPING SCREW 5*70, UC3020A |
| 26 | 513643-4 | OLDN Makita 513643-4 ARMATURE ASS'Y UC3020A |
| 28 | 419238-0 | Makita 419238-0 BAFFLE PLATE, UC3020A |
| 29 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 30 | 227153-2 | Makita 227153-2 SPUR GEAR 12, UC3020A |
| 31 | 931403-6 | Makita 931403-6 HEX NUT, 2012NB |

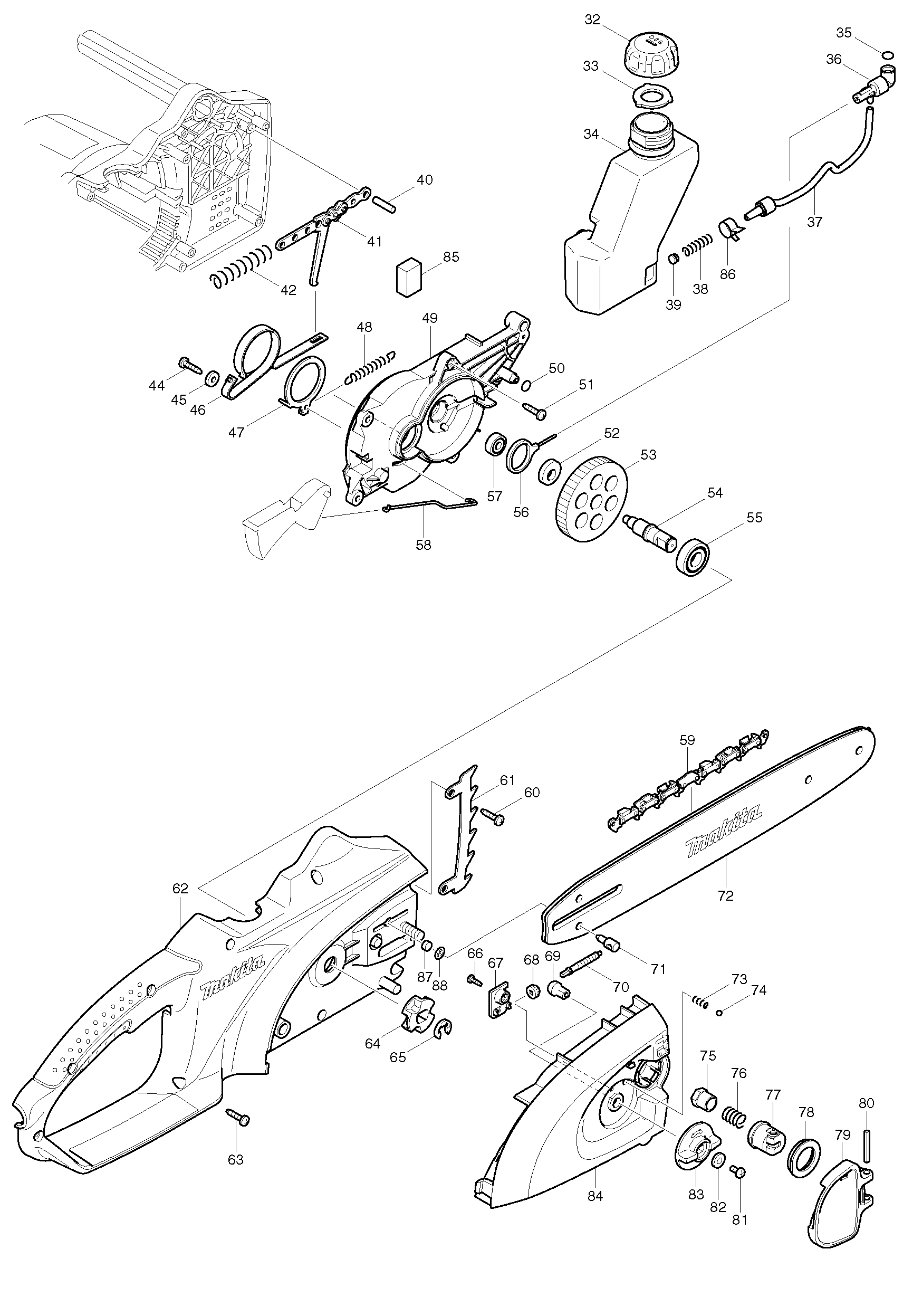

Sheet 2: Makita UC3520A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 32 | 286274-9 | Makita 286274-9 CAP, UC3020A |
| 33 | 421934-8 | Makita 421934-8 PACKING, UC3020A |
| 34 | 419240-3 | Makita 419240-3 Oil Tank for UC3020A |
| 35 | 213039-6 | Makita 213039-6 O Ring 6 for UC3020A |
| 36 | 154762-3 | Makita 154762-3 OIL PUMP COMPLETEUC3020A |
| 37 | 421935-6 | Makita 421935-6 OIL TUBE, UC3020A |
| 38 | 231975-4 | Makita 231975-4 SPRING, DCS230T |
| 39 | 416274-7 | Makita 416274-7 CAP, UC3020A |
| 40 | 256021-2 | Makita 256021-2 PIN 5, UC3020A |
| 41 | 158047-9 | Makita 158047-9 LINK PLATE COMPLETE, UC3020A |
| 42 | 233175-2 | Makita 233175-2 COMPRESSION SPRING 9, UC3020A |
| 44 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 45 | 267195-4 | Makita 267195-4 FLAT WASHER 4, UC3020A |
| 46 | 168321-7 | Makita 168321-7 BRAKE BAND, UC3020A |
| 47 | 344688-9 | Makita 344688-9 BRAK RING, UC3020A |
| 48 | 231817-2 | Makita 231817-2 TENSION SPRING 5, UC3020A |
| 49 | 419236-4 | Makita 419236-4 BEARING HOLDER UC3020A |
| 50 | 213039-6 | Makita 213039-6 O Ring 6 for UC3020A |
| 51 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 52 | 417405-1 | Makita 417405-1 Cam for UC3020A UC4020A UC4030A UC3520A UC3530A |
| 53 | 227154-0 | Makita 227154-0 SPUR GEAR 43, UC3020A |
| 54 | 324619-4 | Makita 324619-4 SPINDLE, UC3020A |
| 55 | 210106-8 | Makita 210106-8 BALL BEARING 6001LLB, UC3020A-K |
| 56 | 416513-5 | Makita 416513-5 CRANKUC3020A |
| 57 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 58 | 324622-5 | Makita 324622-5 ROD, UC3020A |
| 59 | 528092652 | |
| 60 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 61 | 345651-5 | Makita 345651-5 SPIKE BUMPER, UC3020A |
| 62 | 188089-9 | Makita 188089-9 Housing Set for UC3520A, UC4020A Electric Chainsaws |
| 63 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 64 | 221526-1 | Makita 221526-1 Saw Sprocket for UC3520A UC4020A UC3020A ES38A |
| 65 | 259036-8 | Makita 259036-8 RETAINING RING E TYPE 8, UC3020A |
| 66 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 67 | 419241-1 | Makita 419241-1 COVER, UC3020A |
| 68 | 227496-2 | Makita 227496-2 Straight Bevel Gear 14 for UC3520A UC3020A |
| 69 | 227495-4 | Makita 227495-4 Straight Bevel Gear 14 for UC3020A, UC3520A, UC3530A |
| 70 | 324620-9 | Makita 324620-9 Adjust Screw for UC3020A |
| 71 | 324621-7 | Makita 324621-7 Adjust Pin for UC3020A |
| 72 | 165246-6 | DISC New Genuine Makita 165246-6 GUIDE BAR |
| 73 | 233033-2 | Makita 233033-2 COMPRESSION SPRING 4, UC3020A |
| 74 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 75 | 252168-0 | Makita 252168-0 Hex Nut M8-13 for UC3020A |
| 76 | 231025-5 | Makita 231025-5 Compression Spring 8 for UC3020A |
| 77 | 317977-5 | Makita 317977-5 Lever Holder for UC3020A |
| 78 | 419271-2 | Makita 419271-2 Cup Washer 20 for UC3020A |
| 79 | 154763-1 | Makita 154763-1 Lever Complete for UC3020A |
| 80 | 951122-8 | Makita 951122-8 Spring Pin 4-28 for 2012NB |
| 81 | 915106-0 | Makita 915106-0 Binding Head Screw M4X8 for UC3020A |
| 82 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 83 | 419233-0 | Makita 419233-0 Dial 40 for UC3020A |
| 84 | 154761-5 | Makita 154761-5 Sprocket Cover Complete for UC3020A UC3520A UC4020A |
| 85 | 421960-7 | Makita 421960-7 SPONGE, UC3020A |
| 86 | 324685-1 | Makita 324685-1 HOSE CLAMP MUC351 |
| 87 | 443125-1 | Makita 443125-1 Filter for MUC351 |
| 88 | 259041-5 | Makita 259041-5 PUSH NUT 8 MUC350 |
