Makita UC3503A

Makita UC3503A: exploded parts diagram, 4 sheets, 72 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UC3503A: 72 positions on 4 sheets

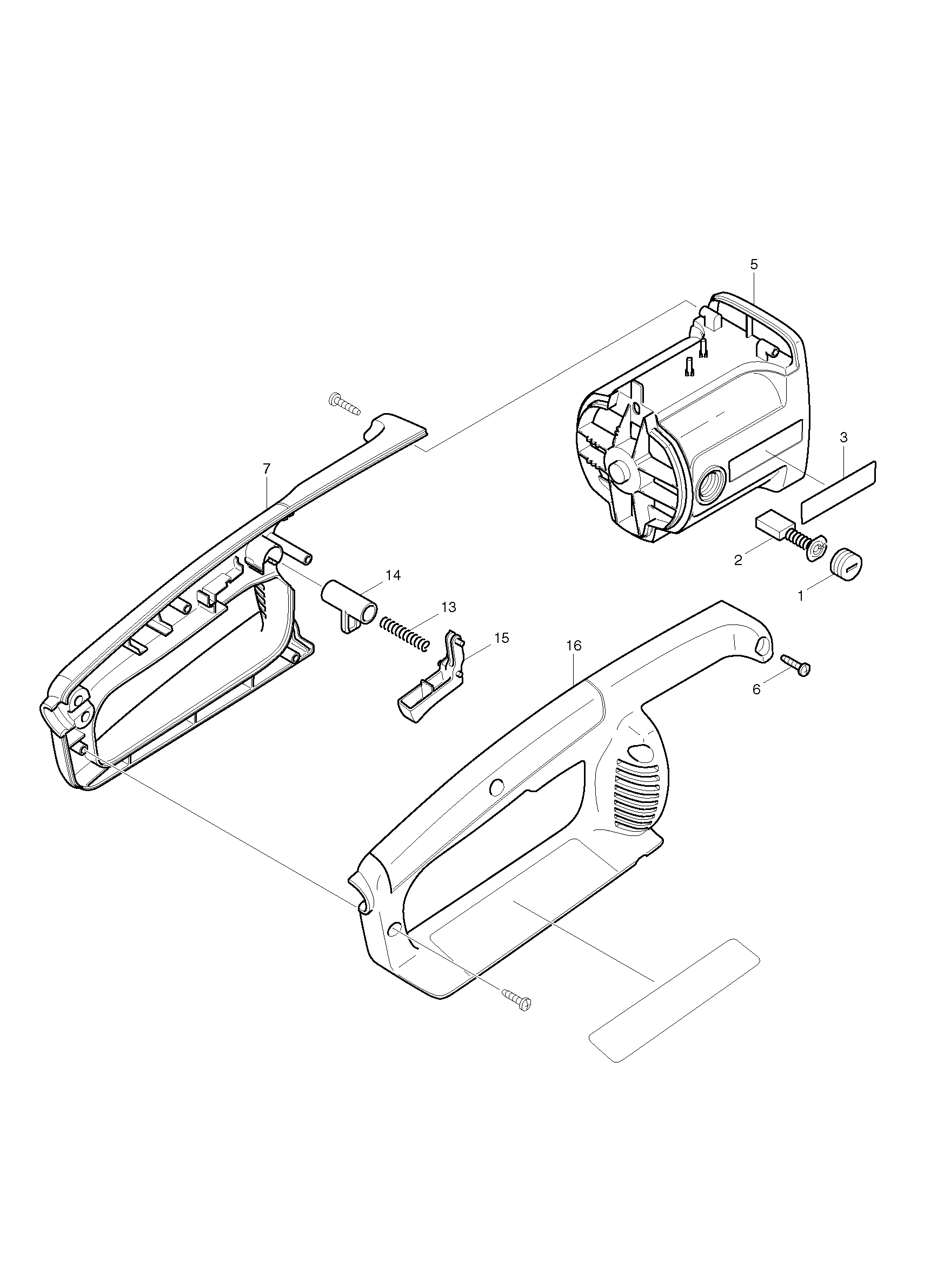

Sheet 1: Makita UC3503A parts diagram

Makita UC3503A parts diagram, sheet 1
No.Part numberPart name
1970802420Makita 970802420 KANSI F.CARBON BRUSHUC3500A
2957802410DISC 957802410
3
5225111660Makita 225111660 MOOTTORIKOTELO UC3500A
6913540185Makita 913540185 RUUVI
7225310660Makita 225310660 KAHVA COMP.UC3500A
13225145010Makita 225145010 JOUSI UC3500A
14225144010Makita 225144010 LUKKO NUPPI UC3500A
15225271010Makita 225271010 KYTKINVIPU UC3500A
16225310660Makita 225310660 KAHVA COMP.UC3500A

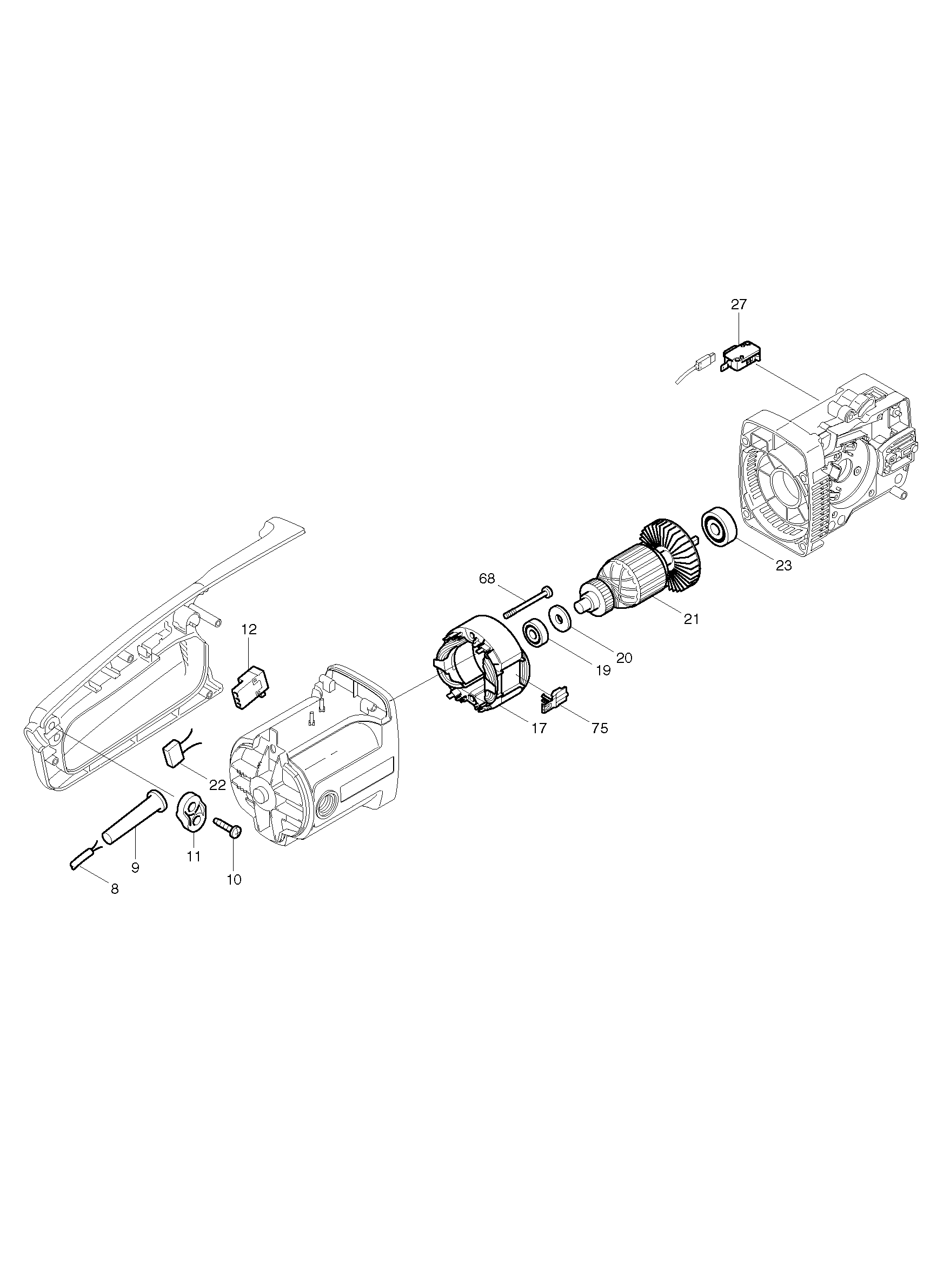

Sheet 2: Makita UC3503A parts diagram

Makita UC3503A parts diagram, sheet 2
No.Part numberPart name
8970102110Makita 970102110 VERKKOKAAPELI
9225152010Makita 225152010 JARRU SUOJA UC3500A
10913540185Makita 913540185 RUUVI
11225152050Makita 225152050 KITKAN POISTAJA UC3500A
12975001190Makita 975001190 KYTKINUC3501A
17970802270Makita 970802270 KÄÄMI SARJA, NO LONGER AVAILABLE
19960102094Makita 960102094 KUULA LAAKERI SKF 9/6X8
20970802610Makita 970802610 VÄLI PALA
21970802350Makita 970802350 ROTOR SARJA
22970109810Makita 970109810 KONDENSAATTORI
23960103126Makita 960103126 KUULALAAKERI NTN 1237X12
27970001200Makita 970001200 KYTKINUC3500A
68913550555Makita 913550555 RUUVI
75970801860Makita 970801860 KIINNITIN

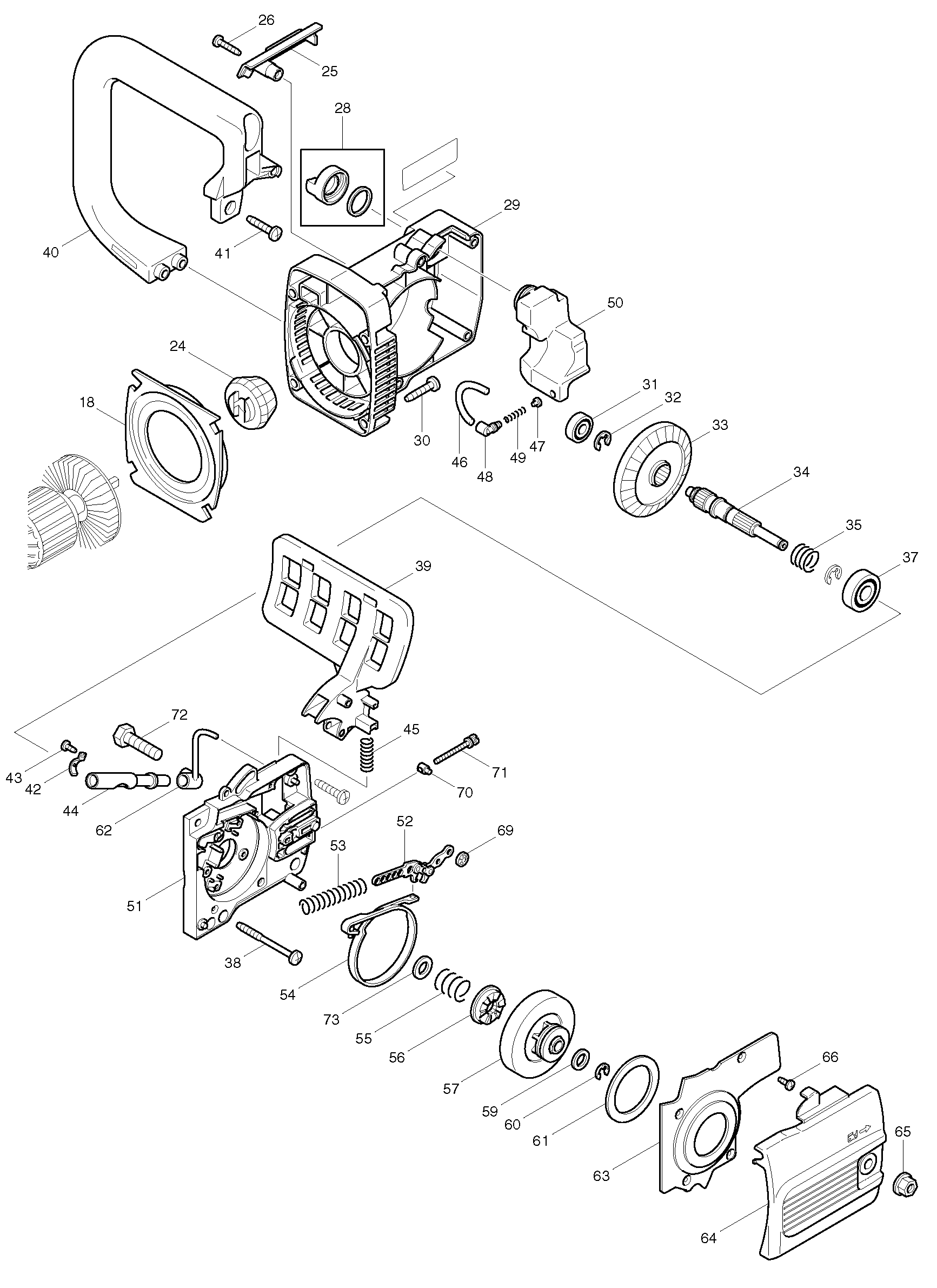

Sheet 3: Makita UC3503A parts diagram

Makita UC3503A parts diagram, sheet 3
No.Part numberPart name
18225118010Makita 225118010 TUULETUSOHJAINUC3501A
24225222010Makita 225222010 RATAS
25225212010Makita 225212010 SUOJUS UC3500A
26913540185Makita 913540185 RUUVI
28205114201Makita 205114201 KORKKI
29225211021
30913550255Makita 913550255 RUUVI
31960101084Makita 960101084 KUULA LAAKERI NTN 8/2/X7
32930110120Makita 930110120 TURVA LEVY
33225221010Makita 225221010 HAMMASPYÖRÄ UC3500A
34225221020
35021245040Makita 021245040 MATO
37960102124Makita 960102124 KUULA LAAKERI NTN 1232X10
38913550555Makita 913550555 RUUVI
39225213110Makita 225213110 KÄDENSUOJAIN UC3500A
40225310020Makita 225310020 ETUKAHVAUC3500A
41913550255Makita 913550255 RUUVI
42203245001Makita 203245001 ÖLJYPUMPPUUN KIINIKEC3500A
43915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
44021245003Makita 021245003 ÖLJY PUMPPU TÄYDUC3501A UC3503A
45225213060Makita 225213060 KÄDENSUOJAIMEN JOUSI UC3500A
46965452387OLDN Makita 965452387 Makita Tube 5.5 X 3 L = 93mm
47021245100Makita 021245100 KORKKI
48225243010
49021245060Makita 021245060 PAINE JOUSI UC35
50225244010Makita 225244010 ÖLJYTANKKI UC3500
51225211011
52028213532
53028213521Makita 028213521 JOUSI UC3500A
54225213050Makita 225213050 JARRU JOUSI UC3500A
55225184010Makita 225184010 PAINEJOUSI UC3500A
56225229010Makita 225229010 KYNSI KYTKINUC3500A
57225223110
59221229220Makita 221229220 LEVY
60930106070Makita 930106070 TURVALEVYUC3500A
61965527070Makita 965527070 TIIVISTEUC3500A
62225242010Makita 225242010 PUTKIUC3500A
63225282011Makita 225282011 KANSI LEVY
64225213100
65923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
66915835100Makita 915835100 RUUVI
69930304030Makita 930304030 KIINNITIN LEVYUC3500A
70001213042Makita 001213042 Nut with Pivot
71901505354Makita 901505354 Screw M5X35 for UC3500A
72900208304Makita 900208304 KUUSIO RUUVIUC300A
73225189010Makita 225189010 ALUSLEVY UC3500A

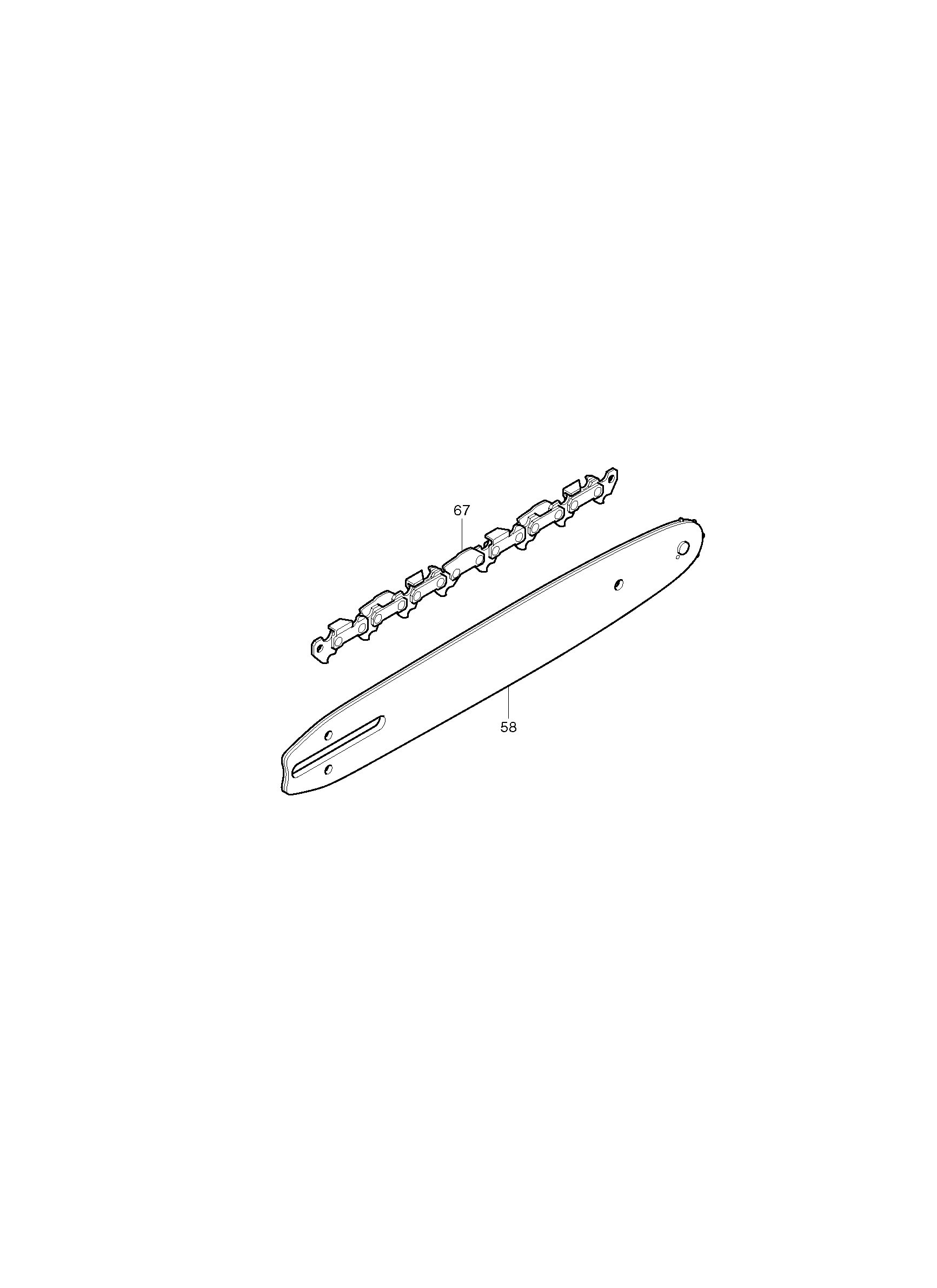

Sheet 4: Makita UC3503A parts diagram

Makita UC3503A parts diagram, sheet 4
No.Part numberPart name
58442035661
67528092652
