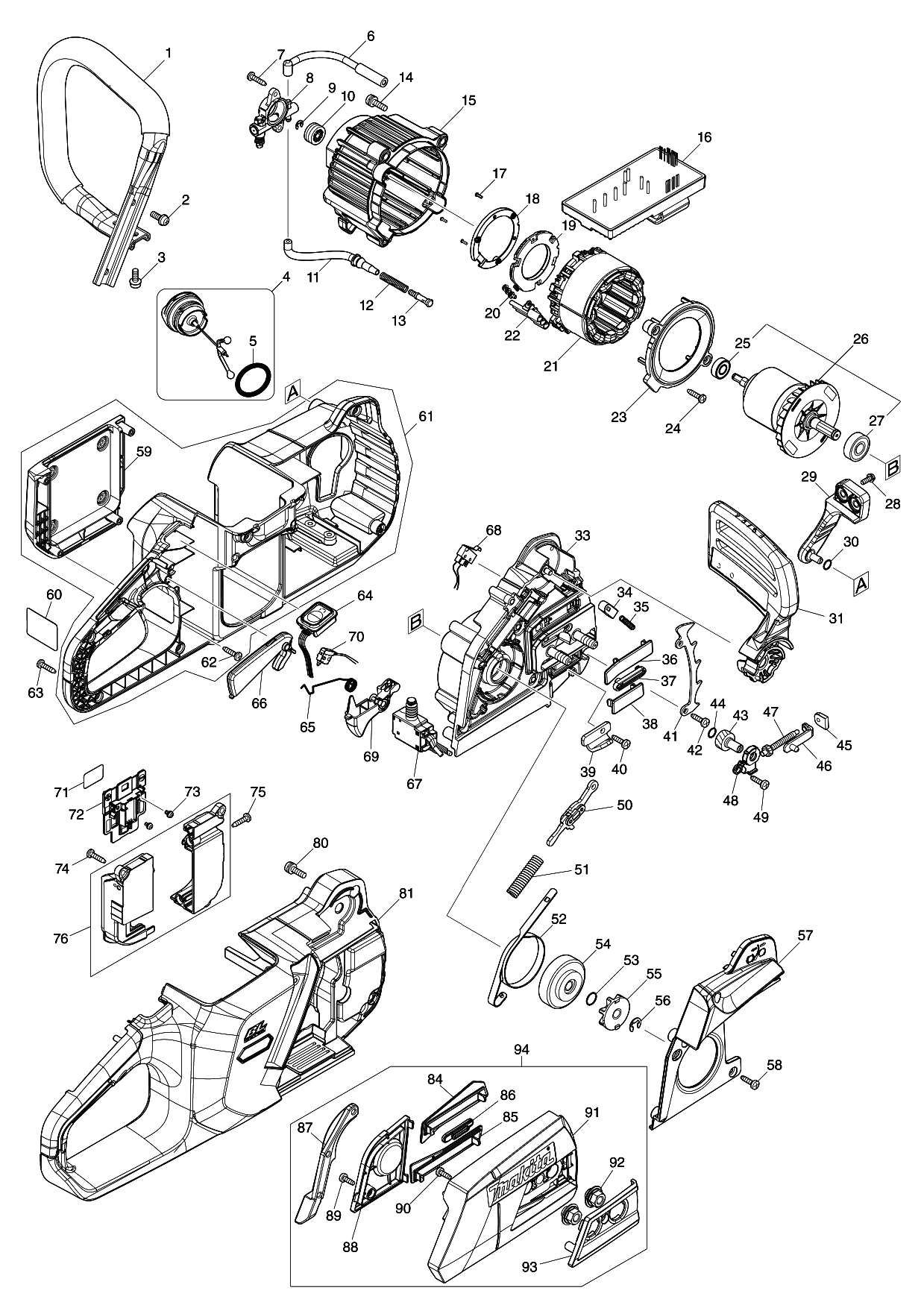

Sheet 1: Makita UC012G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 327932-9 | |
| 2 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 3 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 5 | 213080-9 | Makita 213080-9 O RING 29,5 |
| 6 | 422835-3 | |
| 7 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 8 | 142857-4 | Makita 142857-4 OIL PUMP COMPLETE |
| 9 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 10 | 226884-0 | Makita 226884-0 WORM GEAR, UC356D |
| 11 | 422836-1 | |
| 12 | 231975-4 | Makita 231975-4 SPRING, DCS230T |
| 13 | 452666-6 | Makita 452666-6 NIPPLE, EA3200S |
| 14 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 15 | 413C89-1 | |
| 16 | 620H71-5 | |
| 17 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 18 | 687B69-9 | |
| 19 | 620H75-7 | |
| 20 | 652031-1 | |
| 21 | 629B00-9 | |
| 22 | 632T19-7 | |
| 23 | 413C90-6 | |
| 24 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 25 | 210016-9 | Makita 210016-9 BALL BEARING 698ZZ |
| 26 | 519732-3 | |
| 27 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 28 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 29 | 413C92-2 | |
| 30 | 213594-8 | Makita 213594-8 O-RING, PS-32 |
| 31 | 141J69-6 | |
| 33 | 136609-3 | |
| 34 | 313398-9 | |
| 35 | 234210-9 | Makita 234210-9 COMPRESSION SPRING 3, EA3200 |
| 36 | 413D07-5 | |
| 37 | 422834-5 | |
| 38 | 413D08-3 | |
| 39 | 347924-2 | |
| 40 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 41 | 347925-0 | |
| 42 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 43 | 227744-9 | Makita 227744-9 HELICAL GEAR 19, EA3200S |
| 44 | 213594-8 | Makita 213594-8 O-RING, PS-32 |
| 45 | 452668-2 | Makita 452668-2 GUIDE PLATE, EA3200S |
| 46 | 347923-4 | |
| 47 | 227743-1 | Makita 227743-1 HELICAL GEAR, EA3200S |
| 48 | 413D06-7 | |
| 49 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 50 | 141E60-4 | Makita 141E60-4 LINK PLATE COMPLETE, UC003G |
| 51 | 232452-9 | |
| 52 | 347922-6 | |
| 53 | 213060-5 | Makita 213060-5 O RING 10 |
| 54 | 162979-4 | Makita 162979-4 BRAKE DRUM, UC003G |
| 55 | 191V91-5 | |
| 56 | 961013-5 | Makita 961013-5 STOP RING E-7, LS1016 |
| 57 | 413C95-6 | |
| 58 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 59 | 413C88-3 | |
| 60 | 8117H1-9 | |
| 62 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 63 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 64 | 620J22-0 | |
| 65 | 232733-1 | |
| 66 | 413C94-8 | |
| 67 | 650024-2 | |
| 68 | 632T50-3 | |
| 69 | 413C93-0 | |
| 70 | 632L49-0 | Makita 632L49-0 SWITCH UNIT, DUC254 |
| 71 | 8117H6-9 | |
| 72 | 632T07-4 | |
| 73 | 652031-1 | |
| 74 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 75 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 76 | 183V16-3 | |
| 80 | 911228-4 | Makita 911228-4 PAN HEAD SCREW M5*18, 5377MG |
| 81 | 136674-2 | |
| 84 | 413D09-1 | |
| 85 | 413D10-6 | |
| 86 | 422833-7 | |
| 87 | 422832-9 | |
| 88 | 413C98-0 | |
| 89 | 266427-6 | Makita 266427-6 TAPPING SCREW 4X12 |
| 90 | 266427-6 | Makita 266427-6 TAPPING SCREW 4X12 |
| 91 | 413C96-4 | |
| 92 | 162493-0 | |
| 93 | 413C97-2 |
