Bosch UBH 4/26

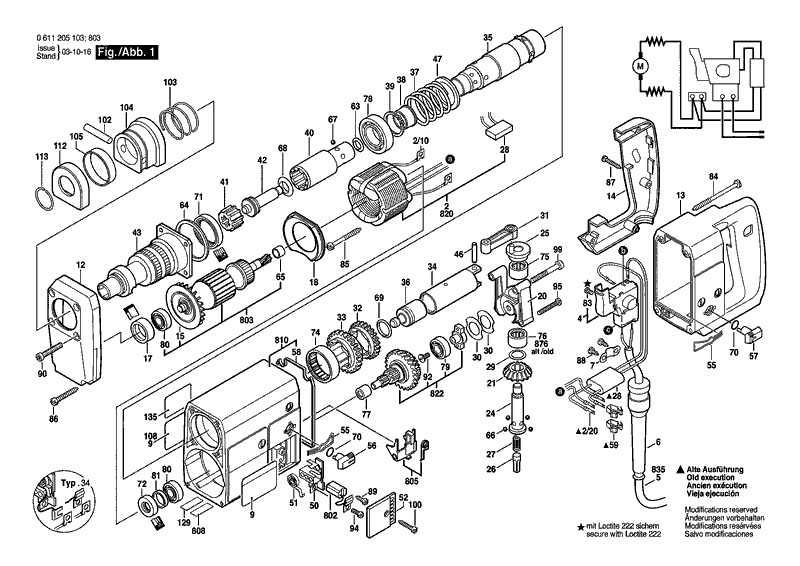

Bosch UBH 4/26 universal rotary hammer: exploded parts diagram, 2 sheets, 218 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UBH 4/26: 218 positions on 2 sheets
Bosch UBH 4/26 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 2910601120 | Tapping Screw BZ 3,9X19 DIN 7972 |
| 100 | 2910601120 | Tapping Screw BZ 3,9X19 DIN 7972 |
| 102 | 2917550184 | Straight Pin RIKO 6325-8M6X40 |
| 102 | 2917550184 | Straight Pin RIKO 6325-8M6X40 |
| 103 | 1614616004 | Compression Spring |
| 103 | 1614616004 | Compression Spring |
| 104 | 1610499004 | Protection Sleeve |
| 104 | 1610499004 | Protection Sleeve |
| 105 | 1610206016 | Rubber Ring Ø42XØ4,5X10 MM |
| 105 | 1610206016 | Rubber Ring Ø42XØ4,5X10 MM |
| 108 | 1611110458 | Manufacturer's nameplate |
| 108 | 1611110459 | Manufacturer's nameplate |
| 108 | 1611110468 | Manufacturer's nameplate |
| 112 | 1610590000 | Protective Cap |
| 112 | 1610590000 | Protective Cap |
| 113 | 2916601014 | Retaining ring 26 DIN 9045 |
| 113 | 2916601014 | Retaining ring 26 DIN 9045 |
| 115 | 1613001008 | Depth-Gauge SW 6X330 MM |
| 12 | 1615500280 | Housing Cover |
| 12 | 1615500280 | Housing Cover |
| 120 | 1612025019 | Auxiliary Handle M8 |
| 121 | 1618040077 | Support clamp |
| 122 | 1613521001 | Stud bolt M8 |
| 123 | 1611316003 | Clamping Band Ø43 MM |
| 124 | 1613100012 | Straight Pin |
| 125 | 1613480009 | Wing Screw M6X25 MM |
| 126 | 1613300006 | Hex Nut M6 |
| 127 | 1611030009 | Clamping Plate |
| 129 | 1611110126 | Reference Plate |
| 13 | 1615806049 | Gear Housing |
| 13 | 1615806049 | Gear Housing |
| 135 | 1601110449 | Nameplate Caution |
| 135 | 1611110387 | Reference Plate |
| 14 | 1615132024 | Handle Cover |
| 14 | 1615132024 | Handle Cover |
| 15 | 1616610052 | Fan |
| 15 | 1616610052 | Fan |
| 17 | 1610206017 | Rubber Ring |
| 17 | 1610206017 | Rubber Ring |
| 18 | 1610522005 | Air-Deflector Ring |
| 18 | 1610522005 | Air-Deflector Ring |
| 2 | 1614220095 | Field 110-115V |
| 2 | 1614220080 | Field 220V |
| 2/10 | 1901350003 | Terminal lug 1,5-4X4 |
| 2/20 | 2601355007 | Blade terminal |
| 20 | 1615820087 | Bearing Pedestal |
| 20 | 1615820087 | Bearing Pedestal |
| 21 | 1616333005 | Bevel Gear Z=33 |
| 24 | 1613124019 | Crankshaft |
| 24 | 1613124019 | Crankshaft |
| 25 | 1613180002 | Eccentric Bolt |
| 25 | 1613180002 | Eccentric Bolt |
| 26 | 1613105010 | Pressure Spindle |
| 26 | 1613105010 | Pressure Spindle |
| 27 | 1604612002 | Compression Spring |
| 27 | 1604612002 | Compression Spring |
| 28 | 1617328020 | Suppression Filter |
| 28 | 1617328020 | Suppression Filter |
| 29 | 1610101610 | Shim washer Thick 1,8 MM |
| 29 | 1610101610 | Shim washer Thick 1,8 MM |
| 30 | 1610132004 | Shim Thick 0,2 MM |
| 30 | 1610132004 | Shim Thick 0,2 MM |
| 31 | 1612001030 | Connecting Rod |
| 31 | 1612001030 | Connecting Rod |
| 32 | 1616317023 | Cylindrical Gear Z=46/6 |
| 32 | 1616317023 | Cylindrical Gear Z=46/6 |
| 33 | 1616317024 | Cylindrical Gear Z=46/6 |
| 33 | 1616317024 | Cylindrical Gear Z=46/6 |
| 34 | 1618700051 | Hammer Piston |
| 34 | 1618700051 | Hammer Piston |
| 35 | 1616130005 | Hollow Shaft Z=6 |
| 35 | 1616130005 | Hollow Shaft Z=6 |
| 36 | 1618710046 | Striker |
| 36 | 1618710046 | Striker |
| 37 | 1614618001 | Compression Spring |
| 37 | 1614618001 | Compression Spring |
| 38 | 1610328010 | Backup ring |
| 38 | 1610328010 | Backup ring |
| 39 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 39 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 4 | 2607200110 | Switch |
| 4 | 2607200134 | On-Off Switch |
| 4 | 2607200110 | Switch |
| 40 | 1616334010 | Bearing Sleeve |
| 40 | 1616334010 | Bearing Sleeve |
| 41 | 1616490009 | Carrier Z=8/9 |
| 41 | 1616490011 | Carrier Z=12/9 |
| 41 | 1616490009 | Carrier Z=8/9 |
| 42 | 1613124027 | Striker Pin 15 MM |
| 42 | 1613124028 | Striker Pin Ø12,5XØ25X74 MM |
| 42 | 1613124027 | Striker Pin 15 MM |
| 43 | 1618597031 | Toolholder |
| 43 | 1618597032 | Toolholder |
| 43 | 1618597031 | Toolholder |
| 46 | 1613101004 | Straight Pin |
| 46 | 1613101004 | Straight Pin |
| 47 | 1610102016 | Supporting Disc Thick 3,0 MM |
| 47 | 1610102016 | Supporting Disc Thick 3,0 MM |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460440 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1614460016 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 1614460026 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460039 | Power supply cord I 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1614460052 | Power supply cord |
| 5 | 1614460058 | Power supply cord GB 240V 4,15M 2 X 1,0MM H07RN-F |
| 5 | 1614460061 | Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F |
| 50 | 1604336017 | Brush Holder |
| 50 | 1604336017 | Brush Holder |
| 51 | 1604652006 | Spiral Spring |
| 51 | 1604652006 | Spiral Spring |
| 52 | 1615500281 | Housing Cover |
| 52 | 1615500281 | Housing Cover |
| 55 | 1614680000 | Holding Spring |
| 55 | 1614680000 | Holding Spring |
| 56 | 1612026026 | Control Lever |
| 56 | 1612026026 | Control Lever |
| 57 | 1612026015 | Control Lever |
| 57 | 1612026015 | Control Lever |
| 58 | 1611015025 | Sealing Frame |
| 58 | 1611015025 | Sealing Frame |
| 59 | 1611091002 | Connecting terminal 2-POLE |
| 59 | 1611329003 | Contact Spring |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 63 | 1610210089 | O-Ring 62,0X4,0 MM |
| 63 | 1610210089 | O-Ring 62,0X4,0 MM |
| 64 | 1900210145 | O-Ring 45X2,5MM |
| 64 | 1900210145 | O-Ring 45X2,5MM |
| 65 | 1610300051 | Intermediate Ring |
| 65 | 1610300051 | Intermediate Ring |
| 655 | 1610508005 | Protective Cap Ø11XØ20,5X25 MM |
| 655 | 2600508014 | Housing Cover Black |
| 655 | 2600508019 | Protective Cap |
| 655 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 66 | 1903230009 | Ball DIN 5401-5 G28 |
| 66 | 1903230009 | Ball DIN 5401-5 G28 |
| 67 | 1903230011 | Ball DIN 5401-6 G28 |
| 67 | 1903230011 | Ball DIN 5401-6 G28 |
| 68 | 1610210034 | Damping Ring |
| 68 | 1610210034 | Damping Ring |
| 69 | 1610210058 | O-Ring 18,0X3,0 MM |
| 69 | 1610210058 | O-Ring 18,0X3,0 MM |
| 7 | 1601302013 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 70 | 1610210026 | O-Ring 14,0X2,3 MM |
| 70 | 1610210026 | O-Ring 14,0X2,3 MM |
| 71 | 1610283012 | Seal Ring Ø 31,5X42X7 MM |
| 71 | 1610283012 | Seal Ring Ø 31,5X42X7 MM |
| 72 | 1610283014 | Rotary shaft lip seal Ø13,8XØ26X7,5 MM |
| 72 | 1610283014 | Rotary shaft lip seal Ø13,8XØ26X7,5 MM |
| 74 | 1610910051 | Needle bearing Ø35XØ42X12 MM |
| 74 | 1610910051 | Needle bearing Ø35XØ42X12 MM |
| 75 | 1610910056 | Needle bearing Ø14XØ22X13 MM |
| 75 | 1610910056 | Needle bearing Ø14XØ22X13 MM |
| 76 | 1610910069 | Needle bearing |
| 76 | 1610910069 | Needle bearing |
| 77 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 77 | 1610910057 | Needle bearing Ø8XØ12X10 MM |
| 78 | 1900900275 | Groove ball bearing 25X47X12 |
| 78 | 1900900275 | Groove ball bearing 25X47X12 |
| 79 | 1900900278 | Groove ball bearing DIN 625 6000J C5 |
| 79 | 1900900278 | Groove ball bearing DIN 625 6000J C5 |
| 80 | 1610905002 | Groove ball bearing 10X26X8 |
| 80 | 1610905002 | Groove ball bearing 10X26X8 |
| 802 | 1617014106 | Carbon-Brush Set |
| 802 | 1617014108 | Carbon-Brush Set |
| 802 | 1617014106 | Carbon-Brush Set |
| 803 | 1614010027 | Armature 220-230V |
| 803 | 1614010028 | Armature 110-115V |
| 803 | 1614010029 | Armature 240V |
| 803 | 1614010030 | Armature 100V |
| 803 | 1614010027 | Armature 220-230V |
| 805 | 1617000064 | Parts Set |
| 805 | 1617000064 | Parts Set |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 81 | 1610205003 | Lubricating Felt |
| 81 | 1610205003 | Lubricating Felt |
| 810 | 1617000060 | Parts Set |
| 810 | 1617000060 | Parts Set |
| 813 | 1612025020 | Auxiliary Handle Ø43 MM |
| 820 | 1617000149 | Parts Set 220-230V |
| 820 | 1617000150 | Parts Set 100V |
| 820 | 1617000151 | Parts Set 110V |
| 820 | 1617000152 | Parts Set 240V |
| 822 | 1617000930 | Parts Set Z=9/16/48 |
| 83 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 83 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 835 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 835 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 84 | 1613412001 | Tapping Screw B 4,8X68 MM |
| 84 | 1613412001 | Tapping Screw B 4,8X68 MM |
| 85 | 1603412005 | Tapping Screw B4,8X45 MM |
| 85 | 3603415560 | Screw B 4,8X45 MM |
| 86 | 2910211037 | Tapping Screw DIN 7971-BZ4,8X32 |
| 86 | 2910211037 | Tapping Screw DIN 7971-BZ4,8X32 |
| 87 | 2910211221 | Tapping Screw DIN 7971-B 3,9X22 |
| 87 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 876 | 1610910056 | Needle bearing Ø14XØ22X13 MM |
| 876 | 1610910056 | Needle bearing Ø14XØ22X13 MM |
| 88 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 88 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 89 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 89 | 2910211017 | Tapping Screw DIN 7971-BZ3,9X9,5 |
| 9 | 1611110457 | Manufacturer's nameplate |
| 9 | 1611110467 | Manufacturer's nameplate |
| 9 | 1611110156 | Manufacturer's nameplate |
| 90 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 90 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 92 | 1613421000 | Countersunk-Head Screw |
| 92 | 1613421000 | Countersunk-Head Screw |
| 94 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 94 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 95 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 95 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 99 | 2910141170 | Hex Socket Head Cap Screw DIN 912-M5X40-8.8 |
| 99 | 2910141170 | Hex Socket Head Cap Screw DIN 912-M5X40-8.8 |
