Bosch UBH 4/26 rotary hammer: exploded parts diagram, 3 sheets, 154 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UBH 4/26: 154 positions on 3 sheets

Bosch UBH 4/26 parts list (3 sheets)

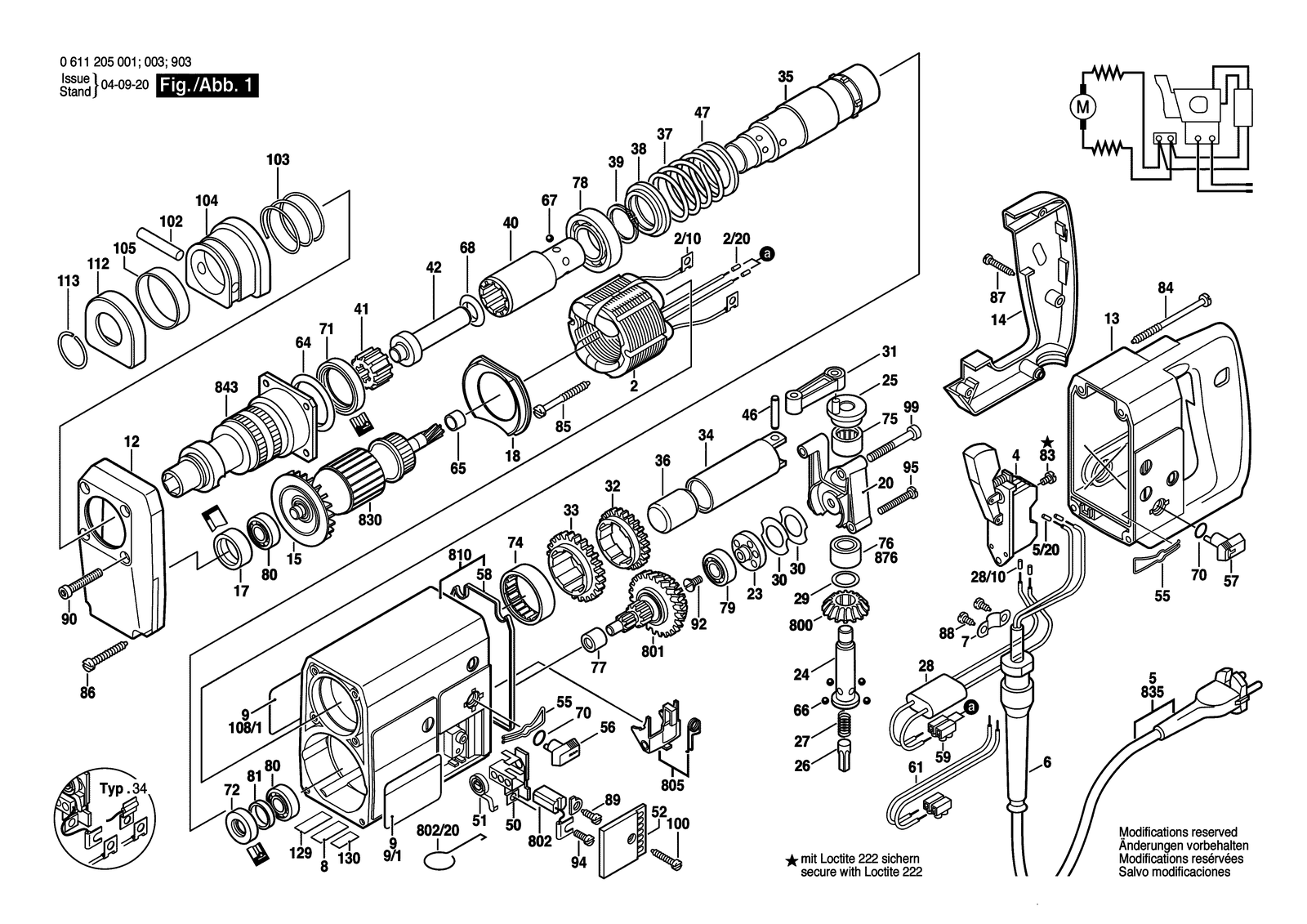

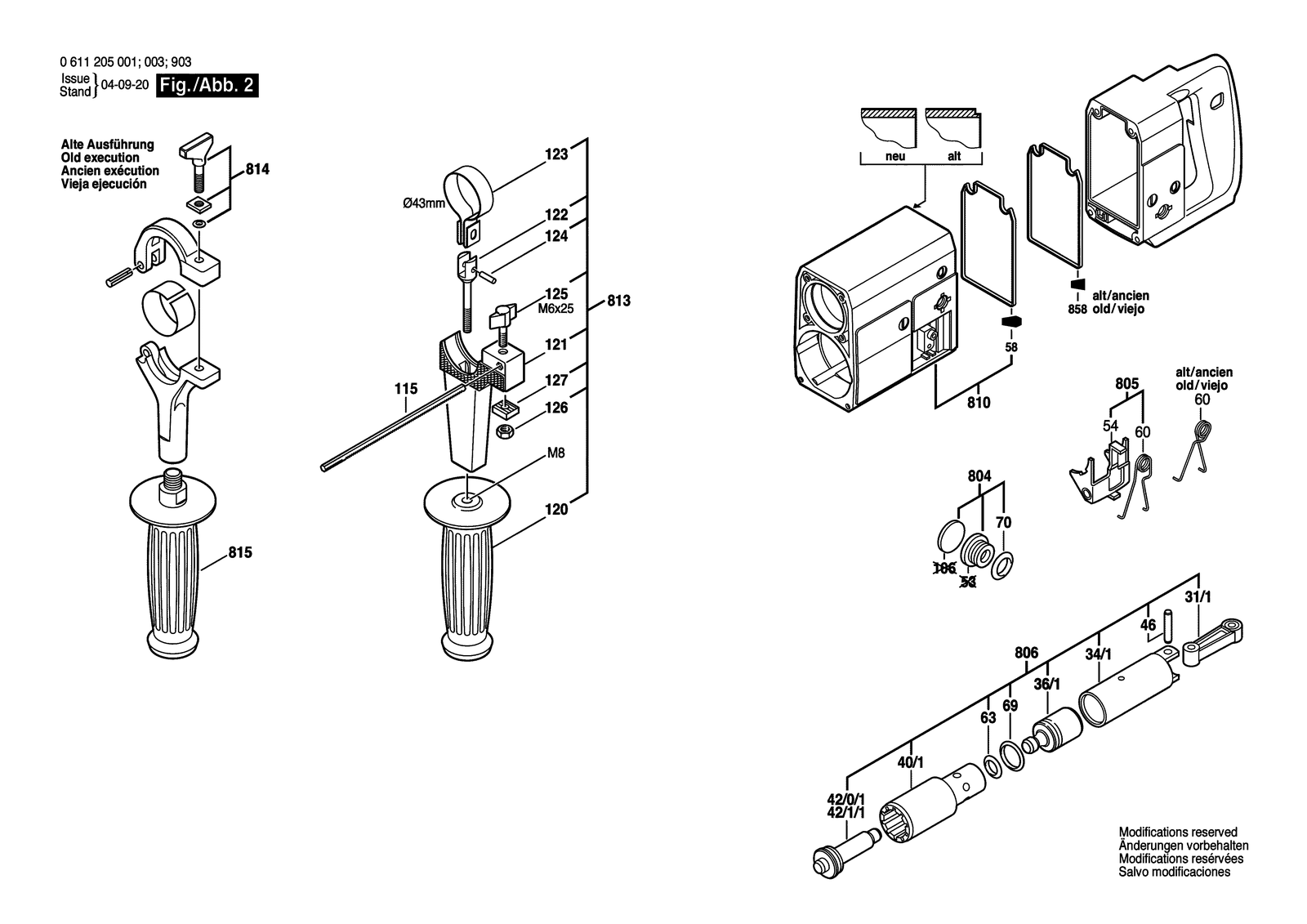

Bosch UBH 4/26 parts diagram, sheet 1Bosch UBH 4/26 parts diagram, sheet 2Bosch UBH 4/26 parts diagram, sheet 3
No.Part numberPart name
1002910601120Tapping Screw BZ 3,9X19 DIN 7972
1022917550184Straight Pin RIKO 6325-8M6X40
1031614616004Compression Spring
1041610499004Protection Sleeve
1051610206016Rubber Ring Ø42XØ4,5X10 MM
108/11611110468Manufacturer's nameplate
1121610590000Protective Cap
1132916601014Retaining ring 26 DIN 9045
1151613001003Depth-Gauge SW 6X330 MM
121615500280Housing Cover
1201612025019Auxiliary Handle M8
1211618040077Support clamp
1221613521001Stud bolt M8
1231611316003Clamping Band Ø43 MM
1241613100012Straight Pin
1251613480009Wing Screw M6X25 MM
1261613300006Hex Nut M6
1271611030009Clamping Plate
131615806024Gear Housing
141615132016Handle Cover
151616610052Fan
171610206017Rubber Ring
181610522005Air-Deflector Ring
21614220049Field 220-230V
21614220050Field 100V
21614220051Field 110-115V
21614220052Field 240V
2/101671353005Terminal lug Ø 4,3 MM
2/201610452003End Splice Ø1,3XØ1,6X10 MM
201615820087Bearing Pedestal
231615700024Bearing Flange
241613124019Crankshaft
251613180002Eccentric Bolt
261613105010Pressure Spindle
271604612002Compression Spring
281617328002Suppression Filter
281617328020Suppression Filter
28/103604477008End Splice
291610101610Shim washer Thick 1,8 MM
301610132004Shim Thick 0,2 MM
311612001030Connecting Rod
321616317023Cylindrical Gear Z=46/6
331616317024Cylindrical Gear Z=46/6
341618700035Hammer Piston
34/11618700051Hammer Piston
351616130005Hollow Shaft Z=6
361613200005Striker
36/11618710046Striker
371614618001Compression Spring
381610328010Backup ring
392916650014Spring retaining ring DIN 471 25X1,2
41617200017On-Off Switch
401616334007Bearing Sleeve
40/11616334010Bearing Sleeve
411616490009Carrier Z=8/9
411616490011Carrier Z=12/9
421613124021Striker Pin
42/0/11613124027Striker Pin 15 MM
42/1/11613124022Striker Pin
42/1/11613124028Striker Pin Ø12,5XØ25X74 MM
461613101004Straight Pin
471610102016Supporting Disc Thick 3,0 MM
51604460032Power supply cord AUS 2,65M 2 X 1,0MM Pvc
51604460092Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2
51604460219Power supply cord GB 110V 2,65M 2 X 2,5MM H07RN-F
51604460447Power supply cord CH 4,15M 2 X 1,0MM H07RN-F
51614460039Power supply cord I 4,15M 2 X 1,0MM H07 Rn-F
51614460058Power supply cord GB 240V 4,15M 2 X 1,0MM H07RN-F
51614460061Power supply cord GB 110V 4,15M 2 X 1,0MM H07 Rn-F
5/203604477008End Splice
501604336017Brush Holder
511604652006Spiral Spring
521615500281Housing Cover
551614680000Holding Spring
561612026026Control Lever
581611015025Sealing Frame
591611091002Connecting terminal 2-POLE
63600703011Grommet Ø9,2-Ø12X120 MM
611614437008Connecting Cable
631610210089O-Ring 62,0X4,0 MM
641900210145O-Ring 45X2,5MM
651610300051Intermediate Ring
6522607950004Offset Screwdriver DIN 911-4
6552600508019Protective Cap
655/11610508005Protective Cap Ø11XØ20,5X25 MM
655/12600508018Sealing cap
656/201618598086Bit holder
656/20/11618598087Bit holder
661903230009Ball DIN 5401-5 G28
671903230011Ball DIN 5401-6 G28
681610210034Damping Ring
691610210058O-Ring 18,0X3,0 MM
71601302013Fastening Clamp
71601302014Fastening Clamp
701610210026O-Ring 14,0X2,3 MM
705/11618598085Bit holder
705/21618598074Toolholder
7061618598089Bit holder
706/11618598094Bit holder 1/2" - 20 UNF-2 A
706/202916600007Retaining ring 12 DIN 9045
711610283012Seal Ring Ø 31,5X42X7 MM
721610283014Rotary shaft lip seal Ø13,8XØ26X7,5 MM
741610910051Needle bearing Ø35XØ42X12 MM
751610910056Needle bearing Ø14XØ22X13 MM
756/201618598123Bit holder
756/20/11618598124Bit holder
761610910069Needle bearing
7601618571008Chuck
760/11618571009Chuck Ø5-Ø13 MM
771610910057Needle bearing Ø8XØ12X10 MM
7701608571045Key Chuck Ø 1-10 Mm, 1/2"
7701608571069Chuck Ø1,5-13 Mm, 1/2"
770/8002607950007Chuck Wrench SG2
770/8011603400001Set screw
781900900275Groove ball bearing 25X47X12
791900900278Groove ball bearing DIN 625 6000J C5
81611104001Nameplate
801610905002Groove ball bearing 10X26X8
8001616333005Bevel Gear Z=33
8011617000930Parts Set Z=9/16/48
8021617014106Carbon-Brush Set
8021617014108Carbon-Brush Set
802/201604682006Extractor Hook
8041617000062Parts Set
8051617000064Parts Set
8061617000085Parts Set
811610205003Lubricating Felt
8101617000060Parts Set
8131612025020Auxiliary Handle Ø43 MM
8141617000038Parts Set
81516020250A1Auxiliary Handle
832603410001Socket head cap screw M3X6,5-4.8
8301614010027Armature 220-230V
8301614010028Armature 110-115V
8301614010029Armature 240V
8301614010030Armature 100V
8351607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
841613412001Tapping Screw B 4,8X68 MM
8431618597031Toolholder
853603415560Screw B 4,8X45 MM
8581611015017Sealing Frame
862910211037Tapping Screw DIN 7971-BZ4,8X32
872910211021Tapping Screw DIN 7971-ST3,9X22-F
8761610910056Needle bearing Ø14XØ22X13 MM
882910211018Tapping Screw DIN 7971-ST3,9X13-F
892910211017Tapping Screw DIN 7971-BZ3,9X9,5
91611110156Manufacturer's nameplate
91611110467Manufacturer's nameplate
9/11611110163Manufacturer's nameplate
902910141166Hex Socket Head Cap Screw DIN 912-M 5X30-8.8
921613421000Countersunk-Head Screw
942910021118Socket head cap screw DIN 84-AM4X8-8.8
952910021134Socket head cap screw DIN 84-BM4X30-8.8
992910141170Hex Socket Head Cap Screw DIN 912-M5X40-8.8
