Bosch UBH 3/16

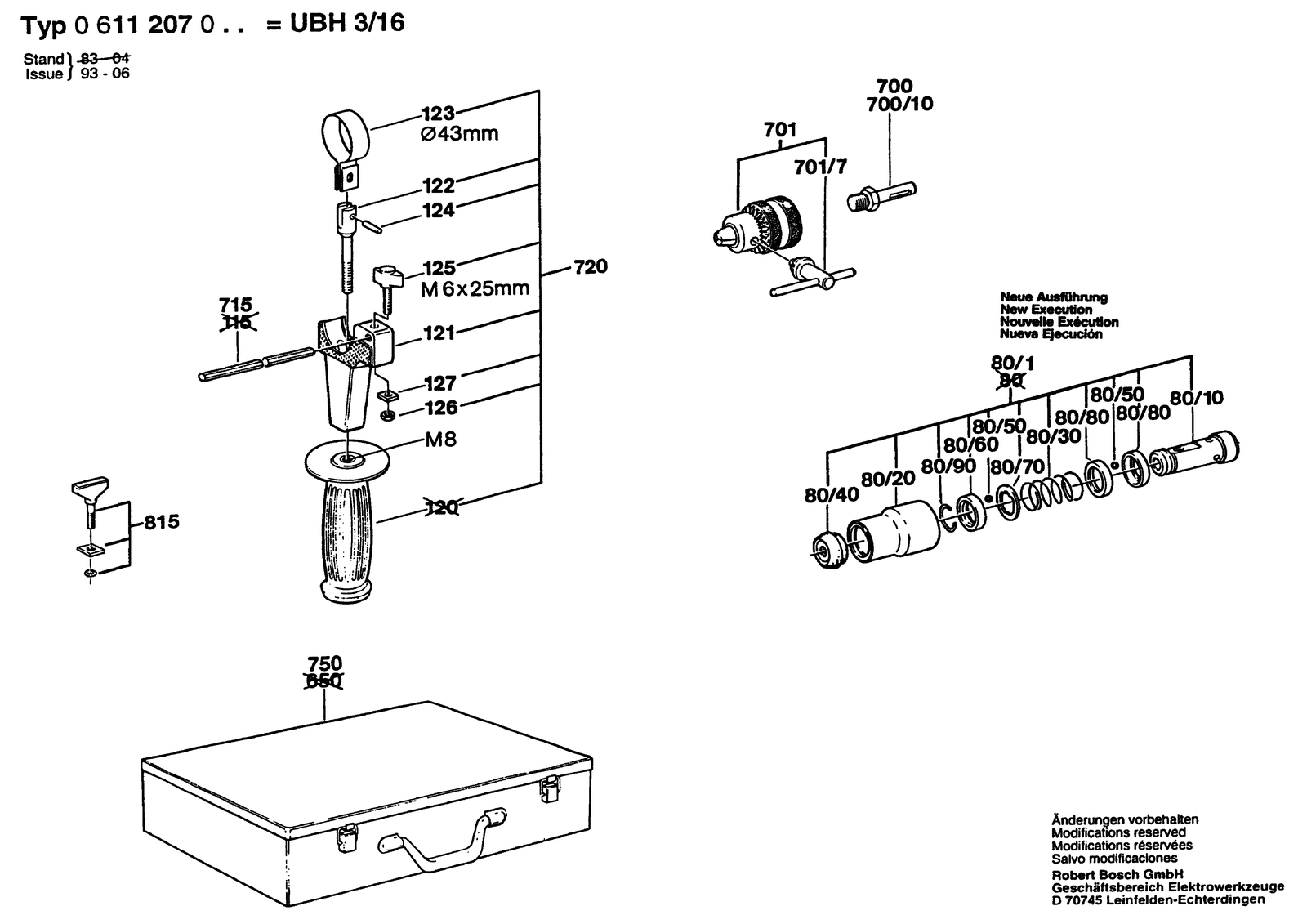

Bosch UBH 3/16 rotary hammer: exploded parts diagram, 2 sheets, 105 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UBH 3/16: 105 positions on 2 sheets
Bosch UBH 3/16 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615108008 | Motor Housing |
| 110 | 1601110449 | Nameplate Caution |
| 12 | 1617328007 | Suppression Filter |
| 12 | 1617328020 | Suppression Filter |
| 121 | 1618040077 | Support clamp |
| 122 | 1613521001 | Stud bolt M8 |
| 123 | 1611316003 | Clamping Band Ø43 MM |
| 124 | 1613100012 | Straight Pin |
| 125 | 1613480009 | Wing Screw M6X25 MM |
| 126 | 1613300006 | Hex Nut M6 |
| 127 | 1611030009 | Clamping Plate |
| 130 | 1601110265 | Reference Plate |
| 15 | 1615500277 | Housing Cover |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 16 | 1615820059 | Air-Deflector Ring |
| 17 | 2606610059 | Fan |
| 18 | 1615820058 | Bearing Pedestal |
| 2 | 1614220065 | Field 220V |
| 2 | 1614220066 | Field 100-110V |
| 2 | 1614220067 | Field 110V |
| 2 | 1614220068 | Field 240V |
| 2 | 1614220069 | Field 115V |
| 20 | 1615806031 | Guide Tube |
| 21 | 1618597030 | Drilling Spindle |
| 23 | 1618700045 | Hammer Piston |
| 24 | 1618710040 | Striker Pin |
| 25 | 1613105012 | Piston Pin |
| 31 | 1615500278 | Sealing cap |
| 32 | 1610329000 | Spacer Bushing |
| 33 | 1610101611 | Supporting Disc Thick 2,0 MM |
| 34 | 1611015022 | Sealing Frame |
| 35 | 1612026017 | Clamp Handle Black |
| 36 | 1614680002 | Holding Spring |
| 37 | 1611031004 | Sealing Plate |
| 38 | 1614336003 | Brush Holder |
| 39 | 1610508006 | Backup ring |
| 4 | 2607200110 | Switch |
| 4 | 2607200134 | On-Off Switch |
| 40 | 1610200011 | Intermediate Ring |
| 41 | 1611110456 | Manufacturer's nameplate |
| 42 | 1614431011 | Pvc-Insulated Cable |
| 43 | 1611091004 | Rubber Buffer |
| 44 | 1610109015 | Rubber Ring |
| 45 | 1610206017 | Rubber Ring |
| 46 | 1611329003 | Contact Spring |
| 5 | 1604460447 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 5 | 1614460010 | Power supply cord Usa/can/sma 2,15M 2 X 0,82MM SJ 16/2 |
| 5 | 1614460022 | Power supply cord J 5M 2 X 1,25MM Pvc |
| 5 | 1614460034 | Power supply cord |
| 50 | 1610210087 | O-Ring 33,0X3,5 MM |
| 52 | 1610210038 | O-Ring 16,0X3,15 MM |
| 53 | 1610210046 | O-Ring 10,5X2,7 MM |
| 54 | 1610210040 | O-Ring 16,0X5,0 MM |
| 55 | 1610210035 | O-Ring 11,0X7,0 MM |
| 56 | 1610283015 | Rotary shaft lip seal Ø 26X15X7,5 MM |
| 57 | 1610283014 | Rotary shaft lip seal Ø13,8XØ26X7,5 MM |
| 58 | 1610550026 | Disc Spring |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 1900900272 | Groove ball bearing 15X32X9 |
| 61 | 1900905025 | Ball Bearing 9X26X8 |
| 62 | 1900900287 | Groove ball bearing 12X28X8 |
| 64 | 2910141174 | Hex Socket Head Cap Screw M 5X50 DIN 912-8.8 |
| 65 | 2910141168 | Hex Socket Head Cap Screw DIN 912-M 5X35-8.8 |
| 66 | 2910141168 | Hex Socket Head Cap Screw DIN 912-M 5X35-8.8 |
| 67 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 68 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 69 | 2910601118 | Tapping Screw DIN 7972-B3,9X13 |
| 7 | 1601302013 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 700 | 1617000132 | Drill Chuck Shank Sds-Plus |
| 701 | 1608571069 | Chuck Ø1,5-13 Mm, 1/2" |
| 701/7 | 1607950044 | Chuck Wrench SG2, SW4 |
| 71 | 2910211038 | Tapping Screw DIN 7971-ST4,8X38-F |
| 715 | 1613001009 | Depth-Gauge SW 6X210 MM |
| 72 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 720 | 1612025020 | Auxiliary Handle Ø43 MM |
| 73 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 750 | 1615438075 | Carrying Case |
| 750 | 1615438076 | Carrying Case |
| 80/1 | 1618598131 | Bit holder |
| 80/20 | 1610499009 | Protection Sleeve |
| 80/30 | 1614632000 | Compression Spring |
| 80/40 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 80/50 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 80/60 | 1610251002 | Thrust Ring |
| 80/70 | 1610190007 | Holding Plate |
| 80/80 | 1610250003 | Retaining snap ring |
| 80/90 | 2916540012 | Retaining ring DIN 7993-A22 |
| 800 | 1617014118 | Carbon Brush |
| 801 | 1617031017 | Overriding Clutch |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 81 | 1610205003 | Lubricating Felt |
| 810 | 1617000902 | Parts Set |
| 814 | 1617000924 | Parts Set |
| 815 | 1617000038 | Parts Set |
| 819 | 1617000926 | Parts Set |
| 830 | 1614010031 | Armature 220V |
| 830 | 1614010032 | Armature 100-110V |
| 830 | 1614010033 | Armature 110-115V |
| 830 | 1614010034 | Armature 240V |
| 863 | 1900900302 | Groove ball bearing 12X32X10 |
| 88 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1611110130 | Manufacturer's nameplate |
| 9 | 1611110155 | Manufacturer's nameplate |
