Bosch UBH 2/20 S

Bosch UBH 2/20 S rotary hammer: exploded parts diagram, 2 sheets, 102 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UBH 2/20 S: 102 positions on 2 sheets

Bosch UBH 2/20 S parts list (2 sheets)

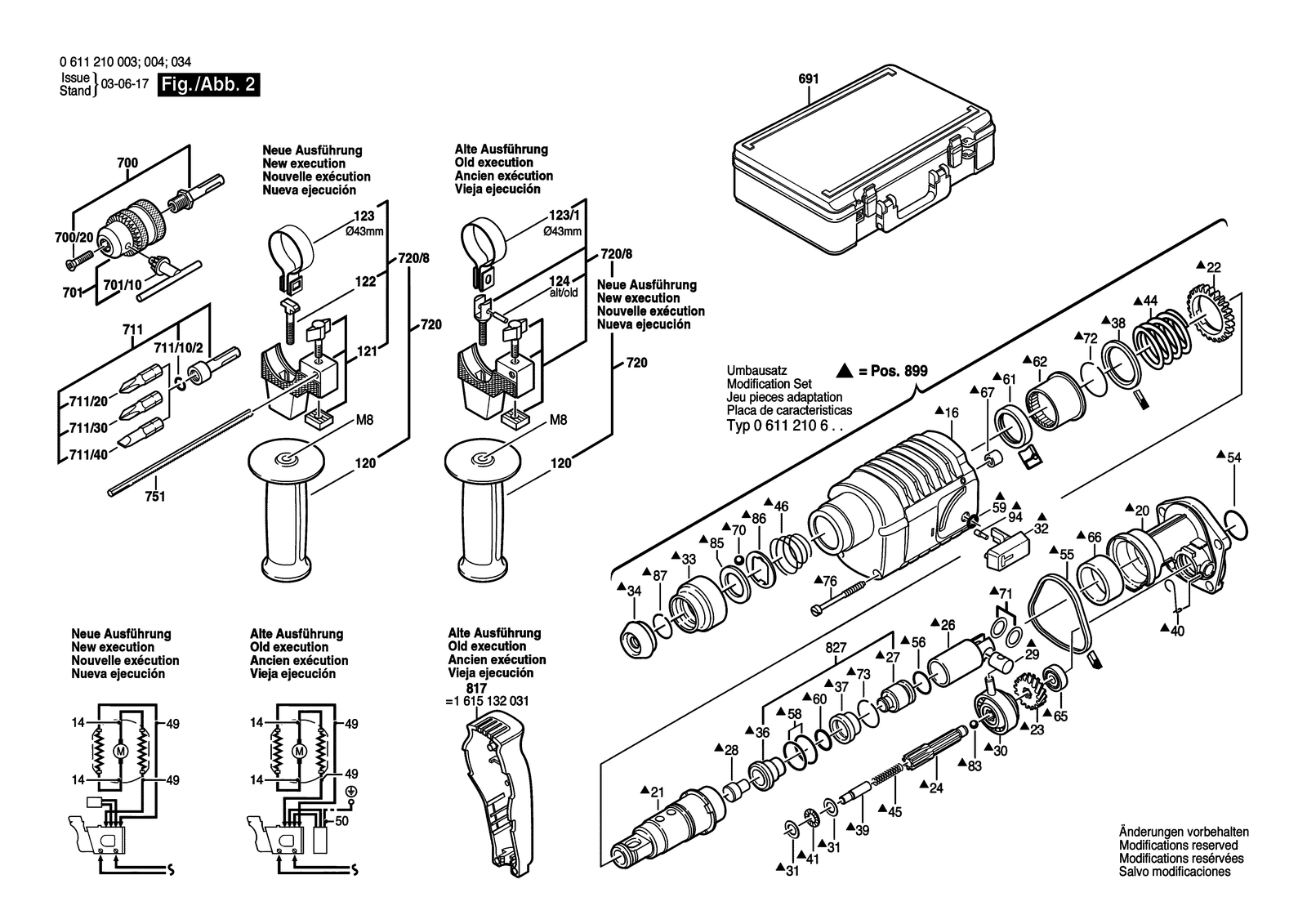

Bosch UBH 2/20 S parts diagram, sheet 1Bosch UBH 2/20 S parts diagram, sheet 2
No.Part numberPart name
101611110415Reference Plate
101611110444Manufacturer's nameplate
1201612025019Auxiliary Handle M8
1211618040048Support clamp Ø43 MM
1221613490002T-Head Bolt M8X40 MM
1231611316006Clamping Band Ø43 MM
123/11611316003Clamping Band Ø43 MM
1241613100012Straight Pin
1251611110376Manufacturer's nameplate Working Instructions
131614449002Brush Holder
171615132034Housing Cover Black
181610522008Air-Deflector Ring
22604220428Field 110-120V
22604220429Field 220-230V
201615700037Intermediate Flange
211616490058Ratchet Sleeve Sds-Plus
221616320007Cylindrical Gear Z=46
231616320002Cylindrical Gear Z=6/21
241613060010Toothed Shaft Z=6/10
261618700052Hammer Piston
281613124026Striker Pin
291613105012Piston Pin
3/501616610072Fan Black
301615819005Drive bearing
311610100003Support Disc Thick 0,8 MM
321612026023Clamp Handle Black
341610508008Protective Cap L=17 Mm, Sds-Plus
351610206021Rubber Ring
371610390011Damping Bushing
381610102022Supporting Disc
391613100013Straight Pin
41617200082Switch
401614690001Holding Spring
411610920003Roller-Cage Assembly
441614633001Compression Spring
451614614001Compression Spring
492604448005Cable White L=130 MM
51614460016Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2
541610210068O-Ring 24,0X2,5 MM
551610206023Seal Ring
561610210070O-Ring 14,0X3,0 MM
581610210058O-Ring 18,0X3,0 MM
591610210069O-Ring 6,0X2,5 MM
62600703011Grommet Ø8,3-Ø9,4X95 MM
62600703012Grommet Ø6,5-Ø6,9X95 MM
62600703013Grommet Ø7,6-Ø8,2X95 MM
601610210073O-Ring 10,0X3,5 MM
611610283017Rotary shaft lip seal
621610202026Plain bearing
631610905048Groove ball bearing 9X24X7
641610905025Groove ball bearing 7X19X6
651900900228Groove ball bearing 8X22X7
661610301000Bushing Ø30XØ37X15,7 MM
671610910064Needle bearing
681610920004Roller-Cage Assembly
691610102618Support Disc Thick 1,0 MM
6911615438366Carrying Case Blue
71611035001Cable Clip
71611035005Cable Clip
701903230013Ball DIN 5401-Ø7MM-III-ST
7001617000132Drill Chuck Shank Sds-Plus
700/202603421226Countersunk-Head Screw Lefthand Threads M6X27
7011608571022Key Chuck Ø1,5-13 Mm, 1/2"
701/102607950007Chuck Wrench SG2
711610101011Shim washer Thick 1,2 MM
7111617000133Parts Set
711/10/22604601004Retaining ring
711/201608521004Screwdriver Blade NR.2,1/4"
711/302607000248Screwdriver Bit 3 Piece
711/401608511020Screwdriver Blade GR.1,0X6, 1/4"
722916540018Retaining ring DIN 7993-A32
7202602025070Auxiliary Handle Ø43 MM
720/81617000925Parts Set
731614601009Retaining ring DIN 9045-24
7511613001009Depth-Gauge SW 6X210 MM
761613435009Tapping Screw ST-4,8X57,5-TORX,T20
772910211021Tapping Screw DIN 7971-ST3,9X22-F
781603435050Tapping Screw ST3,9X19-TORX,T20
792910211005Tapping Screw DIN 7971-ST2,9X9,5-F
792910211206Tapping Screw DIN 7971-B 2,9X13
802603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
8011615108045Parts Set Blue
8031614010052Armature With Fan 220-240V
8031614010054Armature With Fan 110-120V
8051607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
808160111A3H3Nameplate
812603410001Socket head cap screw M3X6,5-4.8
8111607014117Carbon Brush
8121607328028Suppression Filter
8141617000130Brush Holder
8161615806077Gear Housing Black
8211617000931Ratchet Sleeve
8271617000338Striker
831903230309Ball 5 MM V DIN 5401
8331617000163Protection Sleeve Sds-Plus
8432601015047Brush Plate
8502604448003Cable
872916540012Retaining ring DIN 7993-A22
8991617000932Impact Mechanism 230V
91611110414Manufacturer's nameplate
91611110446Manufacturer's nameplate
941613120017Detent Pin
