Bosch UB2J75 UB 2/75

Bosch UB2J75 UB 2/75 drill: exploded parts diagram, 1 sheet, 158 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UB2J75 UB 2/75: 158 positions on 1 sheet

Bosch UB2J75 UB 2/75 parts list (1 sheet)

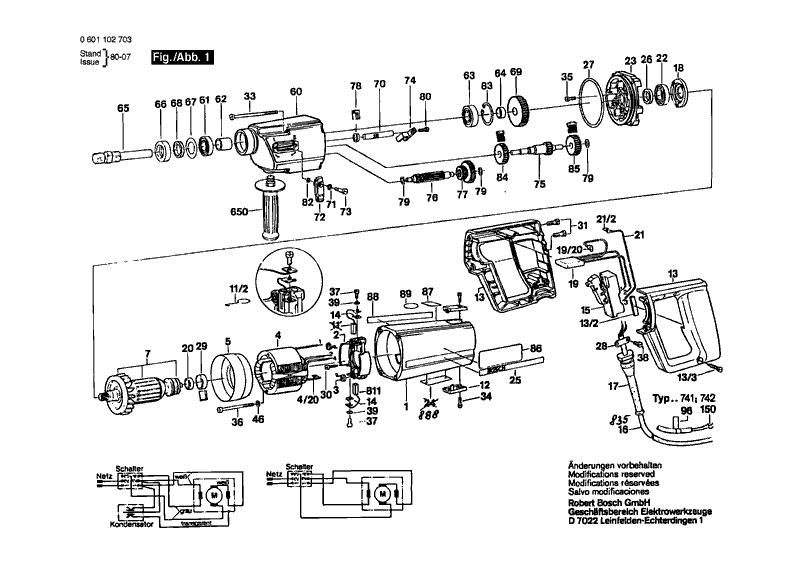

Bosch UB2J75 UB 2/75 parts diagram, sheet 1
No.Part numberPart name
11609991106Motor Housing Blue
13605108094Motor Housing Blue
121605500110Sealing cap Blue
123605500057Sealing cap Blue
123605500057Sealing cap Blue
133605133019Handle Black
133605133019Handle Black
13/21602381006Insulating Plate 20X20X50 MM
13/21602381006Insulating Plate 20X20X50 MM
13/32910211220Tapping Screw DIN 7971-B 3,9X19
13/32910211220Tapping Screw DIN 7971-B 3,9X19
141611331007Tab Washer
151607200075Switch
151607200076Switch
151607200037Switch
151607200078Switch
1501900452012End Splice DIN 46 228-A1-6
1501900452012End Splice DIN 46 228-A1-6
161604460015Power supply cord CH 4,15M 2 X 1,0MM H05 Vv-F
161604460023Power supply cord
161604460032Power supply cord AUS 2,65M 2 X 1,0MM Pvc
163607030489Power supply cord
161604460015Power supply cord CH 4,15M 2 X 1,0MM H05 Vv-F
161604460023Power supply cord
161604460032Power supply cord AUS 2,65M 2 X 1,0MM Pvc
163607030489Power supply cord
171600703022Grommet Ø7,9-Ø12,0X120 MM
173600703011Grommet Ø9,2-Ø12X120 MM
181600501019Bearing cover
181600501019Bearing cover
191607328024Suppression Filter
19/201601353003Terminal lug
19/201607328012Suppression Filter
21604336005Brush Holder
21604336005Brush Holder
202600905032Ball Bearing 7X19X6
202600905032Ball Bearing 7X19X6
211604445006Connecting Cable Gray L=290 MM
211602381001Insulating Strip 33X10X6 MM
21/21901350003Terminal lug 1,5-4X4
221600900001Groove ball bearing 17X35X10
221600900001Groove ball bearing 17X35X10
233605820033Intermediate Bearing
233605820033Intermediate Bearing
251601110004Manufacturer's nameplate
251601110004Manufacturer's nameplate
261600108003Felt Disc
261600108003Felt Disc
271600210006O-Ring 74,0X3,0 MM
271600210006O-Ring 74,0X3,0 MM
281601302014Fastening Clamp
281601302014Fastening Clamp
291600502020Rubber Bushing
291600502011Intermediate Ring
31604652001Spiral Spring
31604652001Spiral Spring
302910211019Tapping Screw DIN 7971-ST3,9X16-F
302910211019Tapping Screw DIN 7971-ST3,9X16-F
312910021154Socket head cap screw DIN 84-AM5X12-8.8
312910021154Socket head cap screw DIN 84-AM5X12-8.8
331603435006Tapping Screw B4,8X90 MM
331603435006Tapping Screw B4,8X90 MM
342910021125Socket head cap screw DIN 84-AM4X15-8.8
342910021176Dummy DIN 84-BM5X55-8.8
352910021125Socket head cap screw DIN 84-AM4X15-8.8
352910021163Dummy DIN 84-AM5X22-8.8
362910021176Dummy DIN 84-BM5X55-8.8
362910021125Socket head cap screw DIN 84-AM4X15-8.8
372910021118Socket head cap screw DIN 84-AM4X8-8.8
372910021118Socket head cap screw DIN 84-AM4X8-8.8
382910021116Socket head cap screw DIN 84-AM4X6-8.8
382910021116Socket head cap screw DIN 84-AM4X6-8.8
392916060005Spring Washer DIN 137-A 4-ST
391600150006Spring Washer DIN 137-A4
41604220212Field 220V
41604220213Field 100-110V
41604220214Field 115V
41604220082Field 220-230V
41604220106Field 115V
41604220206Field 100-120V
4/201901350003Terminal lug 1,5-4X4
4/201901350003Terminal lug 1,5-4X4
462916680006Spring Lock Washer DIN 127-B 5
462916010410Plain Washer A 4,3 DIN 125-ST
51600209002Air-Deflector Ring
51600209002Air-Deflector Ring
601605806186Spindle Bearing
601605806186Spindle Bearing
611900900201Groove ball bearing 15X32X8
611900900201Groove ball bearing 15X32X8
621600300026Spacer Bushing
621600300026Spacer Bushing
631900900303Groove ball bearing 15X35X11
631900900303Groove ball bearing 15X35X11
641600300027Spacer Bushing
641600300027Spacer Bushing
651603523093Drilling Spindle 5/8"X16 Un
651603124039Drilling Spindle
650160202509ZAuxiliary Handle
65016020250A1Auxiliary Handle
650160202509ZAuxiliary Handle
65016020250A1Auxiliary Handle
663607030355Retaining snap ring
663607030355Retaining snap ring
671600102003Shim Thick 0,5 MM
671600102003Shim Thick 0,5 MM
681600108000Sealing disk
681600108000Sealing disk
691606317045Cylindrical Gear Z=50
691606317045Cylindrical Gear Z=50
71609991109Armature 220-240V
71609991110Armature 110-115V
71609991109Armature 220-240V
71609991110Armature 110-115V
701603104005Adjusting bolt
701603104005Adjusting bolt
711420100620Shim Thick 0,2 MM
711420100620Shim Thick 0,2 MM
721602026026Control Lever
721602026026Control Lever
731603413005Socket head cap screw M3,5X5,5 MM
731603413005Socket head cap screw M3,5X5,5 MM
741602120006Control Lever
741602120006Control Lever
751606328048Spindle With Gear Z=20/33/50
751606328048Spindle With Gear Z=20/33/50
761606309036Spindle With Gear Z=12
761606309036Spindle With Gear Z=12
771606328058Cylindrical Gear Z=12/20/36
771606328058Cylindrical Gear Z=12/20/36
781600283003Rotary shaft lip seal
781600283003Rotary shaft lip seal
791600100631Shim Thick 0,5 MM
791600100631Shim Thick 0,5 MM
802910021122Socket head cap screw DIN 84-AM4X12-8.8
802910021122Socket head cap screw DIN 84-AM4X12-8.8
8111607014101Carbon-Brush Set
8111607014101Carbon-Brush Set
822916680004Spring Lock Washer DIN 127-B3,5
822916680004Spring Lock Washer DIN 127-B3,5
832916660014Spring retaining ring DIN 472 35X1,5 MM
832916660014Spring retaining ring DIN 472 35X1,5 MM
8351607000228Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F
8351607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
841606317043Cylindrical Gear Z=35
841606317043Cylindrical Gear Z=35
851606320041Cylindrical Gear Z=33
851606320041Cylindrical Gear Z=33
861601110153Sticker
861601110153Sticker
871601110058Reference Plate Double Insulation
871601110058Reference Plate Double Insulation
881601110076Sticker
881601110076Sticker
888160111A3H3Nameplate
888160111A3H3Nameplate
892601110041Reference Plate Yellow
892601110041Reference Plate Yellow
