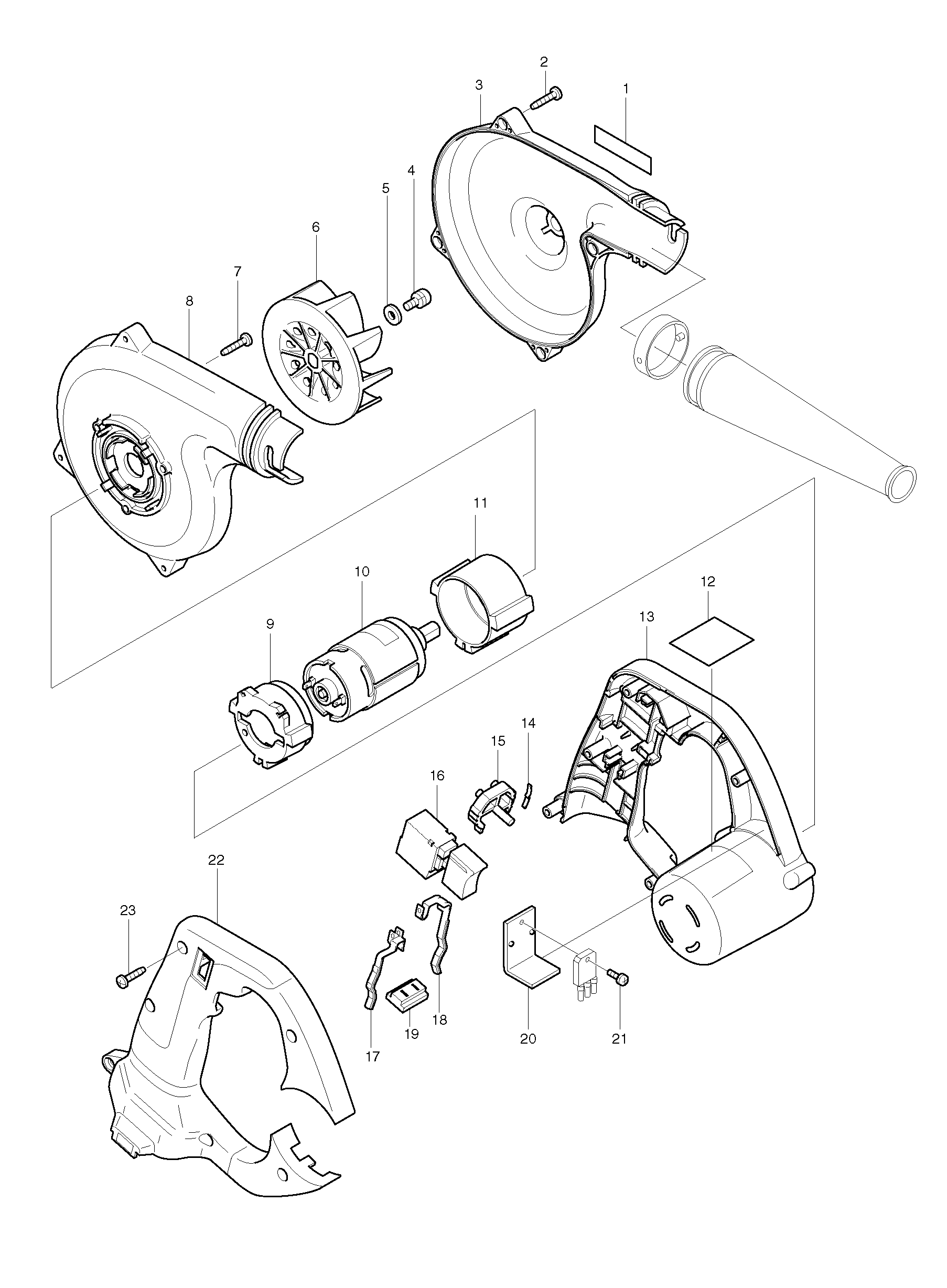

Sheet 1: Makita UB140D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 183187-4 | Makita 183187-4 FAN HOUSING COMPLETE |
| 4 | 911201-4 | Makita 911201-4 PAN HEAD SCREW M5X8 |
| 5 | 253194-2 | Makita 253194-2 FLAT WASHER 5, 2012NB |
| 6 | 240028-8 | Makita 240028-8 FAN 86 |
| 7 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 8 | 183187-4 | Makita 183187-4 FAN HOUSING COMPLETE |
| 9 | 421714-2 | Makita 421714-2 MOTOR RUBBER RING B |
| 10 | 629747-3 | Makita 629747-3 DC MOTOR |
| 11 | 421713-4 | Makita 421713-4 MOTOR RUBBER RING A |
| 12 | 851837-6 | Makita 851837-6 NAME PLATE UB140D |
| 13 | 417064-1 | Makita 417064-1 MOTOR HOUSING |
| 14 | 232162-8 | Makita 232162-8 LEAF SPRING |
| 15 | 417066-7 | Makita 417066-7 DIAL 32 |
| 16 | 651983-3 | Makita 651983-3 SWITCH C3LA-1A-B |
| 17 | 654195-7 | Makita 654195-7 SPRING TERMINAL (PLUS) |
| 18 | 654196-5 | Makita 654196-5 SPRING TERMINAL (MINUS) |
| 19 | 687085-9 | Makita 687085-9 HOLDER, 6226D |
| 20 | 689091-0 | Makita 689091-0 HEAT SINK |
| 21 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 22 | 417065-9 | Makita 417065-9 HANDLE COVER |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
