Makita UB100D: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UB100D: 20 positions on 1 sheet

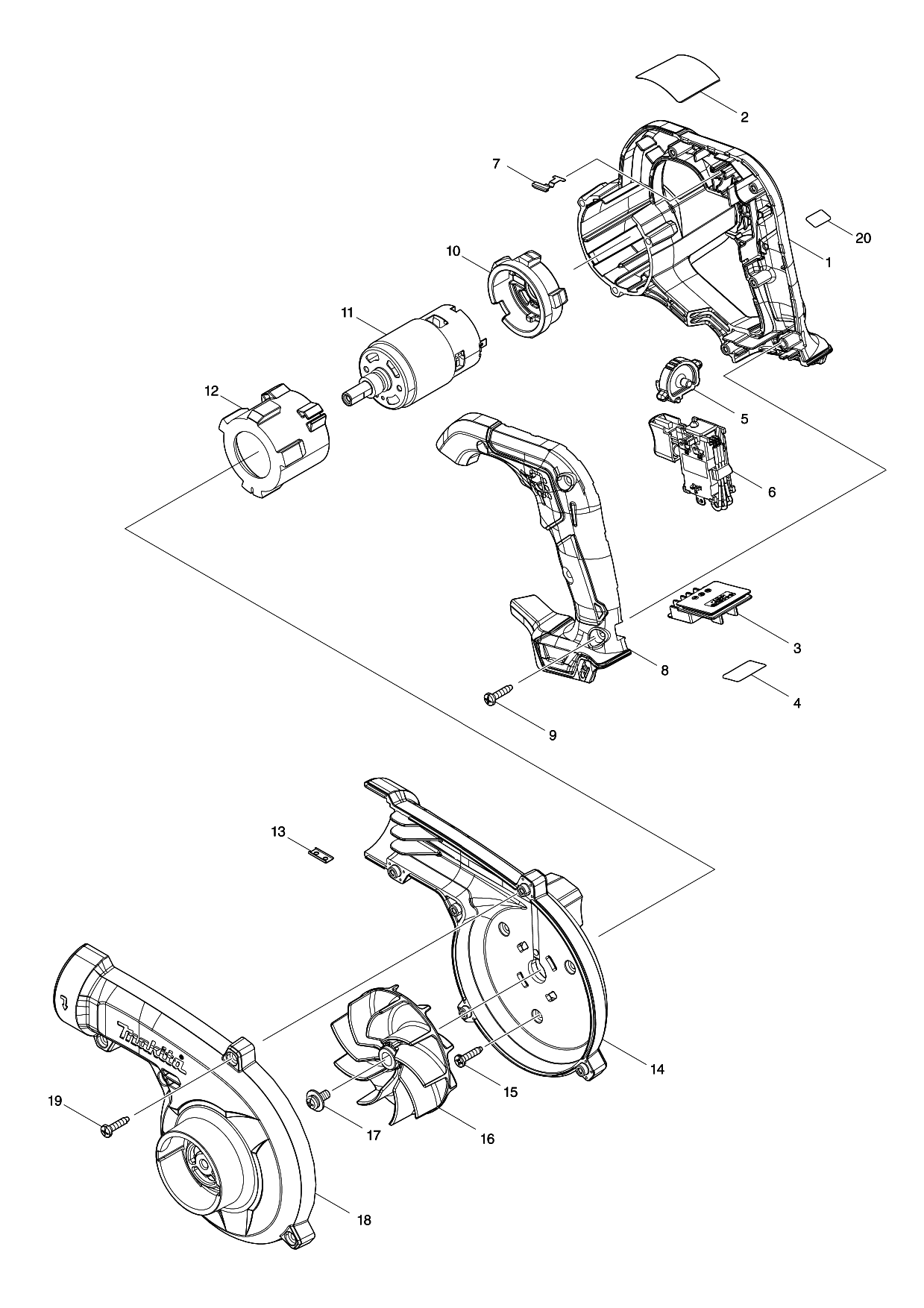

Sheet 1: Makita UB100D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183R73-7 | Makita 183R73-7 MOTOR HOUSING SET, UB100D |
| 2 | 857R07-3 | |
| 3 | 644813-5 | Makita 644813-5 Terminal |
| 4 | 857R14-6 | |
| 5 | 412573-5 | |
| 6 | 632R61-6 | Makita 632R61-6 SWITCH UNIT, UB100D |
| 7 | 232620-4 | |
| 8 | 183R73-7 | Makita 183R73-7 MOTOR HOUSING SET, UB100D |
| 9 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 10 | 422589-2 | |
| 11 | 629A20-7 | Makita 629A20-7 DC MOTOR, UB100D |
| 12 | 422588-4 | |
| 13 | 345998-7 | Makita 345998-7 SET PLATE, DF030D |
| 14 | 183R77-9 | Makita 183R77-9 FAN HOUSING SET, UB100D |
| 15 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 16 | 240210-9 | |
| 17 | 265B25-5 | |
| 18 | 183R77-9 | Makita 183R77-9 FAN HOUSING SET, UB100D |
| 19 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 20 | 8022C7-3 |
