All parts of Makita UB001C: 38 positions on 1 sheet

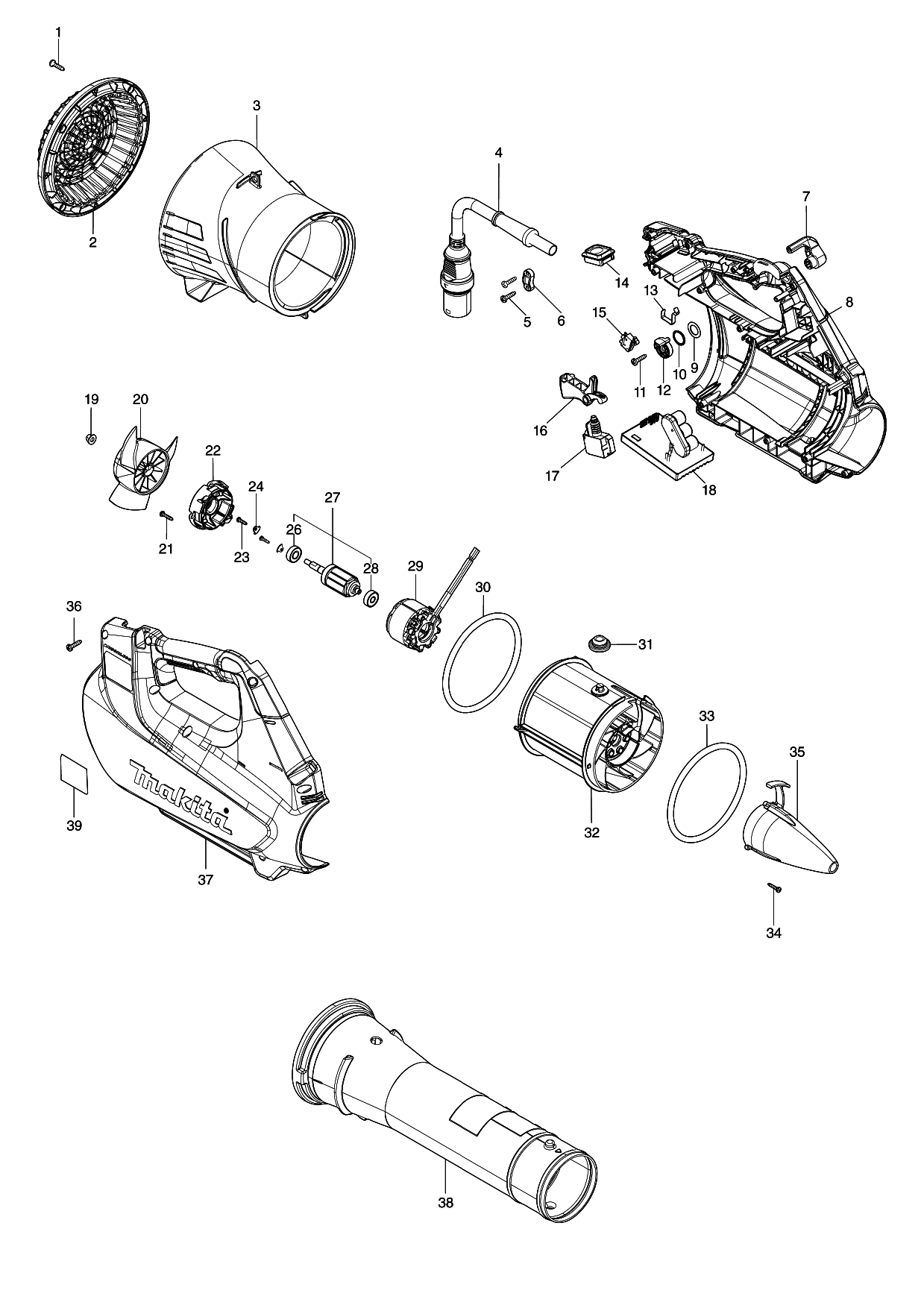

Sheet 1: Makita UB001C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 2 | 412749-4 | |
| 3 | 140V33-6 | |
| 4 | 699156-0 | |
| 5 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 6 | 687149-9 | Makita 687149-9 CORD CLAMP |
| 7 | 412755-9 | |
| 8 | 183R61-4 | |
| 9 | 253798-0 | Makita 253798-0 FLAT WASHER13, HP451D |
| 10 | 213154-6 | Makita 213154-6 O RING 14 |
| 11 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 12 | 412754-1 | |
| 13 | 232634-3 | |
| 14 | 140X08-7 | |
| 15 | 632L48-2 | Makita 632L48-2 SWITCH UNIT, DUC254 |
| 16 | 412756-7 | |
| 17 | 651436-2 | |
| 18 | 620D15-1 | |
| 19 | 252286-4 | |
| 20 | 240177-1 | Makita 240177-1 FAN 110, DUB362 |
| 21 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 22 | 412753-3 | |
| 23 | 265893-4 | Makita 265893-4 TAPPING SCREW BT 3*12, LH1040F |
| 24 | 347733-9 | |
| 26 | 210040-2 | Makita 210040-2 BALL BEARING 698LLU |
| 27 | 519639-3 | |
| 28 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 29 | 629A15-0 | |
| 30 | 424721-4 | Makita 424721-4 RUBBER RING 115 |
| 31 | 424194-1 | Makita 424194-1 RUBBER RING 8 |
| 32 | 412751-7 | |
| 33 | 424721-4 | Makita 424721-4 RUBBER RING 115 |
| 34 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 35 | 412752-5 | |
| 36 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 37 | 183R61-4 | |
| 38 | 412757-5 | |
| 39 | 857M75-6 |
