Makita TW160D
Makita TW160D: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TW160D: 35 positions on 1 sheet

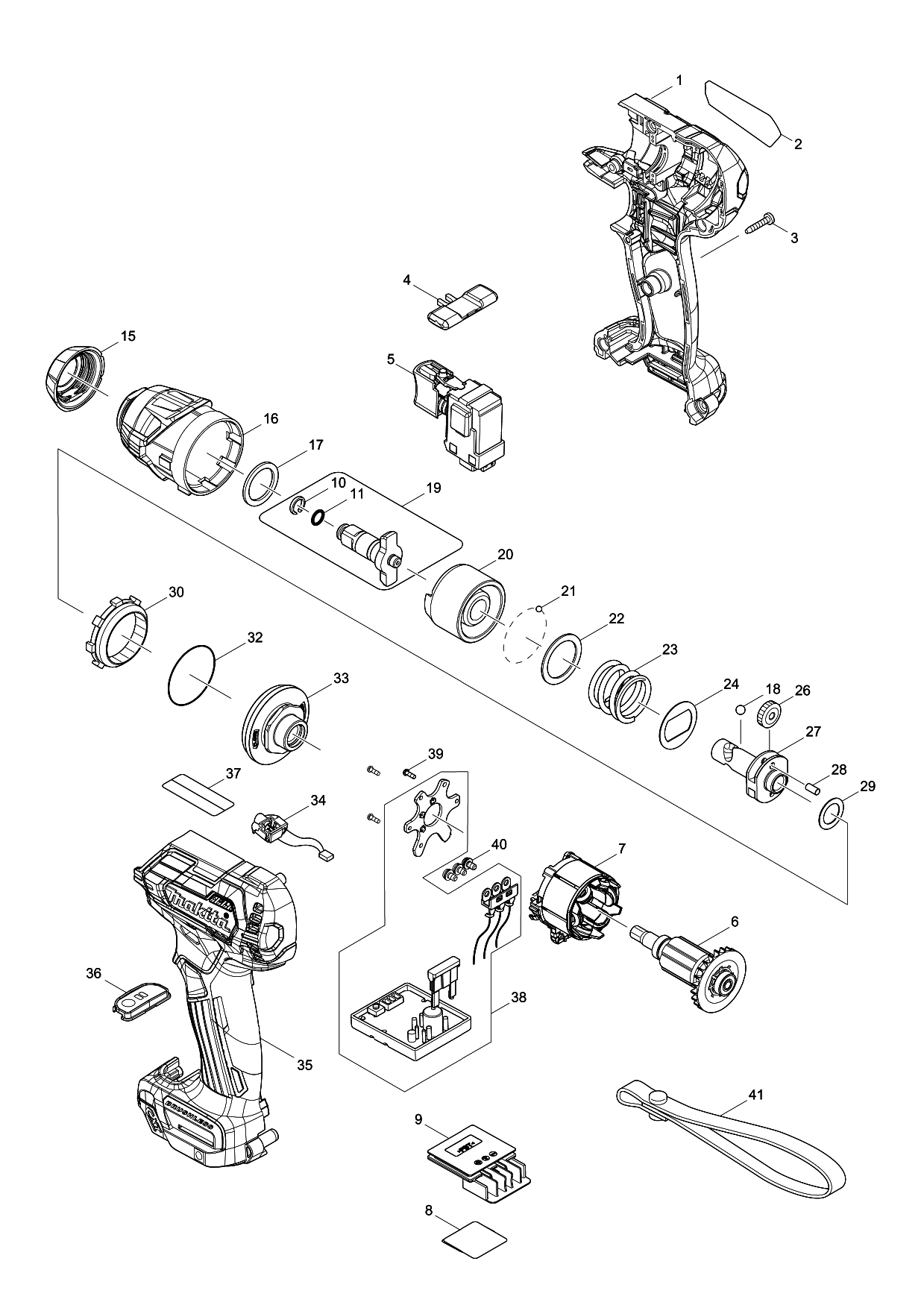

Sheet 1: Makita TW160D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183L31-7 | |
| 2 | 855L57-6 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 5 | 143975-1 | Makita 143975-1 Switch for DTD154 DTD155 |
| 6 | 619491-0 | Makita 619491-0 ROTOR, DTW180 |
| 7 | 629398-2 | |
| 8 | 855L63-1 | |
| 9 | 644813-5 | Makita 644813-5 Terminal |
| 10 | 233943-3 | Makita 233943-3 RING SPRING 8, DTW180 |
| 11 | 213960-9 | Makita 213960-9 O-RING 5, 9556NB |
| 15 | 422228-4 | Makita 422228-4 BUMPER, DTW180 |
| 16 | 140G53-0 | |
| 17 | 261159-0 | Makita 261159-0 NYLON WASHER 19 |
| 18 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 20 | 327045-6 | Makita 327045-6 HAMMER, DTW180 |
| 21 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 22 | 267352-4 | Makita 267352-4 FLAT WASHER 22, GA5010 |
| 23 | 232410-5 | Makita 232410-5 COMPRESSION SPRING 21 |
| 24 | 267813-4 | Makita 267813-4 WASHER 21, TD090D |
| 26 | 227213-0 | Makita 227213-0 SPUR GEAR 17, TD090D |
| 27 | 327046-4 | Makita 327046-4 SPINDLE, DTW180 |
| 28 | 268217-3 | Makita 268217-3 PIN 3.5, TD090D |
| 29 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 30 | 227316-0 | Makita 227316-0 INTERNAL GEAR 43 |
| 32 | 213479-8 | Makita 213479-8 O RING 33 |
| 33 | 140G75-0 | Makita 140G75-0 BESRING BOX COMPLETE |
| 34 | 620999-9 | |
| 35 | 183L31-7 | |
| 36 | 140G52-2 | |
| 37 | ||
| 38 | 620998-1 | |
| 39 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 40 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 41 |
