Makita TW1000
Makita TW1000: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TW1000: 56 positions on 1 sheet

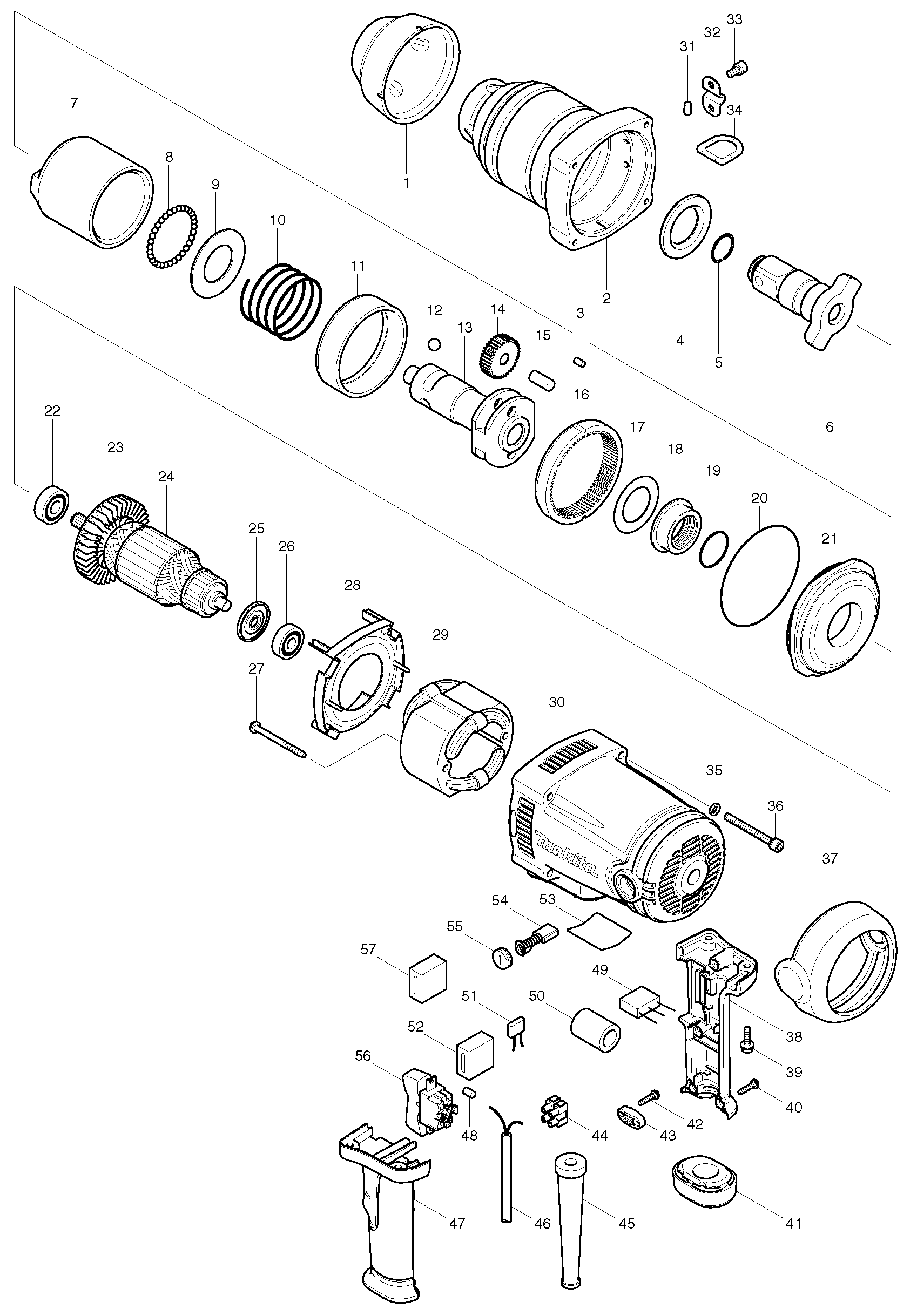

Sheet 1: Makita TW1000 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 421895-2 | Makita 421895-2 FRONT BUMBER TW1000 |
| 2 | 154555-8 | Makita 154555-8 HAMMER CASE COMP TW1000 |
| 3 | 256253-1 | Makita 256253-1 PIN 5, TD140D |
| 4 | 253909-7 | Makita 253909-7 FLAT WASHER 35 |
| 5 | 231921-7 | Makita 231921-7 RING SPRING 22 |
| 6 | 325587-4 | Makita 325587-4 Anvil for 6910 TW1000 |
| 7 | 325415-3 | Makita 325415-3 HAMMER 6910 |
| 8 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 9 | 253712-6 | Makita 253712-6 FLAT WASHER 36 |
| 10 | 233428-9 | Makita 233428-9 COMPRESSION SPRING TW1000 |
| 11 | 333112-7 | Makita 333112-7 RING 79 |
| 12 | 216010-9 | Makita 216010-9 STEEL BALL 10.3 |
| 13 | 324501-7 | Makita 324501-7 SPINDLE TW1000 |
| 14 | 227149-3 | Makita 227149-3 SPUR GEAR 37 TW1000 |
| 15 | 256051-3 | Makita 256051-3 PIN 10 |
| 16 | 221815-4 | Makita 221815-4 INTERNAL GEAR 82 |
| 17 | 267170-0 | Makita 267170-0 FLAT WASHER 34 |
| 18 | 310154-8 | Makita 310154-8 BEARING BOX TW1000 |
| 19 | 213459-4 | Makita 213459-4 O RING 32, 5007NB |
| 20 | 213855-6 | LOST Makita 213855-6 O RING 95 |
| 21 | 317841-0 | Makita 317841-0 HAMMER CASE COVER TW1000 |
| 22 | 211137-0 | Makita 211137-0 BEARING 6201LLU, HR4002 |
| 24 | 516919-8 | Makita 516919-8 Armature Ass*y for TW1000 |
| 25 | 681665-3 | Makita 681665-3 INSULATION WASHER, MHW710 |
| 26 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 27 | 265345-5 | Makita 265345-5 HEX. BOLT M5X60 TW1000 |
| 28 | 418814-7 | Makita 418814-7 BAFFLE PLATE TW1000 |
| 29 | 528940-5 | Makita 528940-5 Field Assembly for TW1000 |
| 30 | 154556-6 | Makita 154556-6 MOTOR HOUSING COMP TW1000 |
| 31 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 32 | 345517-9 | Makita 345517-9 PLATE TW1000 |
| 33 | 266157-9 | Makita 266157-9 HEX.SOCKET HEAD BOLT TW1000 |
| 34 | 282018-5 | Makita 282018-5 D-RING TW1000 |
| 35 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 36 | 265538-4 | Makita 265538-4 HEX.SOCKET HEAD BOLT TW1000 |
| 37 | 421896-0 | Makita 421896-0 REAR BUMBER TW1000 |
| 38 | 183935-1 | Makita 183935-1 HANDLE SET TW1000 |
| 39 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 40 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 41 | 421897-8 | Makita 421897-8 BUMPER TW1000 |
| 42 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 43 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 44 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 45 | 682564-2 | Makita 682564-2 CORD GUARD 10, N5900B |
| 46 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 47 | 183935-1 | Makita 183935-1 HANDLE SET TW1000 |
| 48 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 49 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 50 | 685722-9 | Makita 685722-9 SPONGE SHEET |
| 51 | 646755-9 | Makita 646755-9 RESISTANCE, DA6301 |
| 52 | 685725-3 | Makita 685725-3 SPONGE SHEET HK1800 |
| 53 | 861265-7 | Makita 861265-7 NAME PLATE TW1000 |
| 54 | 181044-0 | Makita 181044-0 Carbon Brush CB-153 |
| 55 | 643650-4 | Makita 643650-4 Holder Cap for LS1040 |
| 56 | 651572-4 | Makita 651572-4 Swich SL220SD-19 for TW0350 |
| 57 | 685725-3 | Makita 685725-3 SPONGE SHEET HK1800 |
