Makita TW060D
Makita TW060D: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TW060D: 28 positions on 1 sheet

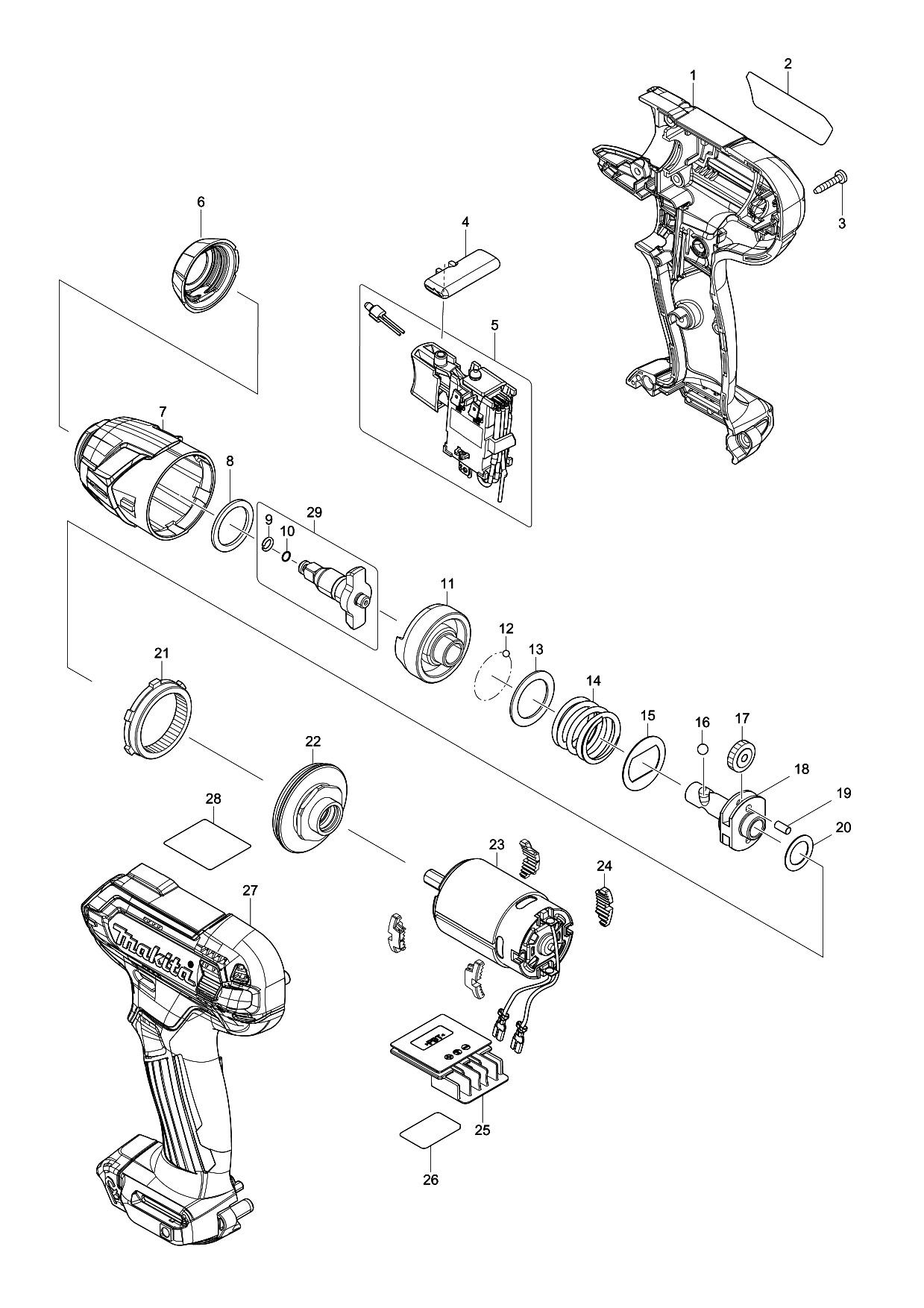

Sheet 1: Makita TW060D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183J75-5 | Makita 183J75-5 HOUSING SET, TW140D |
| 2 | 855H72-6 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 456039-5 | Makita 456039-5 F/R CHANGE LEVER |
| 5 | 632M05-6 | Makita 632M05-6 SWITCH UNIT, TW140D |
| 6 | 422228-4 | Makita 422228-4 BUMPER, DTW180 |
| 7 | 140B03-5 | Makita 140B03-5 HAMMER CASE COMPLETE, TW140D |
| 8 | 261140-1 | Makita 261140-1 NYLON WASHER 20, TD090D |
| 9 | 259065-1 | |
| 10 | 213014-2 | Makita 213014-2 O RING 3 |
| 11 | 327236-9 | |
| 12 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 13 | 267380-9 | Makita 267380-9 FLAT WASHER 20, TD090D |
| 14 | 234064-4 | Makita 234064-4 COMPRESSION SPRING 6, TD090D |
| 15 | 267813-4 | Makita 267813-4 WASHER 21, TD090D |
| 16 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 17 | 226190-3 | Makita 226190-3 SPUR GEAR 18, TW140D |
| 18 | 327127-4 | Makita 327127-4 SPINDLE, TW140D |
| 19 | 268217-3 | Makita 268217-3 PIN 3.5, TD090D |
| 20 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 21 | 226191-1 | Makita 226191-1 INTERNAL GEAR 45, TW140D |
| 22 | 140B04-3 | Makita 140B04-3 BEARING BOX COMPLETE, TW140D |
| 23 | 632L97-9 | Makita 632L97-9 MOTOR COMPLETE, TW140D |
| 24 | 422273-9 | Makita 422273-9 CUSHION, TW140D |
| 25 | 644813-5 | Makita 644813-5 Terminal |
| 26 | 855H78-4 | |
| 27 | 183J75-5 | Makita 183J75-5 HOUSING SET, TW140D |
| 28 |
