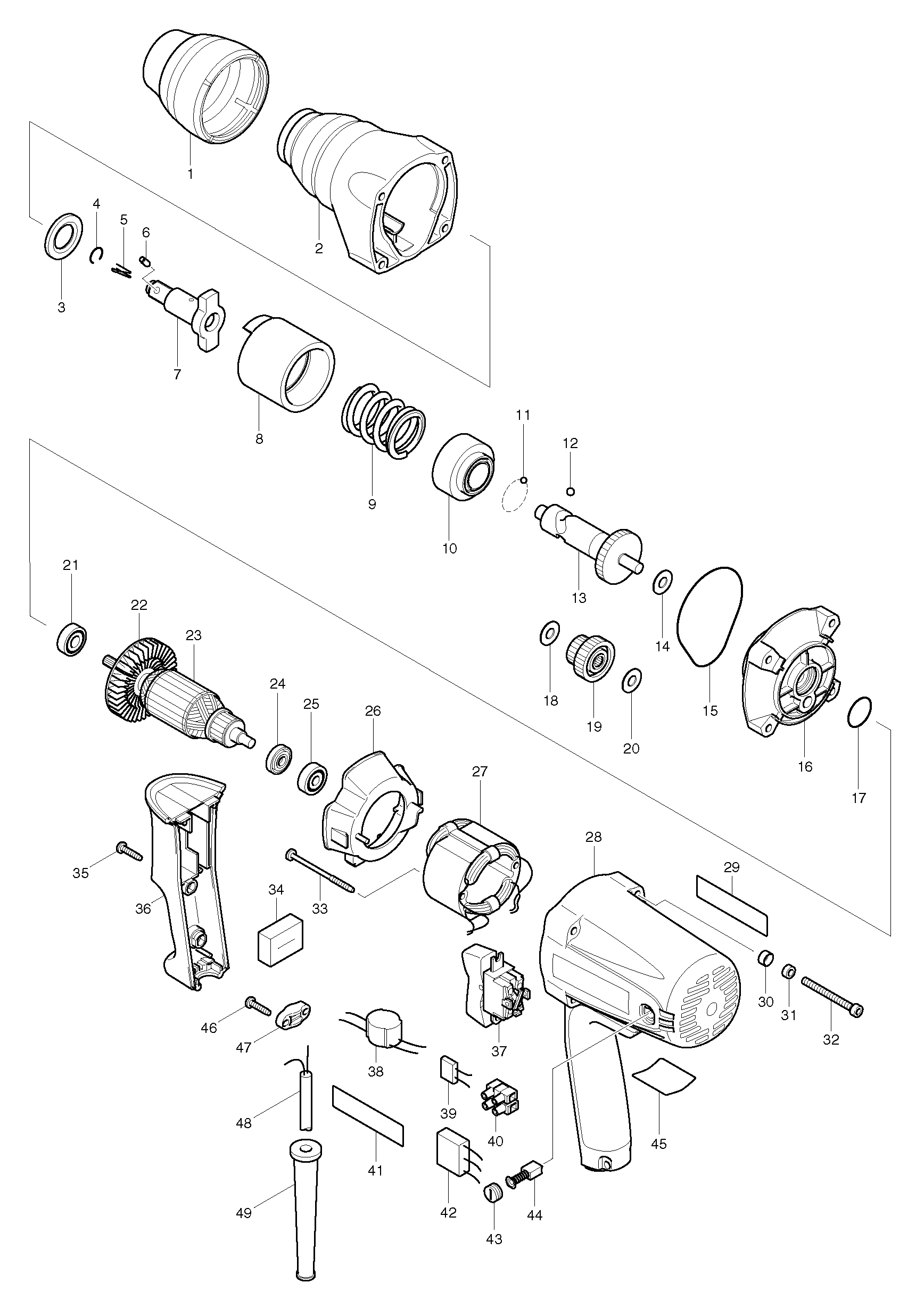

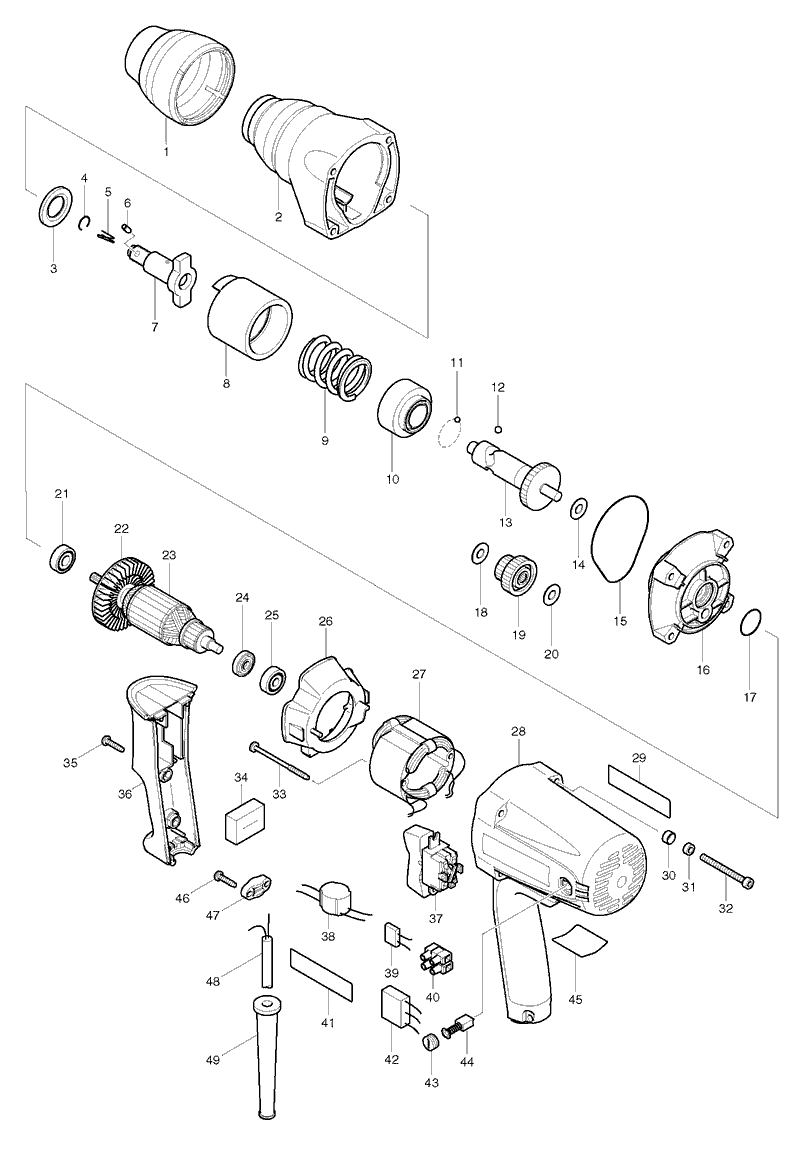

Sheet 1: Makita TW0350 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 421837-6 | Makita 421837-6 BUMPER FOR TW0350 |
| 2 | 153623-4 | Makita 153623-4 HAMMER CASE COMPLETE TW0350 |
| 3 | 267268-3 | Makita 267268-3 FLAT WASHER 19, TW0200 |
| 4 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 5 | ||
| 6 | ||
| 7 | 324406-1 | Makita 324406-1 ANVIL TW0350 |
| 8 | 324336-6 | Makita 324336-6 HAMMER TW0350 |
| 9 | 233383-5 | Makita 233383-5 COMPRESSION SPRING 51 |
| 10 | 313115-7 | Makita 313115-7 SPRING HOLDER TW0350 |
| 11 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 12 | 216007-8 | Makita 216007-8 STEEL BALL 6.4 |
| 13 | 324338-2 | Makita 324338-2 SPINDLE TW0350 |
| 14 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 15 | 421838-4 | Makita 421838-4 SEAL RING TW0350 |
| 16 | 153624-2 | Makita 153624-2 HAMMER CASE COVER COMPL TW0350 |
| 17 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 18 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 19 | 153626-8 | Makita 153626-8 Spur Gear 19-41 Complete TW0350 |
| 20 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 21 | 210024-0 | Makita 210024-0 BALL BEARING 608LLU, HR2810 |
| 23 | 515263-0 | Makita 515263-0 Armature Ass'y for TW0350 |
| 24 | 681614-0 | Makita 681614-0 INSULATION WASHER |
| 25 | 210025-8 | Makita 210025-8 BALL BEARING 627LLB, 9035 |
| 26 | 418180-2 | Makita 418180-2 BAFFLE PLATE TW0350 |
| 27 | 528179-0 | Makita 528179-0 Field Ass'y 220-240V for TW0350 |
| 28 | 183604-4 | Makita 183604-4 MOTOR HOUSING COMP. TW0350 |
| 29 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 30 | 253929-1 | Makita 253929-1 CUP WASHER 5 |
| 31 | 262001-8 | Makita 262001-8 URETHANE RING 5, 6906 |
| 32 | 266331-9 | Makita 266331-9 HEX.SOCKET HEAD BOLT M5X50 TW0200 |
| 33 | 266091-3 | Makita 266091-3 TAPPING SCREW 4X50, LS1040F |
| 34 | 685700-9 | |
| 35 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 36 | 418179-7 | Makita 418179-7 HANDLE COVER TW0350 |
| 37 | 651572-4 | Makita 651572-4 Swich SL220SD-19 for TW0350 |
| 38 | 646325-4 | Makita 646325-4 LINE COIL |
| 39 | 646755-9 | Makita 646755-9 RESISTANCE, DA6301 |
| 40 | 654531-7 | Makita 654531-7 TERMINAL BLOCK 1P, 5007F |
| 41 | 819064-1 | Makita 819064-1 MAKITA LOGO LABEL, LS1040 |
| 42 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 43 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 44 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 45 | 850644-4 | Makita 850644-4 NAME PLATE, TW0350 |
| 46 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 47 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 48 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 49 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
