Makita TW0200
Makita TW0200: exploded parts diagram, 1 sheet, 52 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TW0200: 52 positions on 1 sheet

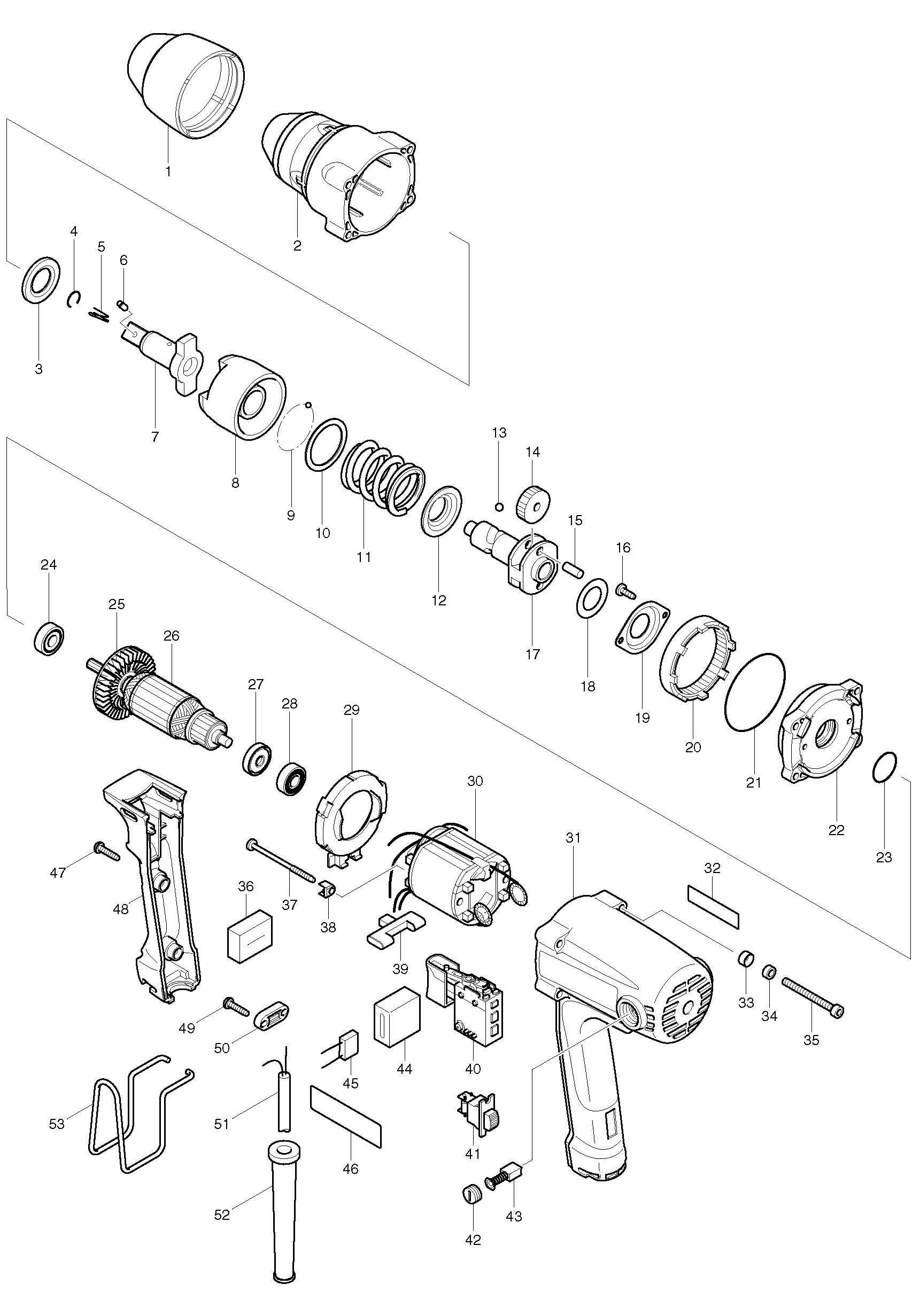

Sheet 1: Makita TW0200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 421839-2 | Makita 421839-2 DUMPER TW0200 |
| 2 | 153581-4 | Makita 153581-4 HAMMER CASE COMP. TW0200 |
| 3 | 267268-3 | Makita 267268-3 FLAT WASHER 19, TW0200 |
| 4 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 5 | ||
| 6 | ||
| 7 | 324344-7 | Makita 324344-7 ANVIL TW0200 |
| 8 | 324341-3 | Makita 324341-3 HAMMER TW0200 |
| 9 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 10 | 267269-1 | Makita 267269-1 TIIVISTE 32 TW0200 |
| 11 | 233377-0 | Makita 233377-0 Compression Spring 30 for TW0200 |
| 12 | 267777-2 | Makita 267777-2 CUP WASHER 19, TW0200 |
| 13 | 216007-8 | Makita 216007-8 STEEL BALL 6.4 |
| 14 | 227092-6 | Makita 227092-6 HAMMASPYÖRÄ TW0200 |
| 15 | 256002-6 | Makita 256002-6 PIN 6 |
| 16 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 17 | 324339-0 | Makita 324339-0 SPINDLE TW0200 |
| 18 | 253794-8 | Makita 253794-8 FLAT WASHER 18 |
| 19 | 285709-7 | Makita 285709-7 LAAKERIKILPI TW0200 |
| 20 | 227093-4 | Makita 227093-4 INTERNAL GEAR TW0200 |
| 21 | 213670-8 | Makita 213670-8 O RING 58 FOR HM1202C |
| 22 | 153583-0 | Makita 153583-0 INTERNAL GEAR TW0200 |
| 23 | 213373-4 | Makita 213373-4 O RING 22, 6826 |
| 24 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 26 | 517448-4 | Makita 517448-4 Armature Ass'y TW0200 240V |
| 27 | 681652-2 | Makita 681652-2 INSULATION WASHER, 9523B |
| 28 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 29 | 418187-8 | Makita 418187-8 BAFFLE PLATE TW0200 |
| 30 | 599354-5 | Makita 599354-5 Field Assembly 220V TW0200 |
| 31 | 183612-5 | Makita 183612-5 MOTOR HOUSING TW0200 |
| 32 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 33 | 253929-1 | Makita 253929-1 CUP WASHER 5 |
| 34 | 262001-8 | Makita 262001-8 URETHANE RING 5, 6906 |
| 35 | 266331-9 | Makita 266331-9 HEX.SOCKET HEAD BOLT M5X50 TW0200 |
| 36 | 685700-9 | |
| 37 | 266091-3 | Makita 266091-3 TAPPING SCREW 4X50, LS1040F |
| 38 | 417237-6 | Makita 417237-6 INSULATION COVER, MT814 |
| 39 | 418186-0 | Makita 418186-0 F/L CHANGE LEVER TW0200 |
| 40 | 650523-4 | Makita 650523-4 Switch C3MA-DB for 6953 TW0200 TW0250 220-240V |
| 41 | ||
| 42 | 643550-8 | Makita 643550-8 HOLDER CAP 5-8, 6300L |
| 43 | 191940-4 | Makita 191940-4 CARBON BRUSH CB-411 |
| 44 | ||
| 45 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 46 | 850444-2 | Makita 850444-2 NAME PLATE TW0200 |
| 47 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 48 | 418189-4 | Makita 418189-4 HANDLE COVER TW0200 |
| 49 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 50 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 51 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 52 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 53 | 324284-9 | Makita 324284-9 HOOK TW0200 |
