Makita TW007G: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TW007G: 41 positions on 1 sheet

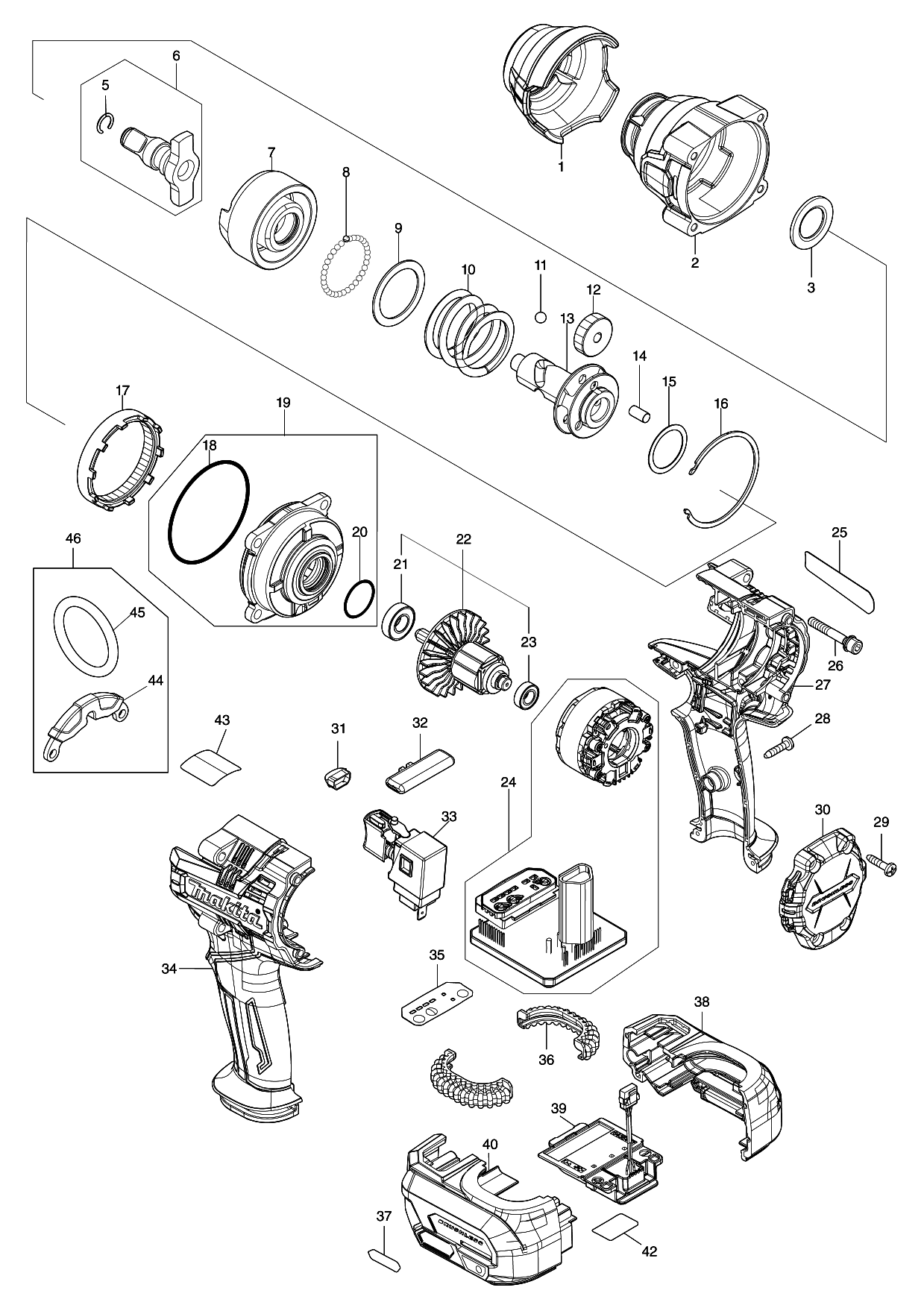

Sheet 1: Makita TW007G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 422709-8 | |
| 2 | 141A99-3 | |
| 3 | 253481-9 | |
| 5 | 231907-1 | Makita 231907-1 RING SPRING 10 |
| 7 | 327804-8 | |
| 8 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 9 | 267340-1 | Makita 267340-1 FLAT WASHER 32BTW450 |
| 10 | 232708-0 | |
| 11 | 216007-8 | Makita 216007-8 STEEL BALL 6.4 |
| 12 | 227891-6 | |
| 13 | 327805-6 | |
| 14 | 256211-7 | |
| 15 | 267494-4 | Makita 267494-4 FLAT WASHER 25 |
| 16 | 347832-7 | |
| 17 | 227892-4 | |
| 18 | 213709-7 | Makita 213709-7 O RING 63 |
| 20 | 213961-7 | Makita 213961-7 O RING 22, MT813 |
| 21 | 210069-8 | Makita 210069-8 BALL BEARING 6900DDW, CS550D |
| 22 | 519691-1 | |
| 23 | 210261-6 | |
| 24 | 629A72-8 | |
| 25 | 811F51-2 | |
| 26 | 251476-6 | Makita 251476-6 H.S.H.BOLT M5X35 WITH WR |
| 27 | 183S74-1 | |
| 28 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 29 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 30 | 413602-7 | |
| 31 | 620F48-8 | |
| 32 | 413603-5 | |
| 33 | 140U03-9 | Makita 140U03-9 SWITCH COMPLETE , TW001G |
| 34 | 183S74-1 | |
| 35 | 8012S9-8 | |
| 36 | 424773-5 | Makita 424773-5 CUSHION RUBBER |
| 37 | 8005T5-8 | |
| 38 | 183S77-5 | |
| 39 | 632R99-1 | Makita 632R99-1 TERMINAL UNIT, DF002G |
| 40 | 183S77-5 | |
| 42 | 811F57-0 | |
| 43 | ||
| 44 | ||
| 45 |
