Bosch TT 23

Bosch TT 23 separating table: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch TT 23: 33 positions on 1 sheet

Bosch TT 23 parts list (1 sheet)

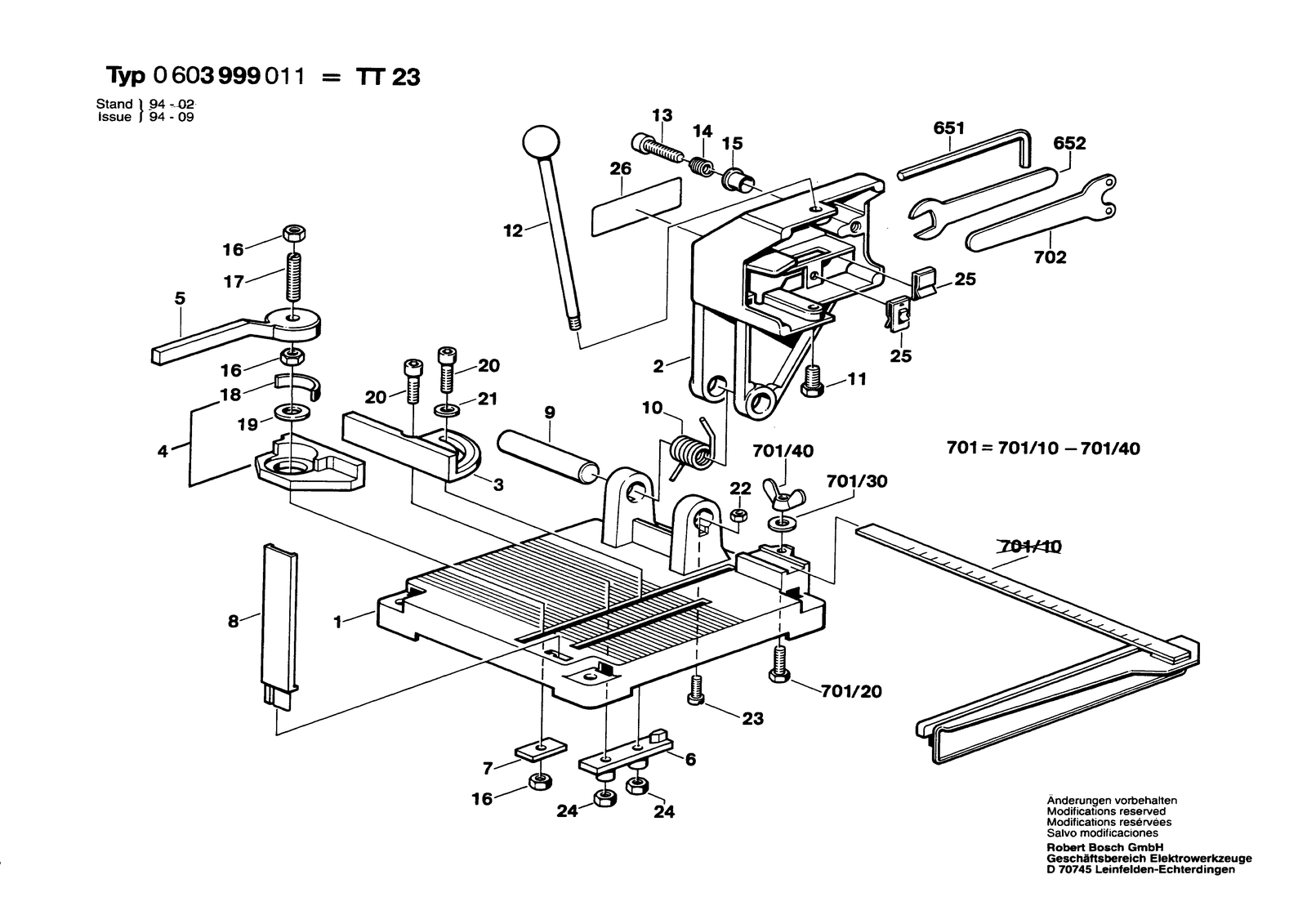

Bosch TT 23 parts diagram, sheet 1
No.Part numberPart name
11609202201Base Plate
101609202210Coiled Spring
112911061289Hex Screw M10X20 DIN 933-8.8
121609202211Swivelling Lever
132910141248Hex Socket Head Cap Screw DIN 912-M8X35-8.8
141609202212Compression Spring
151609202213Cap
162915011010Hex Nut DIN 934-M 10-M-8
171609202214Set screw
181609202215Thrust Member
191609202216Conical Spring Washer
21609202202Drive-Machine Holder
202910141246Hex Socket Head Cap Screw DIN 912-M8X30-8.8
212916011015Plain Washer 8,4 DIN 433-ST
222915011005Hex Nut DIN 934 -M4-M-8
232912041162Set screw DIN 913-M5X20-45H
242915011008Hex Nut M 7 DIN 934-M-8
251609202217Pickup Clip
261601110546Manufacturer's nameplate
31609202203Miter Square
41609202204Clamping jaws
51609202205Tensioning Lever
61609202206Clamping Piece
6511907950007Offset Screwdriver DIN 911;SW6
6521607950508Single-Head Eng. Wrench SW17
71609202207T-Slot Stone
7011607000200Edge Guide
701/202911061197Hex Screw DIN 933-M 6X16-8.8
701/302916011884Plain Washer DIN 9021-A6,4-ST
701/402915191106Wing Nut DIN 1709 BM 6 Verzinkt
7021607950052Pin-Type Face-Wrench
81609202208Protective Shield
91609202209Axle
