Makita TM30D
Makita TM30D: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TM30D: 25 positions on 1 sheet

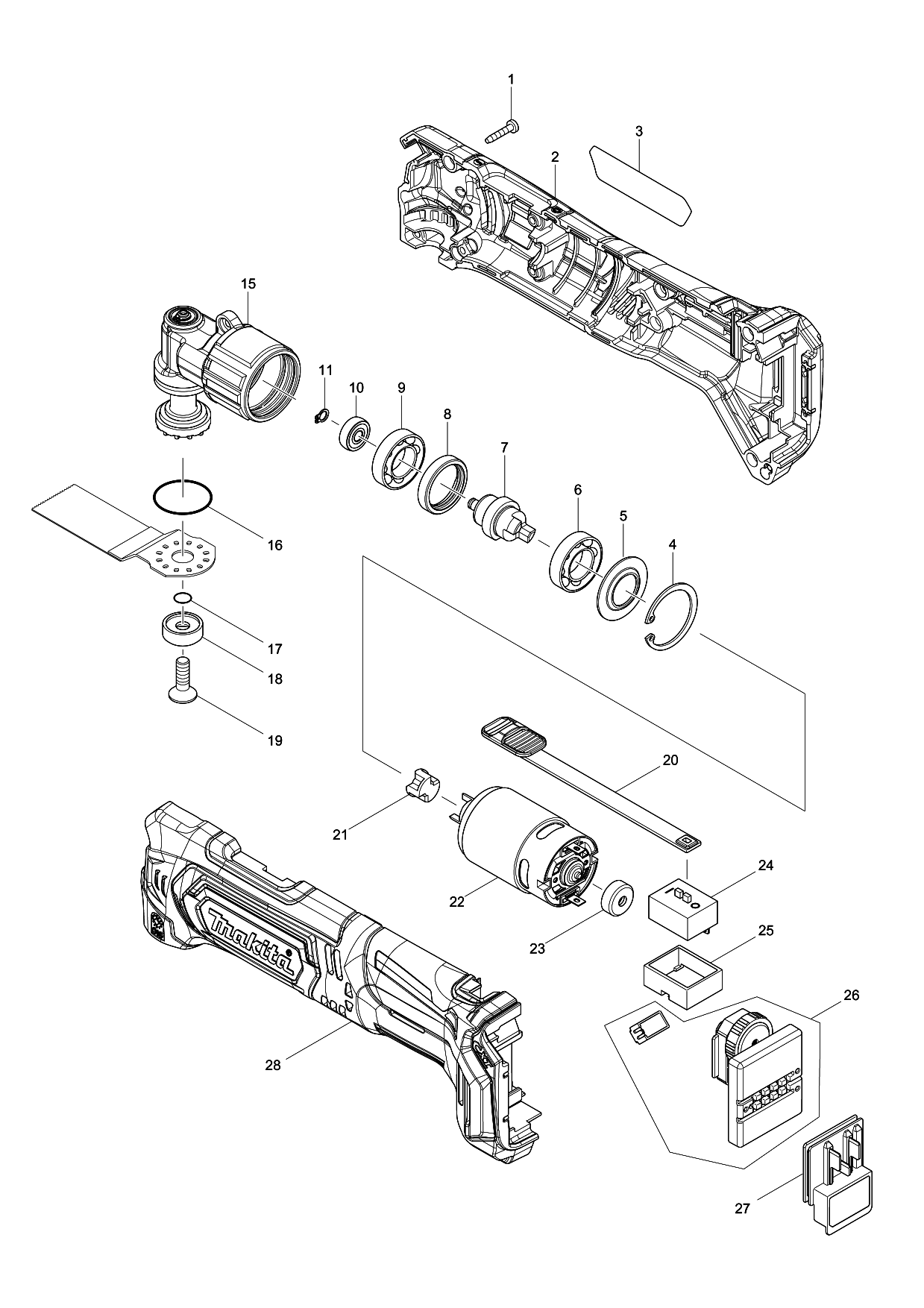

Sheet 1: Makita TM30D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 2 | 183E32-3 | Makita 183E32-3 MOTOR HOUSING SET |
| 3 | 852E52-5 | |
| 4 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 5 | 253368-5 | Makita 253368-5 WASHER 16 |
| 6 | 210147-4 | Makita 210147-4 BALL BEARING 6902 |
| 7 | 326719-6 | Makita 326719-6 CRANK SHAFT |
| 8 | 456788-4 | Makita 456788-4 SPACER 21 |
| 9 | 210147-4 | Makita 210147-4 BALL BEARING 6902 |
| 10 | 210144-0 | Makita 210144-0 SPHERE BEARING 505 |
| 11 | 961008-8 | Makita 961008-8 RETAINING RING S-5 |
| 15 | 144085-7 | Makita 144085-7 CRANK HOUSING COMPLETE |
| 16 | 213987-9 | OTHR New Genuine Makita 213987-9 O-RING 25AR410HR |
| 17 | 213021-5 | Makita 213021-5 O RING 5, LS1030 |
| 18 | 224455-7 | Makita 224455-7 Outer Flange 22 |
| 19 | 266783-4 | Makita 266783-4 H.S.H. Screw M6x20 for BTM40 BTM50 TM3000C |
| 20 | 456791-5 | Makita 456791-5 SWITCH KNOB |
| 21 | 424833-3 | Makita 424833-3 SPACER |
| 22 | 629221-1 | Makita 629221-1 Motor for TM30D |
| 23 | 424467-2 | Makita 424467-2 CAP JR100D |
| 24 | 651610-2 | Makita 651610-2 Switch TM30DZ |
| 25 | 424860-0 | Makita 424860-0 SWITCH COVER |
| 26 | 620522-0 | Makita 620522-0 CONTROLLER |
| 27 | 644813-5 | Makita 644813-5 Terminal |
| 28 | 183E32-3 | Makita 183E32-3 MOTOR HOUSING SET |
