Makita TM3010C
Makita TM3010C: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TM3010C: 47 positions on 1 sheet

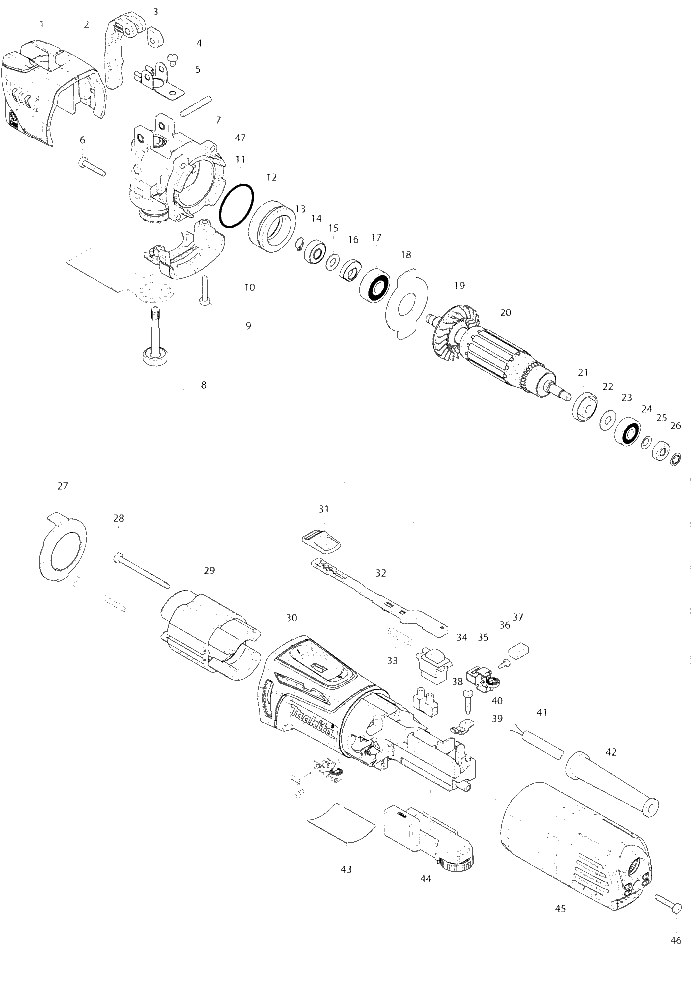

Sheet 1: Makita TM3010C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 455272-6 | Makita 455272-6 UPPER HEAD COVER |
| 2 | 319059-9 | Makita 319059-9 LEVER |
| 3 | 313268-2 | Makita 313268-2 TURN BLOCK |
| 4 | 911102-6 | Makita 911102-6 PAN HEAD SCREW M4X6 |
| 5 | 232282-8 | Makita 232282-8 LEAF SPRING |
| 6 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 7 | 268306-4 | Makita 268306-4 PIN 5 |
| 8 | 326346-9 | Makita 326346-9 HOLDER BOLT |
| 9 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 10 | 454635-3 | Makita 454635-3 LOWER HEAD COVER |
| 11 | 213343-3 | Makita 213343-3 O-RING 35, FS2200 |
| 12 | 326347-7 | Makita 326347-7 BEARING BOX |
| 13 | 961003-8 | Makita 961003-8 RETAINING RING, HR2450 |
| 14 | 211392-4 | Makita 211392-4 SPHERE BEARING 706 |
| 15 | 253133-2 | Makita 253133-2 FLAT WASHER 7 |
| 16 | 313245-4 | Makita 313245-4 BALANCER |
| 17 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 18 | 285857-2 | Makita 285857-2 BEARING RETAINER |
| 20 | 517683-4 | Makita 517683-4 ARMATURE ASSY TM3000D |
| 21 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 22 | 267426-1 | Makita 267426-1 FLAT WASHER 7 |
| 23 | 210023-2 | Makita 210023-2 Ball Bearing for 627DDW HR2453 RT0700C |
| 24 | 267756-0 | Makita 267756-0 WAVE WASHER 6 |
| 25 | 688174-3 | Makita 688174-3 MAGNET SLEEVE RT0700C |
| 26 | 259039-2 | Makita 259039-2 SELF LOCK 6 4340FTC |
| 27 | 453828-9 | Makita 453828-9 Baffle Plate |
| 28 | 266415-3 | Makita 266415-3 TAPPING SCREW 4*55, HR2230 |
| 29 | 623558-8 | Makita 623558-8 Field 240V TM3000C |
| 30 | 453823-9 | Makita 453823-9 MOTOR HOUSING |
| 31 | 453761-5 | Makita 453761-5 SWITCH KNOB |
| 32 | 453825-5 | Makita 453825-5 SWITCH LEVER |
| 33 | 234263-8 | Makita 234263-8 COMPRESSION SPRING 5 |
| 34 | 651609-7 | Makita 651609-7 SWITCH |
| 35 | 643839-4 | Makita 643839-4 Brush Holder for GA4031 |
| 36 | 266492-5 | Makita 266492-5 TAPPING SCREW M3X8 |
| 37 | 194722-3 | Pair New Genuine Carbon Brush Brushes Makita CB-459 194722-3 (=CB-458 195025-8) |
| 38 | 654532-5 | Makita 654532-5 TERMINAL BLOCK, 9523NB |
| 39 | 687682-1 | Makita 687682-1 CORD CLAMP, MT960 |
| 40 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 41 | 695298-8 | |
| 42 | 682516-3 | Makita 682516-3 CORD GUARD 9.3-85, HR2410 |
| 43 | 814T82-4 | |
| 44 | 620234-5 | Makita 620234-5 CONTROLLER |
| 45 | 453824-7 | Makita 453824-7 REAR COVER |
| 46 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 47 | 143249-0 | Makita 143249-0 CRANK HOUSING COMPL |
| 19 | 240140-4 | Makita 240140-4 FAN 46, TM3000C |
