All parts of Makita TL064D: 44 positions on 1 sheet

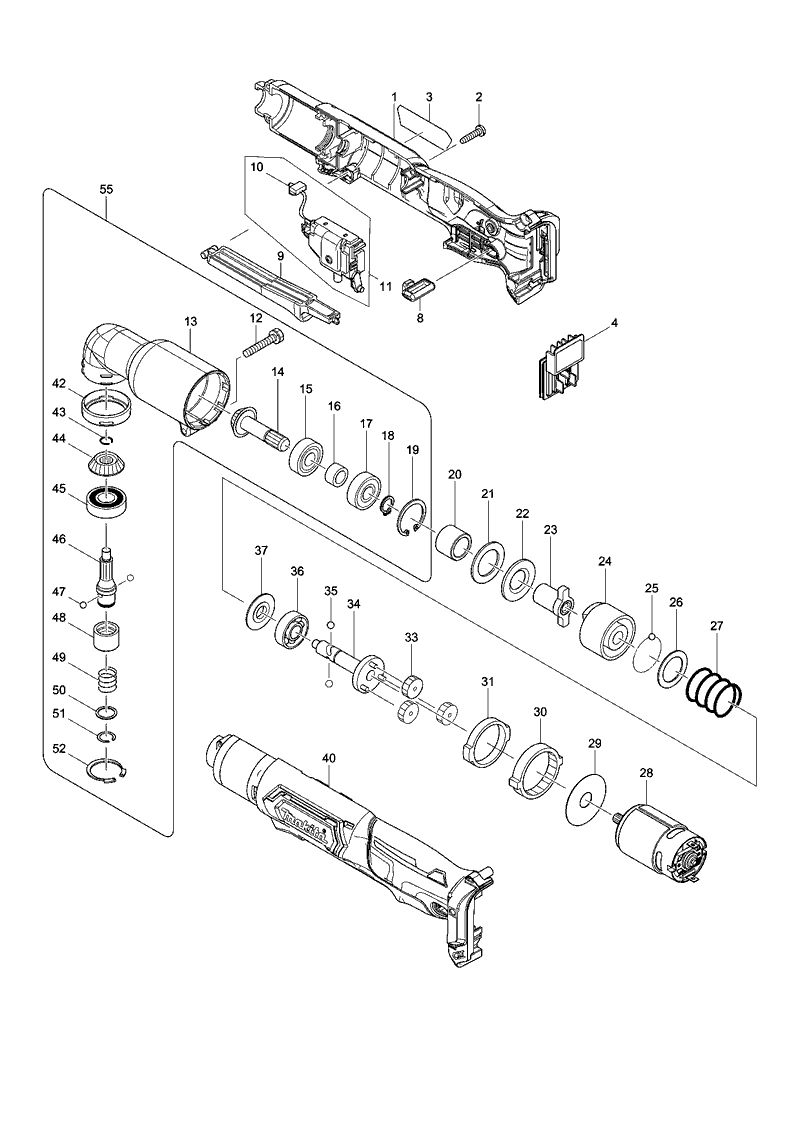

Sheet 1: Makita TL064D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183G43-0 | Makita 183G43-0 HOUSING SET, TL064D |
| 2 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 3 | 853G87-1 | |
| 4 | 644813-5 | Makita 644813-5 Terminal |
| 8 | 450126-2 | Makita 450126-2 FR CHANGE LEVERBTL061 |
| 9 | 450125-4 | Makita 450125-4 SWITCH LEVERBTL061 |
| 10 | 620690-9 | Makita 620690-9 LED CIRCUIT, DTL064 |
| 12 | 265409-5 | Makita 265409-5 + HEX. BOLT M5X30 |
| 13 | 152461-1 | Makita 152461-1 ANGLE HEAD COMPLETE |
| 14 | 226720-0 | Makita 226720-0 ZEROL BEVEL GEAR 13 |
| 15 | 210067-2 | Makita 210067-2 BALL BEARING 6000ZZ, MT952 |
| 16 | 257428-5 | Makita 257428-5 SLEEVE 10, TL064D |
| 17 | 210067-2 | Makita 210067-2 BALL BEARING 6000ZZ, MT952 |
| 18 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 19 | 962105-3 | Makita 962105-3 RETAINING RING R-32, GA4030 |
| 20 | 257429-3 | Makita 257429-3 SLEEVE 15, TL064D |
| 21 | 261095-0 | Makita 261095-0 RUBBER WASHER 21 |
| 22 | 267120-5 | Makita 267120-5 FLAT WASHER 15 |
| 23 | 322689-7 | Makita 322689-7 ANVIL |
| 24 | 322688-9 | Makita 322688-9 HAMMER |
| 25 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 26 | 267121-3 | Makita 267121-3 FLAT WASHER 20 HR4000C |
| 27 | 233107-9 | Makita 233107-9 COMPRESSION SPRING 22 |
| 28 | 629273-2 | Makita 629273-2 DC MOTOR, TL064D |
| 29 | 267053-4 | Makita 267053-4 FLAT WASHER 12 |
| 30 | 226280-2 | Makita 226280-2 INTERNAL GEAR 69 |
| 31 | 257187-1 | Makita 257187-1 RING 32 |
| 33 | 226279-7 | Makita 226279-7 SPUR GEAR 29 |
| 34 | 154416-2 | Makita 154416-2 SPINDLE COMPLETE |
| 35 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 36 | 211472-6 | |
| 37 | 322719-4 | Makita 322719-4 WASHER 10 |
| 40 | 183G43-0 | Makita 183G43-0 HOUSING SET, TL064D |
| 42 | 424044-0 | Makita 424044-0 RUBBER RING 32BTL061 |
| 43 | 231990-8 | Makita 231990-8 RING SPRING 9 6940D |
| 44 | 226721-8 | Makita 226721-8 ZEROL BEVEL GEAR 13 6940D |
| 45 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 46 | 323920-4 | Makita 323920-4 SPINDLE M BALL LOCKBTL060,61 |
| 47 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 48 | 326997-8 | Makita 326997-8 SLEEVE, TL064D |
| 49 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 50 | 267085-1 | Makita 267085-1 Flat Washer 12 6935FD TD126 DTD154 |
| 51 | 231951-8 | Makita 231951-8 Ring Spring 11 for 6935FD |
| 52 | 962116-8 | Makita 962116-8 RETAINING RING R-28 |
