Bosch TG 12-A

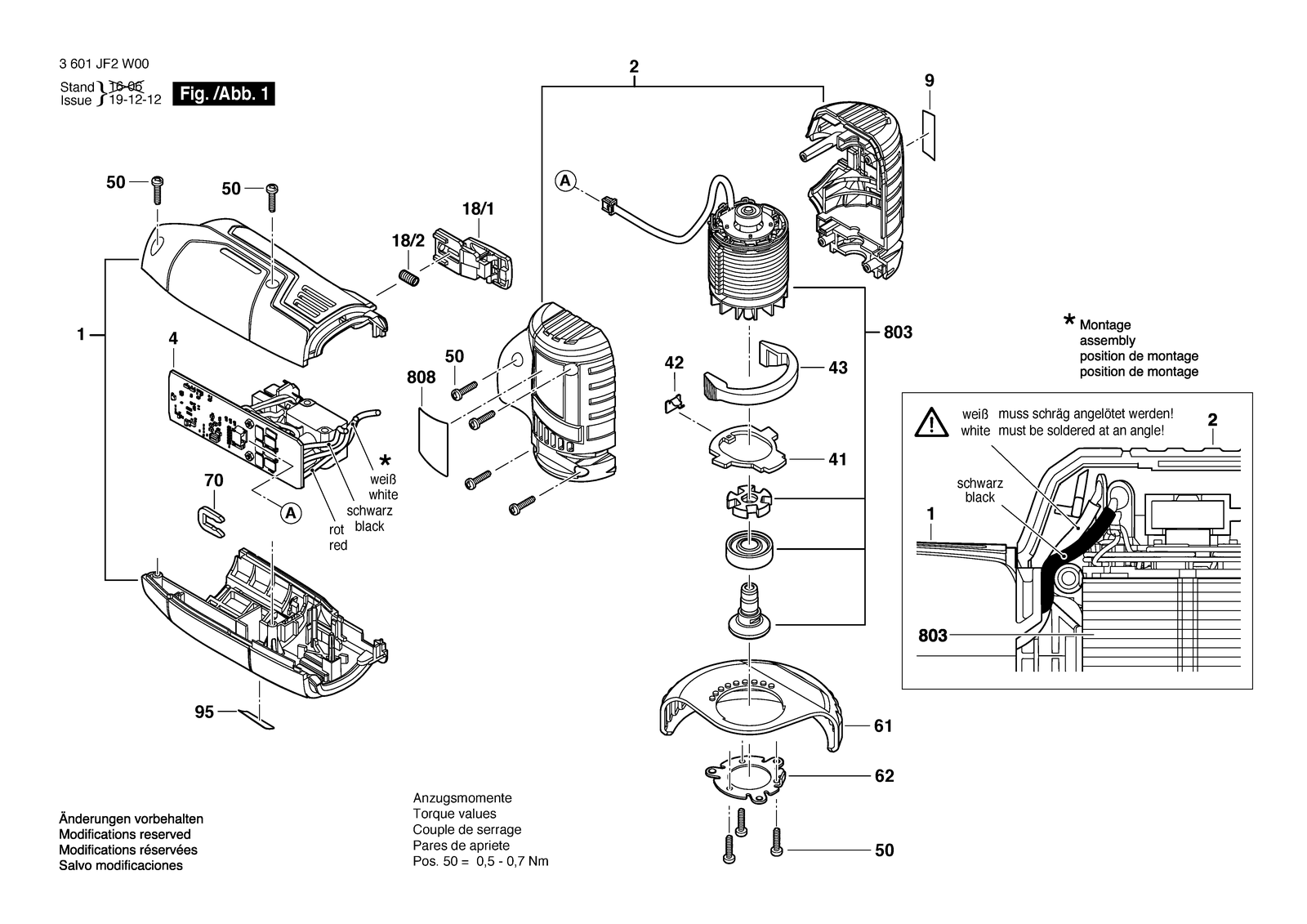

Bosch TG 12-A cordless angle grinder: exploded parts diagram, 2 sheets, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch TG 12-A: 22 positions on 2 sheets
Bosch TG 12-A parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058065EJ | Housing |
| 18/1 | 1600A0078U | Switch Unit |
| 18/2 | 1600A004HA | Spring |
| 2 | 16051082E1 | Motor Housing |
| 4 | 16072335A2 | Electronic Module |
| 41 | 1600A004HJ | Stopping Device |
| 42 | 1600A004HD | Wave spring |
| 43 | 1600A004HH | Retaining Stirrup |
| 50 | 2609110361 | Screw |
| 62 | 1600A004HE | Pressure plate |
| 651 | 1600A00P3B | Protective Cover |
| 652 | 1607A3506M | Battery Pack 12V 4,0AH |
| 652 | 1607A350E9 | Battery Pack Master Li-Ion 12V/2,0 AH 5700139002 |
| 653 | 2607226167 | Fast Charger EU 10,8-12V, 30 Min AL 30-LI Pl |
| 70 | 2609110537 | Clip |
| 803 | 1600A00DC1 | Motor Spare Parts Set |
| 808 | 160111A8Y0 | Nameplate FD 06/2021 |
| 808 | 160111AC55 | Nameplate |
| 852 | 1619P11420 | Hexagon Socket Wrench |
| 9 | 160111C0WV | Manufacturer's nameplate TG 12-A |
| 95 | 160111C0WW | Sticker |
| 99 | 1600A00B91 | Clamping Nut |
