Makita TD021D
Makita TD021D: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TD021D: 41 positions on 1 sheet

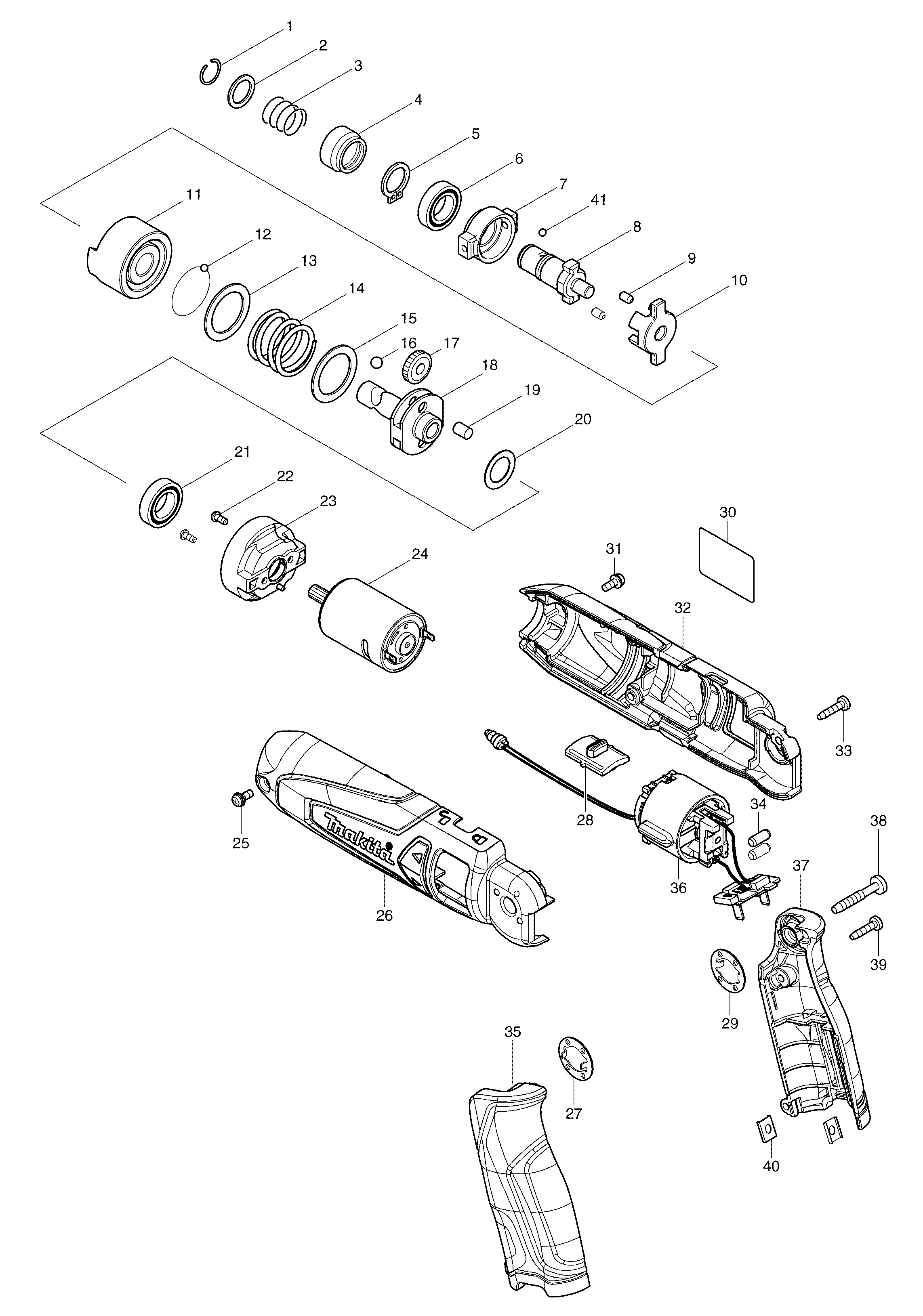

Sheet 1: Makita TD021D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 231965-7 | Makita 231965-7 RING SPRING 10, TD090D |
| 2 | 267143-3 | Makita 267143-3 WASHER 11, TD020D |
| 3 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 4 | 324711-6 | Makita 324711-6 BIT SLEEVE, TD090D |
| 5 | 961072-9 | Makita 961072-9 RETAINING RING (EXT) S-12, TD020D |
| 6 | 210112-3 | Makita 210112-3 BALL BEARING 6801LLB, TD090D |
| 7 | 313136-9 | Makita 313136-9 LOCK RING, TD020D |
| 8 | 324717-4 | Makita 324717-4 SPINDLE M, TD020D |
| 9 | 268160-6 | Makita 268160-6 PIN 3.5, TD021D |
| 10 | 324713-2 | Makita 324713-2 Anvil M for TD020D |
| 11 | 324714-0 | Makita 324714-0 HAMMER, TD020D |
| 12 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 13 | 267335-4 | Makita 267335-4 FLAT WASHER 20, TD020D |
| 14 | 233481-5 | Makita 233481-5 COMPRESSION SPRING 20, TD020D |
| 15 | 267335-4 | Makita 267335-4 FLAT WASHER 20, TD020D |
| 16 | 216002-8 | Makita 216002-8 STEEL BALL 4.8, JR300VT |
| 17 | 227173-6 | Makita 227173-6 SPUR GEAR 27, TD020D |
| 18 | 324715-8 | Makita 324715-8 SPINDLE, TD020D |
| 19 | 268161-4 | Makita 268161-4 PIN 5.0, TD021D |
| 20 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |
| 21 | 210112-3 | Makita 210112-3 BALL BEARING 6801LLB, TD090D |
| 22 | 265172-0 | Makita 265172-0 PAN HEAD SCREW M2.6*6, TD090D |
| 23 | 451522-7 | Makita 451522-7 INTERNAL GEAR CASE, TD021D |
| 24 | 629842-9 | Makita 629842-9 Motor 7,2V for TD020D TD021D |
| 25 | 265173-8 | Makita 265173-8 PAN HEAD SCREW M3*8, TD021D |
| 26 | 188749-3 | Makita 188749-3 MOTOR HOUSING R/L, TD021D |
| 27 | 267803-7 | Makita 267803-7 LOCK WASHER, TD020D |
| 28 | 451523-5 | Makita 451523-5 LOCK LEVER, TD021D |
| 29 | 267803-7 | Makita 267803-7 LOCK WASHER, TD020D |
| 30 | 867332-6 | Makita 867332-6 TD021D NAME PLATETD021D |
| 31 | 265173-8 | Makita 265173-8 PAN HEAD SCREW M3*8, TD021D |
| 32 | 188749-3 | Makita 188749-3 MOTOR HOUSING R/L, TD021D |
| 33 | 266404-8 | Makita 266404-8 TAPPING SCREW 3*14, TD020D |
| 34 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 35 | 188509-3 | Makita 188509-3 HANDLE SET, DF010D |
| 36 | 650624-8 | Makita 650624-8 SWITCH C3YY, TD021D |
| 37 | 188509-3 | Makita 188509-3 HANDLE SET, DF010D |
| 38 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 39 | 266404-8 | Makita 266404-8 TAPPING SCREW 3*14, TD020D |
| 40 | 345749-8 | Makita 345749-8 SET PLATE, TD020D |
| 41 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
