Makita TD001G: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita TD001G: 43 positions on 1 sheet

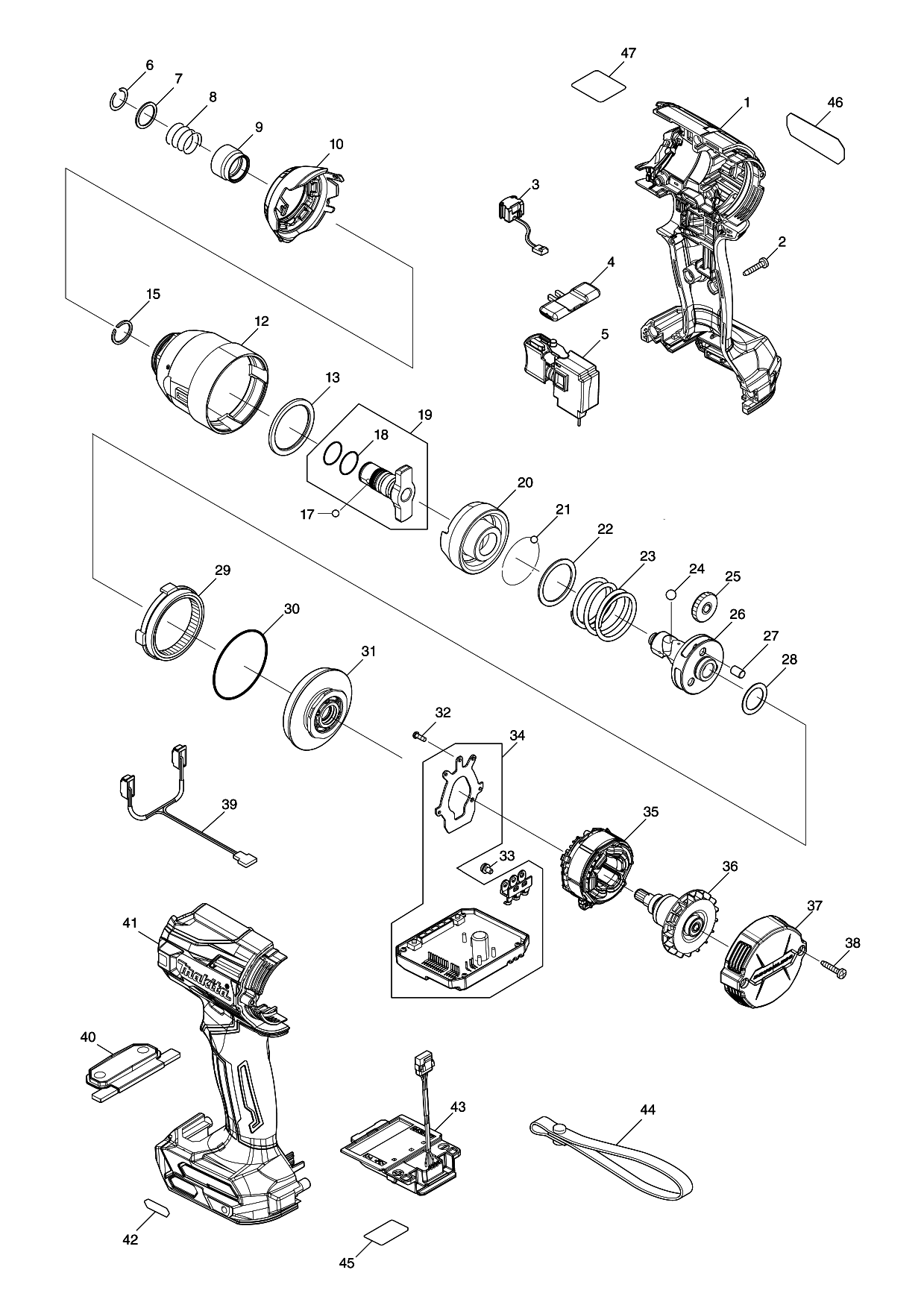

Sheet 1: Makita TD001G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183P56-5 | Makita 183P56-5 HOUSING SET |
| 2 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 3 | 632L84-8 | Makita 632L84-8 SWITCH UNIT, DTD171 |
| 4 | 455053-8 | Makita 455053-8 Front/Rear Change Lever |
| 5 | 651442-7 | Makita 651442-7 SWITCH C3JR-1A-1 |
| 6 | 231952-6 | |
| 7 | 267101-9 | |
| 8 | 232592-3 | |
| 9 | 327531-7 | Makita 327531-7 BIT SLEEVE, TD001G |
| 10 | 136171-8 | Makita 136171-8 HAMMER CASE COVER |
| 12 | 140R47-1 | Makita 140R47-1 HAMMER CASE COMPLETE |
| 13 | 261160-5 | |
| 15 | 259075-8 | Makita 259075-8 RETAINING RING |
| 17 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 18 | 213118-0 | Makita 213118-0 O RING 12, 5277NB |
| 20 | 327525-2 | Makita 327525-2 HAMMER |
| 21 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 22 | 267342-7 | Makita 267342-7 FLAT WASHER 26, AN620H |
| 23 | 232591-5 | Makita 232591-5 COMPRESSION SPRING 25 |
| 24 | 216013-3 | Makita 216013-3 STEEL BALL 6.0, HR245FT |
| 25 | 226960-0 | Makita 226960-0 SPUR GEAR 24 |
| 26 | 327524-4 | Makita 327524-4 SPIINDLE |
| 27 | 268311-1 | Makita 268311-1 PIN 5 |
| 28 | 267194-6 | Makita 267194-6 FLAT WASHER 15 |
| 29 | 226961-8 | Makita 226961-8 INTERNAL GEAR 56 |
| 30 | 213892-0 | Makita 213892-0 O-RING 43 |
| 31 | 140R48-9 | Makita 140R48-9 BEARING BOX |
| 32 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 33 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 34 | 620B96-3 | Makita 620B96-3 CONTROLLER |
| 35 | 629464-5 | Makita 629464-5 STATOR |
| 36 | 619605-1 | Makita 619605-1 ROTOR |
| 37 | 412339-3 | Makita 412339-3 REAR COVER |
| 38 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 39 | 620B97-1 | Makita 620B97-1 LED CIRCUIT |
| 40 | 140R54-4 | Makita 140R54-4 SWTICH PLATE COMPLETE |
| 41 | 183P56-5 | Makita 183P56-5 HOUSING SET |
| 42 | 8007R2-2 | Makita 8007R2-2 LOGO LABEL |
| 43 | 632P49-4 | Makita 632P49-4 TERMINAL UNIT |
| 44 | ||
| 45 | 856V15-5 | |
| 46 | 856V08-2 | |
| 47 |
