Bosch TC 10
Bosch TC 10 table saw: exploded parts diagram, 3 sheets, 206 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

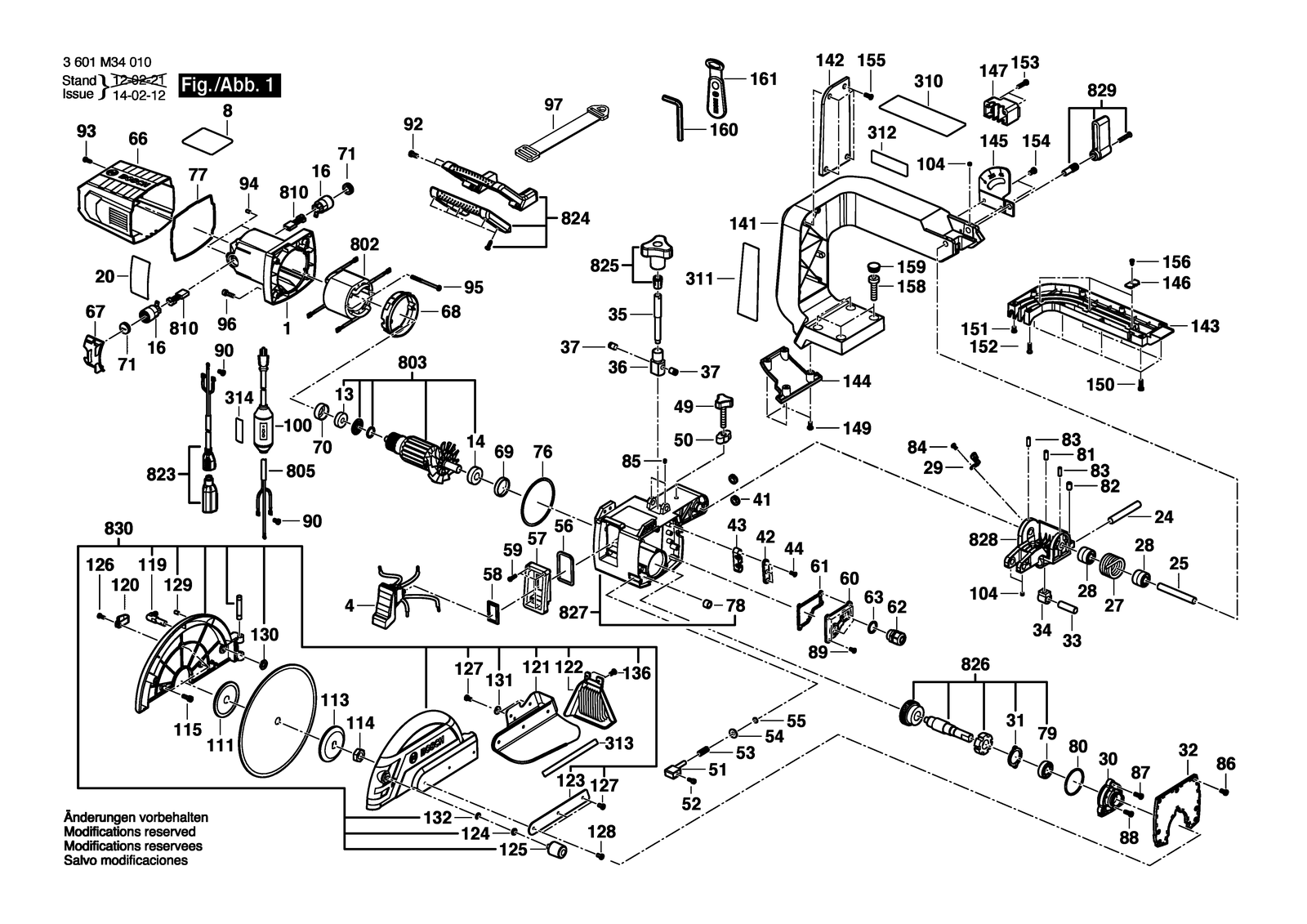

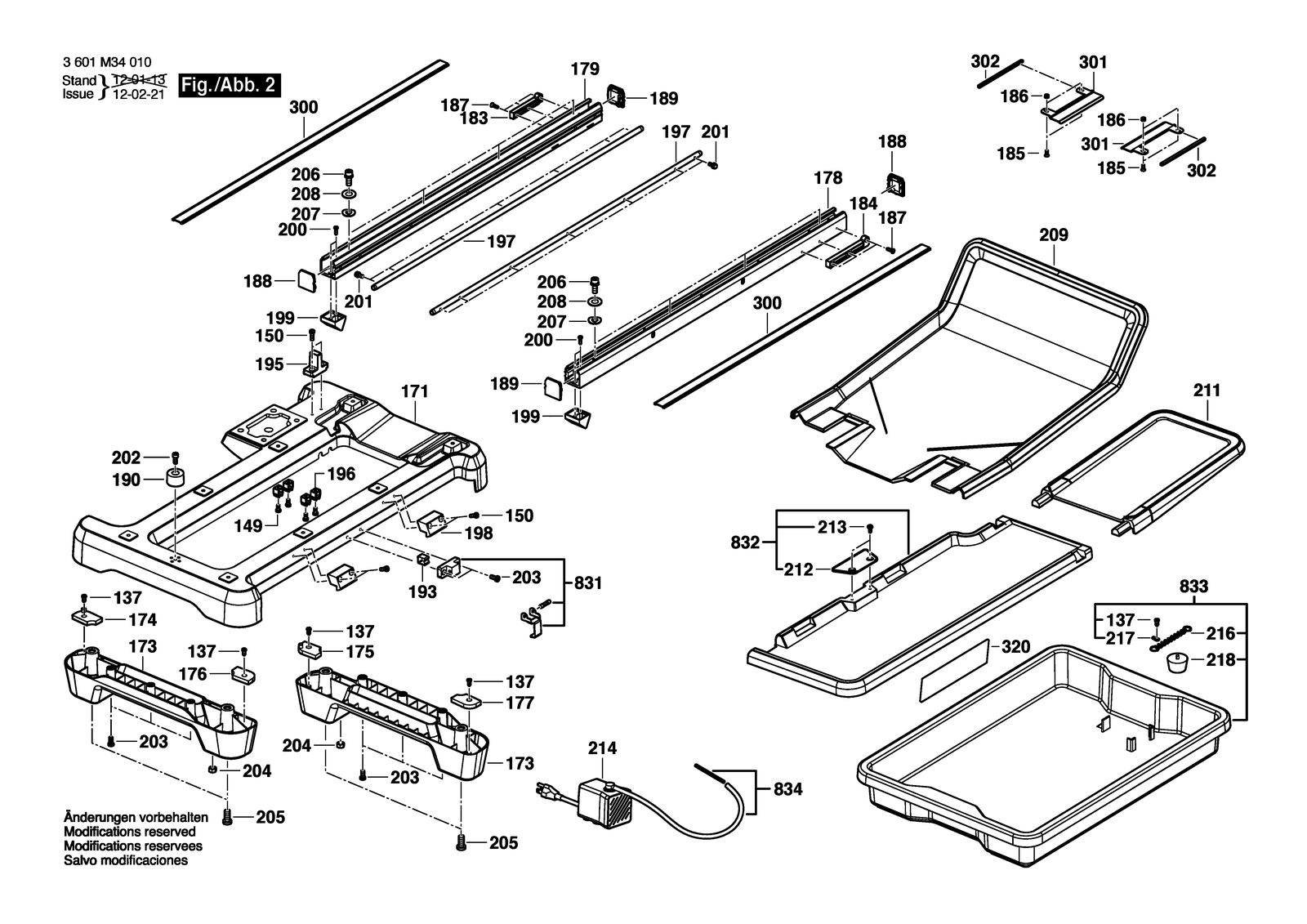

All parts of Bosch TC 10: 206 positions on 3 sheets
Bosch TC 10 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609B03196 | Motor Housing |
| 100 | 1609B03014 | Cable Plug |
| 104 | 1609B03363 | Screw |
| 111 | 1609B03001 | Flange |
| 113 | 1609B03003 | Flange |
| 114 | 1609B03004 | Hex Nut |
| 115 | 1609B03135 | Screw |
| 119 | 1609B03304 | Nozzle |
| 120 | 1609B03305 | Cable Clip |
| 121 | 1609B03306 | Splash Guard |
| 122 | 1609B03307 | Splash Guard |
| 123 | 1609B03308 | Holding Plate |
| 124 | 1609B03309 | Washer |
| 125 | 1609B03310 | Handle |
| 126 | 1609B03311 | Screw |
| 127 | 1609B03312 | Screw |
| 128 | 1609B03317 | Screw |
| 129 | 1609B03313 | Screw |
| 13 | 1609B03224 | Ball Bearing |
| 130 | 1609B03338 | Adjusting Nut |
| 131 | 1609B03315 | Washer |
| 132 | 1609B03455 | End Clip |
| 136 | 1609B03314 | Screw |
| 137 | 1609B03113 | Tapping Screw |
| 14 | 1609B03223 | Ball Bearing |
| 141 | 1609B03121 | Supporting Arm |
| 142 | 1609B03122 | Cover |
| 143 | 1609B03123 | Cover |
| 144 | 1609B03124 | Cover |
| 145 | 1609B03125 | Scale Plate |
| 146 | 1609B03126 | Cable Clip |
| 147 | 1609B03127 | Cable Clip |
| 149 | 1609B03104 | Screw |
| 150 | 1609B03130 | Screw |
| 151 | 1609B03131 | Screw |
| 152 | 1609B03132 | Screw |
| 153 | 1609B03133 | Screw |
| 154 | 1609B03134 | Screw |
| 155 | 1609B03136 | Screw |
| 156 | 1609B03137 | Screw |
| 158 | 1609B03005 | Axle Bolt |
| 159 | 1609B03006 | Protective Cap |
| 16 | 1609B03203 | Brush Holder |
| 160 | 1609B03019 | Wrench Attachment |
| 161 | 1609B03020 | Assembly Wrench |
| 171 | 1609B03061 | Base Frame |
| 173 | 1609B03062 | Supporting foot |
| 174 | 1609B03063 | Foot Cover |
| 175 | 1609B03064 | Foot Cover |
| 176 | 1609B03065 | Foot Cover |
| 177 | 1609B03066 | Foot Cover |
| 178 | 1609B03067 | Rail |
| 179 | 1609B03068 | Rail |
| 183 | 1609B03036 | Holding Bracket |
| 184 | 1609B03037 | Holding Bracket |
| 185 | 1609B03243 | Screw |
| 186 | 1609B03039 | Locking nut |
| 187 | 1609B03038 | Screw |
| 188 | 1609B03070 | Side Cover |
| 189 | 1609B03071 | Side Cover |
| 190 | 1609B03072 | Slide Stop |
| 193 | 1609B03076 | Stopping Device |
| 195 | 1609B03078 | Holding Fixture |
| 196 | 1609B03080 | Cable Clip |
| 197 | 1609B03081 | Shaft Support Rail |
| 198 | 1609B03082 | Holding Bracket |
| 199 | 1609B03083 | Supporting Block |
| 20 | 1609B03486 | Label |
| 200 | 1609B03098 | Tapping Screw |
| 201 | 1609B03101 | Hex Screw |
| 202 | 1609B03106 | Screw |
| 203 | 1609B03107 | Screw |
| 204 | 1609B03108 | Nut |
| 205 | 1609B03109 | Screw |
| 206 | 1609B03110 | Screw |
| 207 | 1609B03111 | Plain Washer |
| 208 | 1609B03112 | Spring Washer |
| 209 | 1609B03023 | Water Container |
| 211 | 1609B03025 | Water Container |
| 212 | 1609B03026 | Rubber Plate |
| 213 | 1609B03027 | Tapping Screw |
| 214 | 1609B03010 | Pump |
| 216 | 1609B03092 | Chain |
| 217 | 1609B03093 | Chain Link |
| 218 | 1609B03094 | Plug |
| 221 | 1609B03370 | Saw Table |
| 222 | 1609B03322 | Runner Block |
| 230 | 1609B03330 | Adjusting Plate |
| 231 | 1609B03331 | Bolt |
| 232 | 1609B03332 | Knob |
| 233 | 1609B03333 | Locking Plate |
| 234 | 1609B03334 | Locking Lever |
| 235 | 1609B03335 | Bushing |
| 236 | 1609B03336 | Lock Spring |
| 237 | 1609B03337 | Lock Bolt |
| 238 | 1609B03356 | Locking Slide |
| 24 | 1609B03153 | Shaft |
| 240 | 1609B03339 | End Support |
| 241 | 1609B03340 | End Support |
| 246 | 1609B03364 | Screw |
| 247 | 1609B03365 | Pin |
| 248 | 1609B02183 | Screw Old, Only With Softstartmodule |
| 25 | 1609B03154 | Plunger Bar |
| 250 | 1609B03382 | Screw |
| 252 | 1609B03392 | Shaft |
| 253 | 1609B03393 | Clip |
| 257 | 1609B03395 | Screw |
| 258 | 1609B03396 | Screw |
| 263 | 1609B03403 | Shaft |
| 264 | 1609B03404 | Leaf Spring |
| 265 | 1609B03405 | Holding Spring |
| 266 | 1609B03406 | Clamp Handle |
| 267 | 1609B03407 | Lock Bolt |
| 268 | 1609B03408 | Knob |
| 269 | 1609B03409 | Screw |
| 27 | 1609B03156 | Torsion Spring |
| 272 | 1609B03412 | Nut |
| 273 | 1609BP7027 | Ball |
| 28 | 1609B03157 | Bushing |
| 29 | 1609B03158 | Shift Finger |
| 30 | 1609B03159 | Cover |
| 300 | 1609B03069 | Cover |
| 301 | 1609B03032 | Clamping Device |
| 302 | 1609B03035 | Sealing Cover |
| 31 | 1609B03160 | Bearing Cover Plate |
| 310 | 1609B03485 | Label |
| 311 | 1609B03487 | Label |
| 312 | 1609B03488 | Label |
| 313 | 1609B03489 | Label |
| 314 | 1609B03490 | Label |
| 315 | 1609B03491 | Label |
| 32 | 1609B03161 | Sealing Cover |
| 320 | 1609B03497 | Label |
| 33 | 1609B03162 | Shaft |
| 34 | 1609B03163 | Clamping Device |
| 35 | 1609B03164 | Locking Pin |
| 36 | 1609B03165 | Locking Clutch |
| 37 | 1609B03166 | Shaft Insert |
| 4 | 1609B03281 | Switch |
| 41 | 1609B03170 | Cord guard |
| 42 | 1609B03177 | Strain-Relief Clamp |
| 43 | 1609B03178 | Strain-Relief Clamp |
| 44 | 1609B03179 | Screw |
| 49 | 1609B03174 | Knob |
| 50 | 1609B03275 | Knob |
| 51 | 1609B03276 | Lock Cylinder |
| 52 | 1609B03277 | Lock bolt |
| 53 | 1609B03278 | Lock Spring |
| 54 | 1609B03279 | Washer |
| 55 | 1609B00714 | O-Ring |
| 56 | 1609B03282 | Seal |
| 57 | 1609B03283 | Switch Box |
| 58 | 1609B03284 | Seal |
| 59 | 1609B03185 | Screw |
| 60 | 1609B03186 | Cover |
| 61 | 1609B03187 | Seal |
| 62 | 1609B03188 | Screw |
| 63 | 1609B03189 | Sealing Plate |
| 66 | 1609B03197 | Housing Cover |
| 67 | 1609B03198 | Dust Protection |
| 68 | 1609B03199 | Air Guide Plate |
| 69 | 1609B03200 | Rubber Bushing |
| 70 | 1609B03201 | Rubber Bushing |
| 71 | 1609B03202 | Brush-Cover |
| 76 | 1609B03212 | Seal |
| 77 | 1609B03213 | Seal |
| 78 | 1609B00777 | Needle-Roller Bearing |
| 79 | 1609B00779 | Groove ball bearing |
| 8 | 1609B03492 | Nameplate |
| 80 | 1609B03222 | O-Ring |
| 802 | 1609B03438 | Field 115V |
| 803 | 1609B03214 | Armature 115V |
| 805 | 1609B03008 | Power Cable |
| 81 | 1609B03225 | Screw |
| 810 | 1609B03211 | Carbon Brush |
| 82 | 1609B03226 | Screw |
| 823 | 1609B03017 | Cord |
| 824 | 1609B03171 | Handle |
| 825 | 1609B03180 | Rotary Knob |
| 826 | 1609B03181 | Gear Shaft |
| 827 | 1609B03182 | Gear Box |
| 828 | 1609B03183 | Joint |
| 829 | 1609B03420 | Knob |
| 83 | 1609B03227 | Screw |
| 830 | 1609B03300 | Pivoting Blade Guard |
| 831 | 1609B03073 | Stopping Device |
| 832 | 1609B03028 | Catcher Pan |
| 833 | 1609B03090 | Water Container |
| 834 | 1609B03029 | Plastic Hose |
| 836 | 1609B03400 | Mitre Fence |
| 837 | 1609B03390 | Separating Table |
| 838 | 1609B03321 | Wheel |
| 839 | 1609B03341 | Wheel |
| 84 | 1609B03228 | Screw |
| 85 | 1609B03230 | Screw |
| 86 | 1609B03231 | Screw |
| 87 | 1609B03232 | Screw |
| 88 | 1609B03233 | Screw |
| 89 | 1609B03234 | Screw |
| 90 | 1609B03235 | Screw |
| 92 | 1609B03483 | Screw |
| 93 | 1609B03238 | Screw |
| 94 | 1609B03239 | Screw |
| 95 | 1609B03240 | Screw |
| 96 | 1609B03241 | Screw |
| 97 | 1609B01538 | Cable Tape |
