Makita T1022D
Makita T1022D: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita T1022D: 53 positions on 1 sheet

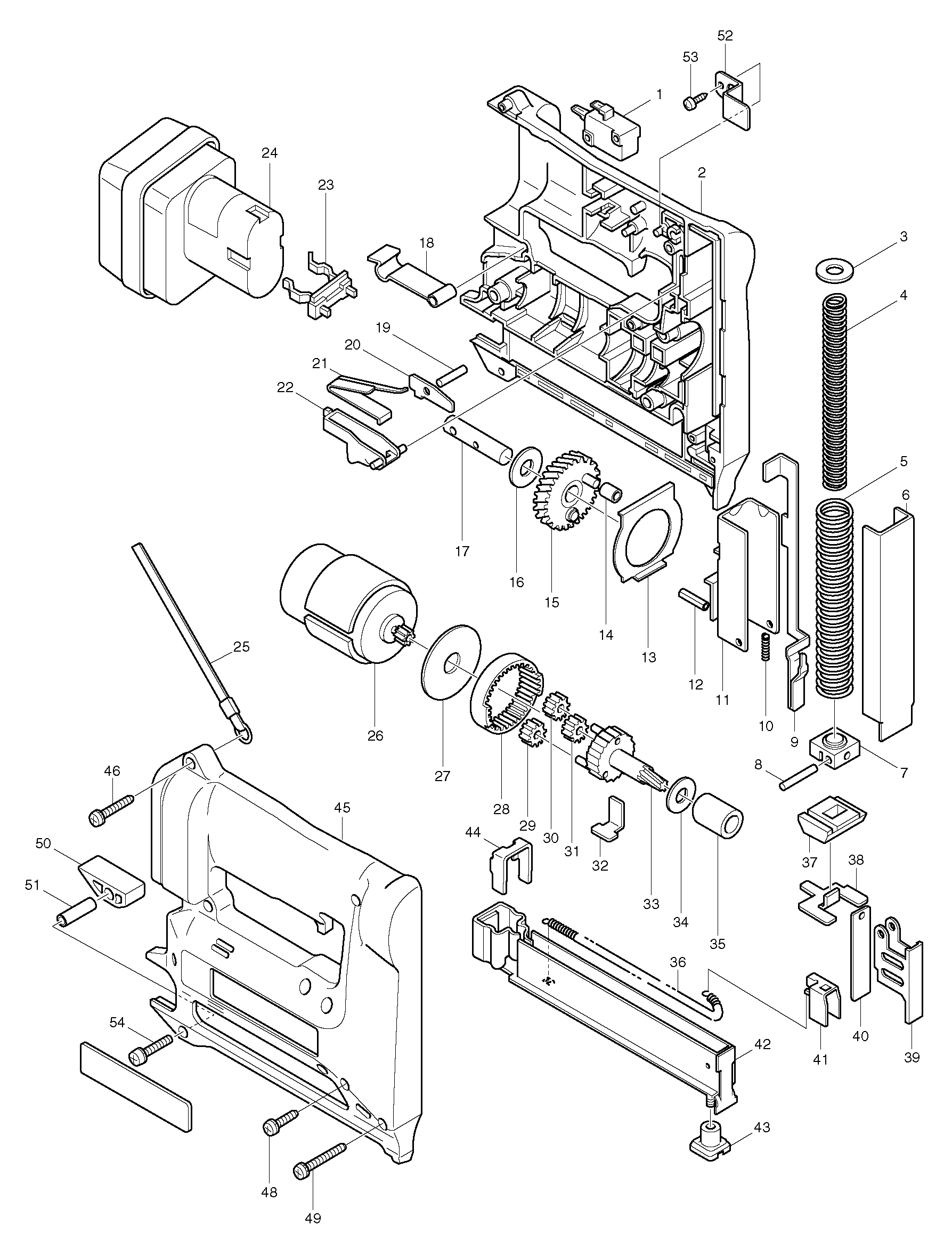

Sheet 1: Makita T1022D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 651891-8 | Makita 651891-8 Switch, 6900DW SS330D |
| 2 | 182437-4 | Makita 182437-4 HOUSING SET |
| 3 | 253733-8 | Makita 253733-8 FLAT WASHER 9, HR2432 |
| 4 | 233003-1 | Makita 233003-1 COMPRESSION SPRING 9 |
| 5 | 233004-9 | |
| 6 | 343630-7 | |
| 7 | 331382-2 | Makita 331382-2 DRIVER LOCK |
| 8 | 256206-0 | Makita 256206-0 PIN 4, JV600 |
| 9 | 164961-9 | Makita 164961-9 SAFETY LEVER |
| 10 | 233002-3 | Makita 233002-3 COMPRESSION SPRING 3 |
| 11 | 343643-8 | Makita 343643-8 HAMMER |
| 12 | 951107-4 | Makita 951107-4 SPRING PIN 4-14 |
| 13 | 343629-2 | Makita 343629-2 PLATE |
| 14 | 257639-2 | |
| 15 | 153203-6 | |
| 16 | 253171-4 | Makita 253171-4 FLAT WASHER 10, HR2810 |
| 17 | 256205-2 | |
| 18 | 343579-1 | |
| 19 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 20 | 343628-4 | Makita 343628-4 RELEASE PLATE |
| 21 | 232107-6 | Makita 232107-6 LEAF SPRING |
| 22 | 414549-8 | |
| 23 | 643909-9 | Makita 643909-9 BATTERY HOLDER *, 6222D |
| 24 | 192019-4 | |
| 25 | 163319-9 | Makita 163319-9 HAND STRAP |
| 26 | 629613-4 | Makita 629613-4 DC MOTOR 9.6V |
| 27 | 267053-4 | Makita 267053-4 FLAT WASHER 12 |
| 28 | 221999-8 | Makita 221999-8 INTERNAL GEAR 69 |
| 29 | 221961-3 | Makita 221961-3 SPUR GEAR 27 |
| 30 | 221961-3 | Makita 221961-3 SPUR GEAR 27 |
| 31 | 221961-3 | Makita 221961-3 SPUR GEAR 27 |
| 32 | 232108-4 | Makita 232108-4 LEAF SPRING |
| 33 | 153204-4 | |
| 34 | 253758-2 | Makita 253758-2 FLAT WASHER 10 |
| 35 | 214058-5 | |
| 36 | 231786-7 | Makita 231786-7 TENSION SPRING 4 |
| 37 | 421358-8 | Makita 421358-8 CUSHION |
| 38 | 343632-3 | |
| 39 | 343634-9 | Makita 343634-9 DRIVER GUIDE |
| 40 | 343633-1 | Makita 343633-1 DRIVER |
| 41 | 343631-5 | Makita 343631-5 PUSHER |
| 42 | 168217-2 | Makita 168217-2 SUB MAGAZINE |
| 43 | 252634-7 | Makita 252634-7 NUT M4 |
| 44 | 343635-7 | Makita 343635-7 MAGAZINE LOCK |
| 45 | 182437-4 | Makita 182437-4 HOUSING SET |
| 46 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 48 | 911123-8 | Makita 911123-8 PAN HEAD SCREW M4*14, N5900B |
| 49 | 911158-9 | Makita 911158-9 PAN HEAD SCREW M4*30, MT960 |
| 50 | 415045-9 | |
| 51 | 257645-7 | Makita 257645-7 SLEEVE 4 |
| 52 | 343967-2 | |
| 53 | 265873-0 | |
| 54 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
