Bosch STP 10-A

Bosch STP 10-A cordless jigsaw: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch STP 10-A: 46 positions on 1 sheet

Bosch STP 10-A parts list (1 sheet)

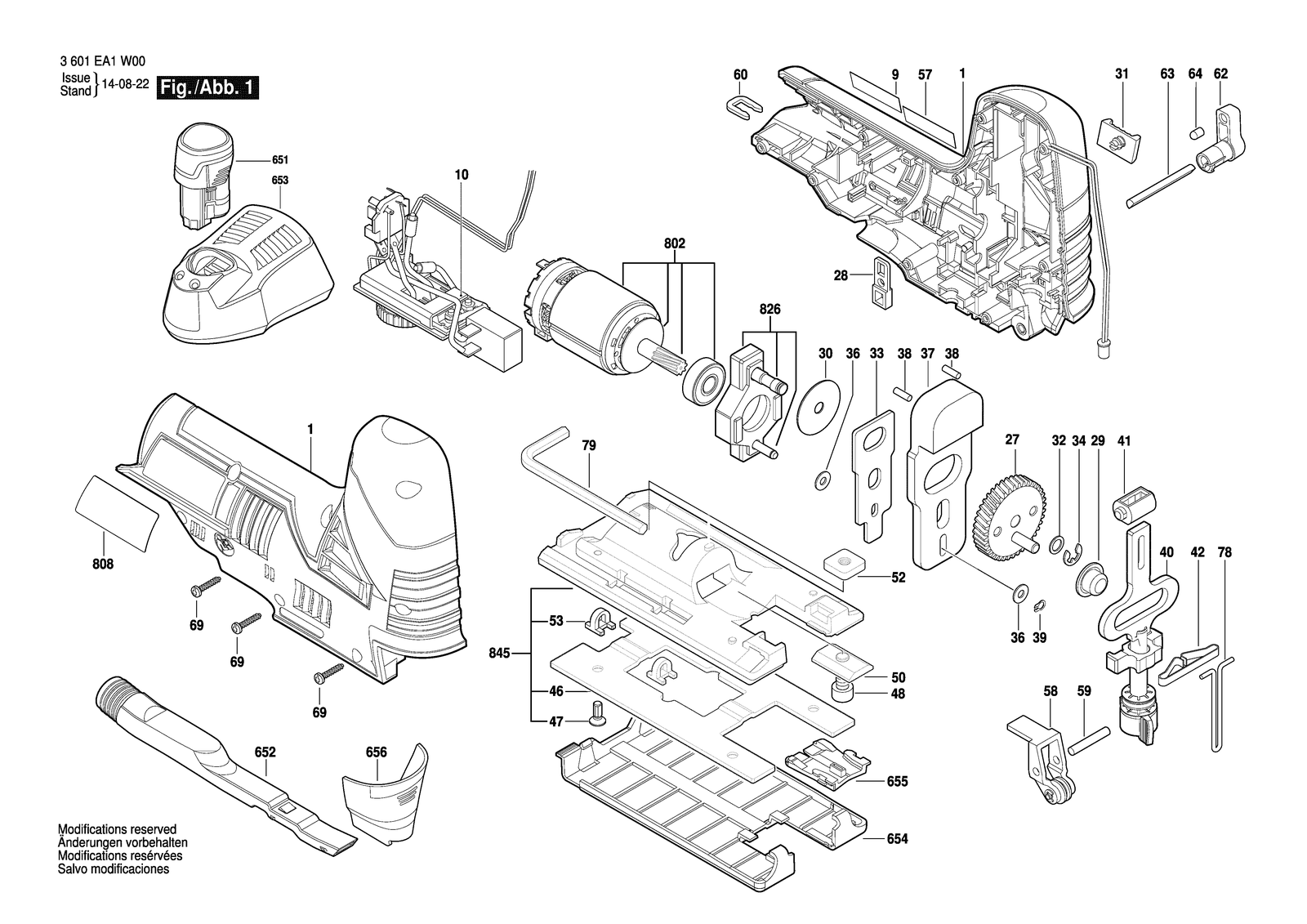

Bosch STP 10-A parts diagram, sheet 1
No.Part numberPart name
11619P12163Housing Section
101619P10565Electronics Module
271619P10569Eccentric Cog Wheel
281619P10570Switch Slide
292600914022Needle bearing
301619P01396Shim
311619P10572Switch Button
322600100568Shim 0,5 MM
331619P10573Fork Lever
342916080908Locking washer 5 DIN 6799
362600100588Shim 0,5 MM
371619P10574Counterweight
382603201020Bearing bolt
392916640001Spring retaining ring DIN 471-4X0,4-FST
402600780190Lifting Rod
411619X00399Bearing Block
421619X08384Coiled Spring
461619P10576Work Board
471619P11427Thread-forming tap. Screw
482910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
502601030019Profile Beading
521619P07163Fixing plate
531619P10589Key Holder
571619P10835Sticker
581619P10578Roller Lever
592917530101Straight Pin DIN 6325-4M6X24
601619P08646Clip
621619P12165Change-Over Switch
631619P10581Control Shaft
642600590006Ratchet Cap
6511607A350E9Battery Pack Master Li-Ion 12V/2,0 AH 5700139002
6521619P10585Suction Nozzle
6532607225197Fast Charger EU 10,8V, 30 Min. AL 30-LI Pl
6532607226167Fast Charger EU 10,8-12V, 30 Min AL 30-LI Pl
6541619P07958Pad
6552601016093Splintering Protector
6561619P10583Covering hood
691619P06252Torx Oval-Head Screw
781619P10582Protecting Cover
792610364015Hexagon Socket Screw Key 5 MM
8021619P10586DC motor
8081619P12168Nameplate
8081619P14355Nameplate
8261619P10587Bearing Bracket
8451619P12256Base Plate
91619P12167Manufacturer's nameplate GST 10,8 V-Li
