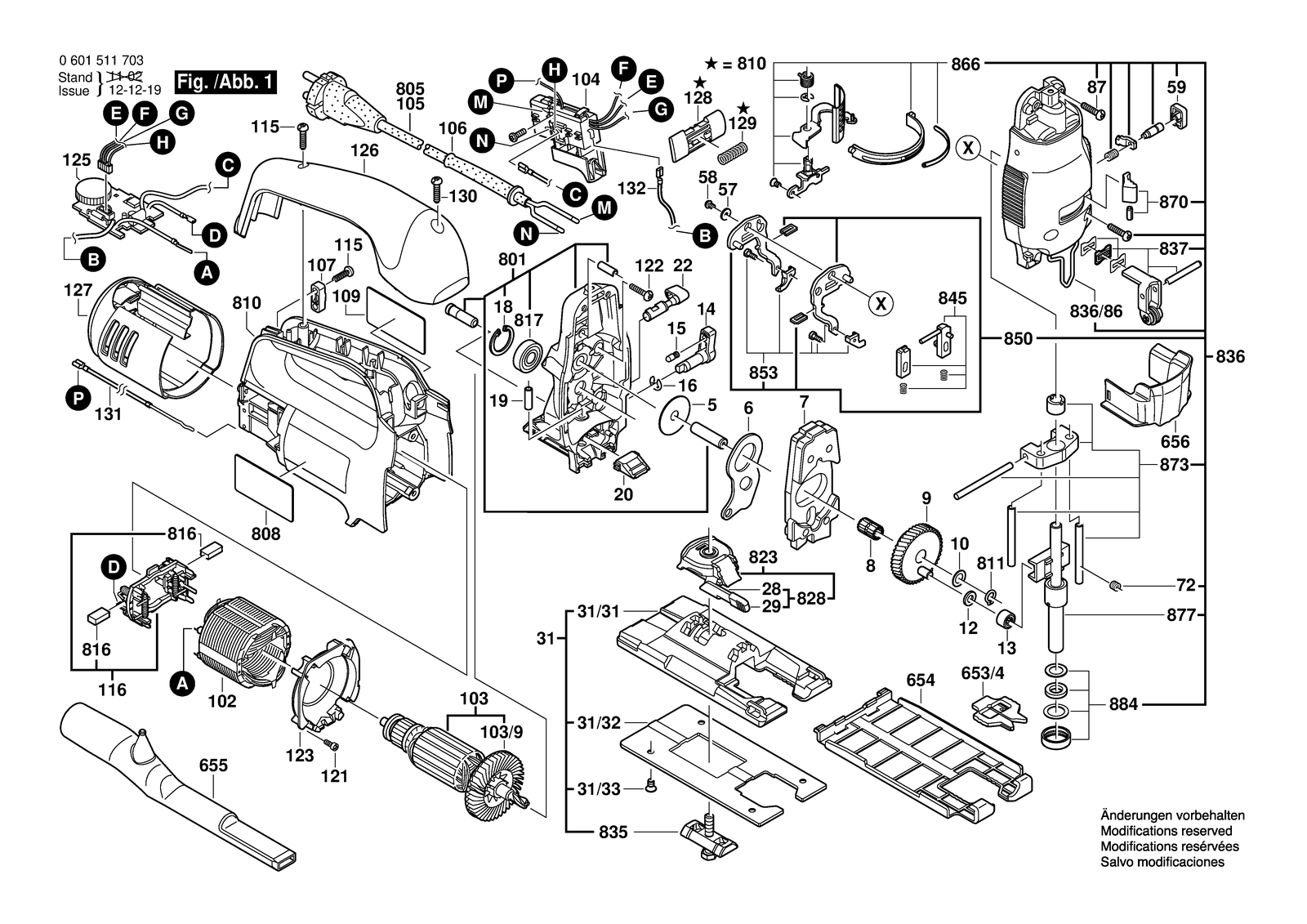

Bosch ST 135 BE jig saw: exploded parts diagram, 1 sheet, 314 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch ST 135 BE: 314 positions on 1 sheet
Bosch ST 135 BE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2600101047 | Shim 0,3 MM |
| 10 | 2600101047 | Shim 0,3 MM |
| 10 | 2600101047 | Shim 0,3 MM |
| 10 | 2600101047 | Shim 0,3 MM |
| 102 | 2604220584 | Field 230-240V |
| 102 | 2604220589 | Field 100V |
| 102 | 2604220591 | Field 100-120V |
| 102 | 2604220584 | Field 230-240V |
| 102 | 2604220584 | Field 230-240V |
| 102 | 2604220584 | Field 230-240V |
| 103 | 2604011326 | Armature 100-120V |
| 103 | 2604011327 | Armature 230-240V |
| 103 | 2604011327 | Armature 230-240V |
| 103 | 2604011327 | Armature 230-240V |
| 103 | 2604011327 | Armature 230-240V |
| 103/9 | 2606610093 | Fan |
| 103/9 | 2606610093 | Fan |
| 103/9 | 2606610093 | Fan |
| 103/9 | 2606610093 | Fan |
| 104 | 2607200588 | Switch |
| 104 | 2607200589 | Switch |
| 104 | 2607200634 | Switch |
| 104 | 2607200635 | Switch |
| 104 | 2607200588 | Switch |
| 105 | 2604460268 | Power supply cord AUS 4,15M 2 X 0,75MM Pvc |
| 105 | 2604460269 | Power supply cord J 4,15M 2X1,25MM Pvc |
| 105 | 2604460271 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05RN-F |
| 105 | 2604460272 | Power supply cord I / BR 4,15M 2 X 1,0MM H05VV-F |
| 105 | 2604460273 | Power supply cord China 4,15M 2X1MM H05 Rn-F |
| 105 | 2604460274 | Power supply cord I / BR 4,15M 2 X 1,0MM H05VV-F |
| 105 | 2604460299 | Power supply cord CH 230V 4,15M 2 X 1,00MM H05 Rn-F |
| 105 | 2604460300 | Power supply cord AR 4,15M 2 X 1MM H05 Rn-F |
| 105 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 106 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 106 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 106 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 106 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 106 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 107 | 1611035005 | Cable Clip |
| 107 | 2601035001 | Cable Clip |
| 107 | 2601035001 | Cable Clip |
| 107 | 2601035001 | Cable Clip |
| 107 | 2601035001 | Cable Clip |
| 109 | 2601116420 | Manufacturer's nameplate |
| 109 | 2601116963 | Manufacturer's nameplate |
| 109 | 2601116965 | Manufacturer's nameplate |
| 109 | 2601116897 | Manufacturer's nameplate |
| 115 | 2603490022 | Screw 4X16 |
| 115 | 2603490022 | Screw 4X16 |
| 115 | 2603490022 | Screw 4X16 |
| 115 | 2603490022 | Screw 4X16 |
| 116 | 2605807108 | Brush Plate |
| 116 | 2605807109 | Brush Plate |
| 116 | 2605807110 | Brush Plate |
| 116 | 2605807108 | Brush Plate |
| 116 | 2605807108 | Brush Plate |
| 116 | 2605807108 | Brush Plate |
| 12 | 2600200038 | Intermediate Ring |
| 12 | 2600200038 | Intermediate Ring |
| 12 | 2600200038 | Intermediate Ring |
| 12 | 2600200038 | Intermediate Ring |
| 121 | 2603435086 | Tapping Screw |
| 121 | 2603435086 | Tapping Screw |
| 121 | 2603435086 | Tapping Screw |
| 121 | 2603435086 | Tapping Screw |
| 122 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 122 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 122 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 122 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 123 | 2601328073 | Cover Disc |
| 123 | 2601328073 | Cover Disc |
| 123 | 2601328073 | Cover Disc |
| 123 | 2601328073 | Cover Disc |
| 125 | 2607230075 | Speed governor 220-240V |
| 125 | 2607230076 | Speed governor 100-120V |
| 125 | 2607230112 | Speed governor 220-240V |
| 125 | 2607230113 | Speed governor 220-240V |
| 125 | 2607230075 | Speed governor 220-240V |
| 126 | 2602025133 | Strap-Shaped Handle Dark Blue |
| 126 | 2602025151 | Strap-Shaped Handle Marine Blue |
| 126 | 2602025152 | Strap-Shaped Handle |
| 126 | 2602025146 | Strap-Shaped Handle Black |
| 127 | 2600508049 | Housing Cover |
| 127 | 2600508062 | Housing Cover |
| 127 | 2600508063 | Housing Cover |
| 127 | 2600508059 | Housing Cover Black |
| 128 | 2602026121 | Locking Lever Light Grey |
| 128 | 2602026145 | Locking Lever |
| 128 | 2602026146 | Locking Lever |
| 128 | 2602026121 | Locking Lever Light Grey |
| 129 | 2604610096 | Compression Spring |
| 129 | 2604610096 | Compression Spring |
| 129 | 2604610096 | Compression Spring |
| 129 | 2604610096 | Compression Spring |
| 13 | 2600917900 | Needle bearing |
| 13 | 2600917900 | Needle bearing |
| 13 | 2600917900 | Needle bearing |
| 13 | 2600917900 | Needle bearing |
| 130 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 130 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 130 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 130 | 2603410049 | Thread-forming tap. Screw M4X12 MM |
| 131 | 2604448270 | Earth Conductor |
| 131 | 2604448270 | Earth Conductor |
| 131 | 2604448270 | Earth Conductor |
| 131 | 2604448270 | Earth Conductor |
| 132 | 2604448271 | Connecting Cable |
| 132 | 2604448271 | Connecting Cable |
| 132 | 2604448271 | Connecting Cable |
| 132 | 2604448271 | Connecting Cable |
| 14 | 2602026116 | Rotary Knob Black |
| 14 | 2602026147 | Rotary Knob Light Grey |
| 14 | 2602026116 | Rotary Knob Black |
| 14 | 2602026140 | Rotary Knob Red |
| 15 | 2600590006 | Ratchet Cap |
| 15 | 2600590006 | Ratchet Cap |
| 15 | 2600590006 | Ratchet Cap |
| 15 | 2600590006 | Ratchet Cap |
| 16 | 2916080908 | Locking washer 5 DIN 6799 |
| 16 | 2916080908 | Locking washer 5 DIN 6799 |
| 16 | 2916080908 | Locking washer 5 DIN 6799 |
| 16 | 2916080908 | Locking washer 5 DIN 6799 |
| 18 | 2600118013 | Spring retaining ring |
| 18 | 2600118013 | Spring retaining ring |
| 18 | 2600118013 | Spring retaining ring |
| 18 | 2600118013 | Spring retaining ring |
| 19 | 2603105104 | Bearing bolt |
| 19 | 2603105104 | Bearing bolt |
| 19 | 2603105104 | Bearing bolt |
| 19 | 2603105104 | Bearing bolt |
| 20 | 2602305023 | Air Eliminator |
| 20 | 2602305023 | Air Eliminator |
| 20 | 2602305023 | Air Eliminator |
| 20 | 2602305023 | Air Eliminator |
| 22 | 2602026109 | Rotary Knob Black |
| 22 | 2602026148 | Rotary Knob Light Grey |
| 22 | 2602026109 | Rotary Knob Black |
| 22 | 2602026141 | Rotary Knob Red |
| 28 | 2602098018 | Tensioning Lever |
| 28 | 2602098018 | Tensioning Lever |
| 28 | 2602098018 | Tensioning Lever |
| 28 | 2602098018 | Tensioning Lever |
| 29 | 2600591022 | Cap-Handle Red |
| 29 | 2600591025 | Cap-Handle Light Grey |
| 29 | 2600591026 | Cap-Handle Black |
| 29 | 2600591022 | Cap-Handle Red |
| 31 | 2608000925 | Base Plate |
| 31 | 2608000925 | Base Plate |
| 31 | 2608000925 | Base Plate |
| 31 | 2608000925 | Base Plate |
| 31/31 | 2608000305 | Base Plate |
| 31/31 | 2608000305 | Base Plate |
| 31/31 | 2608000305 | Base Plate |
| 31/31 | 2608000305 | Base Plate |
| 31/32 | 2601098099 | Work Board |
| 31/32 | 2601098099 | Work Board |
| 31/32 | 2601098099 | Work Board |
| 31/32 | 2601098099 | Work Board |
| 31/33 | 2603421014 | Thread-forming tap. Screw |
| 31/33 | 2603421014 | Thread-forming tap. Screw |
| 31/33 | 2603421014 | Thread-forming tap. Screw |
| 31/33 | 2603421014 | Thread-forming tap. Screw |
| 5 | 2600101048 | Shim 0,5 MM |
| 5 | 2600101048 | Shim 0,5 MM |
| 5 | 2600101048 | Shim 0,5 MM |
| 5 | 2600101048 | Shim 0,5 MM |
| 57 | 2600100123 | Shim |
| 57 | 2600100123 | Shim |
| 57 | 2600100123 | Shim |
| 57 | 2600100123 | Shim |
| 58 | 2603413037 | Socket head cap screw |
| 58 | 2603413037 | Socket head cap screw |
| 58 | 2603413037 | Socket head cap screw |
| 58 | 2603413037 | Socket head cap screw |
| 59 | 2603231041 | Push-Button Light Grey |
| 59 | 2603231043 | Push-Button |
| 59 | 2603231044 | Push-Button Black |
| 59 | 2603231041 | Push-Button Light Grey |
| 6 | 2601923010 | Fork Lever |
| 6 | 2601923010 | Fork Lever |
| 6 | 2601923010 | Fork Lever |
| 6 | 2601923010 | Fork Lever |
| 653/4 | 2601016087 | Splintering Protector |
| 653/4 | 2601016087 | Splintering Protector |
| 653/4 | 2601016087 | Splintering Protector |
| 653/4 | 2601016087 | Splintering Protector |
| 654 | 2608000309 | Pad |
| 654 | 2608000309 | Pad |
| 654 | 2608000309 | Pad |
| 654 | 2608000309 | Pad |
| 655 | 2605730040 | Suction Nozzle |
| 655 | 2605730040 | Suction Nozzle |
| 655 | 2605730040 | Suction Nozzle |
| 655 | 2605730040 | Suction Nozzle |
| 656 | 2605510205 | Covering hood |
| 656 | 2605510205 | Covering hood |
| 656 | 2605510205 | Covering hood |
| 656 | 2605510205 | Covering hood |
| 7 | 2601098087 | Counterweight |
| 7 | 2601098087 | Counterweight |
| 7 | 2601098087 | Counterweight |
| 7 | 2601098087 | Counterweight |
| 72 | 2604610042 | Compression Spring |
| 72 | 2604610042 | Compression Spring |
| 72 | 2604610042 | Compression Spring |
| 72 | 2604610042 | Compression Spring |
| 8 | 2600913040 | Needle-Roller Assembly |
| 8 | 2600913040 | Needle-Roller Assembly |
| 8 | 2600913040 | Needle-Roller Assembly |
| 8 | 2600913040 | Needle-Roller Assembly |
| 801 | 2605806889 | Gear Housing Black |
| 801 | 2605806889 | Gear Housing Black |
| 801 | 2605806889 | Gear Housing Black |
| 801 | 2605806889 | Gear Housing Black |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2601115543 | Nameplate |
| 808 | 2601116422 | Nameplate |
| 808 | 2601116423 | Nameplate |
| 808 | 2601116424 | Nameplate |
| 808 | 2601116425 | Nameplate |
| 808 | 2601116426 | Nameplate |
| 808 | 2601116427 | Nameplate |
| 808 | 2601116429 | Nameplate |
| 808 | 2601116822 | Nameplate |
| 808 | 2601116823 | Nameplate |
| 808 | 2601116824 | Nameplate |
| 808 | 2601116825 | Nameplate |
| 808 | 2601116826 | Nameplate |
| 808 | 2601116964 | Nameplate |
| 808 | 2601116966 | Nameplate |
| 808 | 2601116904 | Nameplate |
| 810 | 2605108913 | Motor Housing |
| 810 | 2605108919 | Motor Housing Marine Blue |
| 810 | 2605108921 | Motor Housing |
| 810 | 2605108916 | Motor Housing |
| 811 | 2600916900 | Locking washer |
| 811 | 2600916900 | Locking washer |
| 811 | 2600916900 | Locking washer |
| 811 | 2600916900 | Locking washer |
| 816 | 2604320913 | Carbon-Brush Set |
| 816 | 2604321941 | Carbon-Brush Set |
| 816 | 2604321941 | Carbon-Brush Set |
| 816 | 2604321941 | Carbon-Brush Set |
| 816 | 2604321941 | Carbon-Brush Set |
| 817 | 2600905095 | Ball Bearing 9X24X7 |
| 817 | 2600905095 | Ball Bearing 9X24X7 |
| 817 | 2600905095 | Ball Bearing 9X24X7 |
| 817 | 2600905095 | Ball Bearing 9X24X7 |
| 823 | 2601990907 | Fan Cover |
| 823 | 2601990907 | Fan Cover |
| 823 | 2601990907 | Fan Cover |
| 823 | 2601990907 | Fan Cover |
| 828 | 2601990042 | Tensioning Lever |
| 828 | 2601990042 | Tensioning Lever |
| 828 | 2601990042 | Tensioning Lever |
| 828 | 2601990042 | Tensioning Lever |
| 835 | 2602317900 | Clamping Piece |
| 835 | 2602317900 | Clamping Piece |
| 835 | 2602317900 | Clamping Piece |
| 835 | 2602317900 | Clamping Piece |
| 836 | 2605808928 | Gear Cover |
| 836 | 2605808931 | Gear Cover |
| 836 | 2605808932 | Gear Cover |
| 836 | 2605808930 | Gear Cover |
| 836/86 | 2603101046 | Protecting Cover Black |
| 836/86 | 2603101046 | Protecting Cover Black |
| 836/86 | 2603101046 | Protecting Cover Black |
| 836/86 | 2603101046 | Protecting Cover Black |
| 837 | 2601321907 | Roller Lever |
| 837 | 2601321907 | Roller Lever |
| 837 | 2601321907 | Roller Lever |
| 837 | 2601321907 | Roller Lever |
| 845 | 2601098905 | Slider |
| 845 | 2601098905 | Slider |
| 845 | 2601098905 | Slider |
| 845 | 2601098905 | Slider |
| 850 | 2601990908 | Guide Lever |
| 850 | 2601990908 | Guide Lever |
| 850 | 2601990908 | Guide Lever |
| 850 | 2601990908 | Guide Lever |
| 853 | 2602180009 | Guide Unit |
| 853 | 2602180009 | Guide Unit |
| 853 | 2602180009 | Guide Unit |
| 853 | 2602180009 | Guide Unit |
| 866 | 2601990911 | Control Unit |
| 866 | 2601990911 | Control Unit |
| 866 | 2601990911 | Control Unit |
| 866 | 2601990911 | Control Unit |
| 87 | 2603410051 | Thread-forming tap. Screw |
| 87 | 2603410051 | Thread-forming tap. Screw |
| 87 | 2603410051 | Thread-forming tap. Screw |
| 87 | 2603410051 | Thread-forming tap. Screw |
| 870 | 2600591900 | Cap-Handle |
| 870 | 2600591902 | Cap-Handle Light Grey |
| 870 | 2600591900 | Cap-Handle |
| 870 | 2600591901 | Cap-Handle Red |
| 873 | 2601322901 | Carrier |
| 873 | 2601322901 | Carrier |
| 873 | 2601322901 | Carrier |
| 873 | 2601322901 | Carrier |
| 877 | 2600780911 | Lifting Rod |
| 877 | 2600780911 | Lifting Rod |
| 877 | 2600780911 | Lifting Rod |
| 877 | 2600780911 | Lifting Rod |
| 884 | 2600290903 | Seal Kit |
| 884 | 2600290903 | Seal Kit |
| 884 | 2600290903 | Seal Kit |
| 884 | 2600290903 | Seal Kit |
| 9 | 2606320101 | Eccentric Cog Wheel |
| 9 | 2606320101 | Eccentric Cog Wheel |
| 9 | 2606320101 | Eccentric Cog Wheel |
| 9 | 2606320101 | Eccentric Cog Wheel |
Selected parts0
