Bosch SSR/SL700NM

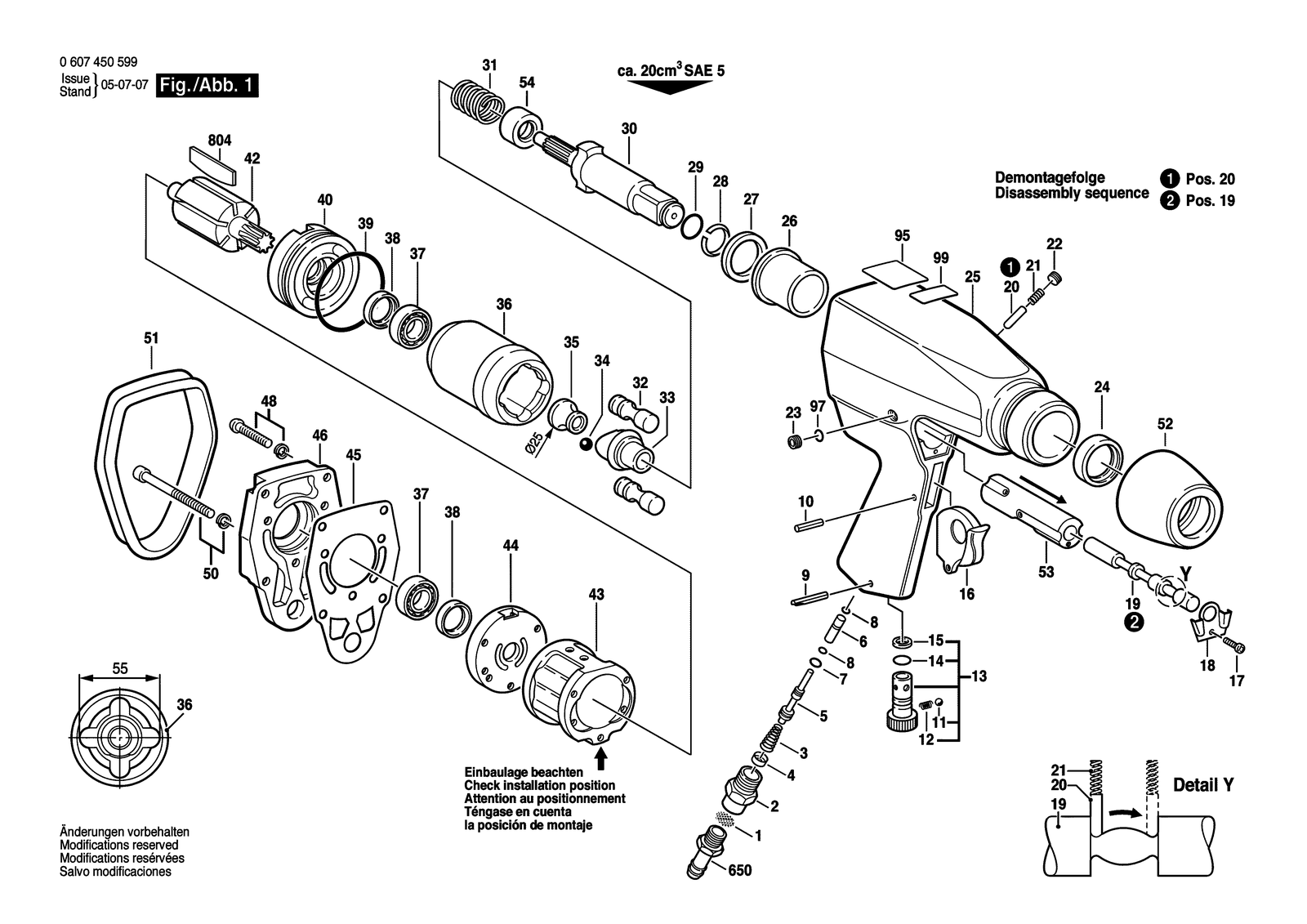

Bosch SSR/SL700NM pn impact wrench - serv.: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SSR/SL700NM: 56 positions on 1 sheet
Bosch SSR/SL700NM parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3609201040 | Strainer |
| 10 | 3609201052 | Slotted Spring Pin |
| 11 | 3609201053 | Ball |
| 12 | 3609201055 | Compression Spring |
| 13 | 3609201058 | Control Piston |
| 14 | 3609201429 | O-Ring |
| 15 | 3609201059 | Catch Disk |
| 16 | 3609201060 | Control Lever |
| 17 | 3609201061 | Raised ctsk Tapping Screw |
| 18 | 3609201062 | Air Eliminator |
| 19 | 3609201063 | Control Piston |
| 2 | 3609201041 | Fitting |
| 20 | 3609201064 | Detent Pin |
| 21 | 3609201056 | Compression Spring |
| 22 | 3609201065 | Screw Plug |
| 23 | 3609201295 | Screw Plug |
| 24 | 3609201067 | Radial Seal |
| 25 | 3609201296 | Motor Housing |
| 26 | 3609201297 | Bushing |
| 27 | 3609201071 | Pressure Disk |
| 28 | 3609201072 | Retaining snap ring |
| 29 | 3609201049 | O-Ring |
| 3 | 3609201042 | Compression Spring |
| 30 | 3609201073 | Striker Spindle |
| 31 | 3609201057 | Compression Spring |
| 32 | 3609201074 | Striker Pin |
| 33 | 3609201075 | Carrier |
| 34 | 3609201054 | Ball |
| 35 | 3609201216 | Ball guide |
| 36 | 3609201215 | Cage |
| 37 | 3609201078 | Groove ball bearing |
| 38 | 3609201068 | Radial Seal |
| 39 | 3609201050 | O-Ring |
| 4 | 3609201043 | Retaining snap ring |
| 40 | 3609201079 | Bearing Flange |
| 42 | 3609201081 | Rotor |
| 43 | 3609201082 | Stator |
| 44 | 3609201083 | Bearing Flange |
| 45 | 3609201084 | Sealing Plate |
| 46 | 3609201085 | Housing Cover |
| 48 | 3609201088 | Hex Socket Head Cap Screw |
| 5 | 3609201044 | Valve piston |
| 50 | 3609201089 | Knurled Thumbscrew |
| 51 | 3609201090 | Protective Ring |
| 52 | 3609201091 | Protective Cap |
| 53 | 3609201092 | Valve Bushing |
| 54 | 3609201093 | Guide Bushing |
| 6 | 3609201045 | Pressure Pin |
| 650 | 3609201095 | Hose fitting |
| 7 | 3609201046 | O-Ring |
| 8 | 3609201047 | O-Ring |
| 804 | 3607030300 | Assembly Of Service Parts 6 Piece |
| 9 | 3609201051 | Slotted Spring Pin |
| 95 | 3609201094 | Nameplate |
| 97 | 3609201298 | O-Ring 3X1 MM |
| 99 | 3601119236 | Reference Plate |
