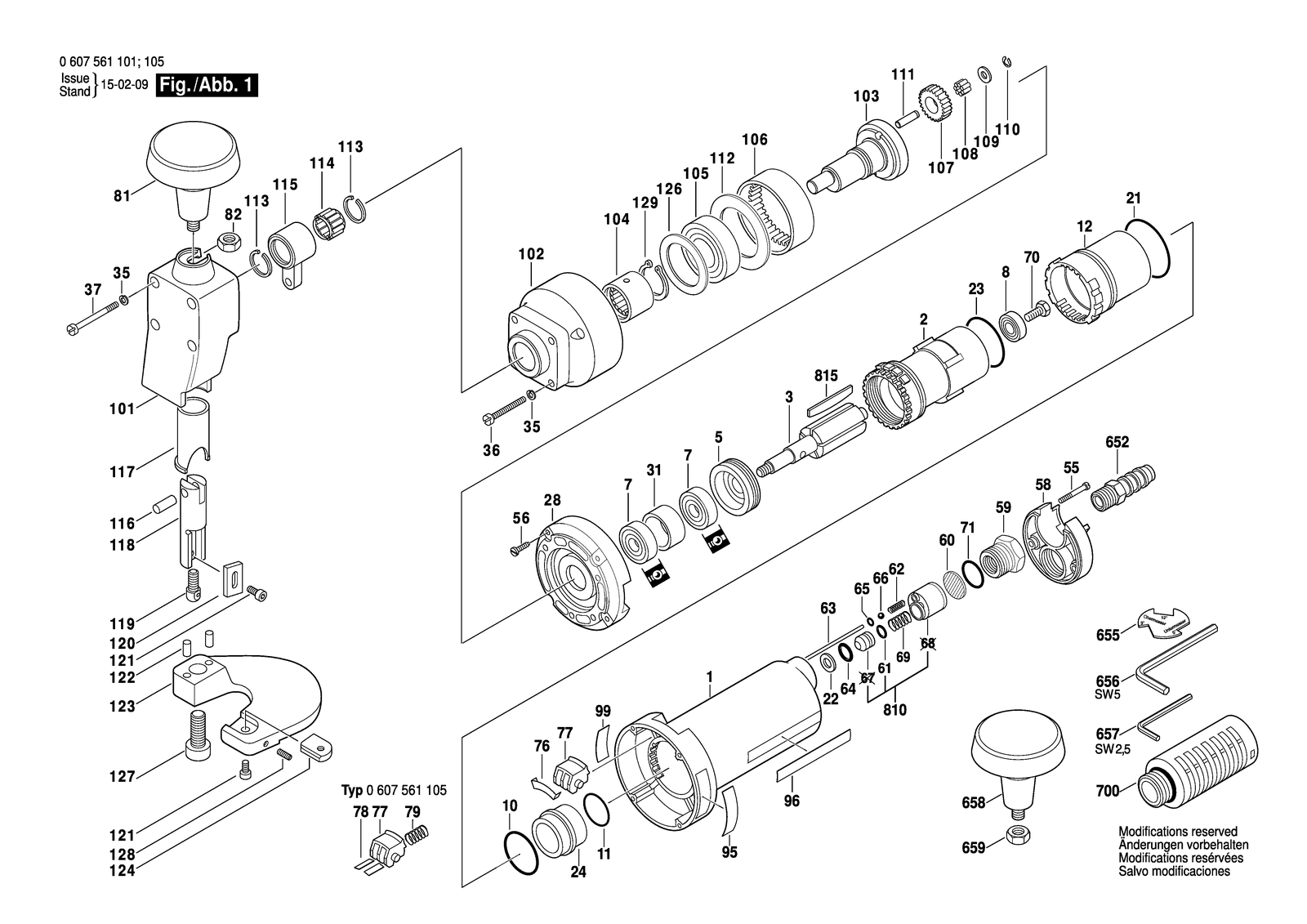

Bosch SSE400W pneumatic shears: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SSE400W: 78 positions on 1 sheet
Bosch SSE400W parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108059 | Motor Housing Blue |
| 10 | 1900210124 | O-Ring 25X2 MM |
| 101 | 2605500054 | Gear Cover |
| 102 | 2605806312 | Gear Housing |
| 103 | 2606122003 | Eccentric Shaft |
| 104 | 2600914011 | Needle bearing |
| 105 | 1900900274 | Groove ball bearing 20X42X12 |
| 106 | 2606334040 | Ring Gear Z=66 |
| 107 | 3606316057 | Cylindrical Gear Z=30 |
| 108 | 1903201520 | Needle Roller |
| 109 | 1600100611 | Shim Thick 1,2 MM |
| 11 | 1900210118 | O-Ring 20X2 MM |
| 110 | 2916080908 | Locking washer 5 DIN 6799 |
| 111 | 2603105021 | Bearing bolt |
| 112 | 2600550017 | Disc Spring |
| 113 | 2600224009 | Retaining ring |
| 114 | 2600913035 | Needle-Roller Cage |
| 115 | 2602001001 | Connecting Rod |
| 116 | 2603100003 | Bearing bolt |
| 117 | 2600400001 | Bearing Sleeve |
| 118 | 2603070008 | Lifting Rod |
| 119 | 2603480001 | Adjusting Screw |
| 12 | 3600421001 | Reduction Sleeve |
| 120 | 2608635065 | Upper Blade |
| 121 | 3607031645 | Set of screws |
| 122 | 3603100040 | Straight Pin |
| 123 | 2608042002 | Blade Holder |
| 124 | 2608635042 | Lower Blade |
| 126 | 3600102019 | Shim ring 30X42X0,3 |
| 127 | 2910141290 | Hex Socket Head Cap Screw M 10X22 DIN 912-8.8 |
| 128 | 2603400011 | Set screw |
| 129 | 2916650011 | Spring retaining ring DIN 471 20X1,2 |
| 2 | 3604090046 | Stator 400W |
| 21 | 3600210022 | O-Ring 39,0X2,0 MM |
| 22 | 3600100022 | Stop Disc |
| 23 | 2600210019 | O-Ring 33,0X2,0 MM |
| 24 | 3600327001 | Guide Sleeve |
| 28 | 3605700077 | Intermediate Flange |
| 3 | 3604220044 | Rotor |
| 31 | 3600200009 | Intermediate Ring |
| 35 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 36 | 2910021134 | Socket head cap screw DIN 84-BM4X30-8.8 |
| 37 | 2910021138 | Socket head cap screw DIN 84-BM4X40-8.8 |
| 5 | 3605700076 | Bearing Flange |
| 55 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 56 | 2910211022 | Tapping Screw DIN 7971-BZ3,9X25 |
| 58 | 3605500032 | Connection cover |
| 59 | 3603462011 | Fitting |
| 60 | 3600002004 | Filter screen |
| 61 | 3600210023 | O-Ring 6,0X2,0 MM |
| 62 | 2604611025 | Compression Spring |
| 63 | 3604710054 | Straight Pin |
| 64 | 3600210024 | O-Ring 5,94X3,53 MM |
| 65 | 3600210025 | O-Ring 2,7X1,5 MM |
| 652 | 3603386068 | Hose fitting |
| 655 | 2607970001 | Feeler Gauge |
| 656 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 657 | 1907950003 | Offset Screwdriver DIN 911 SW2,5 |
| 658 | 2602026001 | Handle Black |
| 659 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 66 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 69 | 3604610024 | Compression Spring |
| 7 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 70 | 3603450006 | Hex Screw |
| 700 | 3607000073 | Silencer |
| 71 | 1900210112 | O-Ring 15X2 MM |
| 76 | 3604682002 | Leaf Spring |
| 77 | 3602033001 | Toggle Switch |
| 78 | 3601100021 | Holding Plate |
| 79 | 3604610008 | Compression Spring |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 81 | 2602026001 | Handle Black |
| 810 | 3607030494 | Piston Assembly Group |
| 815 | 3607030030 | Rotor Lamella 5 Piece |
| 82 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 95 | 160111A3HF | Nameplate |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 99 | 3601119236 | Reference Plate |
