Bosch SRW-AK30/400W

Bosch SRW-AK30/400W pn-angle screwdriver ind.: exploded parts diagram, 1 sheet, 122 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SRW-AK30/400W: 122 positions on 1 sheet

Bosch SRW-AK30/400W parts list (1 sheet)

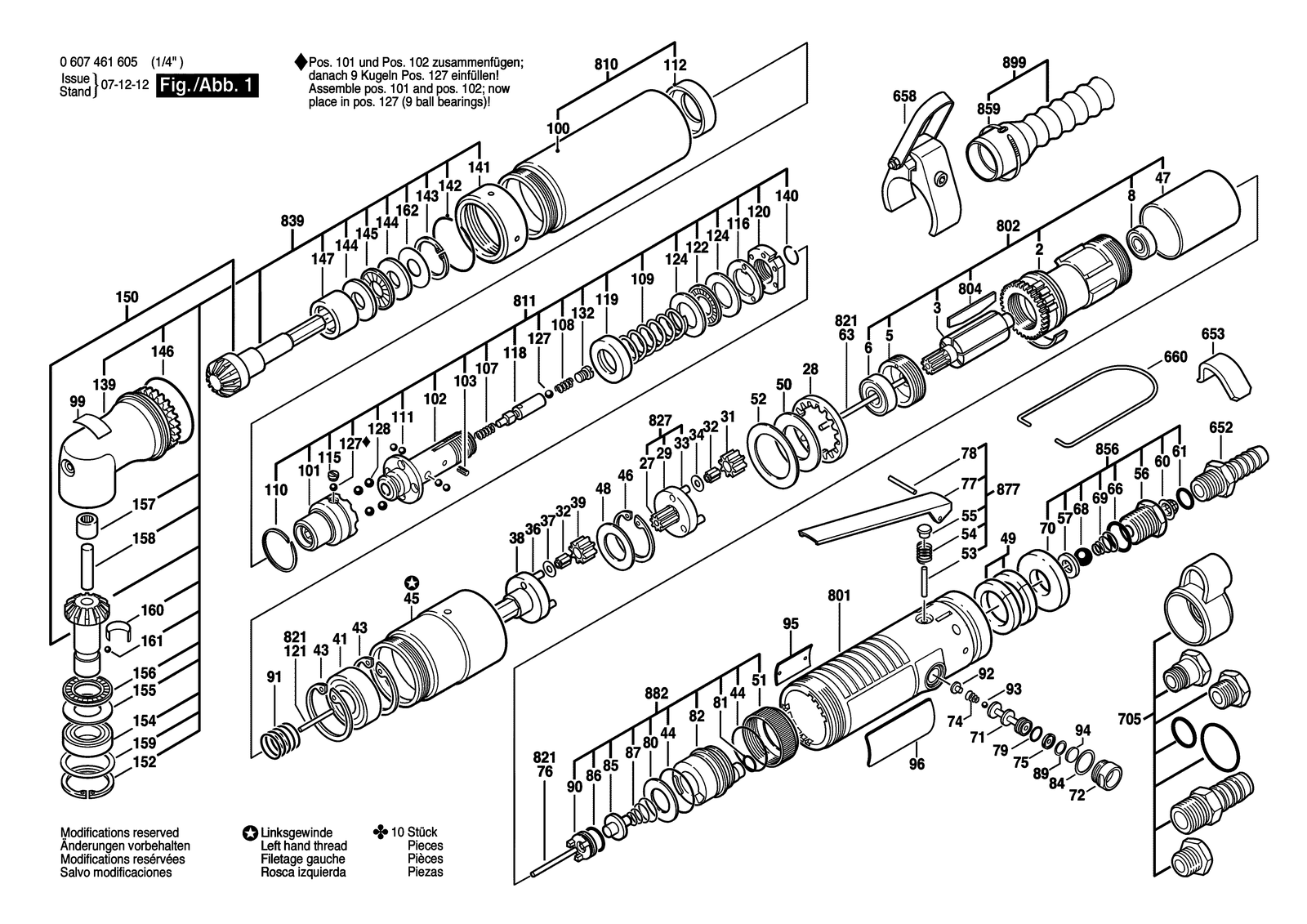

Bosch SRW-AK30/400W parts diagram, sheet 1
No.Part numberPart name
1003605125046Housing
1013606445037Clutch Element
1023606122008Drive Shaft
1032917800033Coiled Spring Pin DIN 7343-2X5
1073604610006Compression Spring
1083604610002Compression Spring
1093604619004Compression Spring
1103604601001Retaining ring
1111903230007Ball DIN 5401-4 Mm-Iii-St
1123600200023Intermediate Ring
1153609992353Sealing plate
1163600134000Adjusting Disc
1183603150203Locking Bolt
1193600114001Coupling Plate
1203603301004Round Nut
1213603201026Straight Pin
1223600921000Roller Thrust Bearing
1243600101002Support Disc
1271903230009Ball DIN 5401-5 G28
1281903230011Ball DIN 5401-6 G28
1323603400001Set screw
1393605106035Spindle Housing
1402916600008Retaining ring 14 DIN 9045
1413603340016Union Nut
1421600116004Retaining ring
1432916660010Spring retaining ring DIN 472-26X1,2 MM
1443600100020Support Disc
1453600929008Roller Thrust Bearing
1461900210131O-Ring 30X2,5 MM
1471610910088Needle bearing
1503608871849Bevel Gear Set
1522916660045Spring retaining ring DIN 472-21X1MM
1543600900018Groove ball bearing
1553600100017Friction Washer
1563600929005Roller Thrust Bearing
1572600914004Needle bearing
1583603100008Needle Roller
1591600101648Shim Thick 0,1 MM
1591600101650Shim Thick 0,05 MM
1602601250001Leaf Spring
1611903230003Ball DIN 5401-2,5MM-III-ST
23604090044Stator 320-400W
273606300071Pinion Z=12
283606334069Retaining snap ring
293606337115Carrier
33604220063Rotor
313606316110Cylindrical Gear
323600913006Needle-Roller Cage
333603201047Needle Roller
342600100586Shim 0,20 MM
363603201047Needle Roller
372600100586Shim 0,20 MM
383606337118Planetary-Gear Carrier
393606316116Cylindrical Gear
413600905045Groove ball bearing
433600118008Spring retaining ring
442600210018O-Ring 26,0X1,5 MM
453605125047Gear Housing
462916660037Spring retaining ring DIN 472-34X1,5MM
473600700032Spigot
483600101040Stop Disc
493601010006Silencer
53605700076Bearing Flange
503600101036Retaining Washer
513603313001Union Nut
523600100038Supporting Disc
533603201050Needle Roller
543604611006Compression Spring
553603132000Valve Cone
563603458008Fitting
573600206006Sealing disk
63600905039Groove ball bearing 9X24X7 MM
603600002000Strainer
611900210306O-Ring 10X2 MM
633604710055Straight Pin
6522603386002Hose fitting
6533601902010Angle Piece
6583604720013Suspension Loop
663600210036O-Ring 16X1,25 MM
6603604720004Suspension Loop
681903230528Ball DIN 5401-9,5MM-III-ST
693604616008Compression Spring
703600105002Silencer
7053607030024Air Hose Set
713608750025Control Piston
723603344041Threaded Ring
743604611006Compression Spring
753600190017Valve Plate
763604710058Straight Pin
773601902001Control Lever
782917700040Grooved Pin DIN 1475-2X18-ST
793600210038O-Ring 9,0X1,2 MM
81900905028Groove ball bearing 7X17X5
803600054004Sealing Plate
8013607031571Motor Housing Blue
8023607030075Motor
8043607030030Rotor Lamella 5 Piece
811900210103O-Ring 8,0X1,5 MM
8103607030145Clutch Housing
8113607030276Drive Clutch
823608750027Intermediate Piece
8213607030083Control Pin
8273606337111Planetary-Gear Carrier
8393607020046Angle Screwdriver Head
843600100062Shim
853603203013Valve Cone
8563607030033Assembly Of Service Parts
8593604710062Holding Belt Black
861610210233O-Ring 12,0X2,0 MM
873604643014Compression Spring
8773607030032Control Lever
8823607030082Intermediate Piece
892600101513Plain Washer
8993607000027Air Hose
903600221000Backup ring
913604617000Compression Spring
923603123010Stop bolt
931903230002Ball 2 MM III DIN 5401 St
943600009002Rubber Plate
95160111A3HFNameplate
963601110039Manufacturer's nameplate
993601119236Reference Plate
