Bosch SRP-SPAK19NM

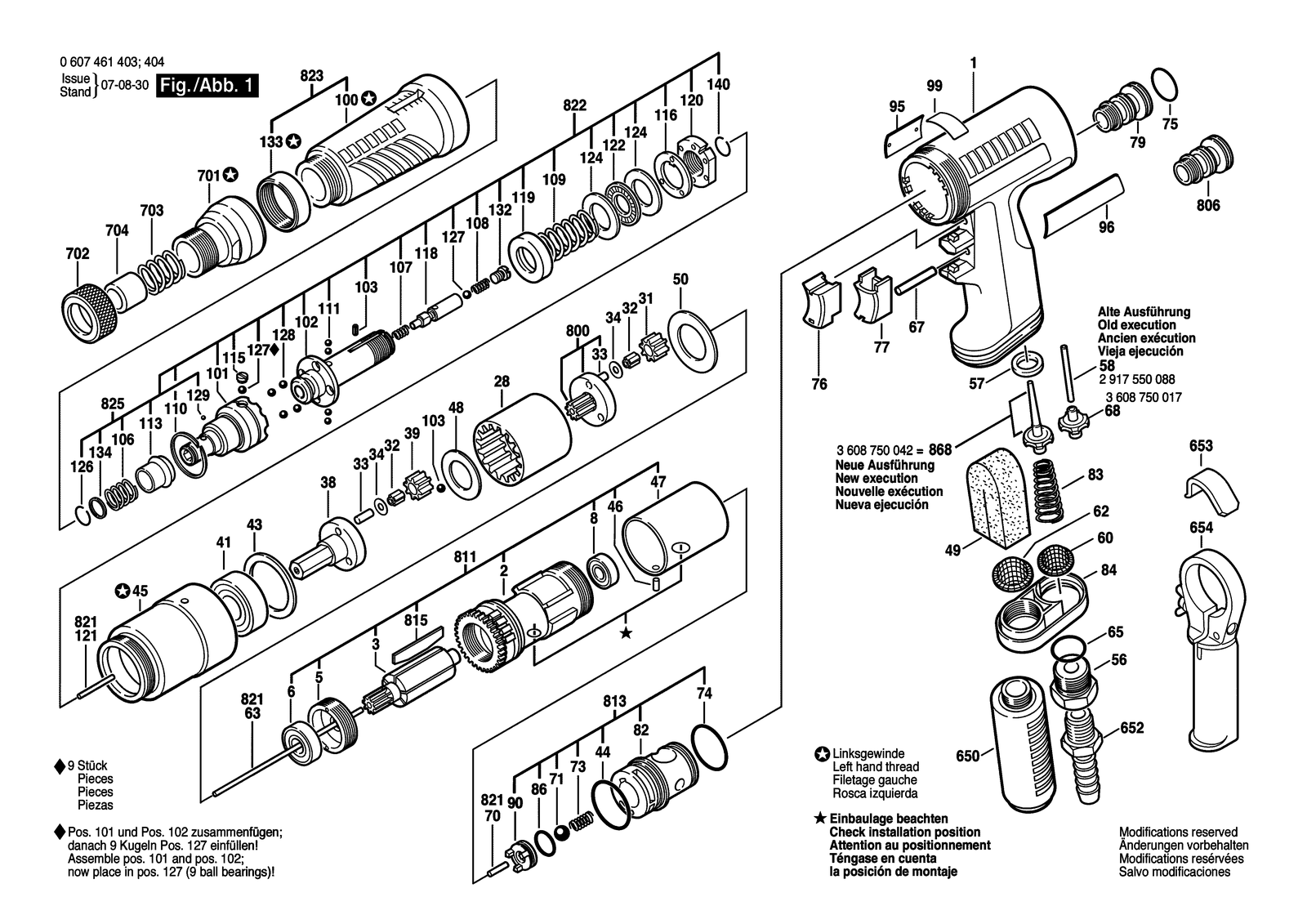

Bosch SRP-SPAK19NM pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 180 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SRP-SPAK19NM: 180 positions on 1 sheet
Bosch SRP-SPAK19NM parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108066 | Motor Housing Blue |
| 1 | 3605108066 | Motor Housing Blue |
| 100 | 3605125035 | Housing |
| 100 | 3605125035 | Housing |
| 101 | 3606445032 | Clutch Element |
| 101 | 3606445032 | Clutch Element |
| 102 | 3606122008 | Drive Shaft |
| 102 | 3606122008 | Drive Shaft |
| 103 | 2917800033 | Coiled Spring Pin DIN 7343-2X5 |
| 103 | 2917800033 | Coiled Spring Pin DIN 7343-2X5 |
| 106 | 3604615009 | Compression Spring |
| 106 | 3604615009 | Compression Spring |
| 107 | 3604610003 | Compression Spring |
| 107 | 3604610003 | Compression Spring |
| 108 | 3604610002 | Compression Spring |
| 108 | 3604610002 | Compression Spring |
| 109 | 3604619004 | Compression Spring |
| 109 | 3604619004 | Compression Spring |
| 110 | 3604601001 | Retaining ring |
| 110 | 3604601001 | Retaining ring |
| 111 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 111 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 113 | 3600422005 | Clamping Sleeve |
| 113 | 3600422005 | Clamping Sleeve |
| 115 | 3609992353 | Sealing plate |
| 115 | 3609992353 | Sealing plate |
| 116 | 3600134000 | Adjusting Disc |
| 116 | 3600134000 | Adjusting Disc |
| 118 | 3603150203 | Locking Bolt |
| 118 | 3603150203 | Locking Bolt |
| 119 | 3600114001 | Coupling Plate |
| 119 | 3600114001 | Coupling Plate |
| 120 | 3603301004 | Round Nut |
| 120 | 3603301004 | Round Nut |
| 121 | 3603201002 | Straight Pin 35,3 MM |
| 121 | 3603201002 | Straight Pin 35,3 MM |
| 122 | 3600921000 | Roller Thrust Bearing |
| 122 | 3600921000 | Roller Thrust Bearing |
| 124 | 3600101002 | Support Disc |
| 124 | 3600101002 | Support Disc |
| 126 | 3600224006 | Retaining ring |
| 126 | 3600224006 | Retaining ring |
| 127 | 1903230009 | Ball DIN 5401-5 G28 |
| 127 | 1903230009 | Ball DIN 5401-5 G28 |
| 128 | 1903230011 | Ball DIN 5401-6 G28 |
| 128 | 1903230011 | Ball DIN 5401-6 G28 |
| 129 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 129 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 132 | 3603463000 | Screw Plug |
| 132 | 3603463000 | Screw Plug |
| 133 | 3603340019 | Knurled Nut |
| 133 | 3603340019 | Knurled Nut |
| 134 | 3600101039 | Stop Disc Ø11,15XØ12,85 MM |
| 134 | 3600101039 | Stop Disc Ø11,15XØ12,85 MM |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 2 | 3604090046 | Stator 400W |
| 2 | 3604090046 | Stator 400W |
| 28 | 3606334054 | Ring Gear Z=42 |
| 28 | 3606334054 | Ring Gear Z=42 |
| 3 | 3604220063 | Rotor |
| 3 | 3604220063 | Rotor |
| 31 | 3606316110 | Cylindrical Gear |
| 31 | 3606316110 | Cylindrical Gear |
| 32 | 3600913006 | Needle-Roller Cage |
| 32 | 3600913006 | Needle-Roller Cage |
| 33 | 3603201047 | Needle Roller |
| 33 | 3603201047 | Needle Roller |
| 34 | 2600100586 | Shim 0,20 MM |
| 34 | 2600100586 | Shim 0,20 MM |
| 38 | 3606337118 | Planetary-Gear Carrier |
| 38 | 3606337117 | Planetary-Gear Carrier |
| 39 | 3606316116 | Cylindrical Gear |
| 39 | 3606316110 | Cylindrical Gear |
| 41 | 3600905045 | Groove ball bearing |
| 41 | 3600905045 | Groove ball bearing |
| 43 | 3600102021 | Stop Disc |
| 43 | 3600102021 | Stop Disc |
| 44 | 2600210018 | O-Ring 26,0X1,5 MM |
| 44 | 2600210018 | O-Ring 26,0X1,5 MM |
| 45 | 3605125038 | Gear Housing |
| 45 | 3605125038 | Gear Housing |
| 46 | 2917760012 | Slotted Spring Pin DIN en ISO 8752 1,5X4 |
| 46 | 2917760012 | Slotted Spring Pin DIN en ISO 8752 1,5X4 |
| 47 | 3600700033 | Spigot |
| 47 | 3600700033 | Spigot |
| 48 | 3600101040 | Stop Disc |
| 48 | 3600101040 | Stop Disc |
| 49 | 3601010006 | Silencer |
| 49 | 3601010006 | Silencer |
| 5 | 3605700076 | Bearing Flange |
| 5 | 3605700076 | Bearing Flange |
| 50 | 3600101036 | Retaining Washer |
| 50 | 3600101036 | Retaining Washer |
| 56 | 3603462007 | Fitting |
| 56 | 3603462007 | Fitting |
| 57 | 3600206005 | Sealing disk |
| 57 | 3600206005 | Sealing disk |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 60 | 3600002006 | Strainer |
| 60 | 3600002006 | Strainer |
| 62 | 3600002005 | Strainer |
| 62 | 3600002005 | Strainer |
| 63 | 3604710055 | Straight Pin |
| 63 | 3604710055 | Straight Pin |
| 65 | 1900210112 | O-Ring 15X2 MM |
| 65 | 1900210112 | O-Ring 15X2 MM |
| 650 | 3603462000 | Silencer |
| 650 | 3603462000 | Silencer |
| 652 | 2603386002 | Hose fitting |
| 652 | 2603386002 | Hose fitting |
| 653 | 3601329007 | Angle Piece |
| 653 | 3601329007 | Angle Piece |
| 654 | 3602025009 | Auxiliary Handle |
| 654 | 3602025009 | Auxiliary Handle |
| 67 | 3603201048 | Straight Pin |
| 67 | 3603201048 | Straight Pin |
| 70 | 3603201050 | Needle Roller |
| 70 | 3603201050 | Needle Roller |
| 701 | 3600508014 | Screw Cap |
| 701 | 3600508014 | Screw Cap |
| 702 | 3603313002 | Union Nut |
| 702 | 3603313002 | Union Nut |
| 703 | 3604615000 | Compression Spring |
| 703 | 3604615000 | Compression Spring |
| 704 | 3600329000 | Guide Sleeve |
| 704 | 3600329000 | Guide Sleeve |
| 71 | 1903230015 | Ball DIN 5401-9 MM Iii-St |
| 71 | 1903230015 | Ball DIN 5401-9 MM Iii-St |
| 73 | 3604611017 | Compression Spring |
| 73 | 3604611017 | Compression Spring |
| 74 | 1610210205 | O-Ring 23,0X2,0 MM |
| 74 | 1610210205 | O-Ring 23,0X2,0 MM |
| 75 | 1900210315 | O-Ring 18X2 MM |
| 75 | 1900210315 | O-Ring 18X2 MM |
| 76 | 1600A00HZ4 | Push-Button |
| 76 | 1600A00HZ4 | Push-Button |
| 77 | 1600A00HZ5 | Push-Button |
| 77 | 1600A00HZ5 | Push-Button |
| 79 | 3600313008 | Pilot-Valve Bushing |
| 79 | 3600313008 | Pilot-Valve Bushing |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 800 | 3606337111 | Planetary-Gear Carrier |
| 800 | 3606337112 | Planetary-Gear Carrier |
| 806 | 3609202791 | Pilot-Valve Bushing |
| 806 | 3609202791 | Pilot-Valve Bushing |
| 811 | 3607030100 | Assembly Of Service Parts |
| 811 | 3607030100 | Assembly Of Service Parts |
| 813 | 3607030101 | Assembly Of Service Parts |
| 813 | 3607030101 | Assembly Of Service Parts |
| 815 | 3607030030 | Rotor Lamella 5 Piece |
| 815 | 3607030030 | Rotor Lamella 5 Piece |
| 82 | 3600390018 | Intermediate Piece |
| 82 | 3600390018 | Intermediate Piece |
| 821 | 3607030091 | Assembly Of Service Parts |
| 821 | 3607030091 | Assembly Of Service Parts |
| 822 | 3607030081 | Assembly Of Service Parts |
| 822 | 3607030081 | Assembly Of Service Parts |
| 823 | 3607030062 | Assembly Of Service Parts |
| 823 | 3607030062 | Assembly Of Service Parts |
| 825 | 3607030064 | Assembly Of Service Parts |
| 825 | 3607030064 | Assembly Of Service Parts |
| 83 | 3604643013 | Compression Spring Green |
| 83 | 3604643013 | Compression Spring Green |
| 84 | 3605500046 | Connection cover |
| 84 | 3605500046 | Connection cover |
| 86 | 1610210233 | O-Ring 12,0X2,0 MM |
| 86 | 1610210233 | O-Ring 12,0X2,0 MM |
| 868 | 3608750042 | Valve Cone |
| 868 | 3608750042 | Valve Cone |
| 90 | 3600221000 | Backup ring |
| 90 | 3600221000 | Backup ring |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601110038 | Manufacturer's nameplate |
| 96 | 3601110038 | Manufacturer's nameplate |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
