Bosch SRP/IP-0A35

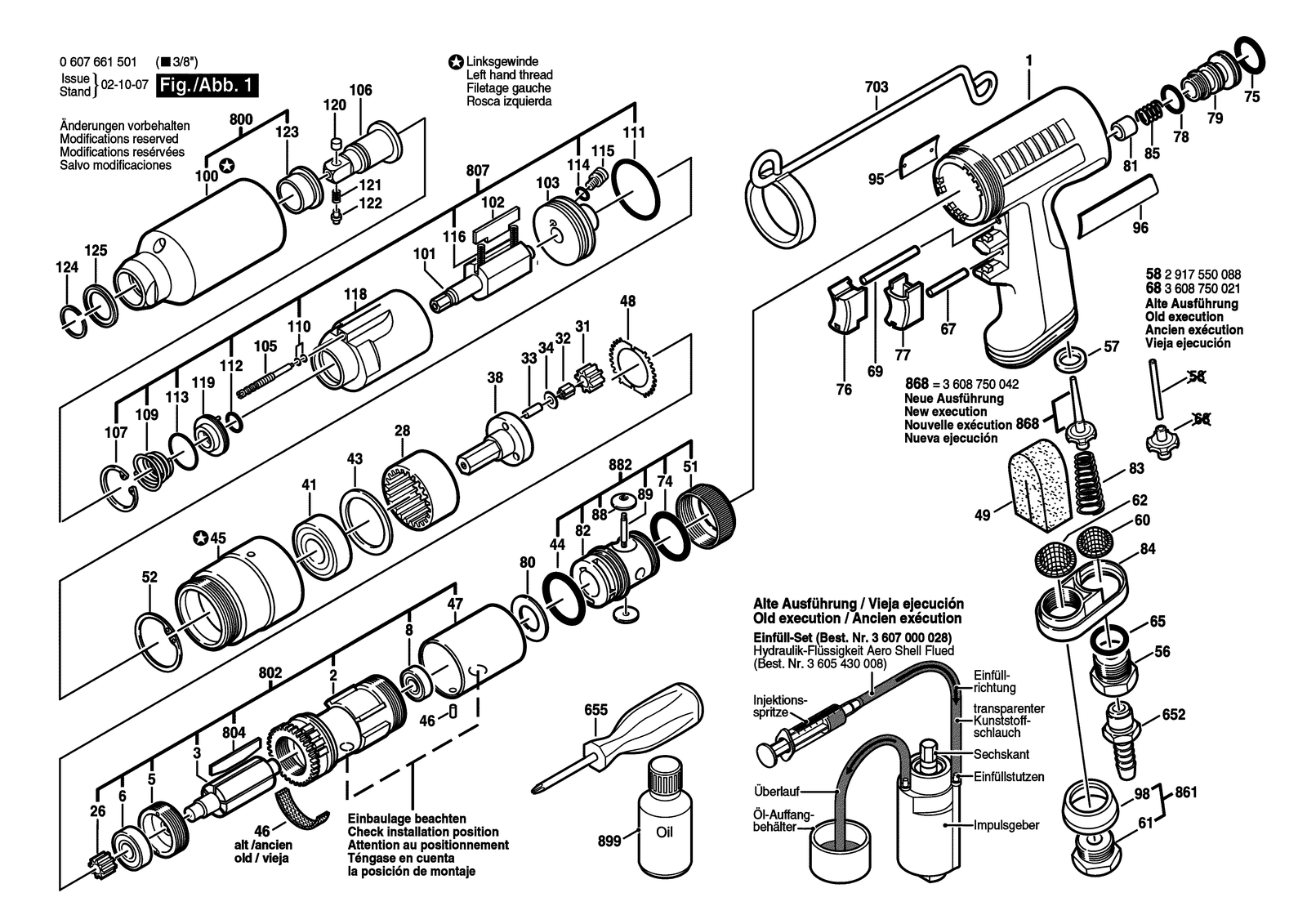

Bosch SRP/IP-0A35 pulse wrench: exploded parts diagram, 1 sheet, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SRP/IP-0A35: 82 positions on 1 sheet
Bosch SRP/IP-0A35 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108073 | Motor Housing |
| 100 | 3605125042 | Control Housing |
| 101 | 3604220068 | Rotor |
| 102 | 3601165018 | Rotor Lamella |
| 103 | 3606445036 | Carrier |
| 105 | 3603412002 | Throttle Screw |
| 106 | 3606455032 | Output Shaft |
| 107 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 109 | 3604643015 | Compression Spring |
| 110 | 3600210045 | O-Ring 2,5X1,0 MM |
| 111 | 3600210046 | O-Ring 34,0X2,5 MM |
| 112 | 1280210725 | O-Ring 10X2 MM |
| 113 | 3600210060 | O-Ring 21,0X1,5 MM |
| 114 | 3600210064 | O-Ring 4,0X1,5 MM |
| 115 | 3603414012 | Screw Plug |
| 116 | 3604610029 | Compression Spring |
| 118 | 3604090047 | Working Cylinder 400W |
| 119 | 3600313009 | Power piston |
| 120 | 3600320016 | Guide Sleeve |
| 121 | 1604611004 | Compression Spring |
| 122 | 1603124060 | Pressure Spindle |
| 123 | 3600322004 | Bushing |
| 124 | 3600118007 | Retaining ring |
| 125 | 3600114011 | Stop Disc |
| 2 | 3604090044 | Stator 320-400W |
| 26 | 3606316063 | Cylindrical Gear Z=15 |
| 28 | 3606334055 | Ring Gear Z=42 |
| 3 | 3604220060 | Rotor |
| 31 | 3606316117 | Cylindrical Gear |
| 32 | 3600913006 | Needle-Roller Cage |
| 33 | 3603201047 | Needle Roller |
| 34 | 2600100586 | Shim 0,20 MM |
| 38 | 3606337138 | Planetary-Gear Carrier |
| 41 | 1900905234 | Groove ball bearing 15X35X11 |
| 43 | 3600102021 | Stop Disc |
| 44 | 2600210018 | O-Ring 26,0X1,5 MM |
| 45 | 3605125043 | Gear Housing |
| 46 | 2917760012 | Slotted Spring Pin DIN en ISO 8752 1,5X4 |
| 47 | 3600700033 | Spigot |
| 48 | 3600101036 | Retaining Washer |
| 49 | 3601010010 | Silencer |
| 5 | 3605700076 | Bearing Flange |
| 51 | 3603313001 | Union Nut |
| 52 | 3600118008 | Spring retaining ring |
| 56 | 3603462007 | Fitting |
| 57 | 3600206005 | Sealing disk |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 60 | 3600002006 | Strainer |
| 61 | 3603462000 | Silencer |
| 62 | 3600002005 | Strainer |
| 65 | 1900210112 | O-Ring 15X2 MM |
| 652 | 2603386002 | Hose fitting |
| 655 | 1907959023 | Screwdriver |
| 67 | 3603201048 | Straight Pin |
| 69 | 3604710057 | Straight Pin |
| 703 | 3601923002 | Suspension Loop |
| 74 | 1610210205 | O-Ring 23,0X2,0 MM |
| 75 | 1900210315 | O-Ring 18X2 MM |
| 76 | 1600A00HZ4 | Push-Button |
| 77 | 1600A00HZ5 | Push-Button |
| 78 | 3600210034 | O-Ring 13,0X2,0 MM |
| 79 | 3600313007 | Pilot-Valve Bushing |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 80 | 3600054004 | Sealing Plate |
| 800 | 3607030119 | Assembly Of Service Parts |
| 802 | 3607030113 | Assembly Of Service Parts |
| 804 | 3607030030 | Rotor Lamella 5 Piece |
| 807 | 3607030117 | Assembly Of Service Parts |
| 81 | 3608750024 | Control Piston |
| 82 | 3600390019 | Intermediate Piece |
| 83 | 3604643013 | Compression Spring Green |
| 84 | 3605500046 | Connection cover |
| 85 | 3604610027 | Compression Spring |
| 861 | 3607030112 | Assembly Of Service Parts |
| 868 | 3608750042 | Valve Cone |
| 88 | 3600250002 | Valve Cone |
| 882 | 3607030114 | Assembly Of Service Parts |
| 89 | 3603105003 | Holding Pin |
| 899 | 3605430008 | Oil 1000 Ml |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601110038 | Manufacturer's nameplate |
| 98 | 3600521002 | Screening Ring |
