Bosch SRG/IP-0A35
Bosch SRG/IP-0A35 pulse wrench: exploded parts diagram, 1 sheet, 90 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

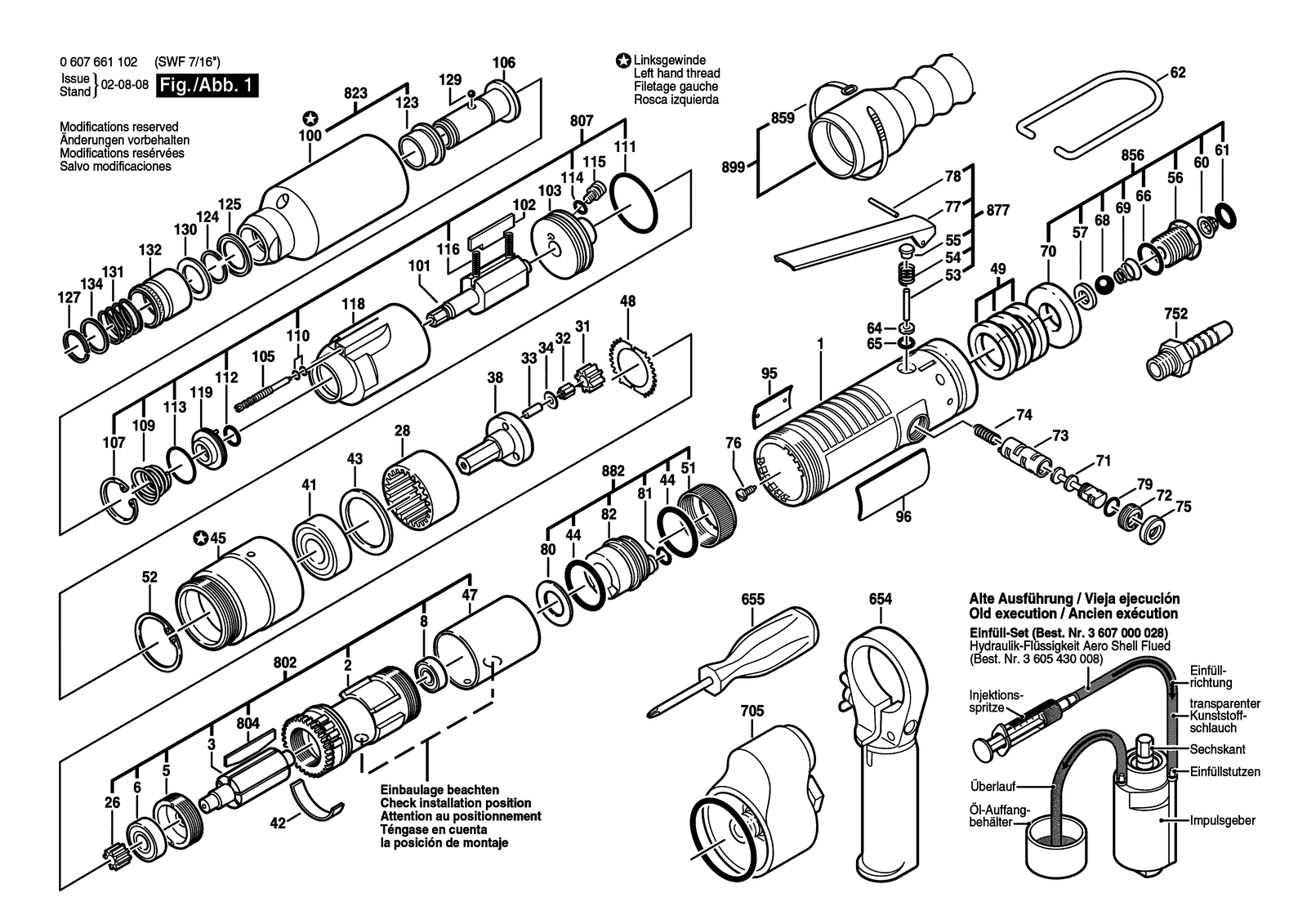

All parts of Bosch SRG/IP-0A35: 90 positions on 1 sheet
Bosch SRG/IP-0A35 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108072 | Motor Housing |
| 100 | 3605125042 | Control Housing |
| 101 | 3604220068 | Rotor |
| 102 | 3601165018 | Rotor Lamella |
| 103 | 3606445036 | Carrier |
| 105 | 3603412002 | Throttle Screw |
| 106 | 3606455034 | Drive Shaft |
| 107 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 109 | 3604643015 | Compression Spring |
| 110 | 3600210045 | O-Ring 2,5X1,0 MM |
| 111 | 3600210046 | O-Ring 34,0X2,5 MM |
| 112 | 1280210725 | O-Ring 10X2 MM |
| 113 | 3600210060 | O-Ring 21,0X1,5 MM |
| 114 | 3600210064 | O-Ring 4,0X1,5 MM |
| 115 | 3603414012 | Screw Plug |
| 116 | 3604610029 | Compression Spring |
| 118 | 3604090047 | Working Cylinder 400W |
| 119 | 3600313009 | Power piston |
| 123 | 3600322004 | Bushing |
| 124 | 3600118007 | Retaining ring |
| 125 | 3600114011 | Stop Disc |
| 127 | 3600224001 | Retaining ring |
| 129 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 130 | 3600101042 | Stop Disc |
| 131 | 3604615001 | Compression Spring |
| 132 | 3600311015 | Clamping Sleeve |
| 134 | 3600101055 | Plain Washer |
| 2 | 3604090044 | Stator 320-400W |
| 26 | 3606316063 | Cylindrical Gear Z=15 |
| 28 | 3606334055 | Ring Gear Z=42 |
| 3 | 3604220060 | Rotor |
| 31 | 3606316117 | Cylindrical Gear |
| 32 | 3600913006 | Needle-Roller Cage |
| 33 | 3603201047 | Needle Roller |
| 34 | 2600100586 | Shim 0,20 MM |
| 38 | 3606337138 | Planetary-Gear Carrier |
| 41 | 1900905234 | Groove ball bearing 15X35X11 |
| 42 | 3601010028 | Non-woven fabric |
| 43 | 3600102021 | Stop Disc |
| 44 | 2600210018 | O-Ring 26,0X1,5 MM |
| 45 | 3605125043 | Gear Housing |
| 47 | 3600700032 | Spigot |
| 48 | 3600101036 | Retaining Washer |
| 49 | 3601010006 | Silencer |
| 5 | 3605700076 | Bearing Flange |
| 51 | 3603313001 | Union Nut |
| 52 | 3600118008 | Spring retaining ring |
| 53 | 3603201050 | Needle Roller |
| 54 | 3604611006 | Compression Spring |
| 55 | 3603132000 | Valve Cone |
| 56 | 3603458008 | Fitting |
| 57 | 3600206006 | Sealing disk |
| 6 | 2600905039 | Groove ball bearing 9X24X7 |
| 60 | 3600002000 | Strainer |
| 61 | 1900210306 | O-Ring 10X2 MM |
| 62 | 3604720004 | Suspension Loop |
| 64 | 2916011006 | Plain Washer DIN 125-A3,2-ST |
| 65 | 2600210007 | O-Ring 2,4X1,9 MM |
| 654 | 3602025009 | Auxiliary Handle |
| 655 | 1907959023 | Screwdriver |
| 66 | 3600210036 | O-Ring 16X1,25 MM |
| 68 | 1903230528 | Ball DIN 5401-9,5MM-III-ST |
| 69 | 3604616008 | Compression Spring |
| 70 | 3600105002 | Silencer |
| 705 | 3607030024 | Air Hose Set |
| 71 | 3608750023 | Control Piston |
| 72 | 3603344023 | Threaded Ring |
| 73 | 3600340005 | Valve Bushing |
| 74 | 3604611006 | Compression Spring |
| 75 | 3600202012 | Retaining snap ring |
| 752 | 2603386002 | Hose fitting |
| 76 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 77 | 3601902001 | Control Lever |
| 78 | 2917700040 | Grooved Pin DIN 1475-2X18-ST |
| 79 | 3600210038 | O-Ring 9,0X1,2 MM |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 80 | 3600054004 | Sealing Plate |
| 802 | 3607030113 | Assembly Of Service Parts |
| 804 | 3607030030 | Rotor Lamella 5 Piece |
| 807 | 3607030117 | Assembly Of Service Parts |
| 81 | 1900210103 | O-Ring 8,0X1,5 MM |
| 82 | 3608750027 | Intermediate Piece |
| 823 | 3607030119 | Assembly Of Service Parts |
| 856 | 3607030033 | Assembly Of Service Parts |
| 859 | 3604710062 | Holding Belt Black |
| 877 | 3607030032 | Control Lever |
| 882 | 3607030057 | Assembly Of Service Parts |
| 899 | 3607000027 | Air Hose |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601110039 | Manufacturer's nameplate |
