Bosch SRG-AK2,9/C

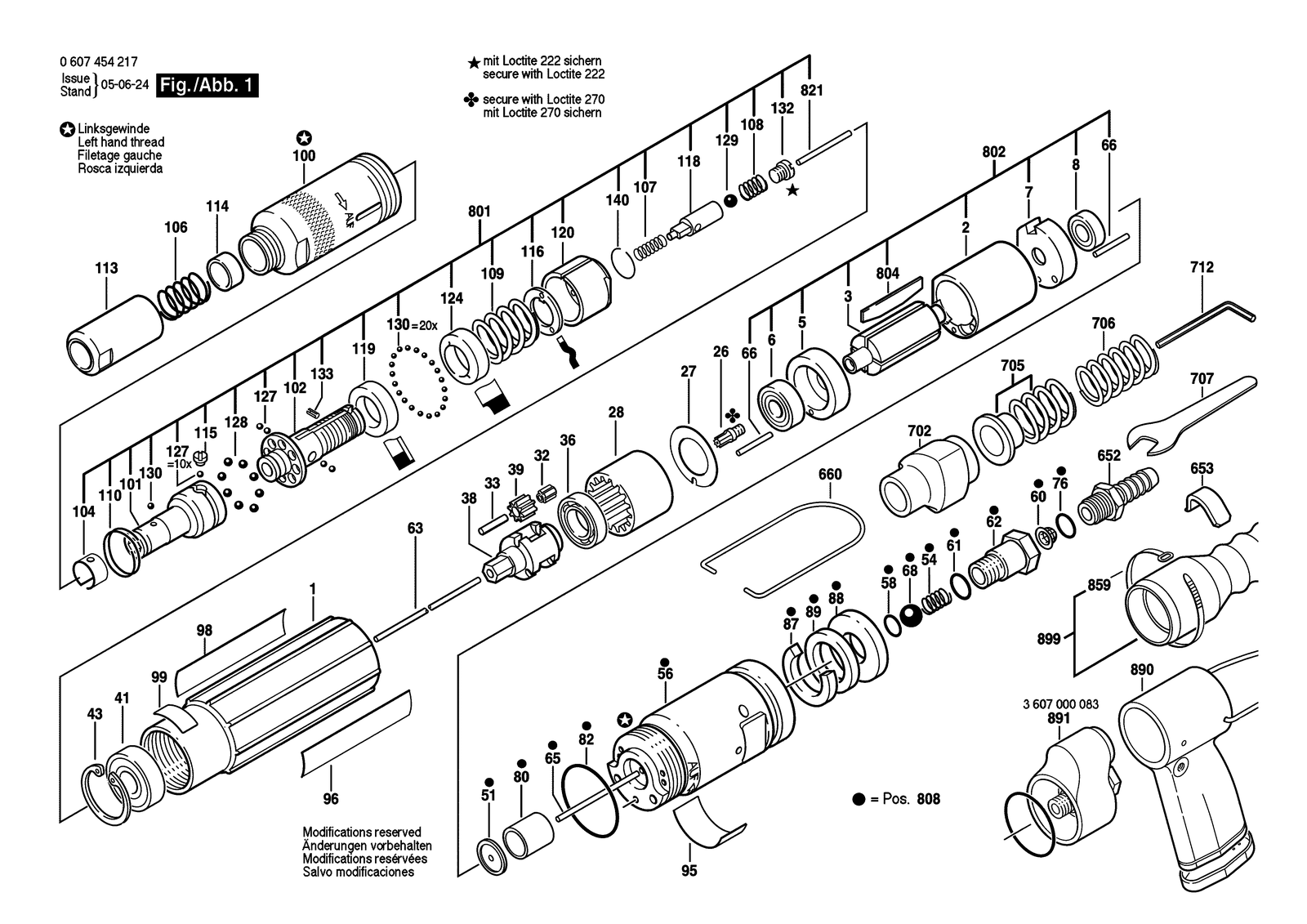

Bosch SRG-AK2,9/C pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SRG-AK2,9/C: 79 positions on 1 sheet
Bosch SRG-AK2,9/C parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3600760096 | Motor Housing |
| 100 | 3605125053 | Housing |
| 101 | 3606445034 | Clutch Element |
| 102 | 3606122012 | Drive Shaft |
| 104 | 3601250002 | Leaf Spring |
| 106 | 3604615004 | Compression Spring |
| 107 | 3604610008 | Compression Spring |
| 108 | 3604610007 | Compression Spring |
| 109 | 3604619007 | Compression Spring Red |
| 110 | 3604603000 | Retaining ring |
| 113 | 3603343000 | Union Nut |
| 114 | 3600300001 | Bushing |
| 115 | 3600001003 | Sealing plate |
| 116 | 3600134002 | Adjusting Disc |
| 118 | 3603150201 | Locking Bolt |
| 119 | 3600114007 | Support Disc |
| 120 | 3603340003 | Round Nut |
| 124 | 3600114005 | Coupling Plate |
| 127 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 128 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 129 | 1903230009 | Ball DIN 5401-5 G28 |
| 130 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 132 | 3603463001 | Screw Plug |
| 133 | 2917800012 | Coiled Spring Pin DIN 7343-1,5X4 |
| 140 | 2916600006 | Retaining ring 10 DIN 9045 |
| 2 | 3604090058 | Stator 120W |
| 26 | 3606300180 | Pinion |
| 27 | 3600101008 | Stop Disc |
| 28 | 3606334084 | Ring Gear |
| 3 | 3604220087 | Rotor |
| 32 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 33 | 3603201000 | Needle Roller |
| 36 | 3600905002 | Groove ball bearing 12X21X5 |
| 38 | 3606337178 | Planetary-Gear Carrier |
| 39 | 3606316104 | Cylindrical Gear |
| 41 | 3600905023 | Groove ball bearing |
| 43 | 3600118006 | Spring retaining ring |
| 5 | 3605700111 | Bearing Flange |
| 51 | 3600100065 | Cover Disc |
| 54 | 3604611017 | Compression Spring |
| 56 | 3605190181 | Valve Housing |
| 58 | 3600210084 | O-Ring 4,3X2,4 MM |
| 6 | 1900905044 | Groove ball bearing 7X19X6 |
| 60 | 3600002000 | Strainer |
| 61 | 2600210021 | O-Ring 9,0X1,5 MM |
| 62 | 3603458016 | Fitting |
| 63 | 3603201070 | Straight Pin L=62 MM |
| 65 | 3603201026 | Straight Pin |
| 652 | 3603386066 | Hose fitting |
| 653 | 3601329007 | Angle Piece |
| 66 | 3604710044 | Straight Pin |
| 660 | 2604720004 | Suspension Loop |
| 68 | 1903230014 | Ball DIN 5401-8 MM Iii-St |
| 7 | 3605700113 | Bearing Flange |
| 702 | 3600499002 | Handle |
| 705 | 3607031085 | Clutch Element |
| 706 | 3604618007 | Compression Spring Yellow |
| 707 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 712 | 3607950001 | Hexagon-Socket Key |
| 76 | 3600210094 | O-Ring |
| 8 | 1900905030 | Groove ball bearing 7X14X5 |
| 80 | 3600313012 | Sleeve |
| 801 | 3607031120 | Cutoff Coupling Sp Set |
| 802 | 3607031302 | Assembly Of Service Parts |
| 804 | 3607031305 | Assembly Of Service Parts 4 Piece |
| 808 | 3607031426 | Assembly Of Service Parts |
| 82 | 3600210056 | O-Ring 26,0X1,0 MM |
| 821 | 3607031086 | Assembly Of Service Parts |
| 859 | 3604710062 | Holding Belt Black |
| 87 | 3601010010 | Silencer |
| 88 | 3601010037 | Silencer |
| 89 | 3601010044 | Silencer |
| 890 | 3607031352 | Auxiliary Handle |
| 891 | 3607000083 | Air Hose |
| 899 | 3607000064 | Air Hose |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601119055 | Manufacturer's nameplate |
| 98 | 3601110204 | Sticker |
| 99 | 3601119236 | Reference Plate |
