Bosch SRG-AK13NM

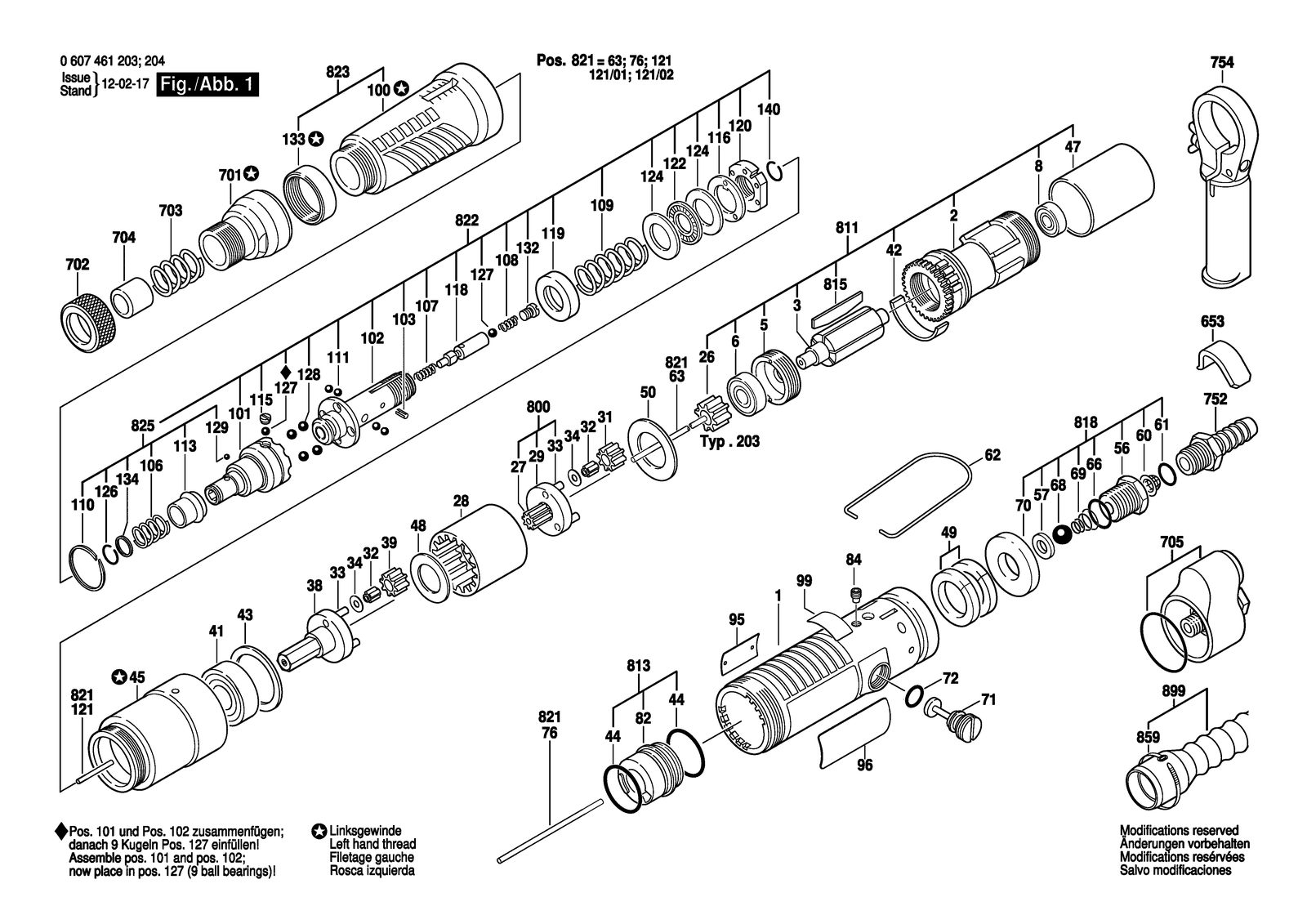

Bosch SRG-AK13NM pn-screwdriver - ind.: exploded parts diagram, 1 sheet, 177 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch SRG-AK13NM: 177 positions on 1 sheet
Bosch SRG-AK13NM parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108071 | Motor Housing |
| 1 | 3605108071 | Motor Housing |
| 100 | 3605125035 | Housing |
| 100 | 3605125035 | Housing |
| 101 | 3606445032 | Clutch Element |
| 101 | 3606445032 | Clutch Element |
| 102 | 3606122008 | Drive Shaft |
| 102 | 3606122008 | Drive Shaft |
| 103 | 2917800033 | Coiled Spring Pin DIN 7343-2X5 |
| 103 | 2917800033 | Coiled Spring Pin DIN 7343-2X5 |
| 106 | 3604615009 | Compression Spring |
| 106 | 3604615009 | Compression Spring |
| 107 | 3604610003 | Compression Spring |
| 107 | 3604610003 | Compression Spring |
| 108 | 3604610002 | Compression Spring |
| 108 | 3604610002 | Compression Spring |
| 109 | 3604619000 | Compression Spring Ø 4 MM |
| 109 | 3604619004 | Compression Spring |
| 110 | 3604601001 | Retaining ring |
| 110 | 3604601001 | Retaining ring |
| 111 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 111 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 113 | 3600422005 | Clamping Sleeve |
| 113 | 3600422005 | Clamping Sleeve |
| 115 | 3609992353 | Sealing plate |
| 115 | 3609992353 | Sealing plate |
| 116 | 3600134000 | Adjusting Disc |
| 116 | 3600134000 | Adjusting Disc |
| 118 | 3603150203 | Locking Bolt |
| 118 | 3603150203 | Locking Bolt |
| 119 | 3600114001 | Coupling Plate |
| 119 | 3600114001 | Coupling Plate |
| 120 | 3603301004 | Round Nut |
| 120 | 3603301004 | Round Nut |
| 121 | 3607031087 | Assembly Of Service Parts |
| 121 | 3603201002 | Straight Pin 35,3 MM |
| 122 | 3600921000 | Roller Thrust Bearing |
| 122 | 3600921000 | Roller Thrust Bearing |
| 124 | 3600101002 | Support Disc |
| 124 | 3600101002 | Support Disc |
| 126 | 3600224006 | Retaining ring |
| 126 | 3600224006 | Retaining ring |
| 127 | 1903230009 | Ball DIN 5401-5 G28 |
| 127 | 1903230009 | Ball DIN 5401-5 G28 |
| 128 | 1903230011 | Ball DIN 5401-6 G28 |
| 128 | 1903230011 | Ball DIN 5401-6 G28 |
| 129 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 129 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 132 | 3603463000 | Screw Plug |
| 132 | 3603463000 | Screw Plug |
| 133 | 3603340019 | Knurled Nut |
| 133 | 3603340019 | Knurled Nut |
| 134 | 3600101039 | Stop Disc Ø11,15XØ12,85 MM |
| 134 | 3600101039 | Stop Disc Ø11,15XØ12,85 MM |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 140 | 2916600008 | Retaining ring 14 DIN 9045 |
| 2 | 3604090046 | Stator 400W |
| 2 | 3604090046 | Stator 400W |
| 26 | 3606316063 | Cylindrical Gear Z=15 |
| 27 | 3606300071 | Pinion Z=12 |
| 27 | 3606300071 | Pinion Z=12 |
| 28 | 3606334054 | Ring Gear Z=42 |
| 28 | 3606334054 | Ring Gear Z=42 |
| 29 | 3606337113 | Carrier |
| 29 | 3606337115 | Carrier |
| 3 | 3604220064 | Rotor |
| 3 | 3604220063 | Rotor |
| 31 | 3606316117 | Cylindrical Gear |
| 31 | 3606316110 | Cylindrical Gear |
| 32 | 3600913006 | Needle-Roller Cage |
| 32 | 3600913006 | Needle-Roller Cage |
| 33 | 3603201047 | Needle Roller |
| 33 | 3603201047 | Needle Roller |
| 34 | 2600100586 | Shim 0,20 MM |
| 34 | 2600100586 | Shim 0,20 MM |
| 38 | 3606337118 | Planetary-Gear Carrier |
| 38 | 3606337118 | Planetary-Gear Carrier |
| 39 | 3606316116 | Cylindrical Gear |
| 39 | 3606316116 | Cylindrical Gear |
| 41 | 3600905045 | Groove ball bearing |
| 41 | 3600905045 | Groove ball bearing |
| 42 | 3601010028 | Non-woven fabric |
| 42 | 3601010028 | Non-woven fabric |
| 43 | 3600102021 | Stop Disc |
| 43 | 3600102021 | Stop Disc |
| 44 | 2600210018 | O-Ring 26,0X1,5 MM |
| 44 | 2600210018 | O-Ring 26,0X1,5 MM |
| 45 | 3605125038 | Gear Housing |
| 45 | 3605125038 | Gear Housing |
| 47 | 3600700032 | Spigot |
| 47 | 3600700032 | Spigot |
| 48 | 3600101040 | Stop Disc |
| 48 | 3600101040 | Stop Disc |
| 49 | 3601010006 | Silencer |
| 49 | 3601010006 | Silencer |
| 5 | 3605700076 | Bearing Flange |
| 5 | 3605700076 | Bearing Flange |
| 50 | 3600101036 | Retaining Washer |
| 50 | 3600101036 | Retaining Washer |
| 56 | 3603458008 | Fitting |
| 56 | 3603458008 | Fitting |
| 57 | 3600206006 | Sealing disk |
| 57 | 3600206006 | Sealing disk |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 6 | 3600905039 | Groove ball bearing 9X24X7 MM |
| 60 | 3600002000 | Strainer |
| 60 | 3600002000 | Strainer |
| 61 | 1900210306 | O-Ring 10X2 MM |
| 61 | 1900210306 | O-Ring 10X2 MM |
| 62 | 3604720004 | Suspension Loop |
| 62 | 3604720004 | Suspension Loop |
| 63 | 3604710055 | Straight Pin |
| 63 | 3604710055 | Straight Pin |
| 653 | 3601329007 | Angle Piece |
| 653 | 3601329007 | Angle Piece |
| 66 | 3600210036 | O-Ring 16X1,25 MM |
| 66 | 3600210036 | O-Ring 16X1,25 MM |
| 68 | 1903230528 | Ball DIN 5401-9,5MM-III-ST |
| 68 | 1903230528 | Ball DIN 5401-9,5MM-III-ST |
| 69 | 3604616008 | Compression Spring |
| 69 | 3604616008 | Compression Spring |
| 70 | 3600105002 | Silencer |
| 70 | 3600105002 | Silencer |
| 701 | 3600508014 | Screw Cap |
| 701 | 3600508014 | Screw Cap |
| 702 | 3603313002 | Union Nut |
| 702 | 3603313002 | Union Nut |
| 703 | 3604615000 | Compression Spring |
| 703 | 3604615000 | Compression Spring |
| 704 | 3600329000 | Guide Sleeve |
| 704 | 3600329000 | Guide Sleeve |
| 705 | 3607030024 | Air Hose Set |
| 705 | 3607030024 | Air Hose Set |
| 71 | 3608750032 | Valve piston |
| 71 | 3608750032 | Valve piston |
| 72 | 1900210307 | O-Ring |
| 72 | 1900210307 | O-Ring |
| 752 | 2603386002 | Hose fitting |
| 752 | 2603386002 | Hose fitting |
| 754 | 3602025009 | Auxiliary Handle |
| 754 | 3602025009 | Auxiliary Handle |
| 76 | 3604710051 | Straight Pin |
| 76 | 3604710051 | Straight Pin |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 8 | 1900905028 | Groove ball bearing 7X17X5 |
| 800 | 3606337110 | Planetary-Gear Carrier |
| 800 | 3606337111 | Planetary-Gear Carrier |
| 811 | 3607030078 | Assembly Of Service Parts |
| 811 | 3607030080 | Assembly Of Service Parts |
| 813 | 3607030028 | Assembly Of Service Parts |
| 813 | 3607030028 | Assembly Of Service Parts |
| 815 | 3607030030 | Rotor Lamella 5 Piece |
| 815 | 3607030030 | Rotor Lamella 5 Piece |
| 818 | 3607030033 | Assembly Of Service Parts |
| 818 | 3607030033 | Assembly Of Service Parts |
| 82 | 3608750027 | Intermediate Piece |
| 82 | 3608750027 | Intermediate Piece |
| 821 | 3607030059 | Assembly Of Service Parts |
| 821 | 3607030059 | Assembly Of Service Parts |
| 822 | 3607030079 | Assembly Of Service Parts |
| 822 | 3607030081 | Assembly Of Service Parts |
| 823 | 3607030062 | Assembly Of Service Parts |
| 823 | 3607030062 | Assembly Of Service Parts |
| 825 | 3607030064 | Assembly Of Service Parts |
| 825 | 3607030064 | Assembly Of Service Parts |
| 84 | 2912041147 | Set screw M 5X5-DIN 913-45H |
| 84 | 2912041147 | Set screw M 5X5-DIN 913-45H |
| 859 | 3604710062 | Holding Belt Black |
| 859 | 3604710062 | Holding Belt Black |
| 899 | 3607000027 | Air Hose |
| 899 | 3607000027 | Air Hose |
| 95 | 160111A3HF | Nameplate |
| 95 | 160111A3HF | Nameplate |
| 96 | 3601110039 | Manufacturer's nameplate |
| 96 | 3601110039 | Manufacturer's nameplate |
| 99 | 3601119236 | Reference Plate |
| 99 | 3601119236 | Reference Plate |
