Makita SR1800
Makita SR1800: exploded parts diagram, 1 sheet, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita SR1800: 69 positions on 1 sheet

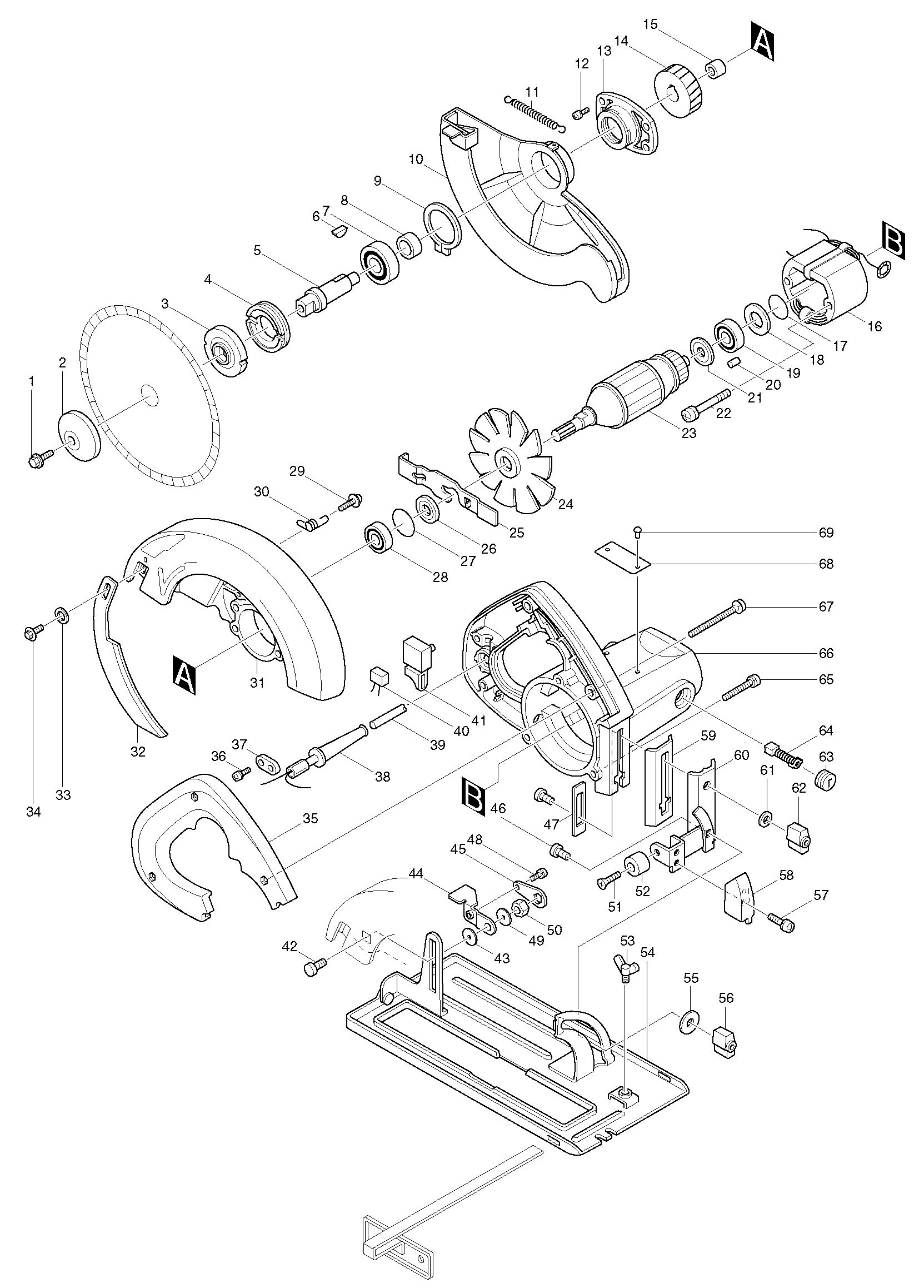

Sheet 1: Makita SR1800 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
| 2 | 224011-3 | Makita 224011-3 OUTER FLANGE 45 |
| 3 | 224224-6 | Makita 224224-6 INNER FLANGE 45 SR1600 |
| 4 | 285802-7 | Makita 285802-7 BEARING RETAINER 19-33 |
| 5 | 325079-3 | Makita 325079-3 SPINDLE |
| 6 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 7 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 8 | 257012-6 | |
| 9 | 961155-5 | Makita 961155-5 RETAINING PIN S-38, 5806B |
| 10 | 164886-7 | Makita 164886-7 SAFETY COVER |
| 11 | 231730-4 | Makita 231730-4 TENSION SPRING 4 |
| 12 | 911126-2 | Makita 911126-2 PAN HEAD SCREW M4X16, 5900B |
| 13 | 315313-9 | Makita 315313-9 BEARING BOX |
| 14 | 221685-1 | Makita 221685-1 HELICAL GEAR 51 |
| 15 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 16 | 522523-3 | Makita 522523-3 FIELD ASS Y 220V |
| 17 | 213255-0 | Makita 213255-0 O RING 18 4101RH |
| 18 | 253192-6 | Makita 253192-6 FLAT WASHER 14, 4100NH |
| 19 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 20 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 21 | 681613-2 | Makita 681613-2 INSULATION WASHER |
| 22 | 911285-2 | Makita 911285-2 PAN HEAD SCREW M5X60 |
| 23 | 512733-0 | Makita 512733-0 ARMATURE ASS'Y 220V |
| 24 | 241091-4 | Makita 241091-4 FAN 86 SR1600 |
| 25 | 341699-5 | Makita 341699-5 SPINDLE LOCK |
| 26 | 253769-7 | Makita 253769-7 FLAT WASHER 10 |
| 27 | 213406-5 | Makita 213406-5 O RING 30, HR2810 |
| 28 | 211066-7 | Makita 211066-7 BALL BEARING 6200LLB, BO4510 |
| 29 | 911124-6 | Makita 911124-6 PAN HEAD SCREW M4X14 |
| 30 | 231549-1 | Makita 231549-1 TORSION SPRING 6 |
| 31 | 154369-5 | Makita 154369-5 BLADE CASE COMPLETE |
| 32 | 341701-4 | Makita 341701-4 RIVING KNIFE |
| 33 | 257078-6 | Makita 257078-6 RING 6 |
| 34 | 265251-4 | |
| 35 | 411833-2 | Makita 411833-2 HANDLE COVER |
| 36 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 37 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 38 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 39 | 665516-8 | Makita 665516-8 POWER SUPPLY CORD 1.00-2- |
| 40 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 41 | 651252-2 | Makita 651252-2 Switch for 1900 1923H 1911B 4101RH 4200H 4200NH 4100 |
| 42 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 43 | 253819-8 | |
| 44 | 341717-9 | Makita 341717-9 LEVER PLATE |
| 45 | 341718-7 | Makita 341718-7 LOCK PLATE |
| 46 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 47 | 343809-0 | Makita 343809-0 PLATE |
| 48 | 911101-8 | Makita 911101-8 PAN HEAD SCREW M4X6 |
| 49 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 50 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 51 | 251288-7 | Makita 251288-7 + COUNTERSUNK HEAD SCREW M5X20 |
| 52 | 262502-6 | |
| 53 | 924201-5 | Makita 924201-5 WING BOLT M5X8 |
| 54 | 168083-7 | Makita 168083-7 BASE |
| 55 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 56 | 252624-0 | Makita 252624-0 WING NUT, 5740NB |
| 57 | 911106-8 | Makita 911106-8 PAN HEAD SCREW M4X8, 5007NB |
| 58 | 341702-2 | Makita 341702-2 FRONT GUARD |
| 59 | 343861-8 | Makita 343861-8 SLIDE PLATE |
| 60 | 164560-7 | Makita 164560-7 ANGULAR PLATE |
| 61 | 257078-6 | Makita 257078-6 RING 6 |
| 62 | 252624-0 | Makita 252624-0 WING NUT, 5740NB |
| 63 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 64 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 65 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 66 | 156778-4 | Makita 156778-4 MOTOR HOUSING |
| 67 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 68 | 854251-5 | Makita 854251-5 NAME PLATE SR1800 |
| 69 | 953101-2 | Makita 953101-2 RIVET 0-3 |
