Makita SR1600
Makita SR1600: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita SR1600: 71 positions on 1 sheet

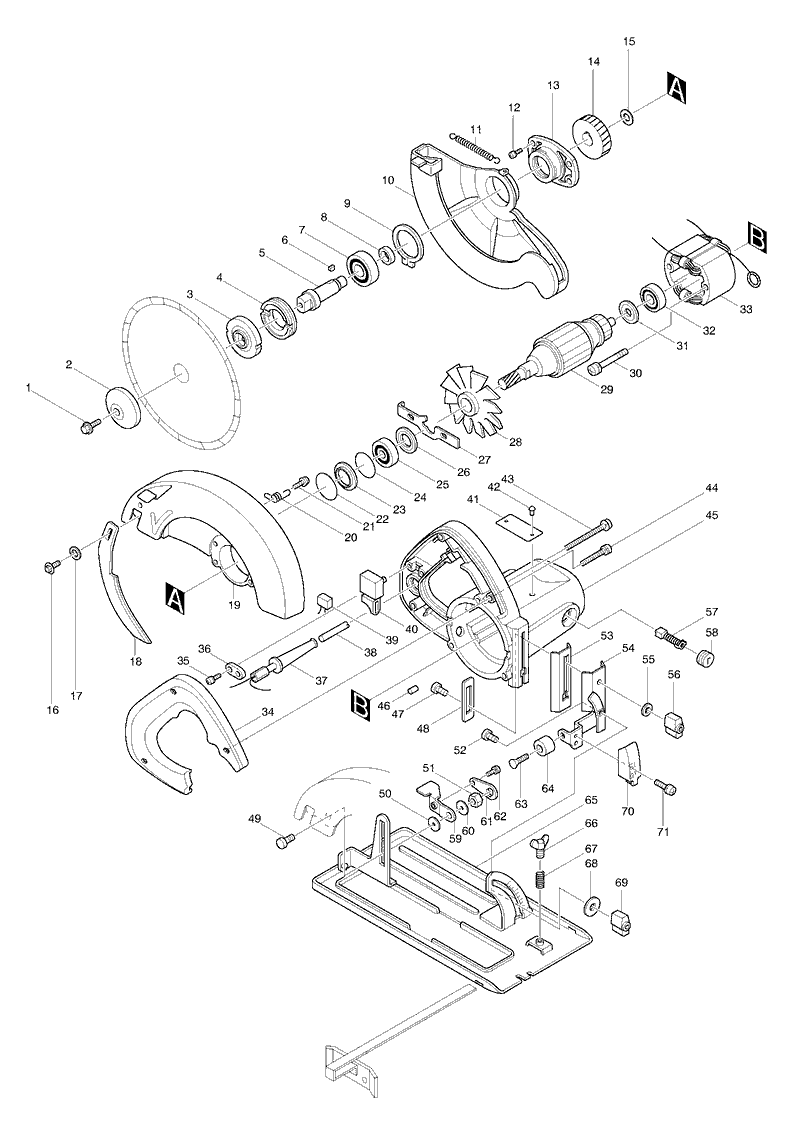

Sheet 1: Makita SR1600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
| 2 | 224011-3 | Makita 224011-3 OUTER FLANGE 45 |
| 3 | 224224-6 | Makita 224224-6 INNER FLANGE 45 SR1600 |
| 4 | 285802-7 | Makita 285802-7 BEARING RETAINER 19-33 |
| 5 | 325239-7 | |
| 6 | 254011-9 | Makita 254011-9 WOOD RUFF KEY 4, GA7011C |
| 7 | 211106-1 | Makita 211106-1 Ball Bearing 6201LLB, 9035 |
| 8 | 257010-0 | Makita 257010-0 RING 12, JS1300 |
| 9 | 961155-5 | Makita 961155-5 RETAINING PIN S-38, 5806B |
| 10 | 164885-9 | Makita 164885-9 SAFETY COVER |
| 11 | 231730-4 | Makita 231730-4 TENSION SPRING 4 |
| 12 | 911126-2 | Makita 911126-2 PAN HEAD SCREW M4X16, 5900B |
| 13 | 315313-9 | Makita 315313-9 BEARING BOX |
| 14 | 221697-4 | |
| 15 | 961016-9 | Makita 961016-9 STOP RING E-10 JR180D |
| 16 | 265251-4 | |
| 17 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 18 | 341779-7 | Makita 341779-7 RIVING KNIFE |
| 19 | 154405-7 | |
| 20 | 231549-1 | Makita 231549-1 TORSION SPRING 6 |
| 21 | 911119-9 | Makita 911119-9 PAN HEAD SCREW M4X12 |
| 22 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 23 | 343295-5 | Makita 343295-5 WASHER 19 |
| 24 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 25 | 211056-0 | Makita 211056-0 BALL BEARING 629LLB |
| 26 | 253768-9 | Makita 253768-9 FLAT WASHER 9 |
| 27 | 341778-9 | Makita 341778-9 SPINDLE LOCK |
| 28 | 241102-5 | Makita 241102-5 FAN 86 |
| 29 | 512753-4 | Makita 512753-4 ARMATURE ASS'Y 220V |
| 30 | 911280-2 | Makita 911280-2 PAN HEAD SCREW M5X55 |
| 31 | 681625-5 | Makita 681625-5 INSULATION WASHER, 9523B |
| 32 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 33 | 522548-7 | Makita 522548-7 FIELD ASS'Y 220V |
| 34 | 411912-6 | Makita 411912-6 HANDLE COVER SR1600 |
| 35 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 36 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 37 | 665016-8 | Makita 665016-8 POWER SUPPLY CORD 1.00-2- |
| 38 | 682504-0 | Makita 682504-0 CORD GUARD 10-85, 5606B |
| 39 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 40 | 651252-2 | Makita 651252-2 Switch for 1900 1923H 1911B 4101RH 4200H 4200NH 4100 |
| 41 | 854440-2 | Makita 854440-2 NAME PLATE SR1600 |
| 42 | 953101-2 | Makita 953101-2 RIVET 0-3 |
| 43 | 911268-2 | Makita 911268-2 PAN HEAD SCREW M5X45 WR, 5806B |
| 44 | 911153-9 | Makita 911153-9 PAN HEAD SCREW M4X28 |
| 45 | 156820-1 | Makita 156820-1 MOTOR HOUSING |
| 46 | 263014-2 | Makita 263014-2 RUBBER PIN 4, 3703 |
| 47 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 48 | 343809-0 | Makita 343809-0 PLATE |
| 49 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 50 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 51 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 52 | 251919-8 | Makita 251919-8 F.H. SQUARE NECK BOLT M6*20, N5900B |
| 53 | 343859-5 | Makita 343859-5 DEPTH PLATE |
| 54 | 164583-5 | Makita 164583-5 ANGULAR PLATE |
| 55 | 257078-6 | Makita 257078-6 RING 6 |
| 56 | 252624-0 | Makita 252624-0 WING NUT, 5740NB |
| 57 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 58 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 59 | 341717-9 | Makita 341717-9 LEVER PLATE |
| 60 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 61 | 341718-7 | Makita 341718-7 LOCK PLATE |
| 62 | 911101-8 | Makita 911101-8 PAN HEAD SCREW M4X6 |
| 63 | 251227-7 | |
| 64 | 262502-6 | |
| 65 | 168090-0 | |
| 66 | 924316-8 | Makita 924316-8 WING BOLT M6X15, 5806B |
| 67 | 231316-4 | Makita 231316-4 COMPRESSION SPRING 7 |
| 68 | 253819-8 | |
| 69 | 252624-0 | Makita 252624-0 WING NUT, 5740NB |
| 70 | 341777-1 | Makita 341777-1 FRONT GUIDE |
| 71 | 911106-8 | Makita 911106-8 PAN HEAD SCREW M4X8, 5007NB |
